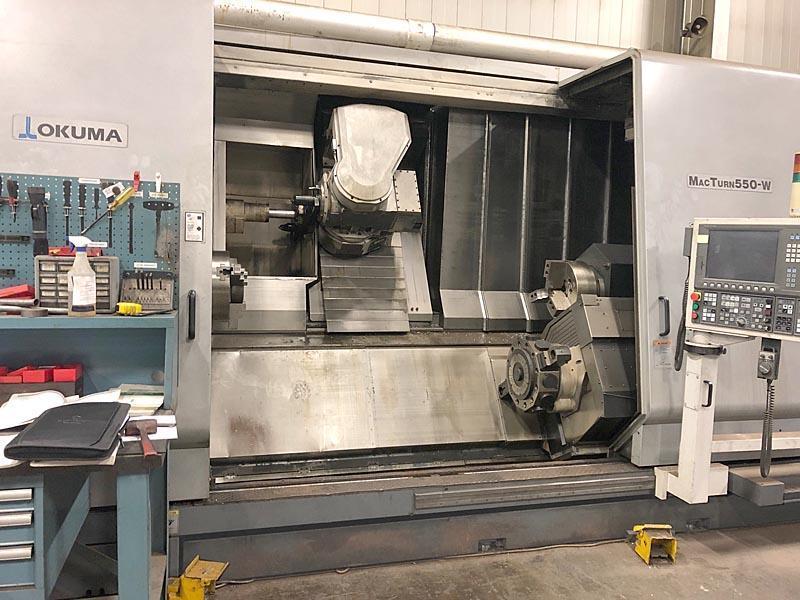

Okuma MacTurn 550W CNC Horizontal Lathe For Sale - 2008

Stock

MC17035

Model

MacTurn 550W

Dealer Location

Michigan

Spec Sheet

CNC Control - yes
Type of CNC Control - OSP-P200LA
Chuck Size - 15 inches
Swing - 28.35 inches
Turning Diameter - 28.35 inches
Center Distance - 88 inches
Bar Capacity - 4.5 inches
X Axis Travel - 25.98 inches
X2 Travel - 9.06 inches
Z Axis Travel - 87.20 inches
Z2 Travel - 82 inches
Y-Axis Travel - 9.84"
C1/C2 Axis Index - 0.001°
B Axis Head Tilt - 210° Degrees
Y Axis - yes
Spindle Nose - A2-11
Spindle Speed - 3,000 rpm
Main Motor - 40 hp
Live Tooling - yes
Live Tooling Spindle Taper - BT 50
Live Tooling Motor - 30 hp - Milling Spindle
Tailstock (Yes/No) - yes
Turret Capacity - 12
ATC Capacity - 50 Stations for Milling Spindle
Weight - 60000 pounds

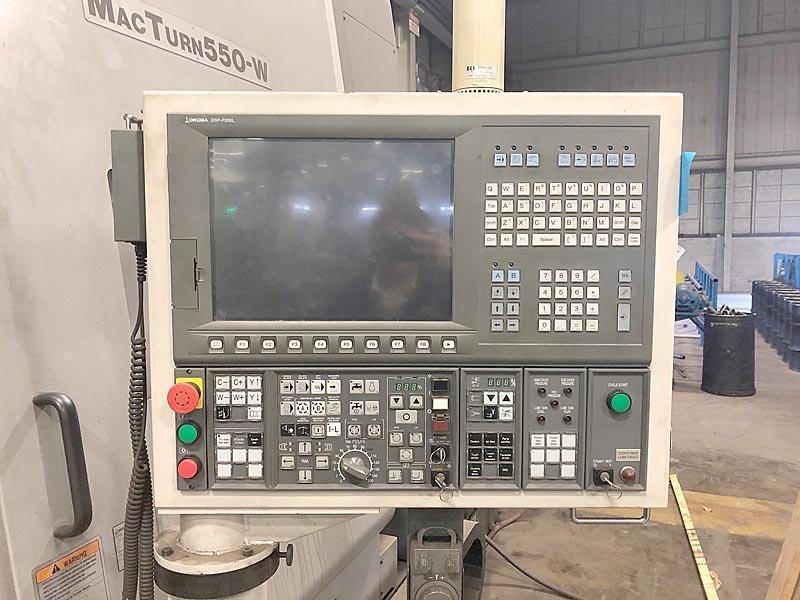

- OSP-P200LA CNC Control
- (2) 15" Chucks
- Synchro Tapping
- Tool Setter
- Oil Chiller
- Chip Conveyor
- Coolant Tank
- Multi-Tasking CNC Lathe
- Mill/Turn CNC Lathe
