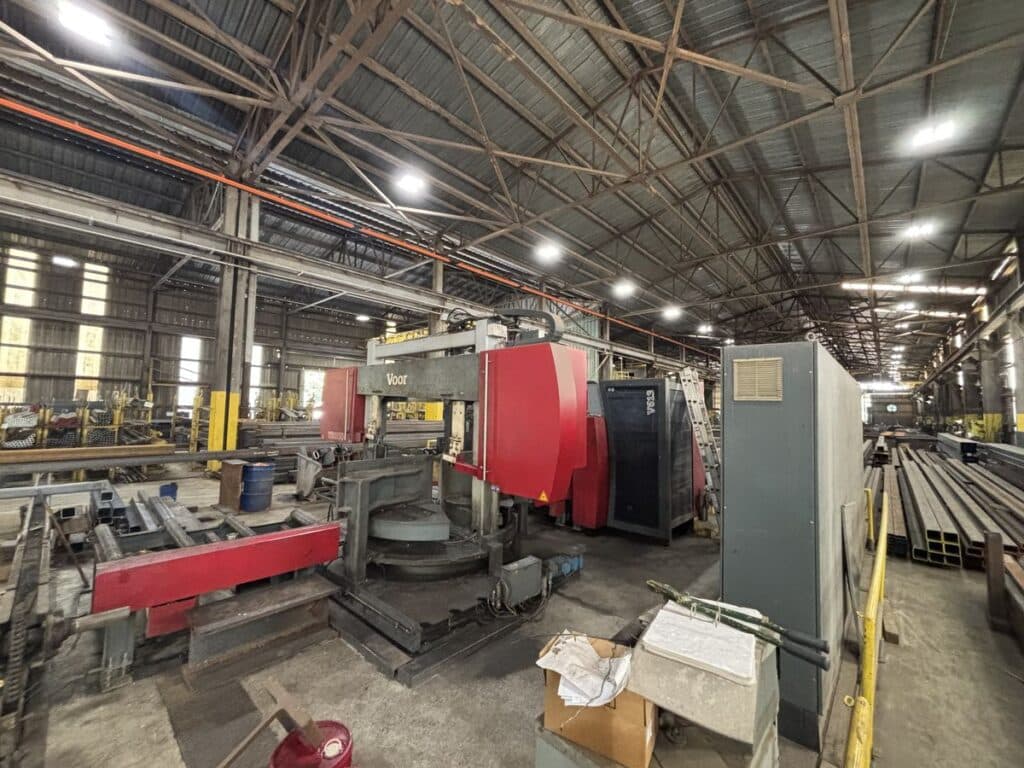

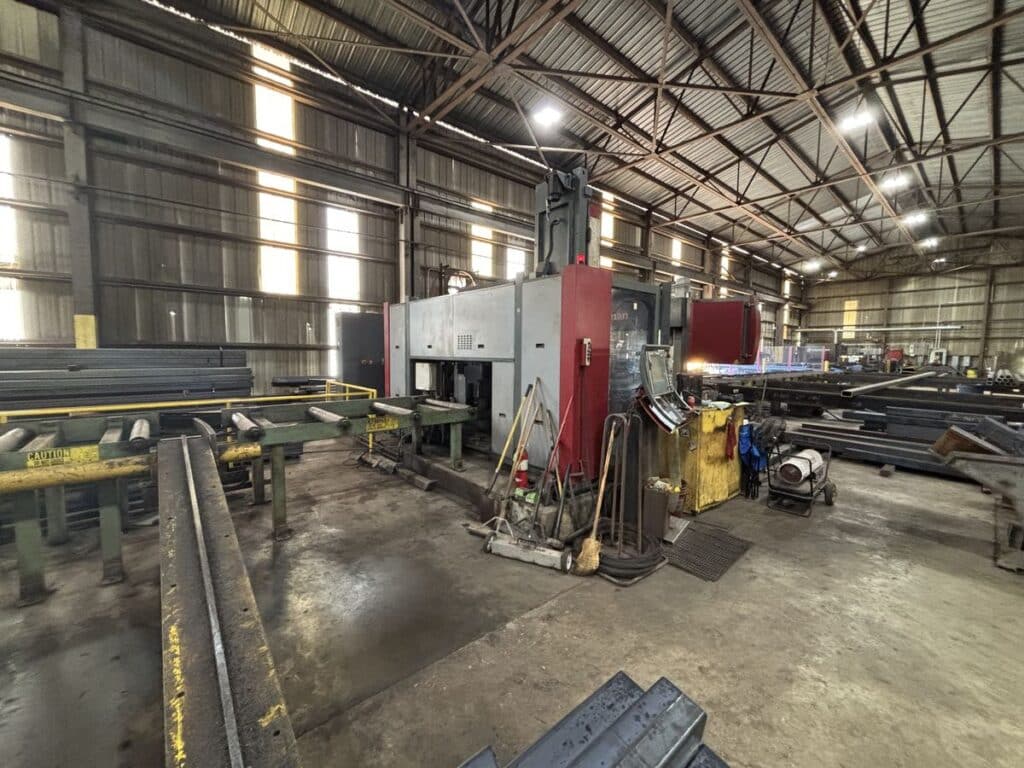

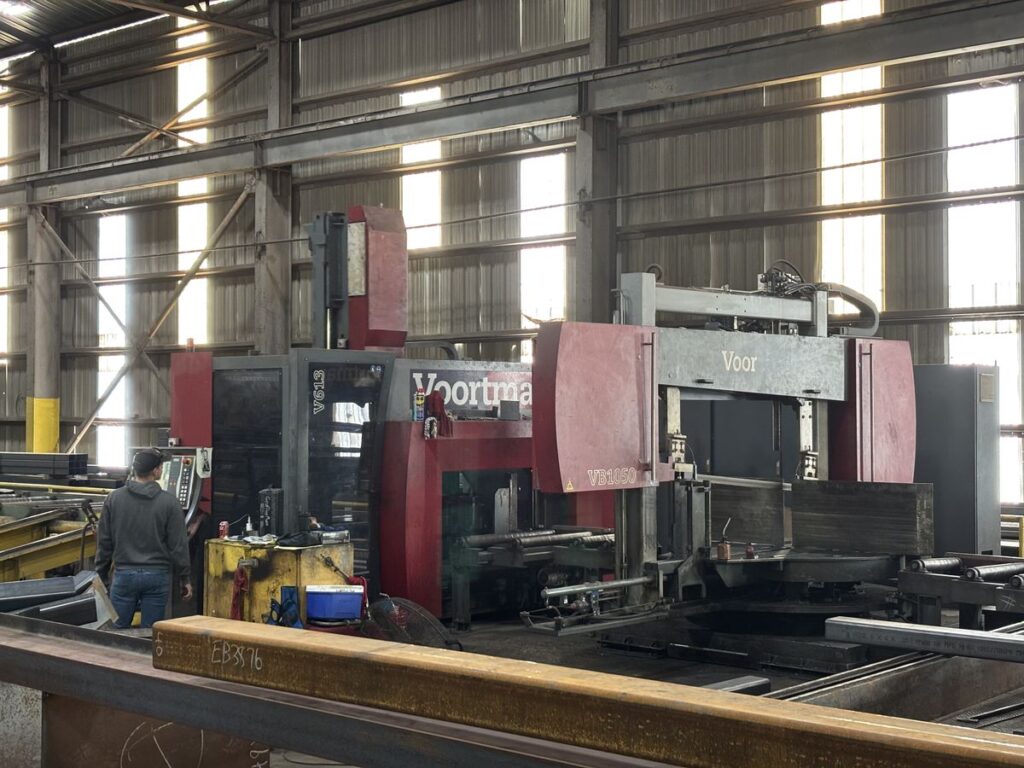

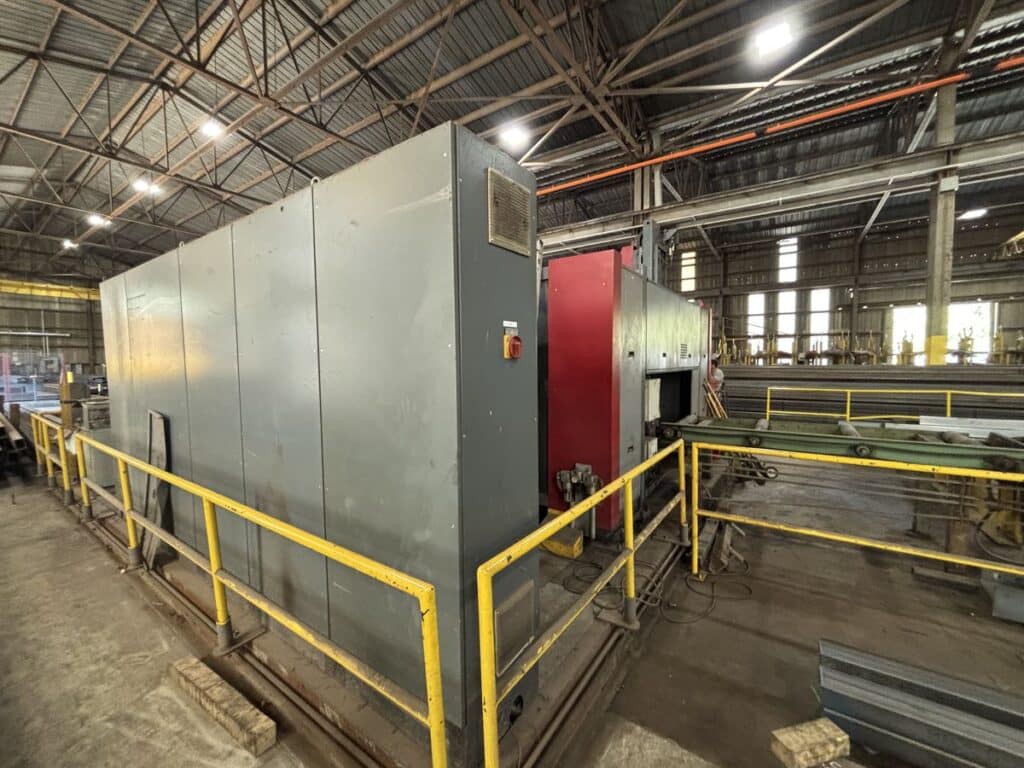

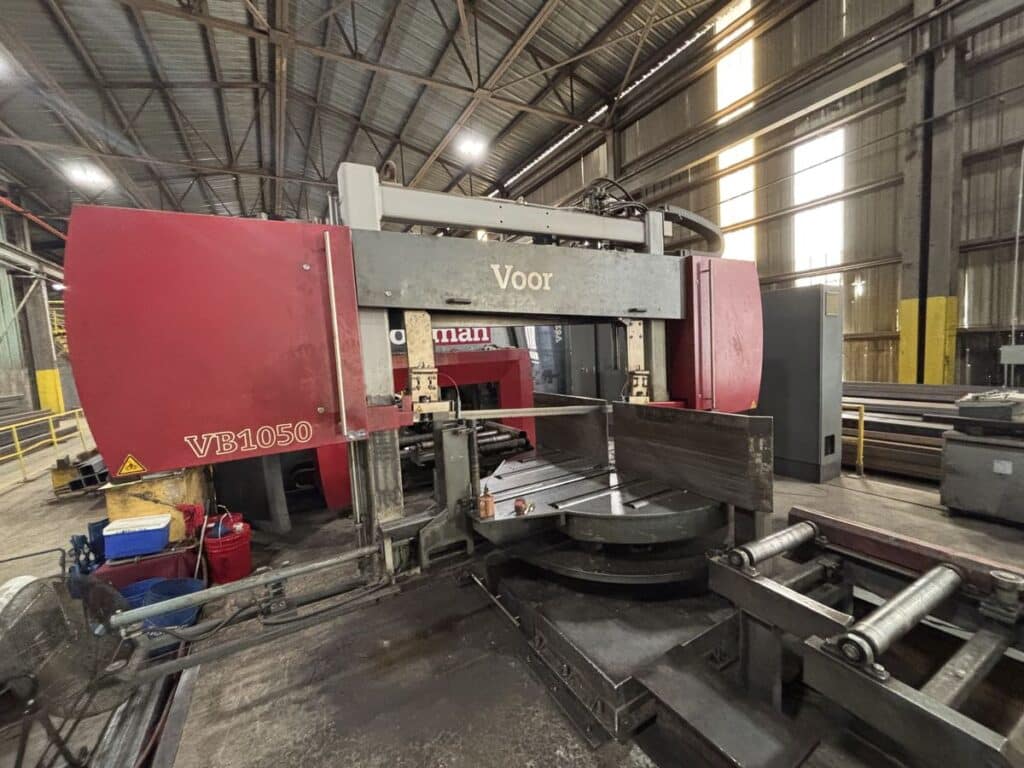

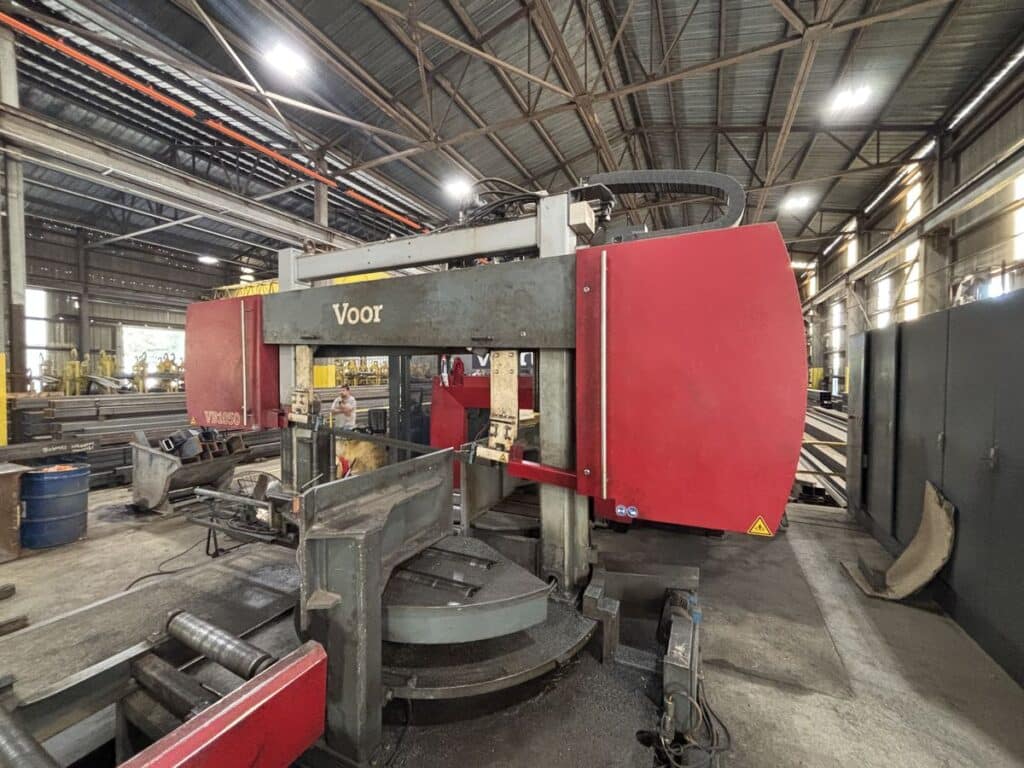

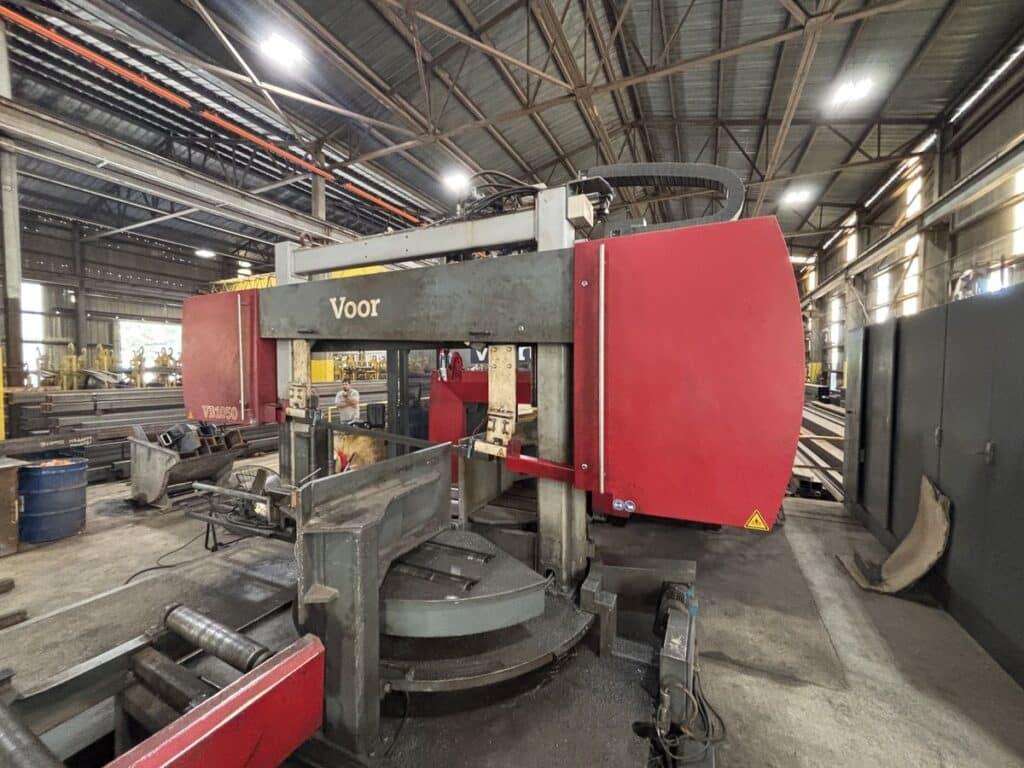

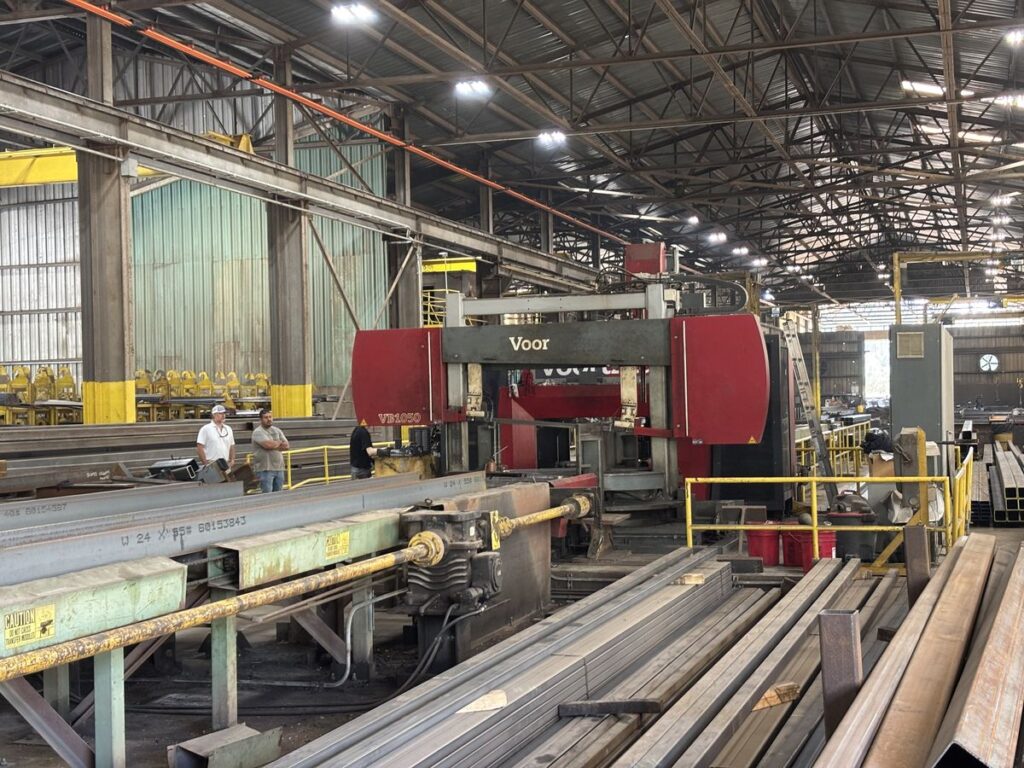

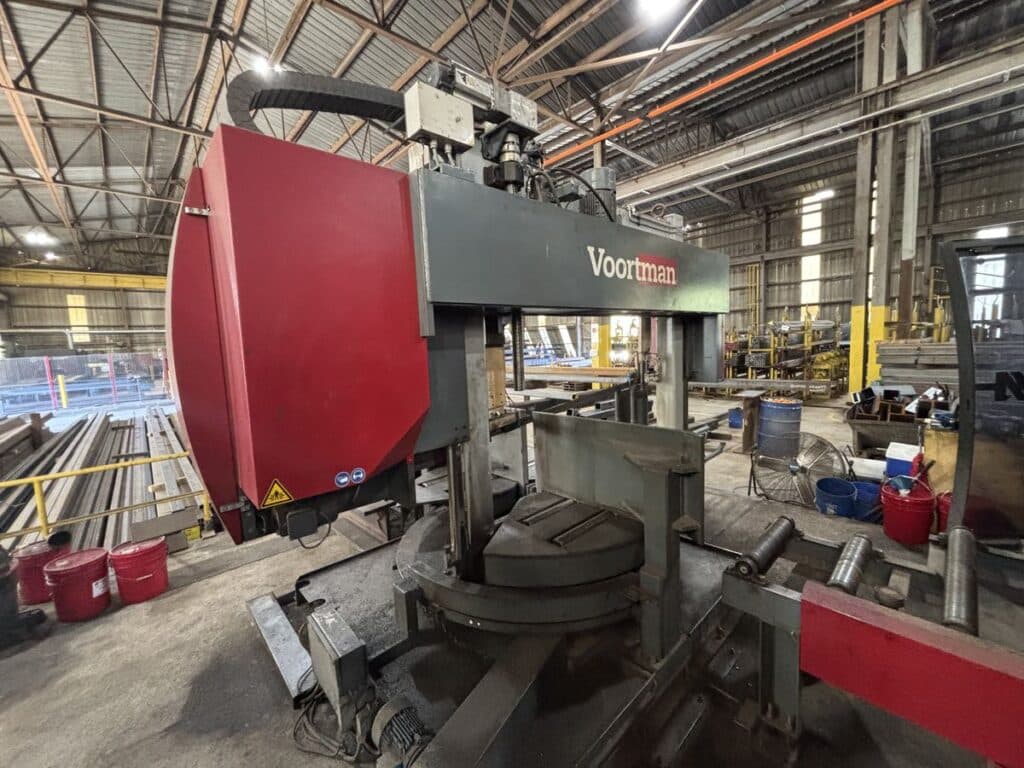

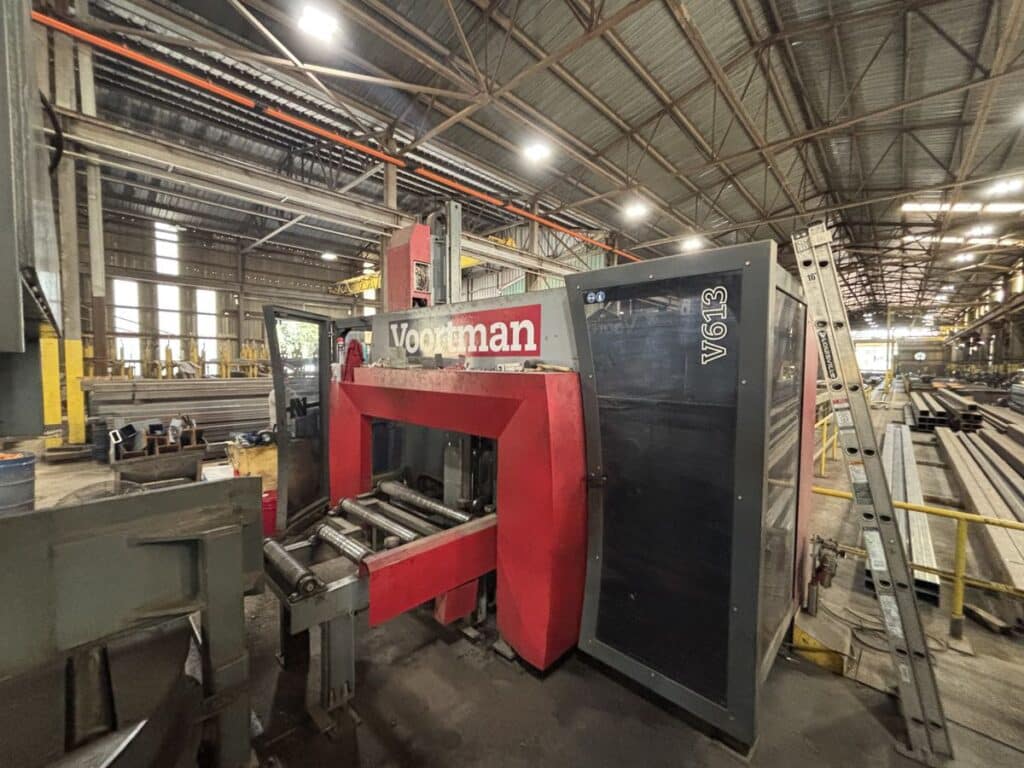

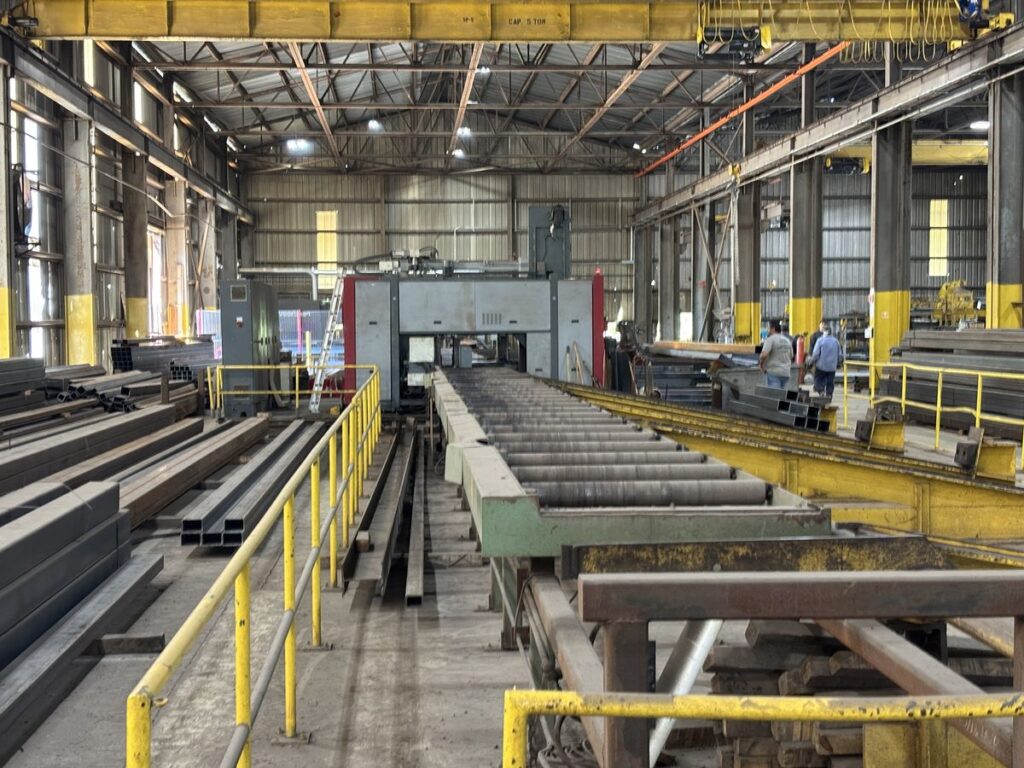

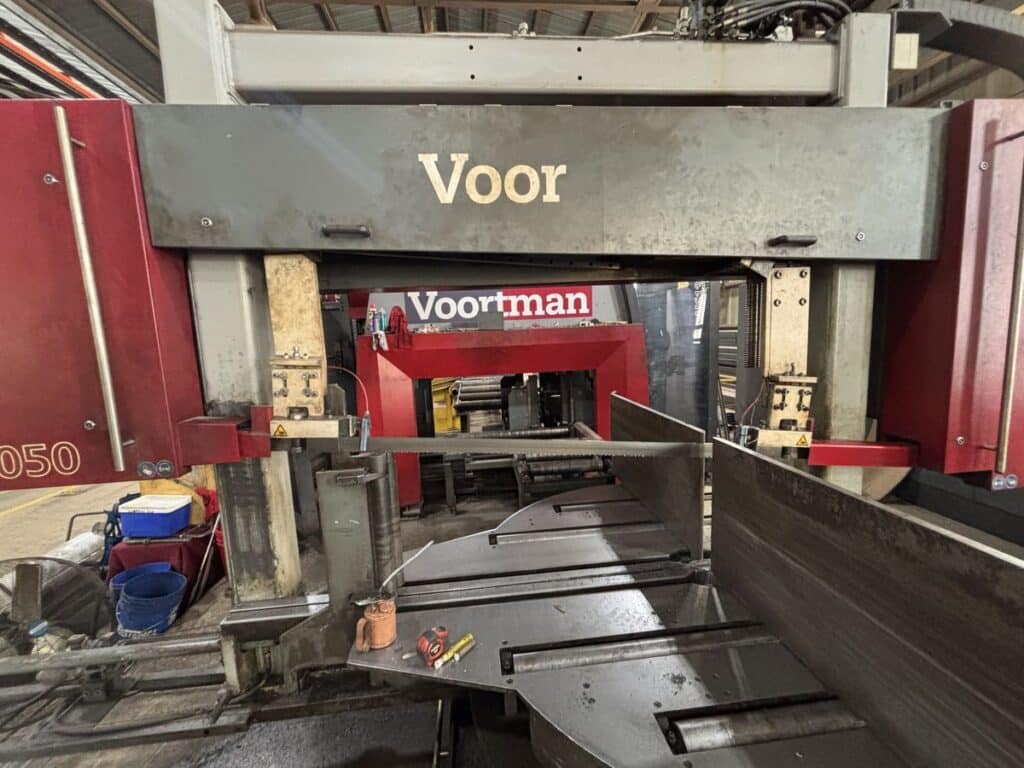

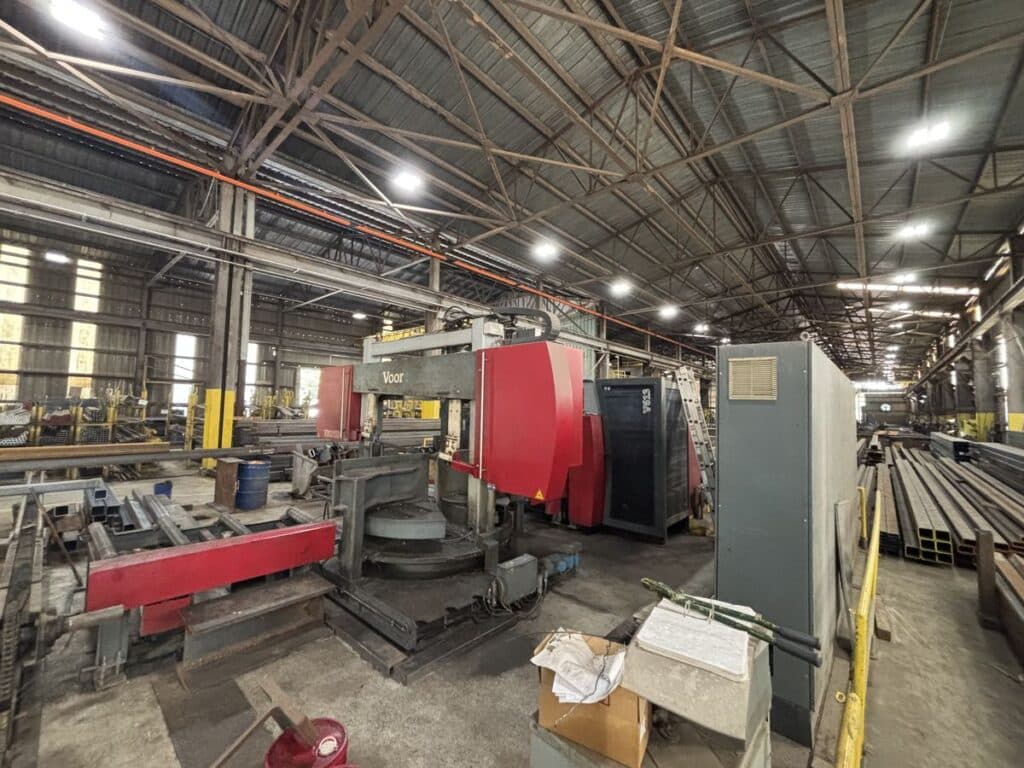

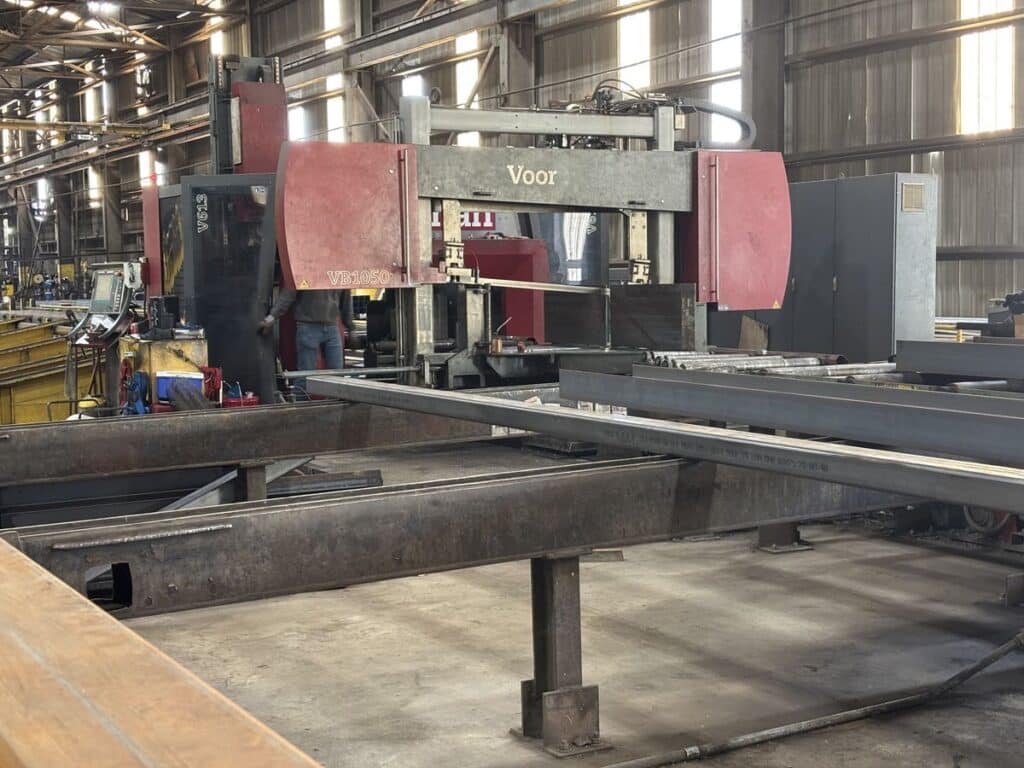

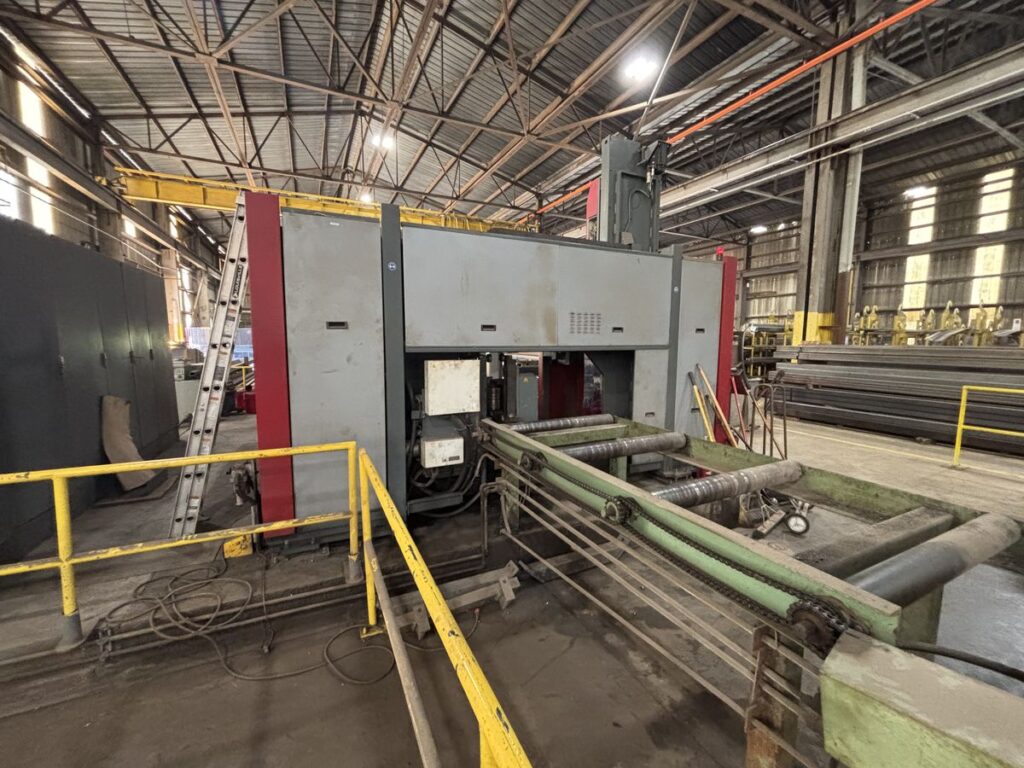

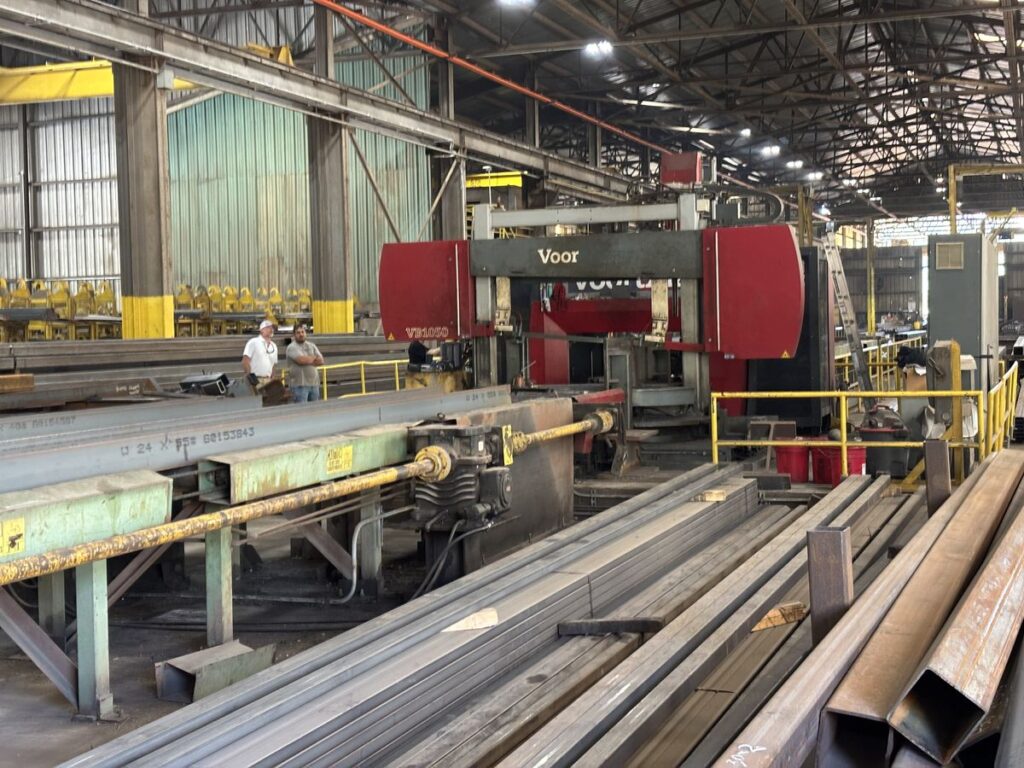

Voortman VB 1050 & V613M CNC Saw and Drill Line

Manufacturer

Voortman

Category

Drilling Machines

Type

DRILLS, TURRET

Stock

151250013

Model

VB 1050 & V613M

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 151250013
  • Location: North Carolina
  • Brand: Voortman
  • Model: VB 1050 & V613M
  • Year: 2011 / 2013
  • Skidding Fee: Skidding Not Available
  • Loading Fee: Rigging Required

Specifications

  • Saw Operating Range Height: 1/2″ to 20″
  • Saw Operating Range Width: 2″ – 45 1/4″
  • Cutting Capacity at 0 Degrees: 20″ x 44″
  • Cutting Capacity at +/- 15 Degrees: 20″ x 42 1/2″
  • Cutting Capacity at +/- 30 Degrees: 20″ x 36″
  • Cutting Capacity at +/- 45 Degrees: 20″ x 28″
  • Cutting Capacity at +/- 60 Degrees: 20″ x 18 1/2″
  • Saw Band Speed: 135 – 400′ per minute
  • Saw Drive Motor: 10 HP
  • Max Material Width: 42″
  • Operating Range: 3/8″ – 18″
  • Minimum Width: 2 1/2″
  • Max Width: 42″
  • Auto Tool Changer: VTC 5/40 2 x 5 Positions
  • Motor: 40 HP
  • Max HSS Drill Diameter: 1 3/4″
  • Max Carbide Drill: 1 1/4″
  • Thread Tapping: 1/4″ – 1″
  • Working Height: 30″
  • Operation Direction: From Right to Left

Equipped With

Vacam Software, Linear Guides, Rotatable Drilling Unit, Auto Tool Change, Auto Profile Width Measuring, Web and Flange Height Measuring

Additional Info

Machine Will Be Available After November 30th 2025
