Ingersoll CNC 5-Axis, X-748",Y-268",Z-59", A/B Axis,120ATC,AAC,Fanuc 15M CNC,'91 #16403

Manufacturer

INGERSOLL

Category

Milling Machines

Type

MILLERS, PLANER TYPE (Including Millers, Slab)

Stock

16403

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #16403

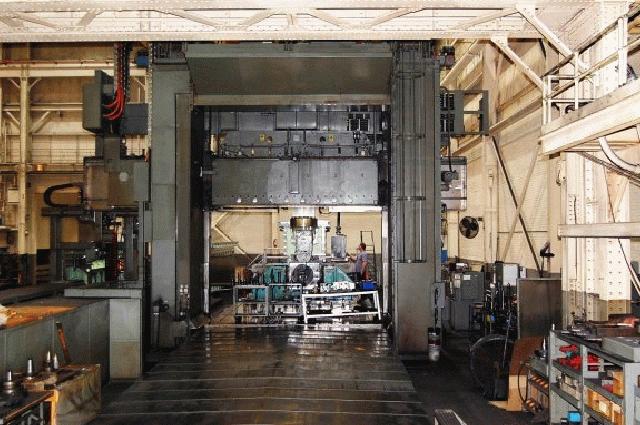

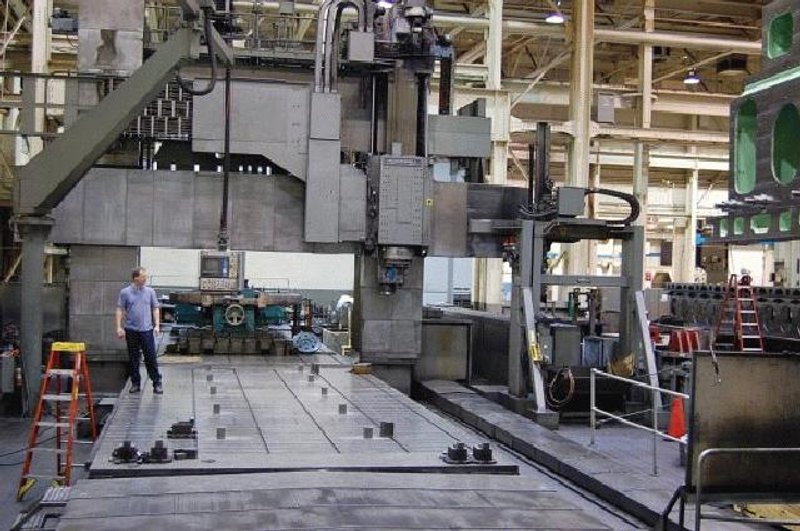

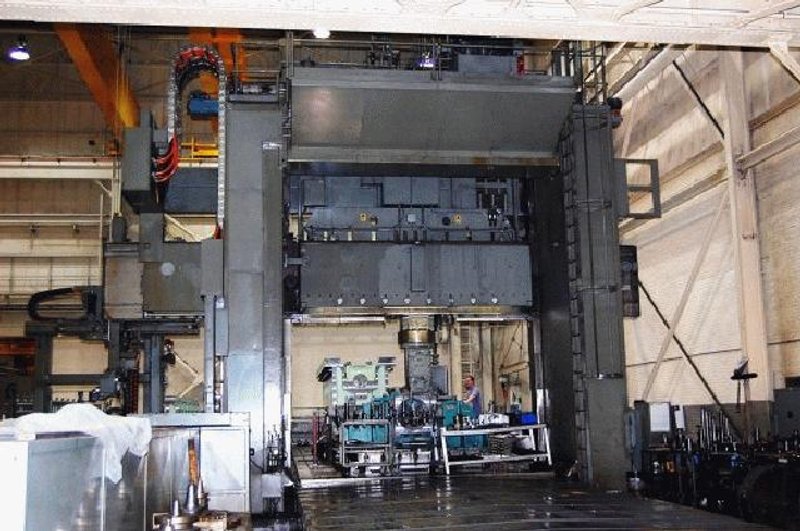

Ingersoll Double Column 5-Axis CNC Planer Mill
Age: 1991
Model: Master Head ARMM 4.5 Adjustable Rail

FANUC 150-M 5-Axis CNC Control

TRAVELS:
X-Axis, Table Travel .................. 748.03"
Y-Axis, Horizontal Head Travel ........ 268.70"
Z-Axis, Ram Stroke .................... 59.05"
W-Axis, Cross Rail Vertical Travel .... 145.66"
A-Axis, Head Rotation.................. 360,000 Positions
B-Axis, Head Swivel ................... 360,000 Positions

SPECIFICATIONS:
Table Size, Overall ................... 168" x 784.03"
Distance Between Columns .............. 177.2"
Distance Table to Milling Head ........ 177.2"
Cross Rail Travel ..................... 145.66"
Ram Cross Section ..................... 23.62" x 23.62"
Spindle Taper ......................... Cat V-50 & Cat V-60
Spindle Motor ......................... 125 HP
Speed ................................. 2-2550 RPM
Table Weight Capacity ................. 250,000 Lbs
Floor Space, L x W .................... 1708.7" x 469.7"

EQUIPPED WITH:
Fanuc 150-M 5-Axis CNC Control
120 Station Automatic Tool Changer (ATC)
Automatic Attachment Changer (AAC)
Thru Spindle Coolant

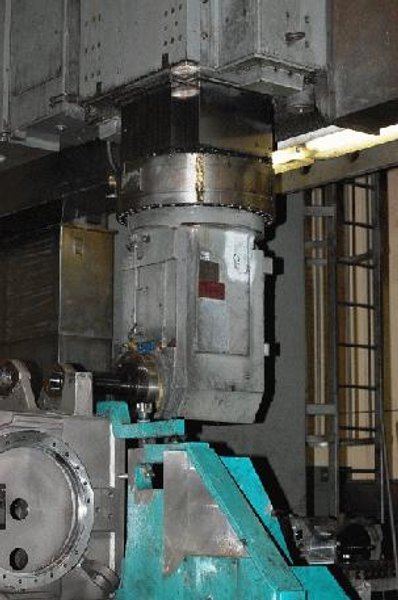

Articulating 2-Axis Programable A/B Axis Head

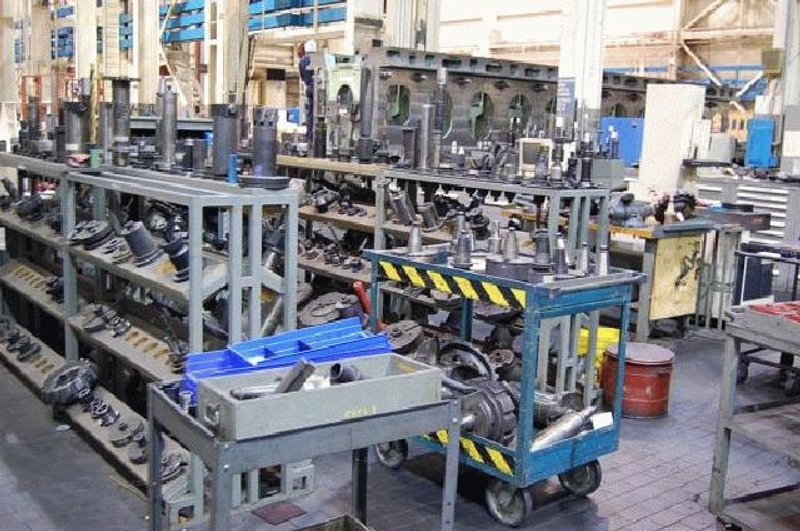

Right Angle Heads (Assorted)
Straight Milling Heads of Assorted Sizes and Lengths
125 HP Main Spindle Motor
