Waldrich CNC 5-Face, 48 ATC, X-393", Y-139", Z-39", 98"X393" Split Tbl, AB CNC, '85, #16406

Manufacturer

WALDRICH

Category

Milling Machines

Type

MILLERS, PLANER TYPE (Including Millers, Slab)

Stock

16406

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #16406

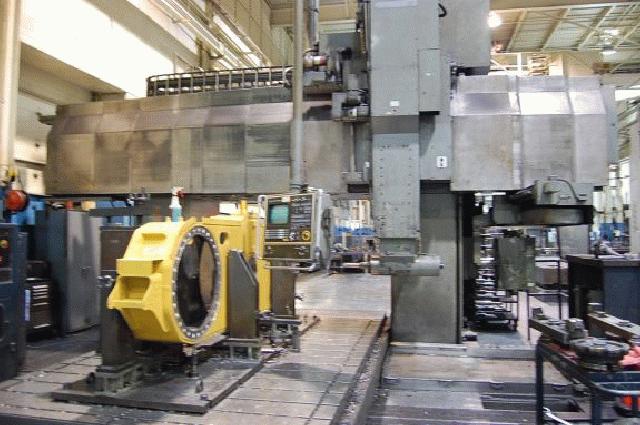

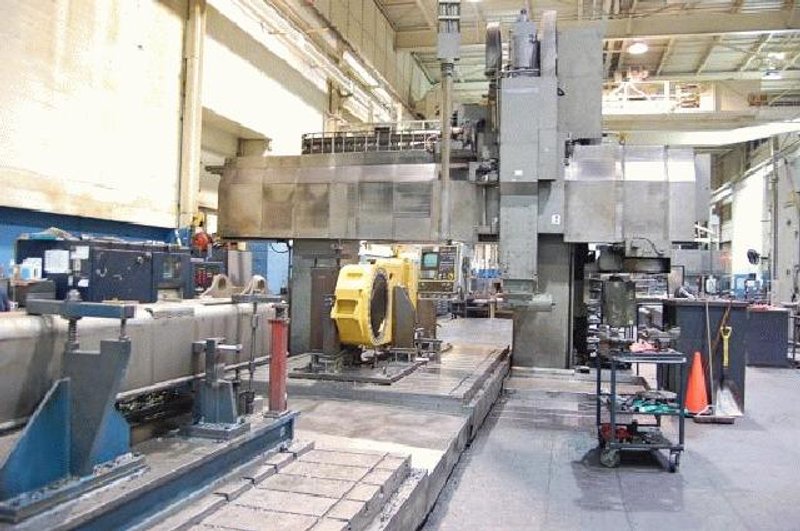

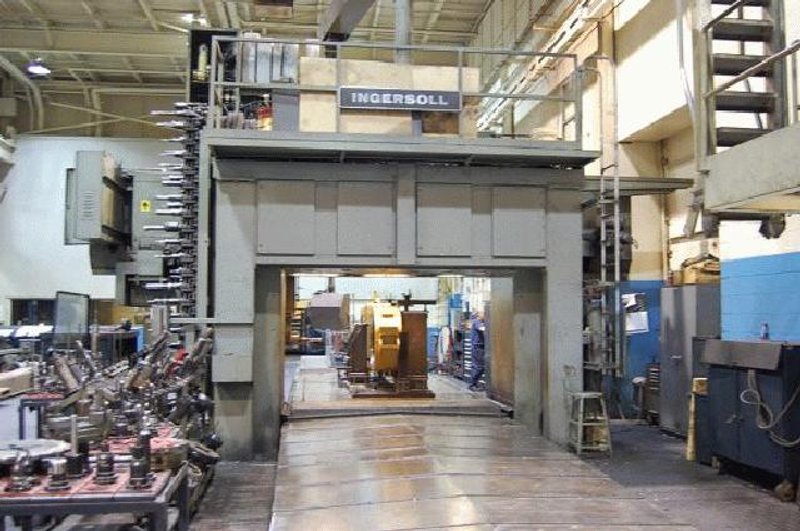

Waldrich Double Column 5-Face CNC Planer Mill
Age: 1985
Model: 2.75 Fixed Rail

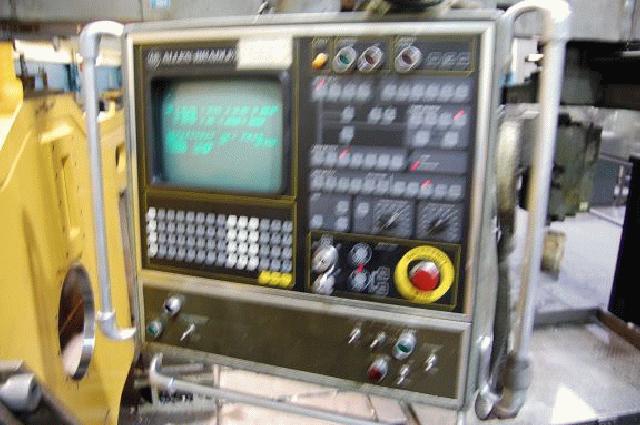

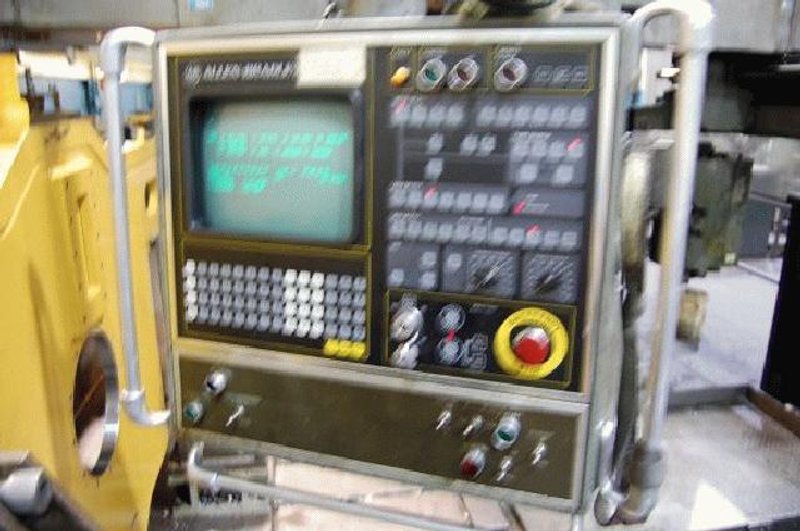

Allen Bradley 8200 CNC Control

TRAVELS:
X-Axis, Table Travel .................. 393.80"
Y-Axis, Horizontal Head Travel ........ 139.38"
Z-Axis, Ram Stroke .................... 39.37"

SPECIFICATIONS:
Table Size, Joined .................... 98.42" x 393.80"
Table Size, Each ...................... 98.42" x 157"
Distance Between Joined Tables ........ 77.74"
Distance Between Columns .............. 108"
Ram Cross Section ..................... 19.68" x 19.68"
Distance Table to Milling Head ........ 63"
Spindle Taper ......................... Cat V-50
Spindle Speeds ........................ 2-2500 RPM

EQUIPPED WITH:
Allen Bradley 8200 3-Axis CNC Control

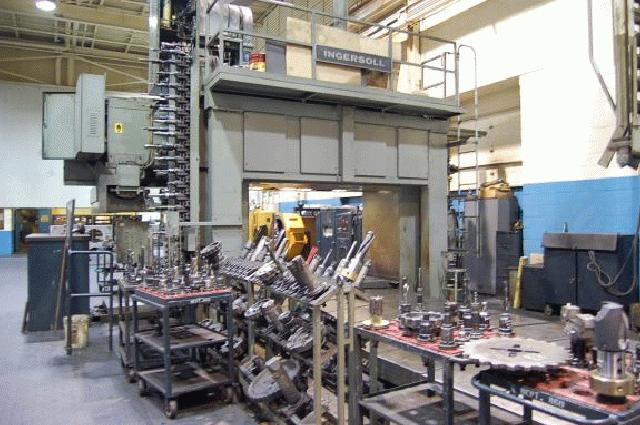

48 Station Automatic Tool Changer (ATC)
Right Angle Head with 90 Degree Indexing
Straight Milling Heads (Assorted Sizes and Lengths)
Sliding Steel Way Covers
