6" Wotan Rapid 5C Ram Type,X393",Y149",Z55",13X13"Ram,110HP,Heid 530CNC,'04,#25807

Manufacturer

WOTAN

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, FLOOR TYPE, CNC

Stock

25807

Model

Rapid 5C

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #25807

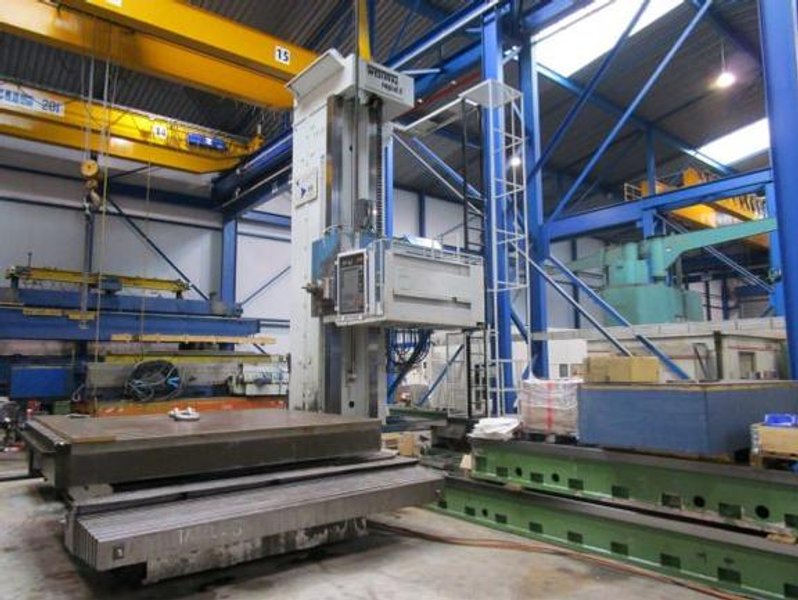

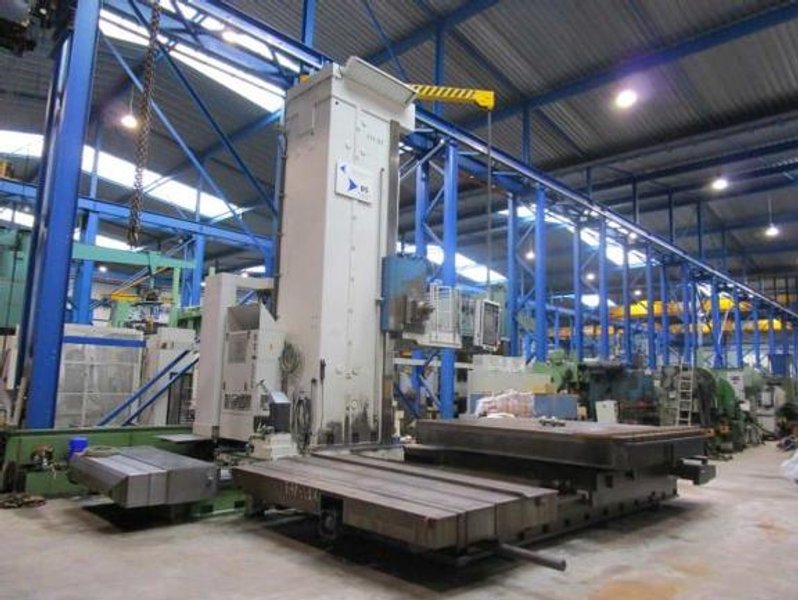

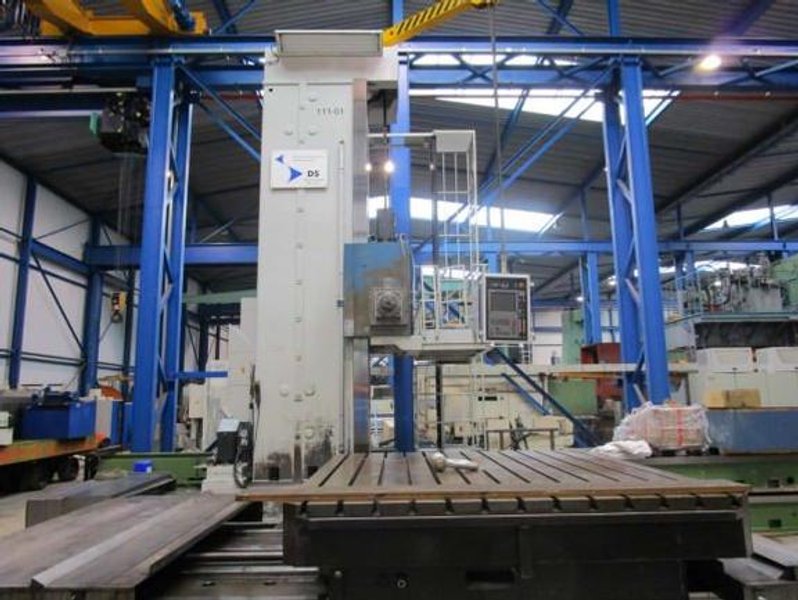

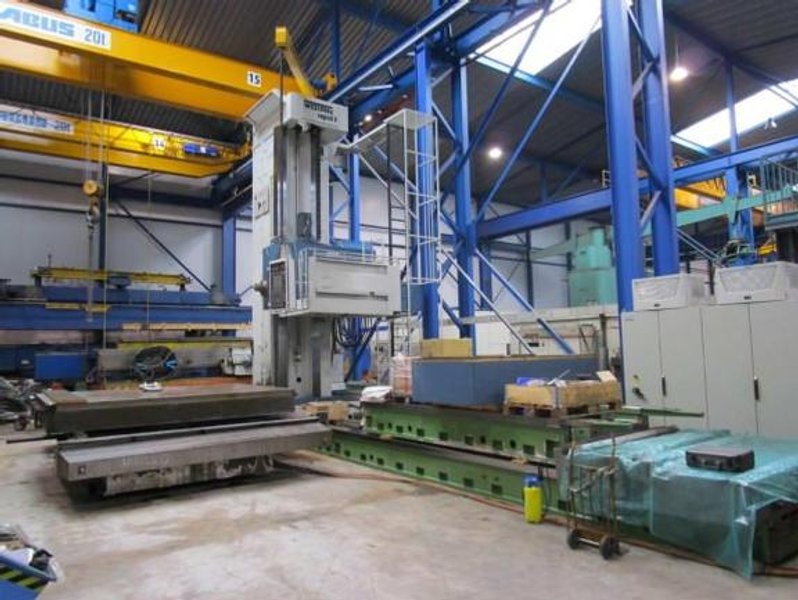

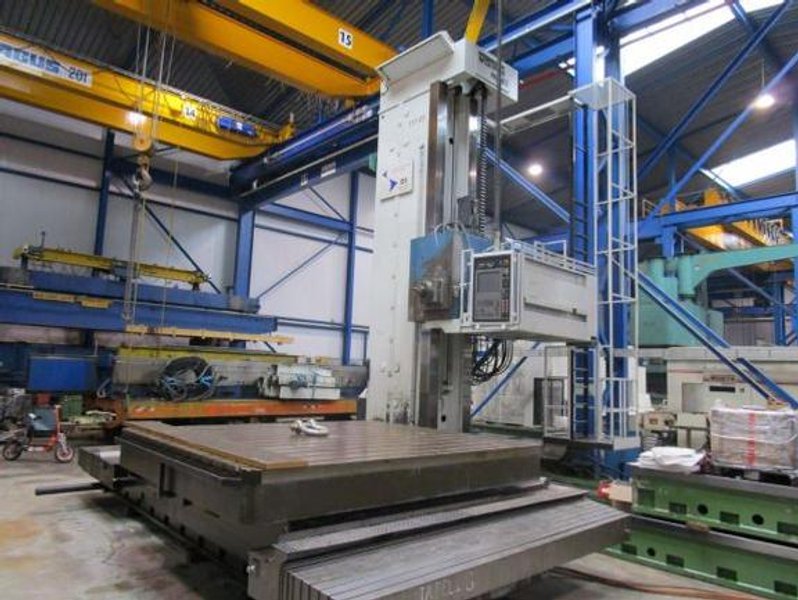

Wotan Rapid 5C CNC Floor Type Horizontal Boring Mill with Square Ram
Model: Rapid 5C Ram Type
Age 192004

FEATURES:
Age: 1983 Rebuilt & CNC Retrofit In 2004 By OEM Dorries Scharman
Heidenhain TNC 530 CNC Control

CAPACITY:
Spindle Diameter ...................... 6.3"
Spindle Taper ......................... #50 ISO
Vertical Headstock Travel, Y-Axis ..... 149.60"
Column Travel, X-Axis ................. 393.74"
Spindle Travel, Z-Axis ................ 27.55"
Ram Travel, Z2-Axis ................... 27.55"
Total Axial Travel, Ram + Spindle ..... 55.12"
Ram Cross Section ..................... 13.38" x 13.38"
Spindle Speeds: ....................... 1.25-1250 RPM
Rapid Traverse ........................ 196.85 IPM
Feeds ................................. 0.0393-196.85 IPR
Floor Space ........................... 571" x 152"
Overall Height ........................ 290"
Weight ................................ 137,000 Lbs

EQUIPPED WITH:
Heidenhain TNC 530 CNC Control
4-Assorted Angular Milling Heads
Hydrostatic Spindle Bearing
Coolant
Chip Conveyor
Oil Cooler
110 HP Spindle Motor

AVAILABLE AT ADDITIONAL COST:
DORRIES SCHARMAN TDV 6 CNC INFEEDING ROTARY TABLE
Table Size ............................ 137.79" x 118.11"
Table Infeed, W-Axis .................. 98.42"
Table Weight Capacity ................. 78 Tons

NOTE:
Complete Rebuild in 2004 By Dorries Scharman.
