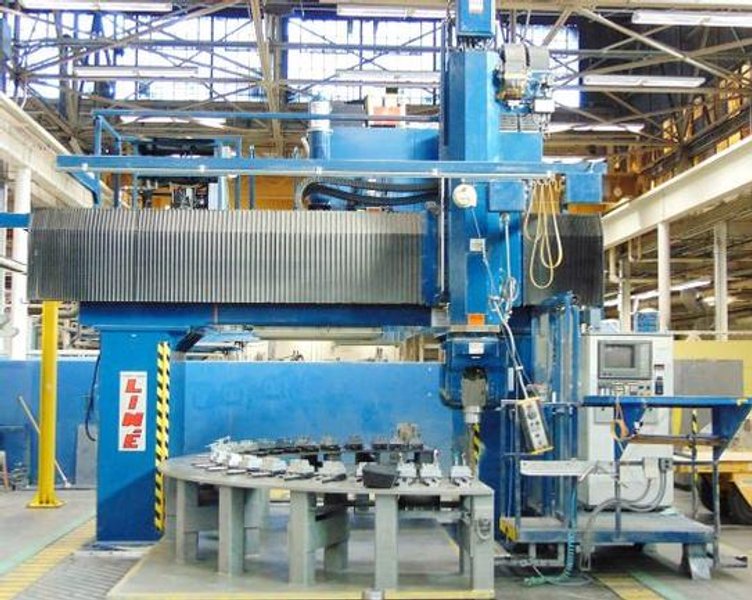

Henri Line' Gicamill 5-Axis Gantry, X-312", Y-126", 116" Bet. Columns, 18,000 RPM, #26542

Manufacturer

HENRI LINE

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

26542

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #26542

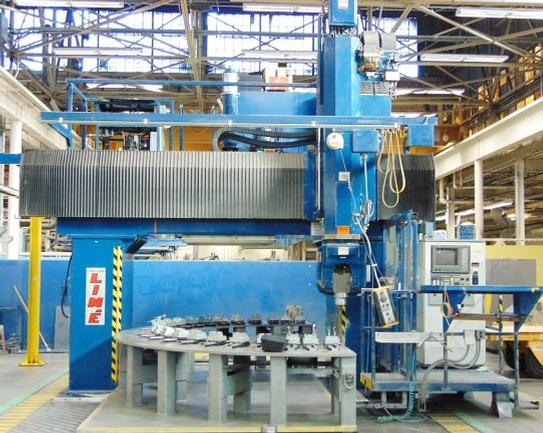

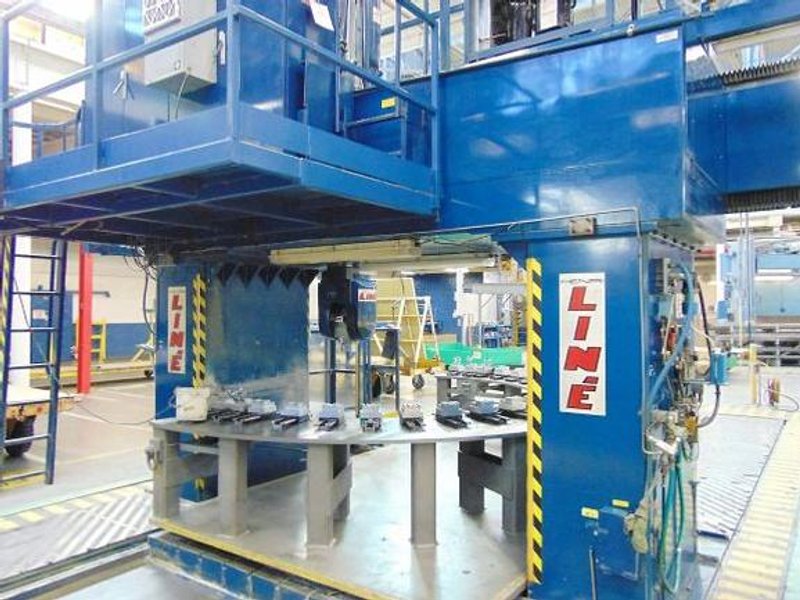

HENRI LINE GICAMILL 29 HS/5 5-Axis CNC Vertical Bridge Mill

FEATURES:

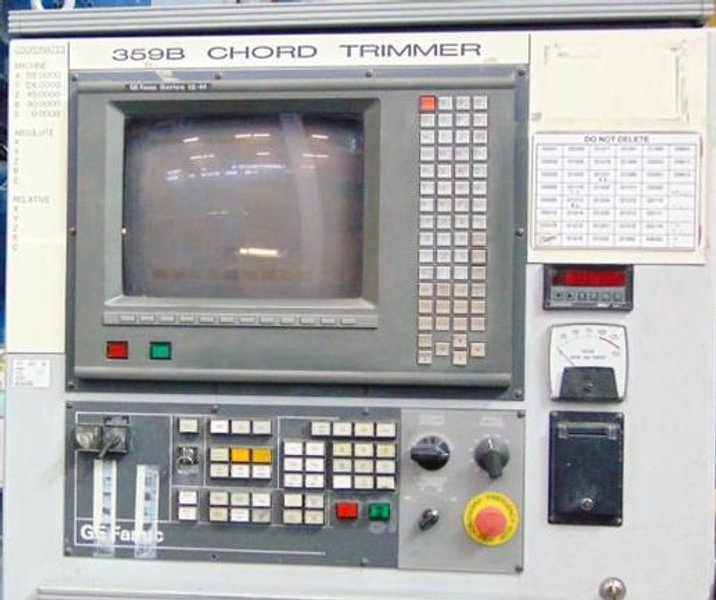

Fanuc 15M CNC Control

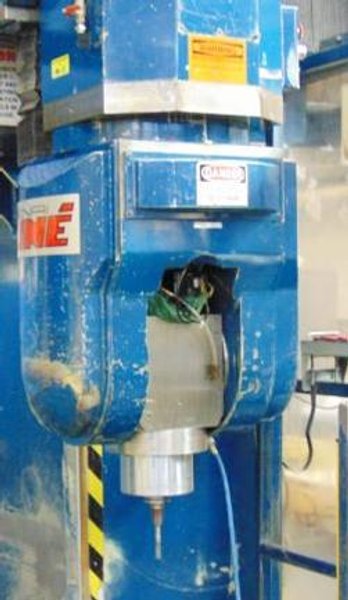

18,000 RPM 5-Axis Milling Head


TRAVELS:
X-Axis, Gantry Travel ................. 312"
Y-Axis, Spindle Carrier Travel......... 126"
W-Axis, Spindle Vertical Travel........ 45"
C-Axis, Head Rotation ................. 360 Degrees
A-Axis & B-Axis.... ................... +90 Degrees/-90 Degrees
Distance Between Columns .............. 116"
Distance Nose to Table (No Chuck)...... 54"
Table Size ............................ 319"x98.5"
Spindle Speeds ........................ 0-18000 RPM
Spindle Motor.......................... 35 HP
Spindle Taper ......................... CAT 40
X-Axis Feed Rate ...................... 400/1000 IPM
Y-Axis Feed Rate ...................... 400/1000 IPM
Z-Axis Feed Rate ...................... 400/1000 IPM
A-Axis Feed Rate ...................... 108 DPM/360 DPM
C-Axis Feed Rate ...................... 108 DPM/360 DPM
X-Axis Rapid Traverse ................. 400 IPM
Y-Axis Rapid Traverse ................. 400 IPM
Z-Axis Rapid Traverse ................. 400 IPM
A-Axis Rapid Traverse ................. 108 DPM
C-Axis Rapid Traverse ................. 108 DPM

EQUIPPED WITH:
Fanuc 15M CNC Control
Fisher Spindle Motor
Travelling Column
18,000 RPM 5-Axis Milling Head
