1" Tornos ST26, F 31iTB, 9-Ax, LNS Express Bar Ldr, LNS B/L,Turbo Chip Conv,2150 Cut Hrs

1" Tornos ST26, F 31iTB, 9-Ax, LNS Express Bar Ldr, LNS B/L,Turbo Chip Conv,2150 Cut Hrs

Manufacturer

TORNOS

Spec Sheet

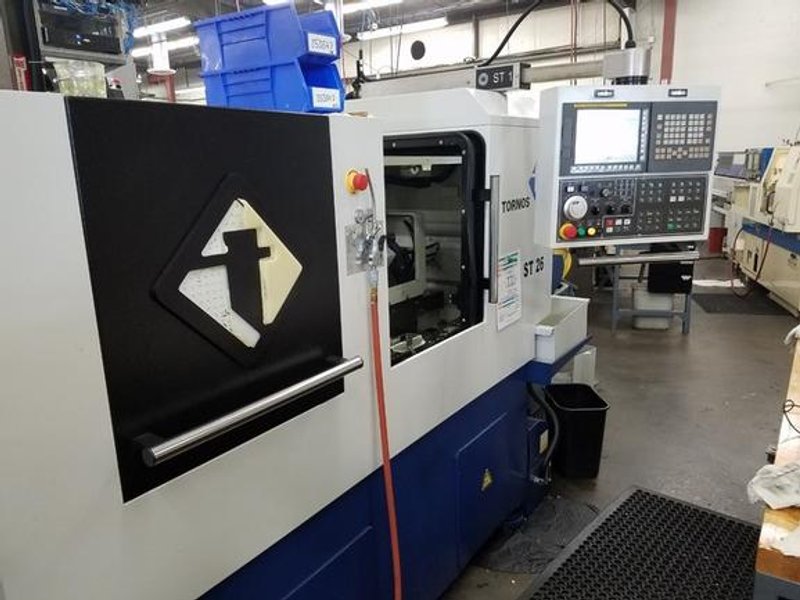

Tornos Swiss ST26 Swiss Screw Machine
New: 2003

General Specifications per Brochure

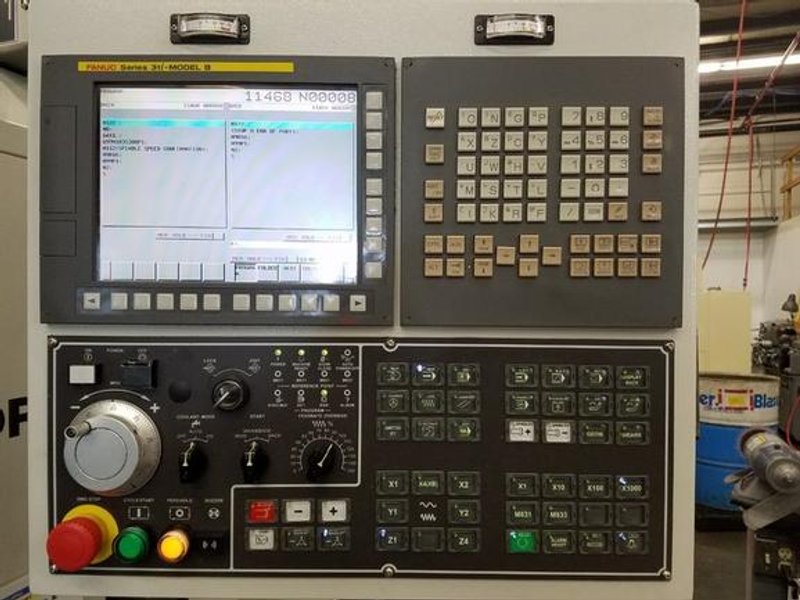

Control: Fanuc 31iTB
Controllable axes 9
X1,Z1,Y1,X2,Y2,C1,X4(XB),Z4,C4
Least input increment: 0,001 mm
Interpolation method: Linear / circular
Rapid traverse rate: 35 m / min Y1, Y2;
30 m / min Z1, X4, Z4;
20 m / min X1, X2
Cutting feed rate: 1 to 6,000 mm / min
Feed rat override: 0 to 150%, 10% step
Amount of tool offset: 6 digits
No. Of tool offsets: 99
LCD/MDI: 10.4" Color LCD
Part program storage size: 64 Kbyte

Main Spindle (headstock) (Z1 / S1 / C1)
Maximum bar capacity mm: 23 (25,4)
Std part length with a rotating guide bushing mm:220
Max. rpm of the spindle rpm: 0 to 10 000
Spindle output kW: 9.5 (11)
Max constant torque Nm: 17
Spindle stop/ start time from 0 to 10 000 rpm: 0.9 sec
Drilling capacitity in free machining steel mm: 10
Tapping capacity in free machining steel: M10

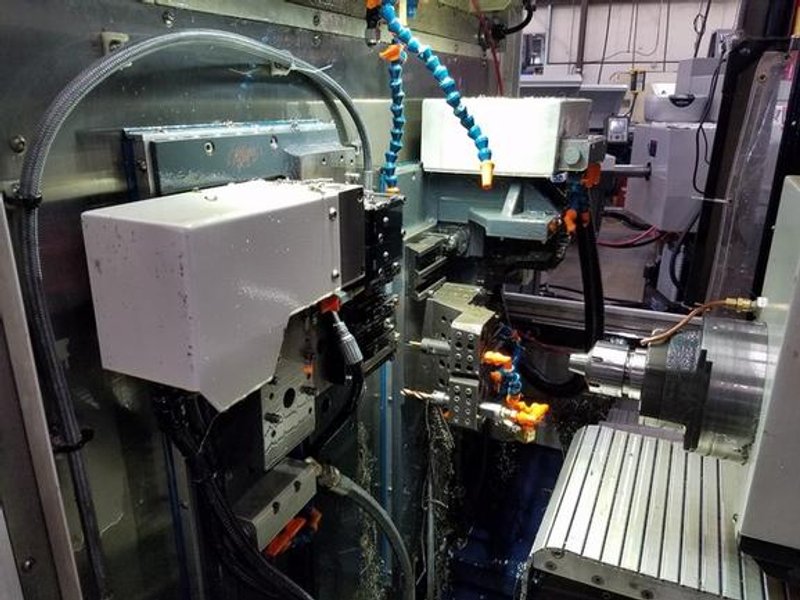

Tool platen (X1 / Y1 / S2) (X2 / Y2)
Number of tool positions in main operations: 17
Cross section of the turning tools: 12 x 12 mm or x
Number of positions for rotating tools: 5
Max rpm of the rotating tools rpm: 6 000
Output of the rotating tools kW: 0.75
Drilling capacitity in free machining steel mm: 8
Tapping capacity in free machining steel: M6

Counter spindle (X4 / Z4 / S4 / C4)
Maximum bar capacity mm: 23 (25.4)
Max. rpm of the spindle t / min: 0 to 10 000
Spindle output kW: 9.5 (11)
Max constant torque Nm: 17
Spindle stop/start time from 0 to 10 000 rpm: 0.9 sec
Drilling capacitity in free machining steel mm: 10
Tapping capacity in free machining steel: M10
Maximum number of tools: 36
Breakdown of tools between
main and counter operations: 19 / 17
Coolant tank capacity: 185 liters
Power of the coolant pump: 400 W
Max. pressure: 3 bars
Max output of the coolant pump l / min 80

Approx Dimensions: 2300 x 1300 x 1700mm
91" x 52" x 67"
Approx Weight: 3300 kg
7275 lbs

Equipped With (to be confirmed by Buyer):

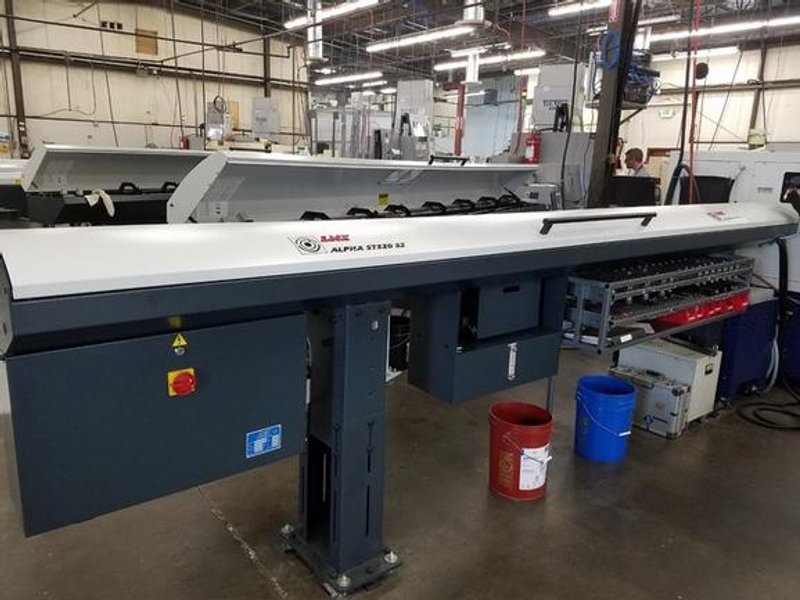

LNS Express Bar Loader
Transformer
LNS Turbo Chip Conveyor

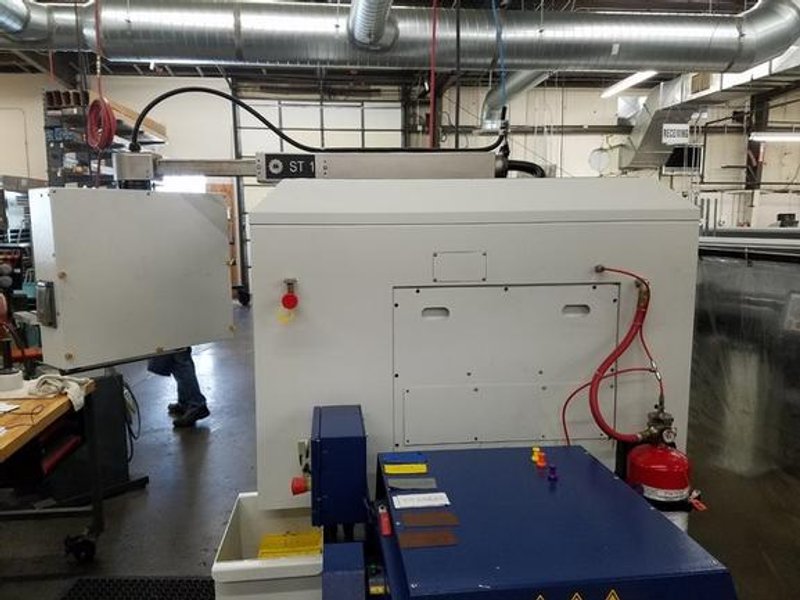

Fire Supression System
Approx 7750 Power On Hours
Approx 3450 Run Time Hours
Approx 2150 Cutting Hours
