84" X 108" G & L Rotary Table, Hydrostatic, 50K Capacity, 19.5" Table Height, #26943

Manufacturer

GIDDINGS & LEWIS

Category

Tables

Type

TABLES, ROTARY

Stock

26943

Model

Hydrostatic

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #26943

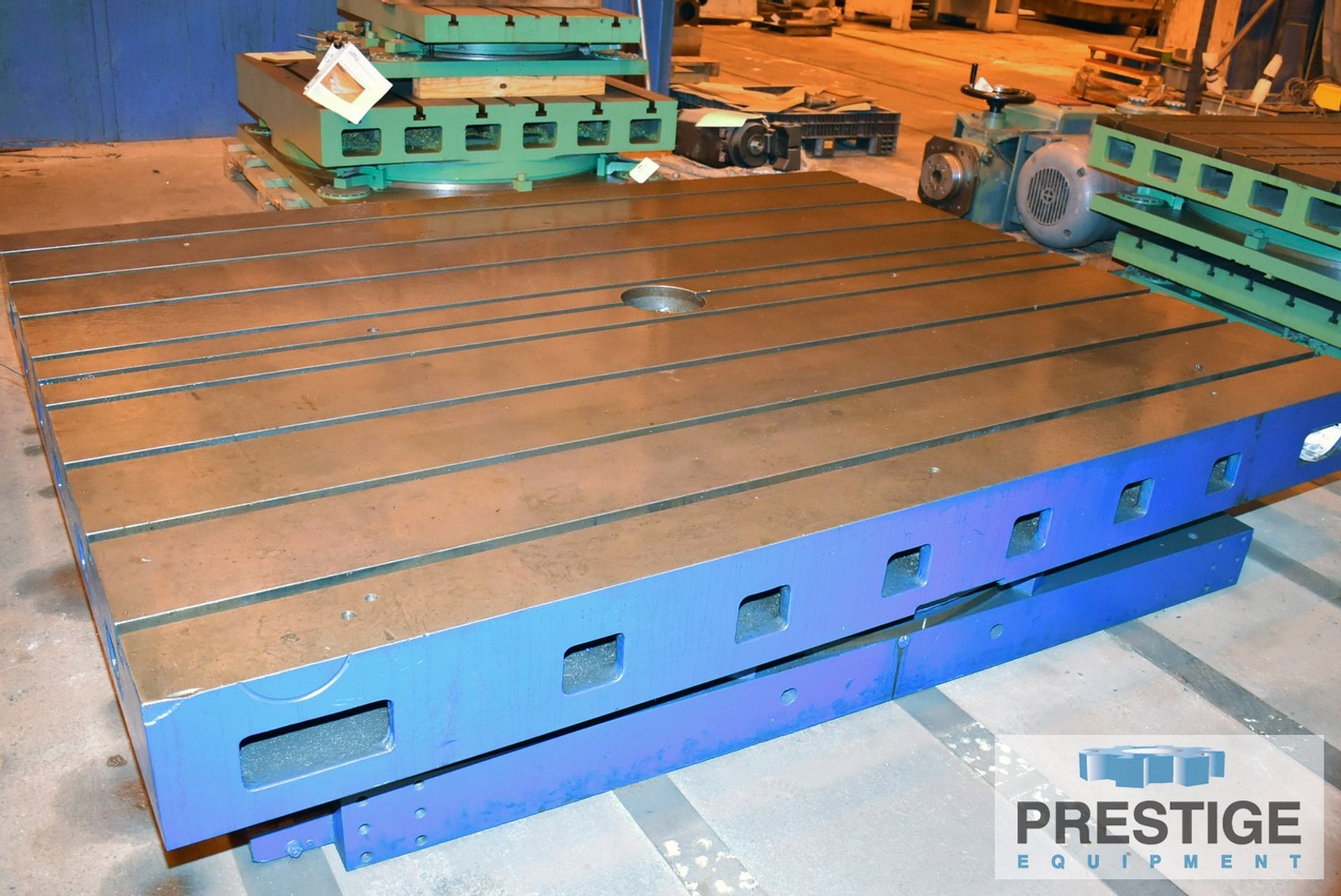

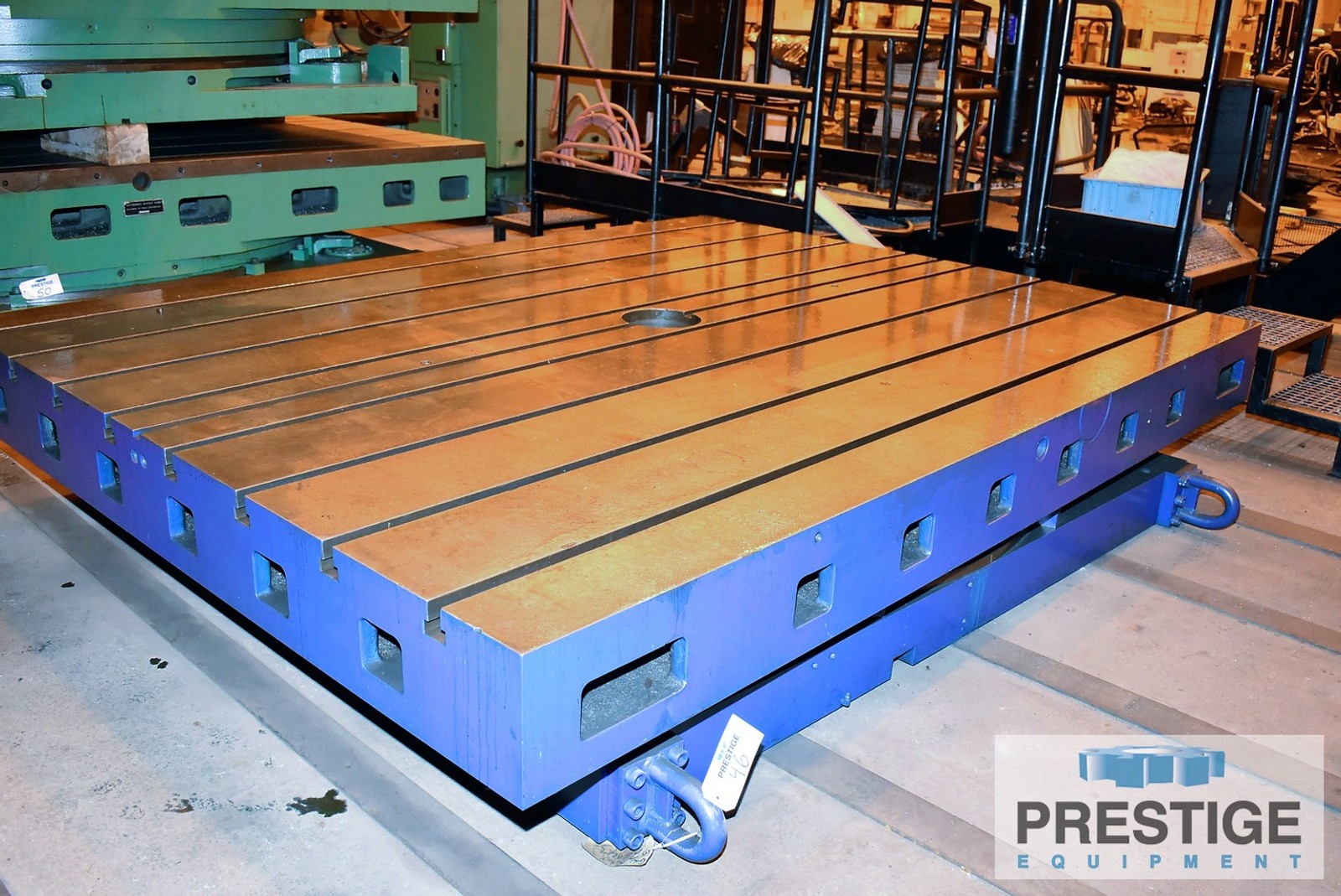

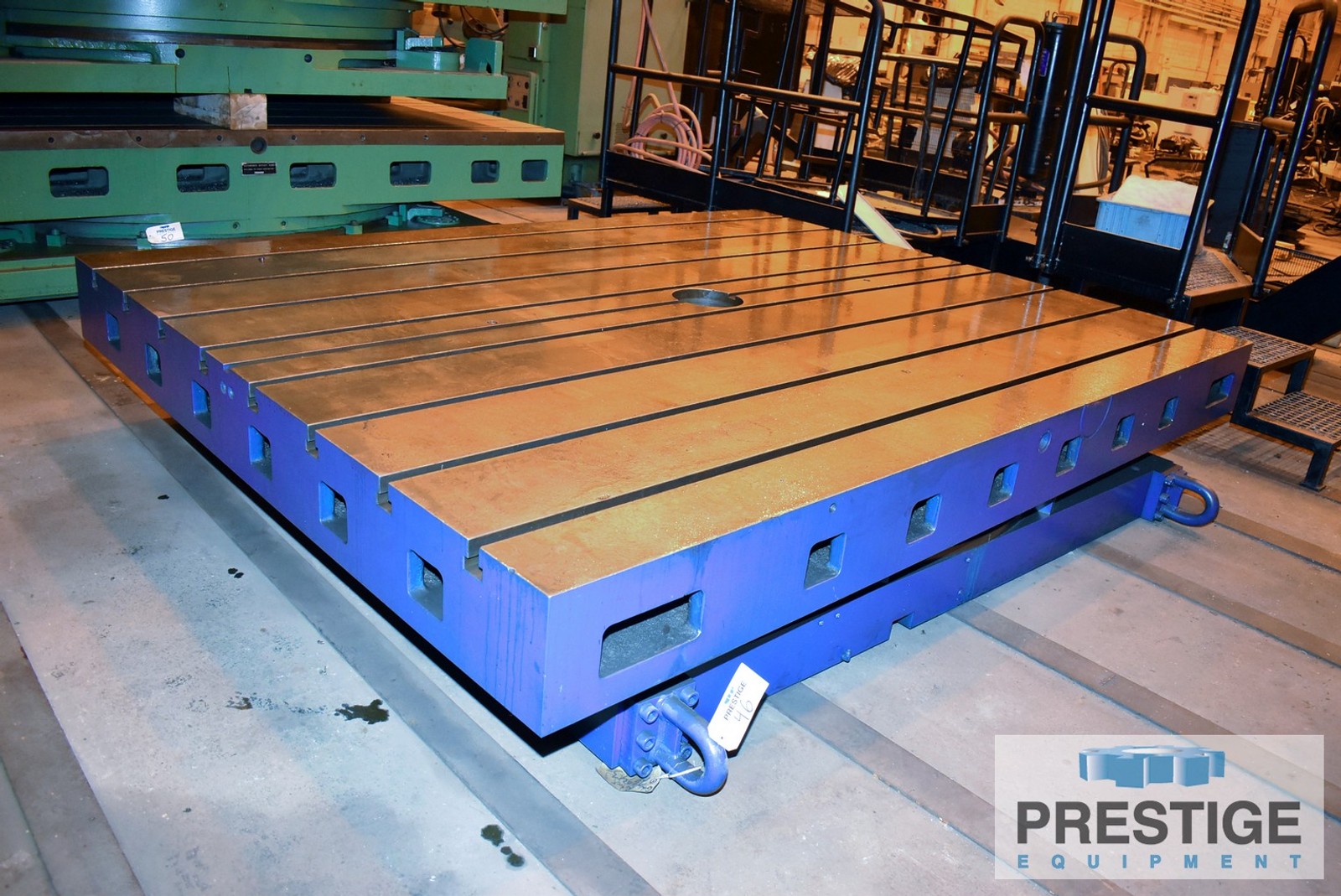

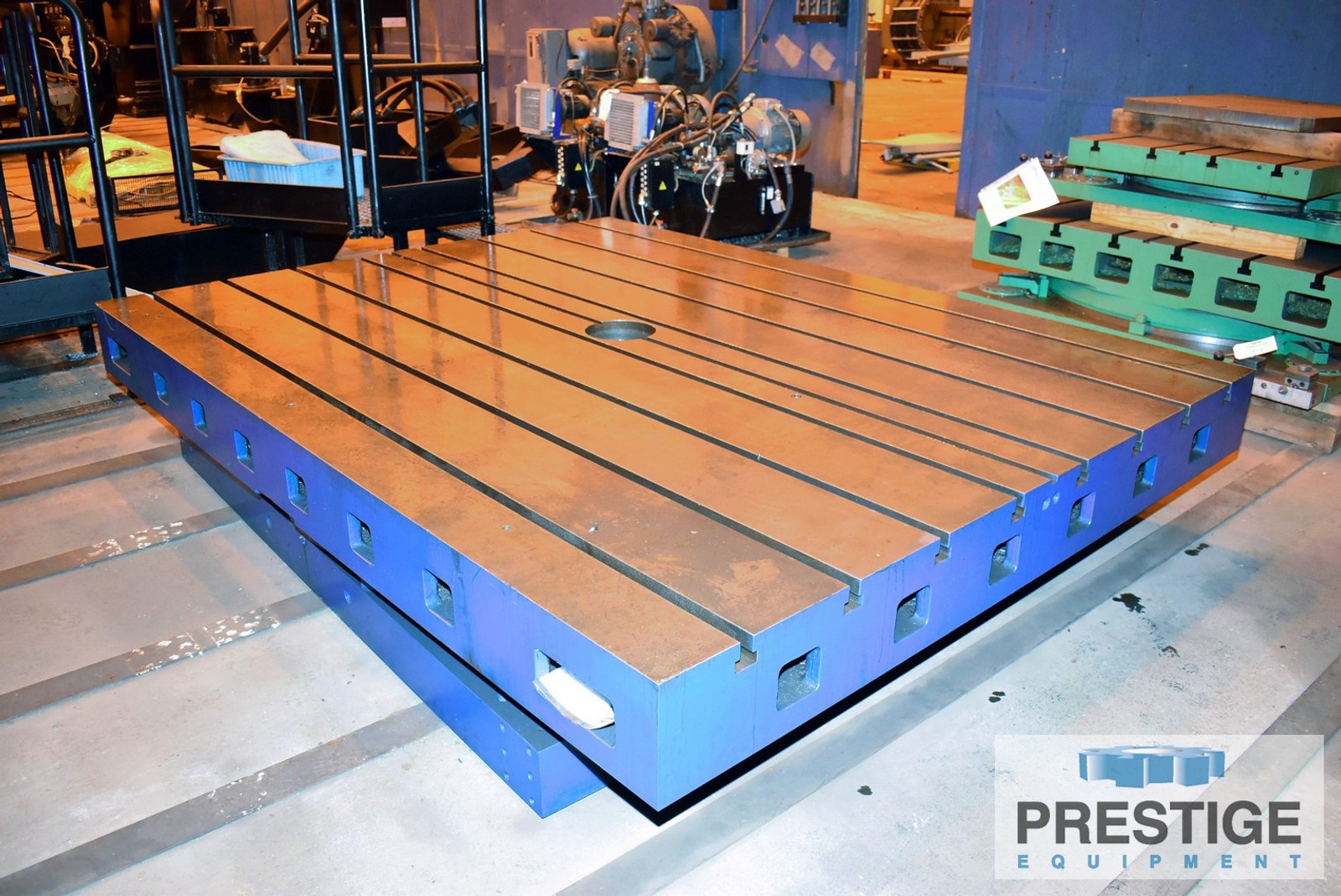

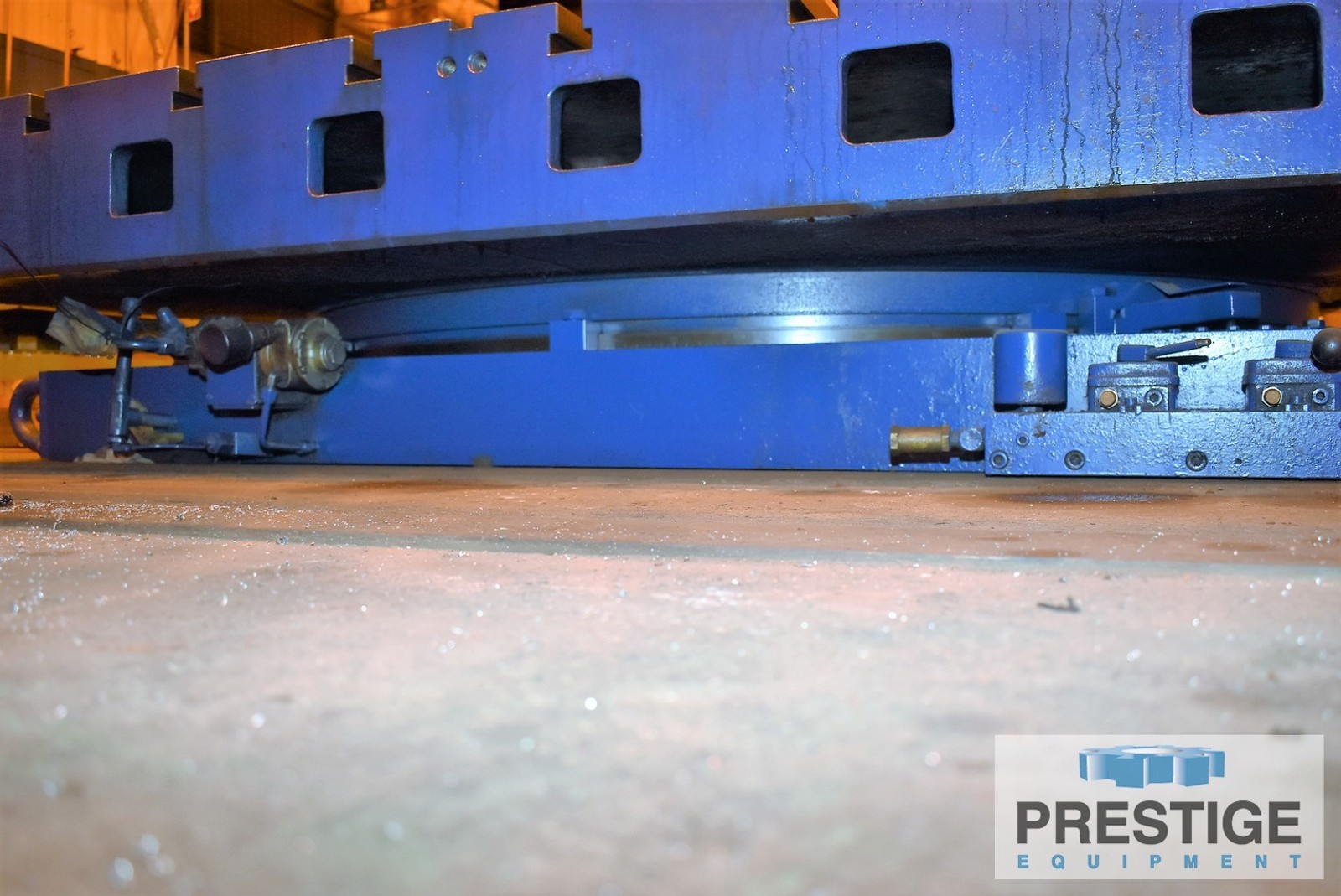

84" x 108" Giddings & Lewis Hydrostatic Rotary Table

FEATURES:

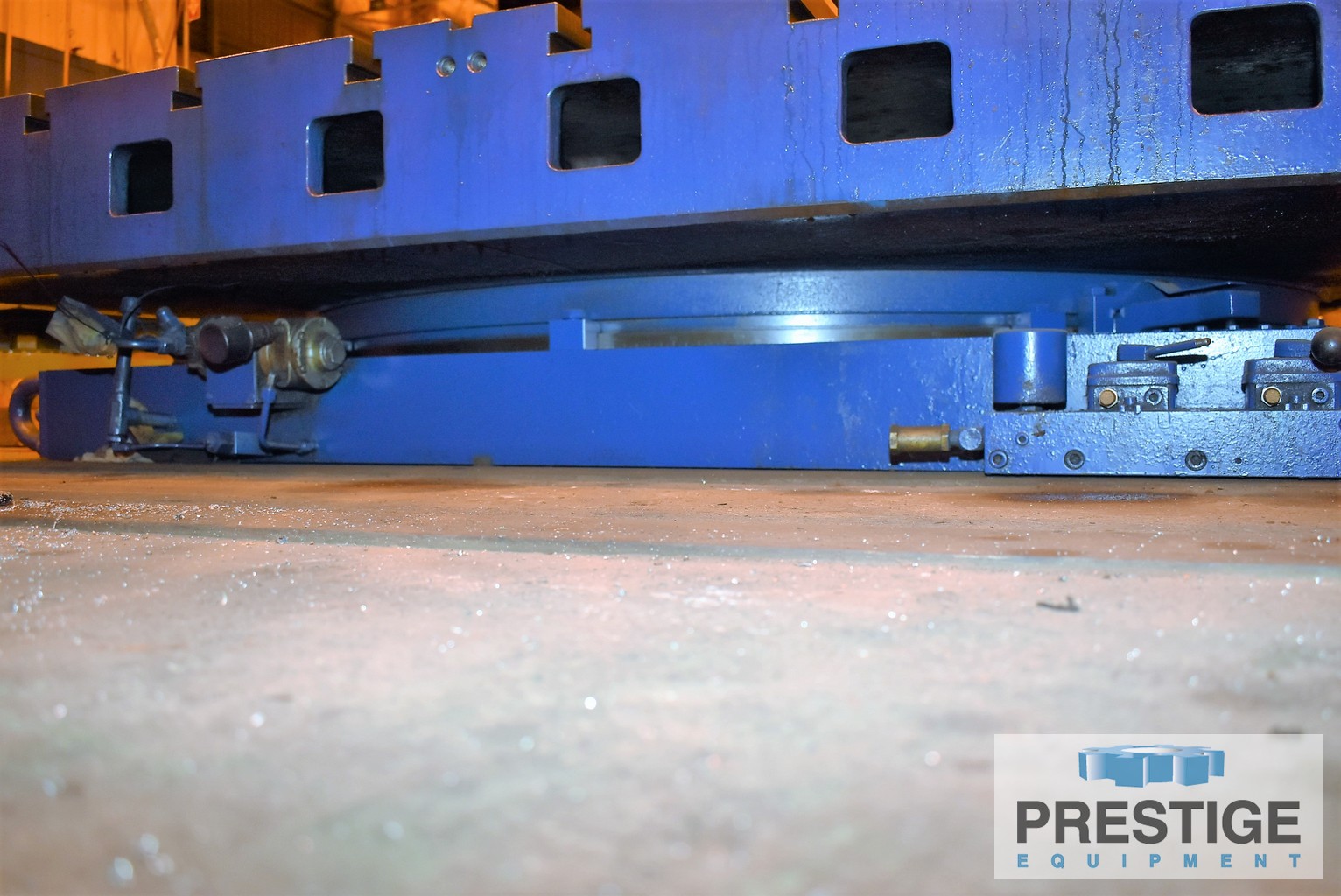

Hydrostatic Lift
90-Degree Shot Pin
50,000 Lb Weight Capacity

SPECIFICATIONS:
Table Size ............................ 84" X 108"
Overall Table Height .................. 19"

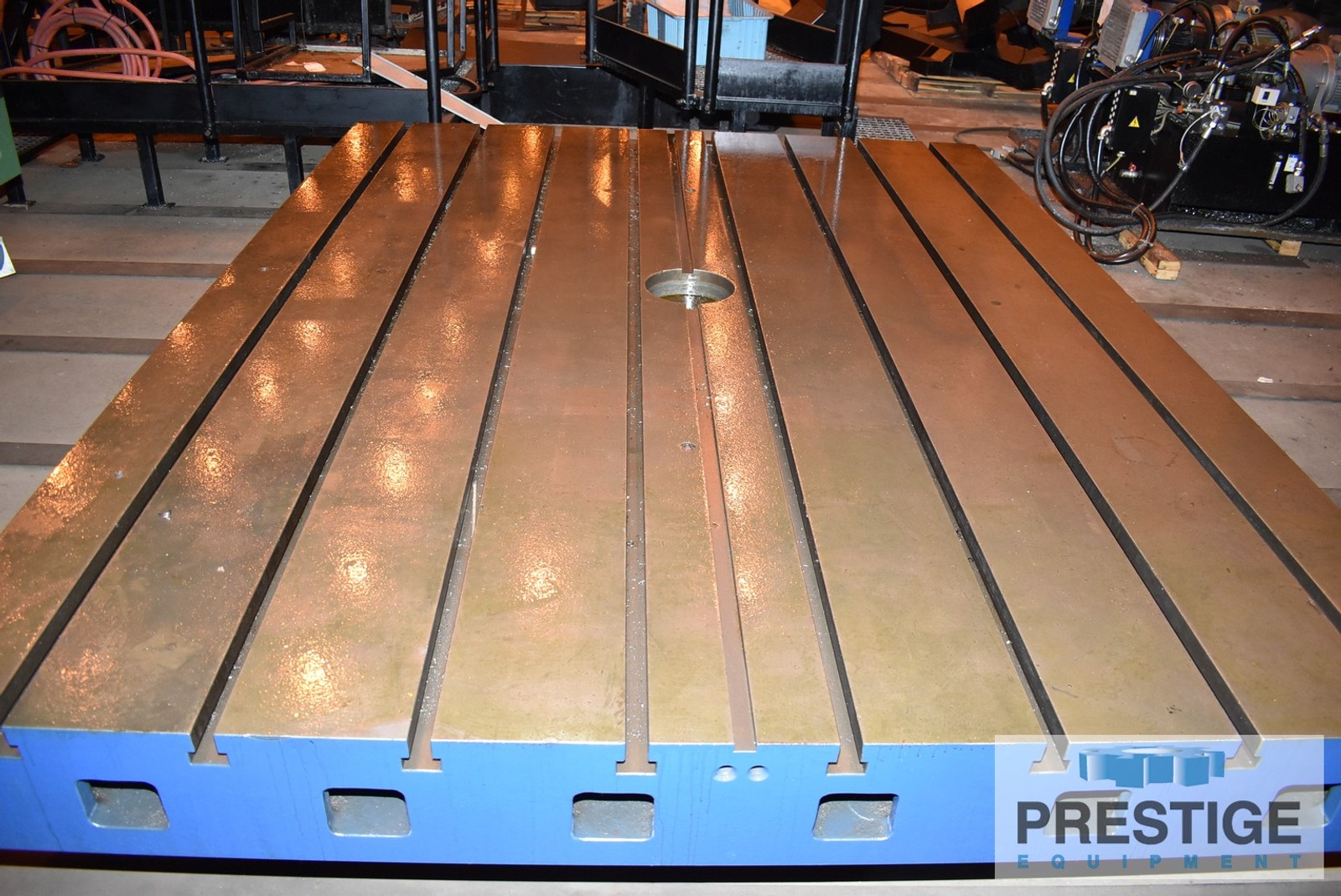

Number Of T-Slots ..................... 8
Width Of T-Slots, Top ................. 1"
Width Of T-Slots, Bottom .............. 1 3/4"
Depth Of T-Slots, Overall ............. 2"
Distance Between T-Slot Centers ....... 10"
Center Keyway Width ................... 1"
Weight Capacity ....................... 50,000 LBS
Shot Pin Locations (degrees) .......... 90,180,270,360
Table Base Dimensions ................. 96" x 84"
Table Weight .......................... 22,500 lbs

EQUIPPED WITH:

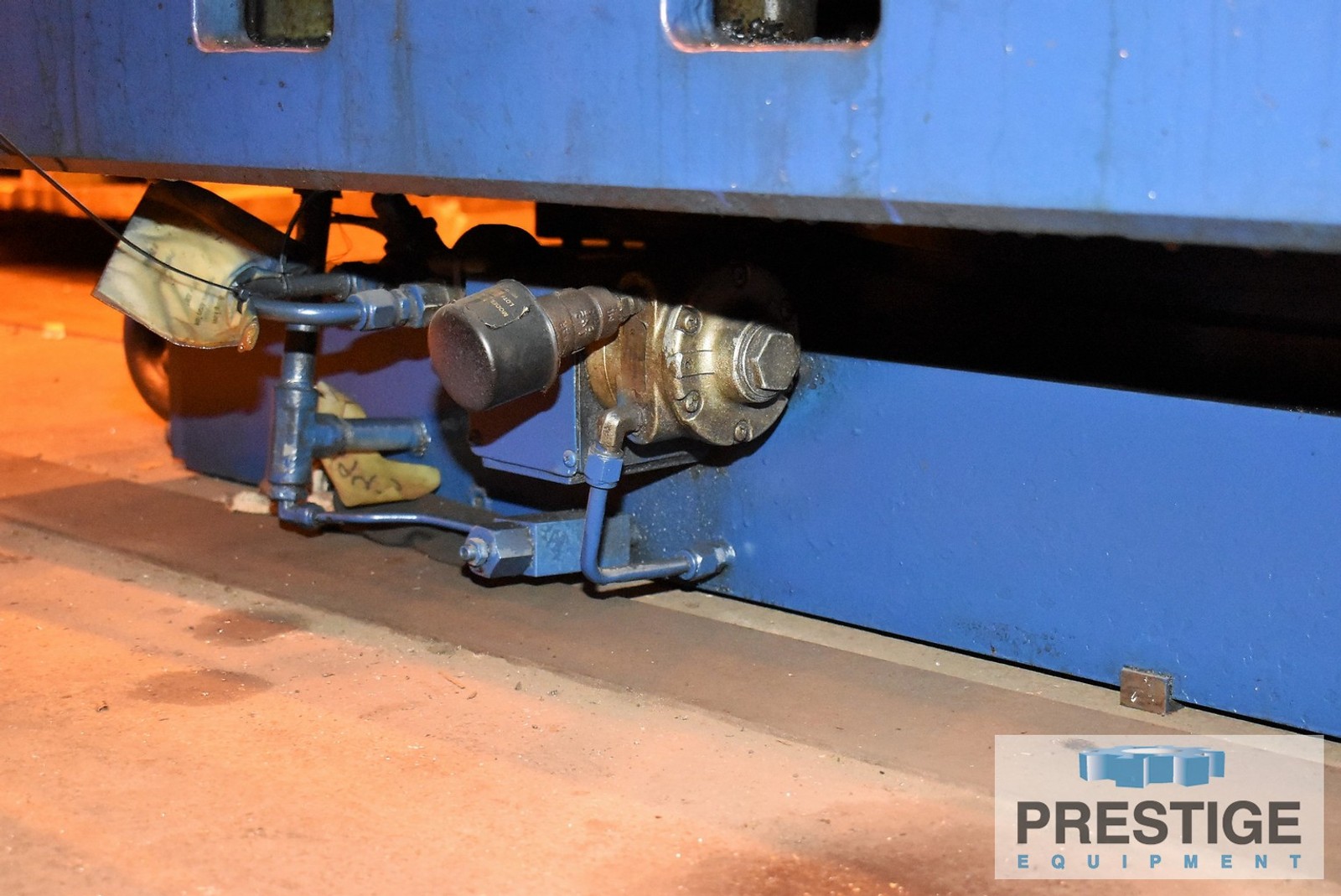

Air Clamp
Hydrostatic Lift

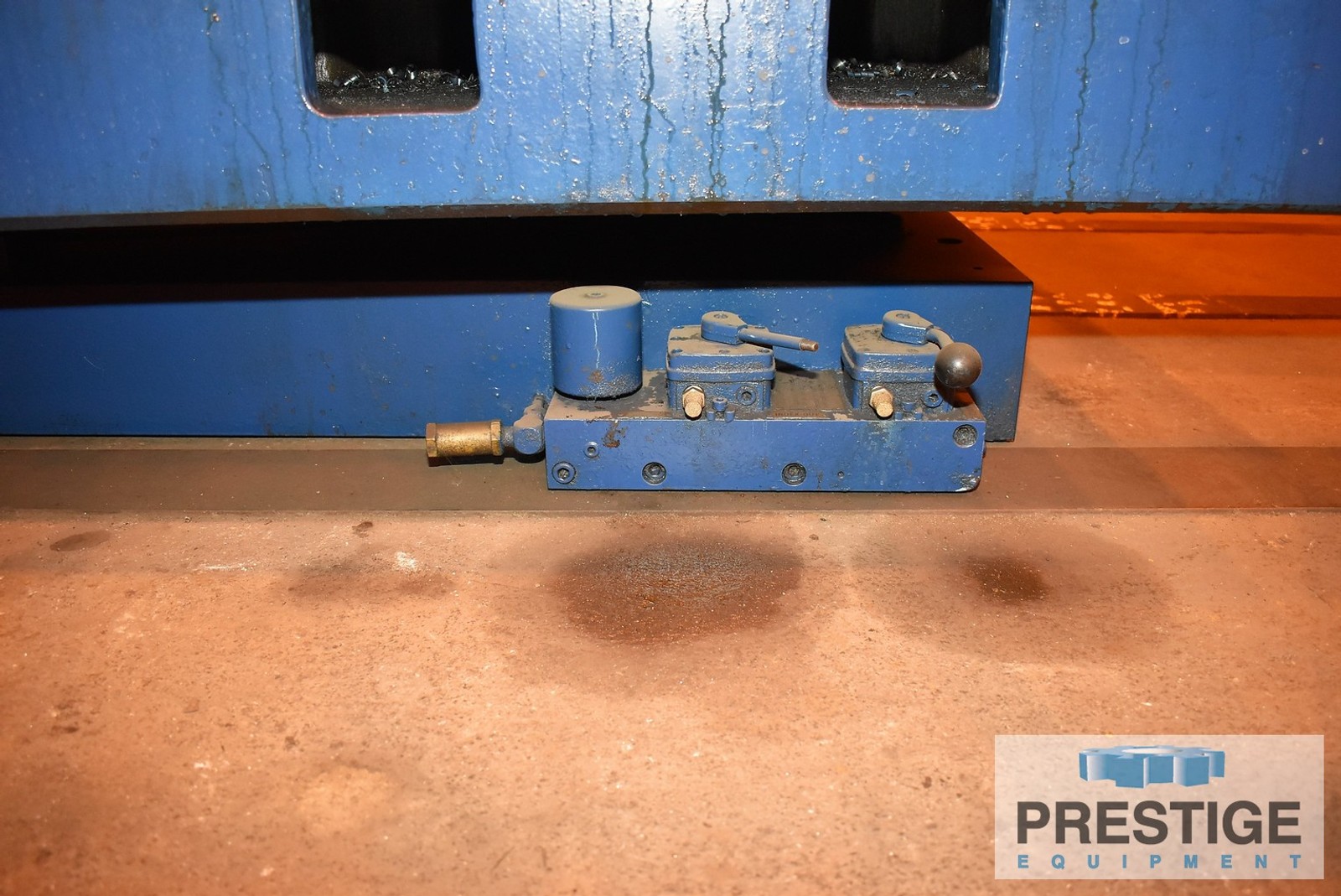

(4) Positive Stop, Shot Pins
360 Degree Scale with 1/2 Degree Increments
Fixture Locating Keyway
Center bore In Table Plate
