78" x 157" x 16.5" T-Slotted, 8 T-Slots on 10" Centers, 16.53" Thick,____ Cast Iron, Matched, 4-Available, #27523

Manufacturer

Category

Tables

Type

TABLES, FLOOR & LAYOUT PLATES, (Radial & Boring Mill)

Stock

27523

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #27523

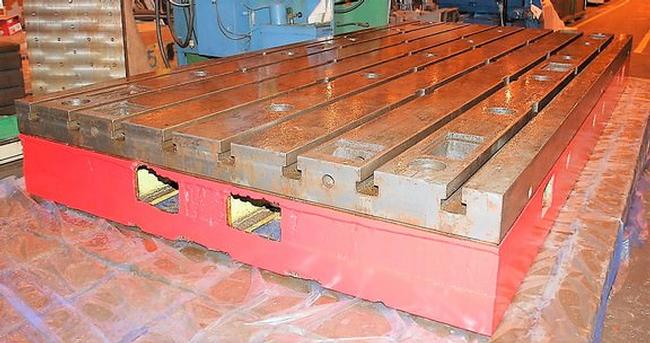

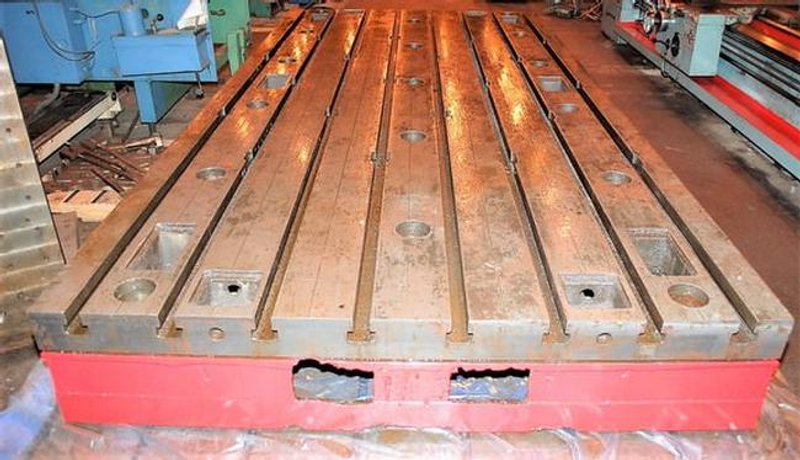

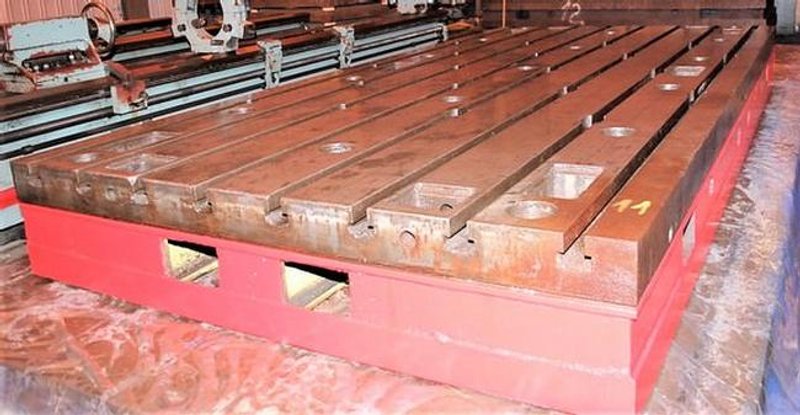

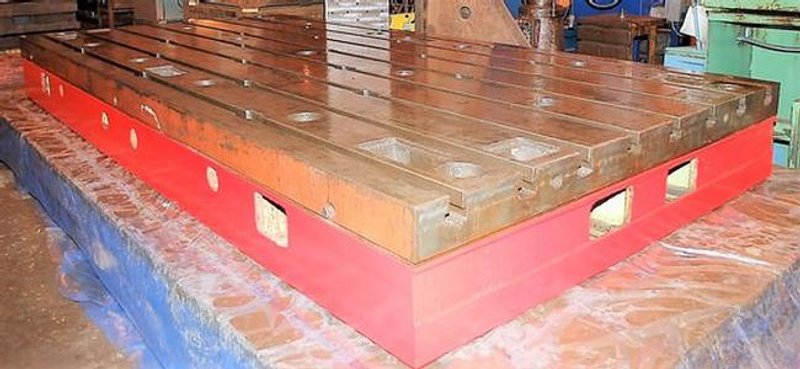

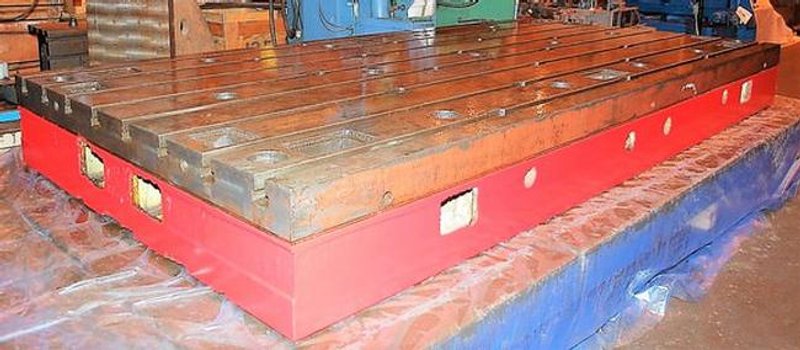

T-Slotted Floor Plates (4) 78" x 157" Cast Iron

Width ................................. 78.74"
Length ................................ 157.48"
Thickness ............................. 16.53"
T-Slot Center Distance ................ 9.874"
T-Slot Center Distance from Edge ...... 4.13"
Number of T-Slots, Longitudinal ....... 8
T-Slot Depth .......................... 2.95"
T-Slot Width, Top ..................... 1.57"
T-Slot Width, Bottom .................. 2.75"
Approximate Weight .................... 17,500 Lbs
EQUIPPED WITH:
Matched
T-Slotted
NOTE:
Must Sell In Pairs
Inspect In Our Philadelphia PA Warehouse
Cost is Per Plate, EACH
