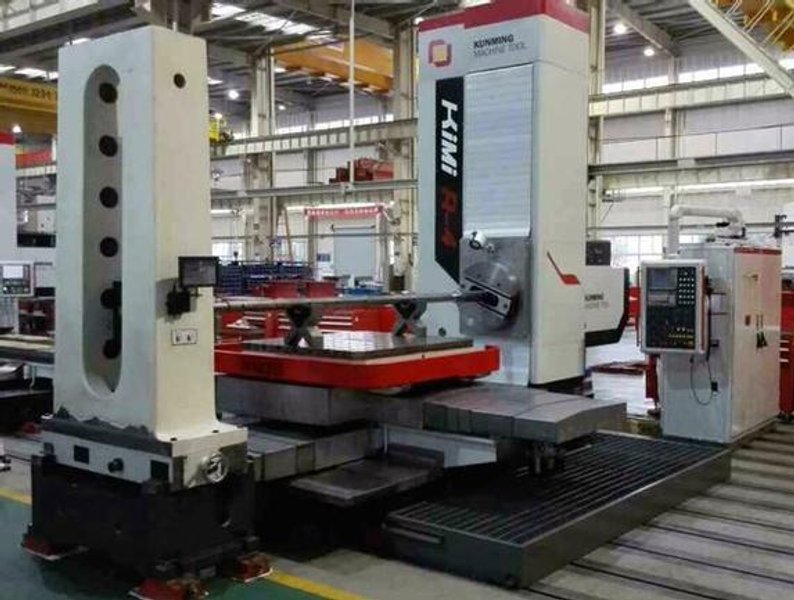

4" Manual + Full CNC Horizontal Boring Mill

Manufacturer

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, (Universal), CNC

Stock

17534

Model

None listed

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet

SPINDLE DIAMETER: 4.33"

SPINDLE TAPER: ISO 50

SPINDLE SPEEDS: 10 - 1100 RPM

SPINDLE MOTOR: 20 HP

MAXIMUM SPINDLE TORQUE: 1069 FT.-LBS.

FACING HEAD DIAMETER: 25.59"

FACING HEAD SPEEDS: 7 - 165 RPM

MAXIMUM FACING HEAD TORQUE: 1604 FT.-LBS.

MAXIMUM FACING HEAD BORING DIAMETER: 25.59"

TABLE SIZE: 49.2" X 55.1"

MAXIMUM TABLE LOAD CAPACITY: 11,000 LBS.

TABLE CROSS TRAVEL (X): 70.8"

TABLE LONGITUDINAL TRAVEL (Z): 63"

HEADSTOCK VERTICAL TRAVEL (Y): 55.1"

SPINDLE AXIAL TRAVEL (W): 23.6"

FACING HEAD SLIDE TRAVEL (U): 7.8"

ROTARY TABLE (B): 360 DEGREES

MAXIMUM TABLE ROTATION SPEED: 1.3 RPM

FEEDS (X, Y, Z, W): 0.098 - 78.74 IPM

FEEDS (U): 0.039 - 19.68 IPM

RAPIDS (X, Y, Z): 197 IPM

RAPIDS (W): 118 IPM

RAPIDS (U): 19 IPM

POSITIONING ACCURACY (X, Y, Z): 0.0098"

POSITIONING ACCURACY (B): 10 ARC SEC

REPEATABILITY (X, Y, Z): 0.00059"

REPEATABILITY (B): 6 ARC SEC

OAD (LXWXH): 216.5" X 161.4" X 157.5"

WEIGHT (APPROXIMATE): 41,800 LBS.

EQUIPPED WITH:

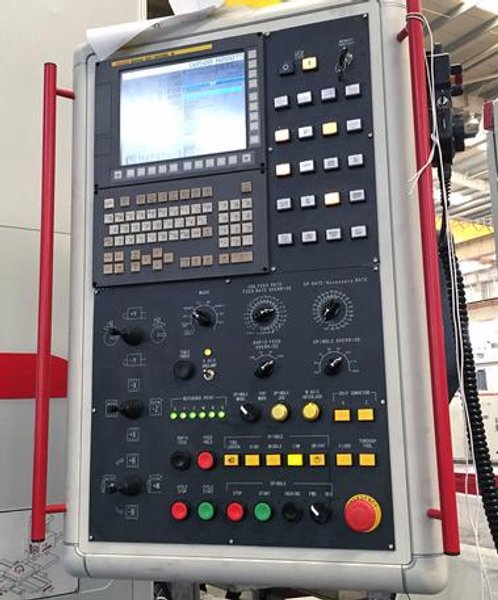

FANUC 32i CNC CONTROL WITH MANUAL OPERATION PANEL FOR SPINDLE SPEEDS, INDIVIDUAL AXIS RAPID AND FEED RATE CONTROLS

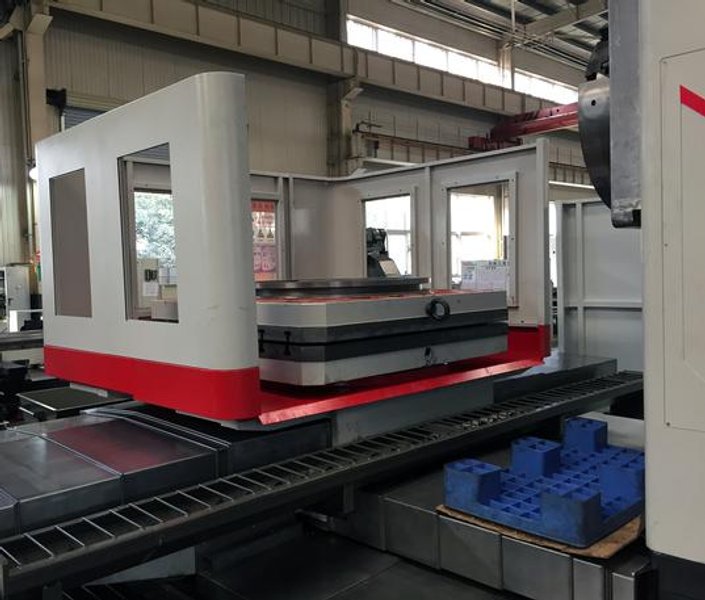

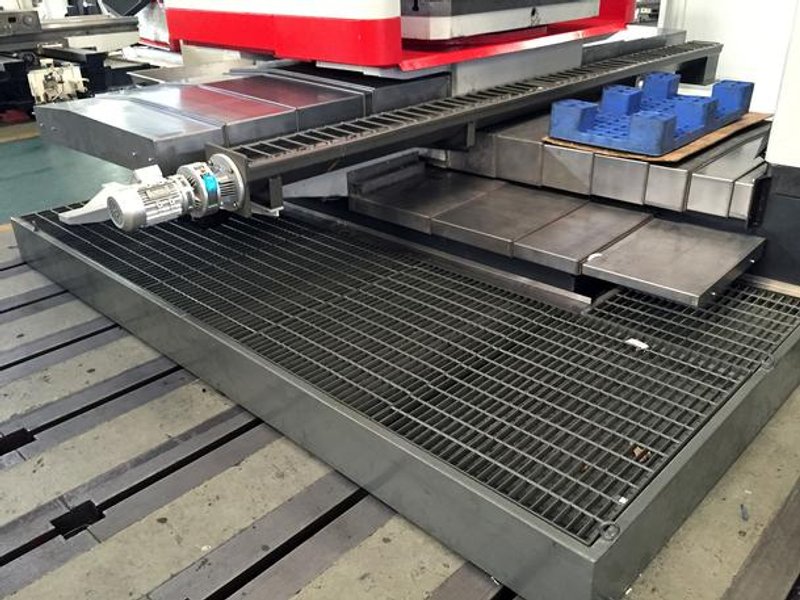

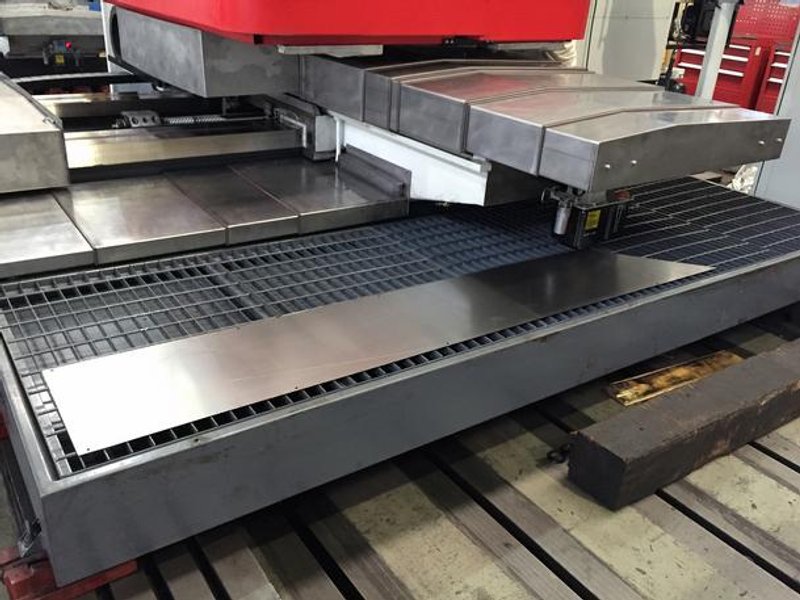

COOLANT AND CHIP CONTROL PACKAGE WITH TABLE GUARD

FANUC ALPHA SERIES SERVO MOTORS ON X, Y, Z AND W AXES

CLOSED LOOP LINEAR SCALES ON X, Y, AND Z AXES

BUILT-IN ENCODER MOTOR ON W AXIS

ANGLE ENCODER ON B AXIS

BUILT-IN FACING HEAD

BUILT-IN ROTARY TABLE

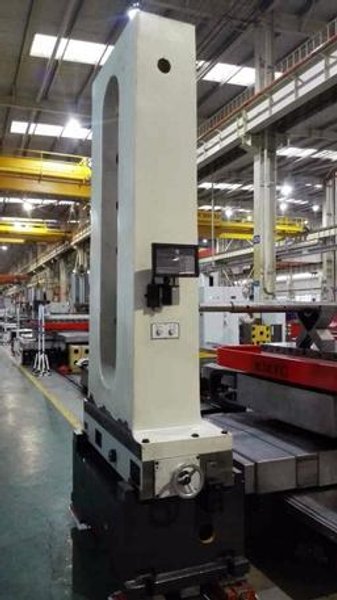

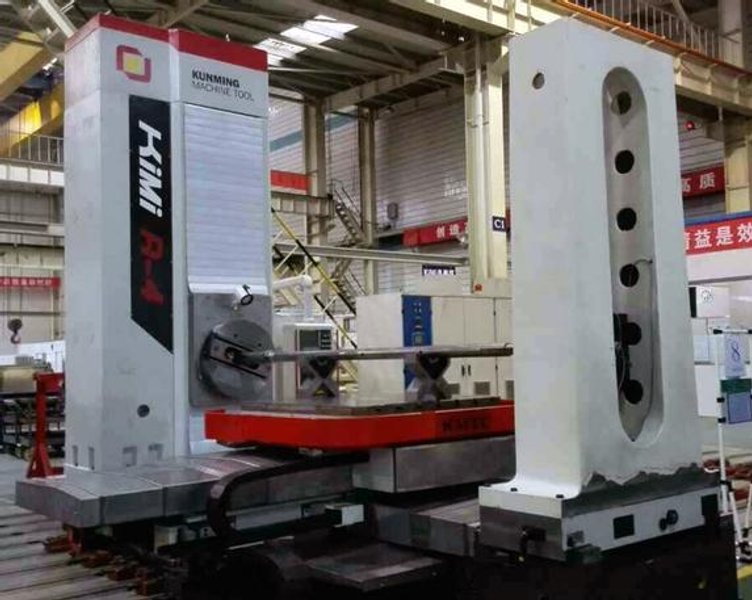

OUTBOARD SUPPORT

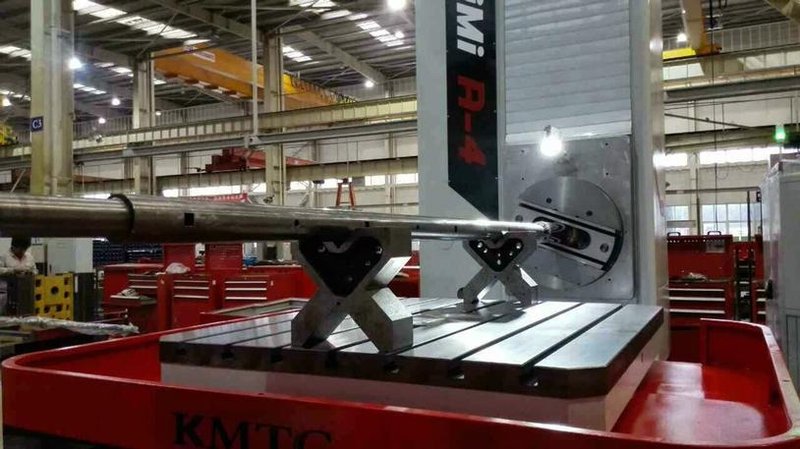

BORING BAR
