Eimeldingen 2-16/1600X1600, 63" X 98", 20.75"Tbl Ht, Full B-Axis, .001 Deg Indxg, '10 #28151

Manufacturer

EIMELDINGEN

Category

Tables

Type

TABLES, CNC

Stock

28151

Model

2-16

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #28151

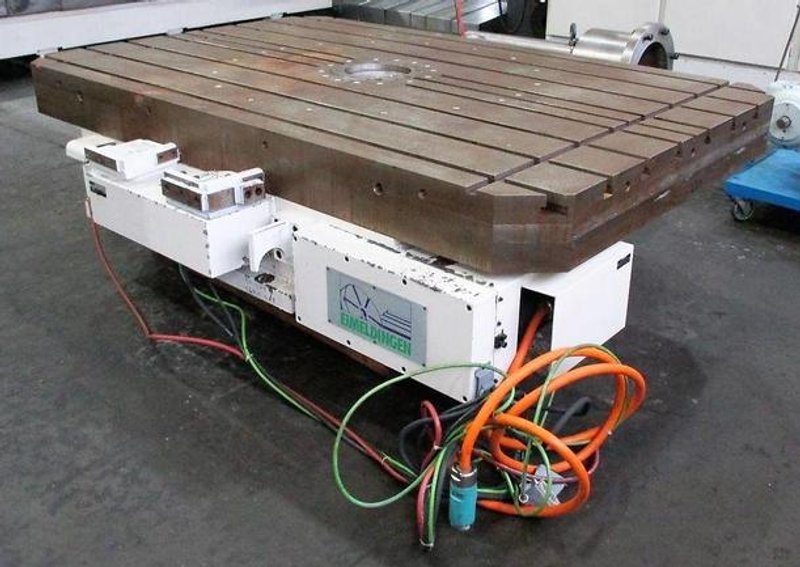

63" x 98" Eimeldingen CNC Rotary Table
Model: 2-16-1600

FEATURES:
Full B-Axis
High Accuracy

CAPACITY:
Table Size ........................... 63" x 98.42"
Table Rotary Indexing, B-Axis ........ .001 Degrees
T-Slot Size .......................... 22
Number of Radial T-Slots ............. 8
Table Work Height .................... 20.75"
Center Hole Diameter ................. 3.93"
Table Loading Capacity ............... 55,000 lbs
Table Weight, Approx. ................ 7,700 lbs
Electrics ............................ 460/3/60

EQUIPPED WITH:
Full B-Axis Rotation & Programmable Clamping
Heidenhain Rotary Encoder
