Schiess Froriep 63 FZG Gantry Mill Turn, X-748", Y-295", 177" B-Axis Rtab, Live Spdl, #28253

Manufacturer

SCHIESS FRORIEP

Category

Milling Machines

Type

MILLERS, PLANER TYPE (Including Millers, Slab)

Stock

28253

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference# 28253

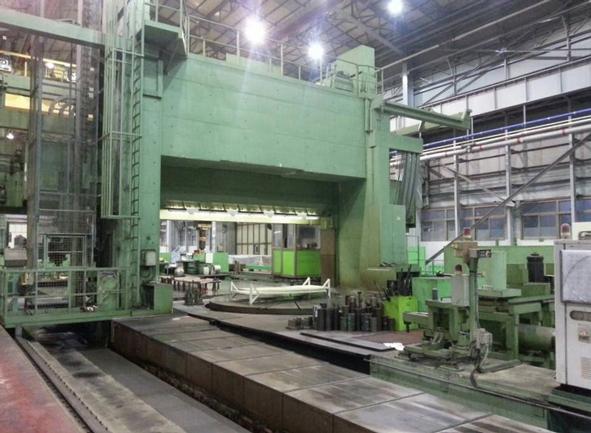

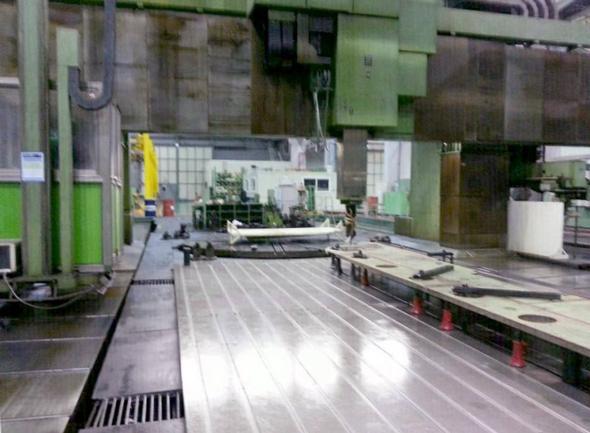

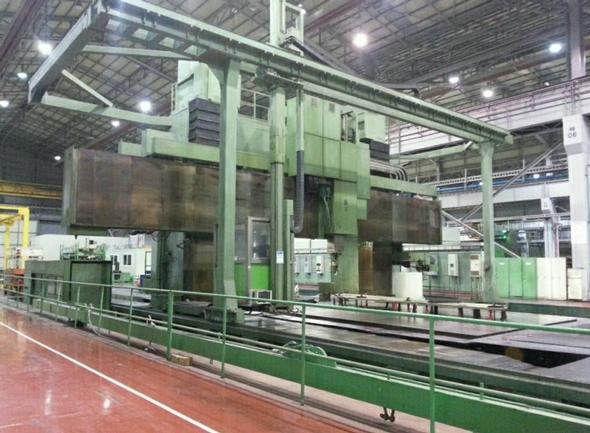

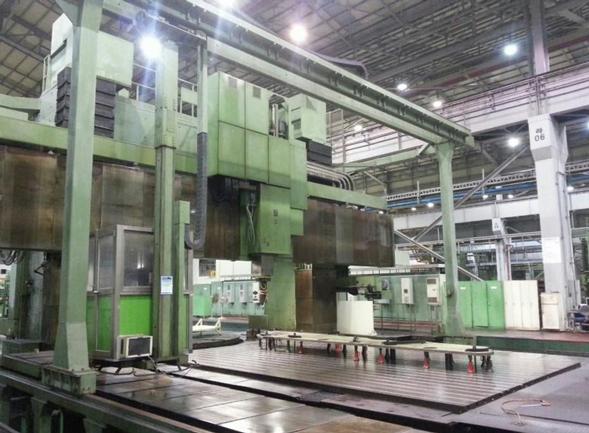

Schiess Froriep 63 FZG Travelling Gantry Milling & Vertical Turning Center
Model: 63 FZG Double Column Milling and Boring Center
Serial Number: 1133 0100
Age: 1992

FEATURES:
Combination Travelling Gantry Type Planer Mill and
Vertical Turning Center with Integrated Rotary Table
Siemens Sinumerik 850 CNC Control
Ram With Live Spindle and Right Angle Heads
177" Diameter Integrated Mill/Turn Rotary Table

CAPACITY:
Table Size Overall .................... 314.96" x 196.85"
Rotary Table Diameter B-Axis .......... 177.16"
Distance Between Housings ............. 255.90"
Maximum Distance Table To Spindle ..... 137.79"
Table Weight Capacity ................. 16,800 Lbs/Sq. Ft.
Rotary Table Weight Capacity .......... 138,891 Lbs.
Gantry Travel, X-Axis Feeds ........... .003-118.11 IPM
Gantry Travel, X-Axis Rapid Traverse .. 393.70 IPM

TRAVELS:
X-Axis Gantry Travel .................. 748.03"
Y-Axis Milling & Turning Head Travel .. 295.27"
W-Axis Cross Rail Vertical Travel ..... 98.42"
Z-Axis Ram Travel ..................... 62.99"

MILLING & TURNING HEAD:
Y-Axis Cross Travel ................... 295.27"
Z-Axis Vertical Ram Travel ............ 62.99"
Spindle Taper ......................... ISO 50
Live Spindle Speeds ................... 2-2500 RPM
Cross Section of Ram .................. 18.11" x 14.98"
Automatic Tool Changer ................ 110 Positions

INTEGRATED B-AXIS ROTARY TABLE:
Table Diameter ........................ 177.16"
Table Indexing, B-Axis ................ 360,000 Positions
Table Gear Ranges ..................... 2
Table Speeds (Gear I) ................. .63-16 RPM
Table Speeds (Gear II) ................ 2.5-63 RPM
Base Speed ............................ 5 RPM
Table Load Capacity ................... 139,000 Lbs.
Table Feedrate ........................ .00001-1 RPM

EQUIPPED WITH:
Siemens Sinumerik 850 CNC Control
Elevating Operator Stations with Controls
110 Station Automatic Tool Changer
Boring, Milling and Grinding Heads, Including: Right Angle Milling Heads,
Additional Special Milling Heads, Manual and NC Boring Heads
Telescoping Steel Way Covers
Chip Conveyor
