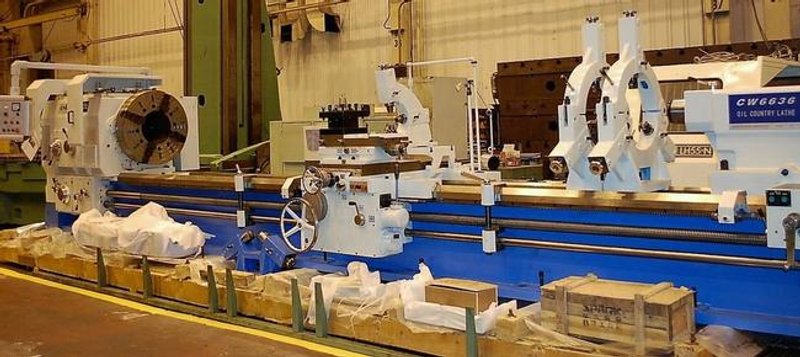

40" X 236" Spark Oil Country, 14" Hole, Front & Rear Chucks, 315 RPM, Tpr, in/mm, #27489

Manufacturer

SPARK

Category

Lathes

Type

LATHES, OIL FIELD & HOLLOW SPINDLE

Stock

27489

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #27489

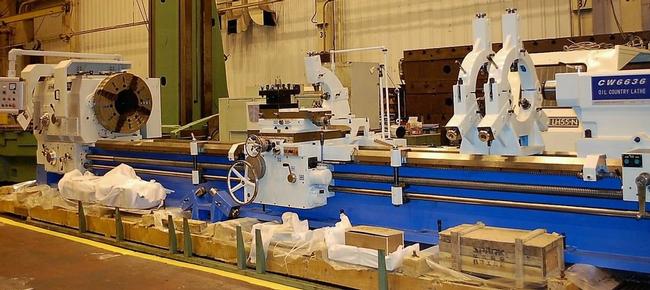

SPARK 40" x 236" Hollow Spindle Manual Lathe, 14" Bore, Brand New
Model: Oil Country 1000 x 6000

FEATURES:
14.17" Spindle Bore Diameter

CAPACITY:
Maximum Swing Over Bedways ............ 39.37"
Maximum Swing Over Carriage ........... 25.1"
Distance Between Centers .............. 236.12"
Spindle Hole Diameter ................. 14.17"
Spindle Speeds (18) ................... 6.3-315 RPM
Weight Between Centers ................ 13,200 lbs
Crosslide Travel ...................... 20.47"
Topslide Travel ....................... 11.81"
Metric Thread Range (44) .............. 1-120 MM
Whitworth Thread Range (37) ........... 30-1+1/8 TI
Module Threads (46) ................... .5-60 MM
Tailstock Diameter .................... 6.3"
Tailstock Taper ....................... #80 Metric
Tailstock Travel ...................... 11.81"
Spindle Motor ......................... 29 HP (22KW)
Bed Width ............................. 29.72"
Machine Dimensions .................... 365" x 74" x 75"
Machine Weight ........................ 37,500 lbs

EQUIPPED WITH:

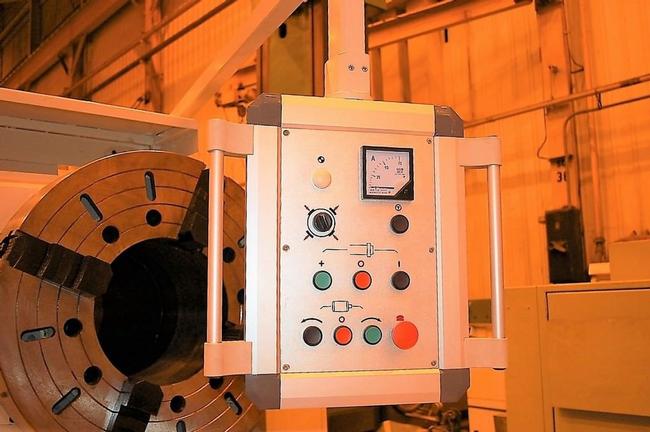

Pendant Control
(2) 31.49" 4-Jaw Chucks Mounted Front & Rear Mounted
Front & Rear Chuck Guards

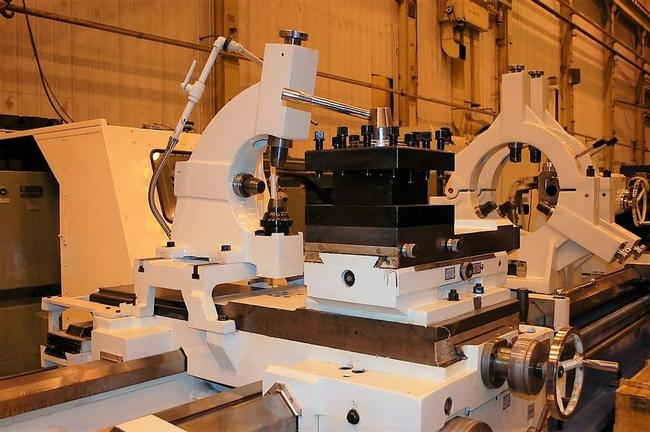

4-Way Tool Post
Inch/Metric Threading
Taper Turning Attachment

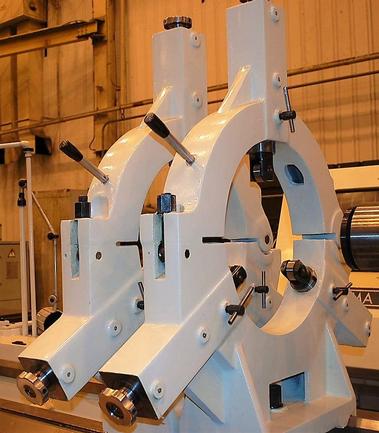

(2) Large Roller Type Steady Rests: 1.96"-18.50"
Follow Rest: 1.96" - 8.66"
Dead Center
Live Center
Coolant System
Work Light
Rapid Traverse
Motorized Tailstock
Special Tools
30 HP Spindle Motor 440V/3Ph/60Hz

NOTE:
New, Never Used! On Original Shipping Skid
