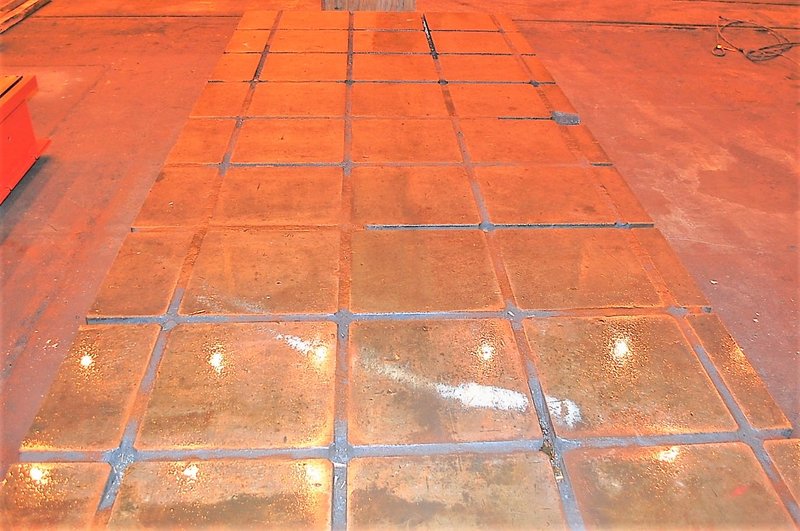

90" x 215" T-Slotted Floor Plates, 19" Thick, Cast Iron, (2) Available, Matched, #21430

Manufacturer

Category

Tables

Type

TABLES, FLOOR & LAYOUT PLATES, (Radial & Boring Mill)

Stock

21430

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #21430

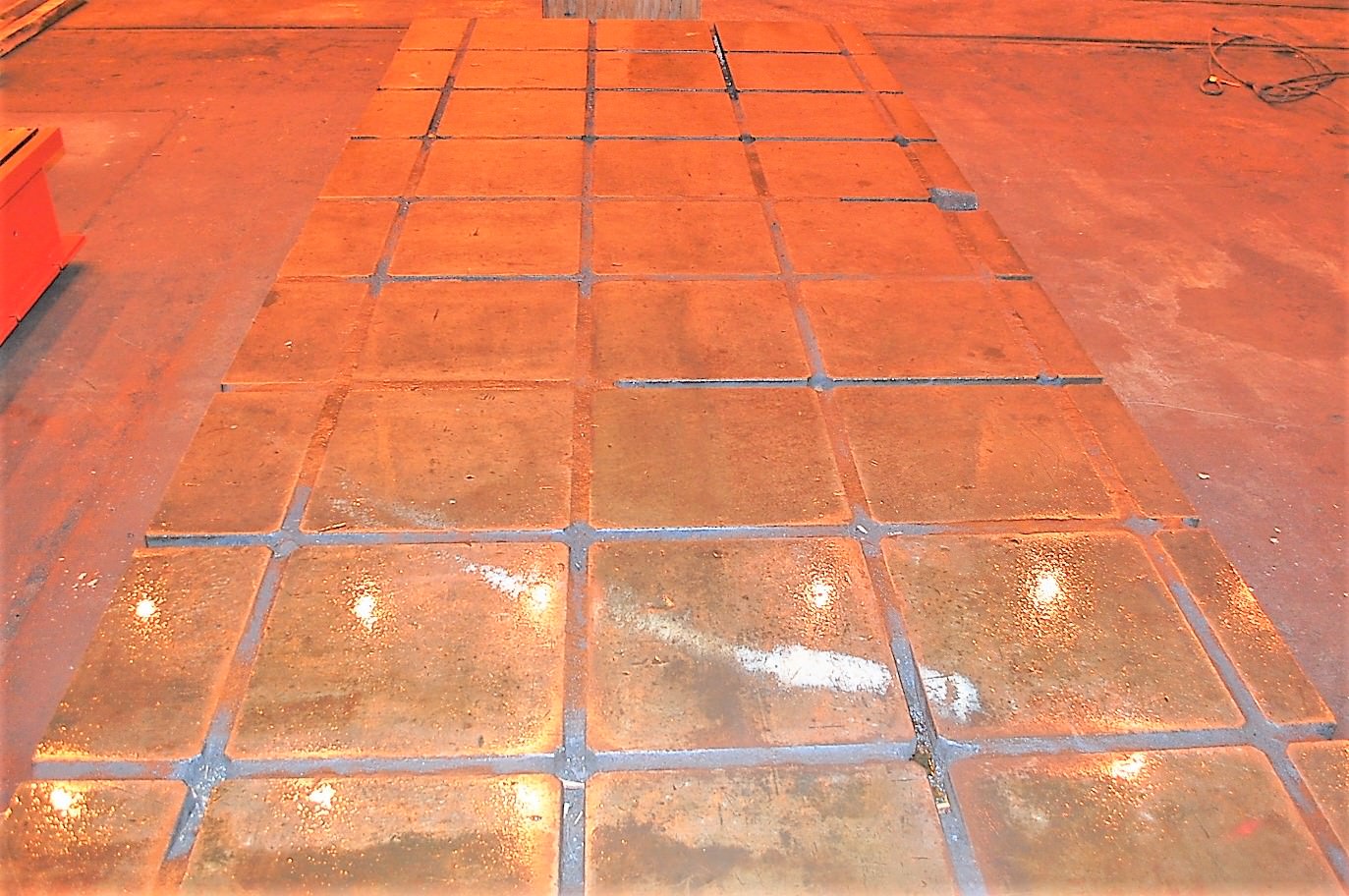

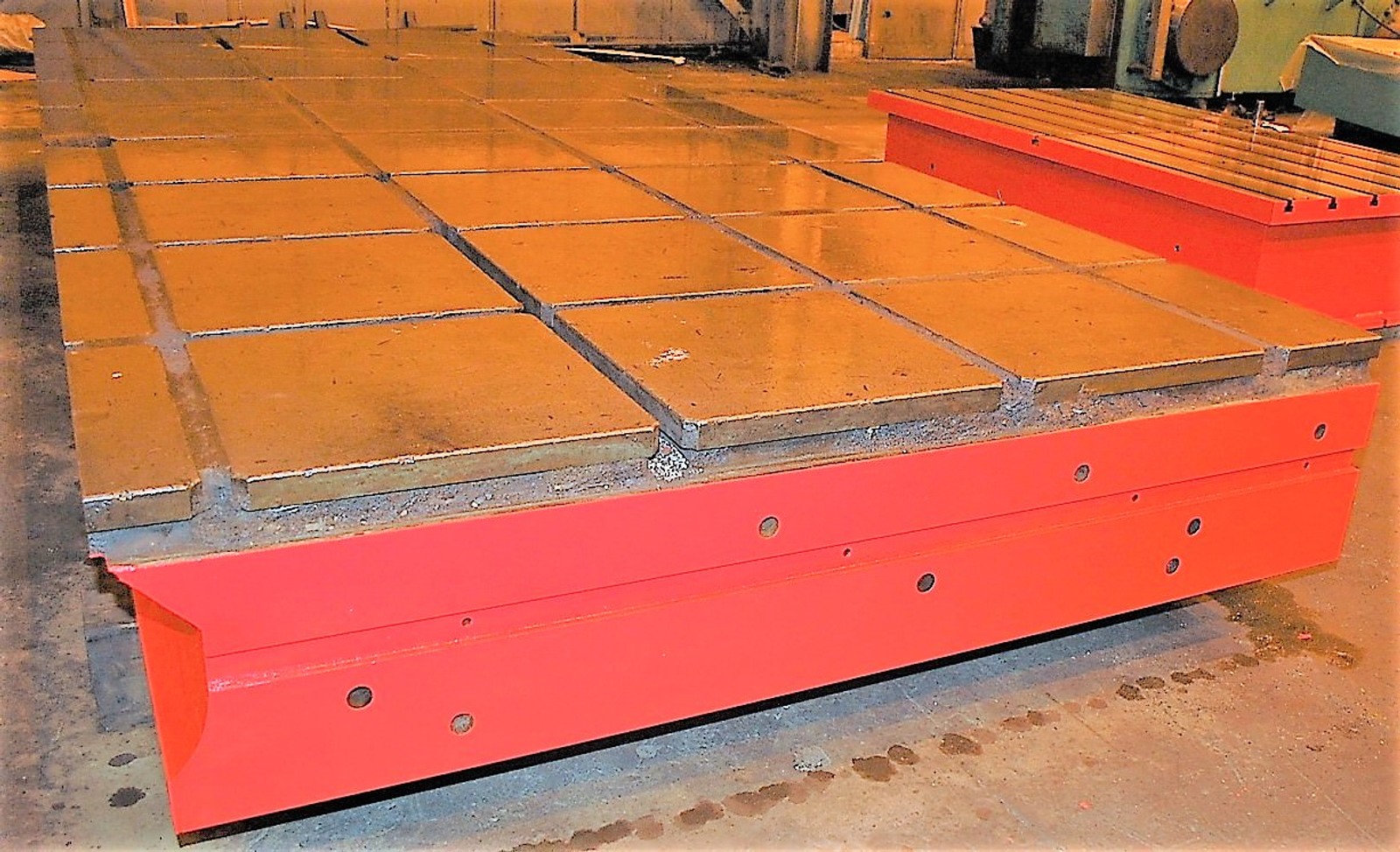

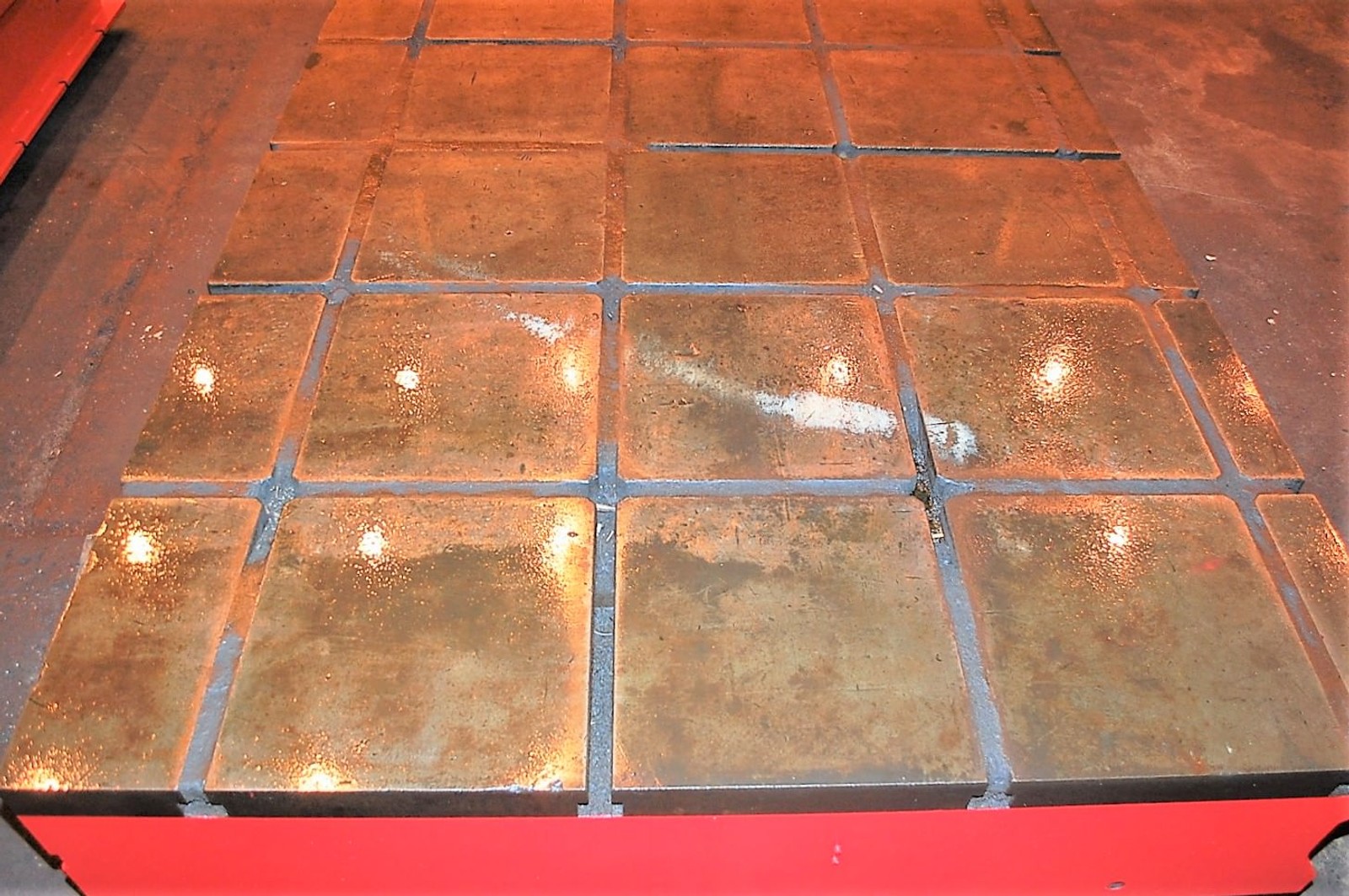

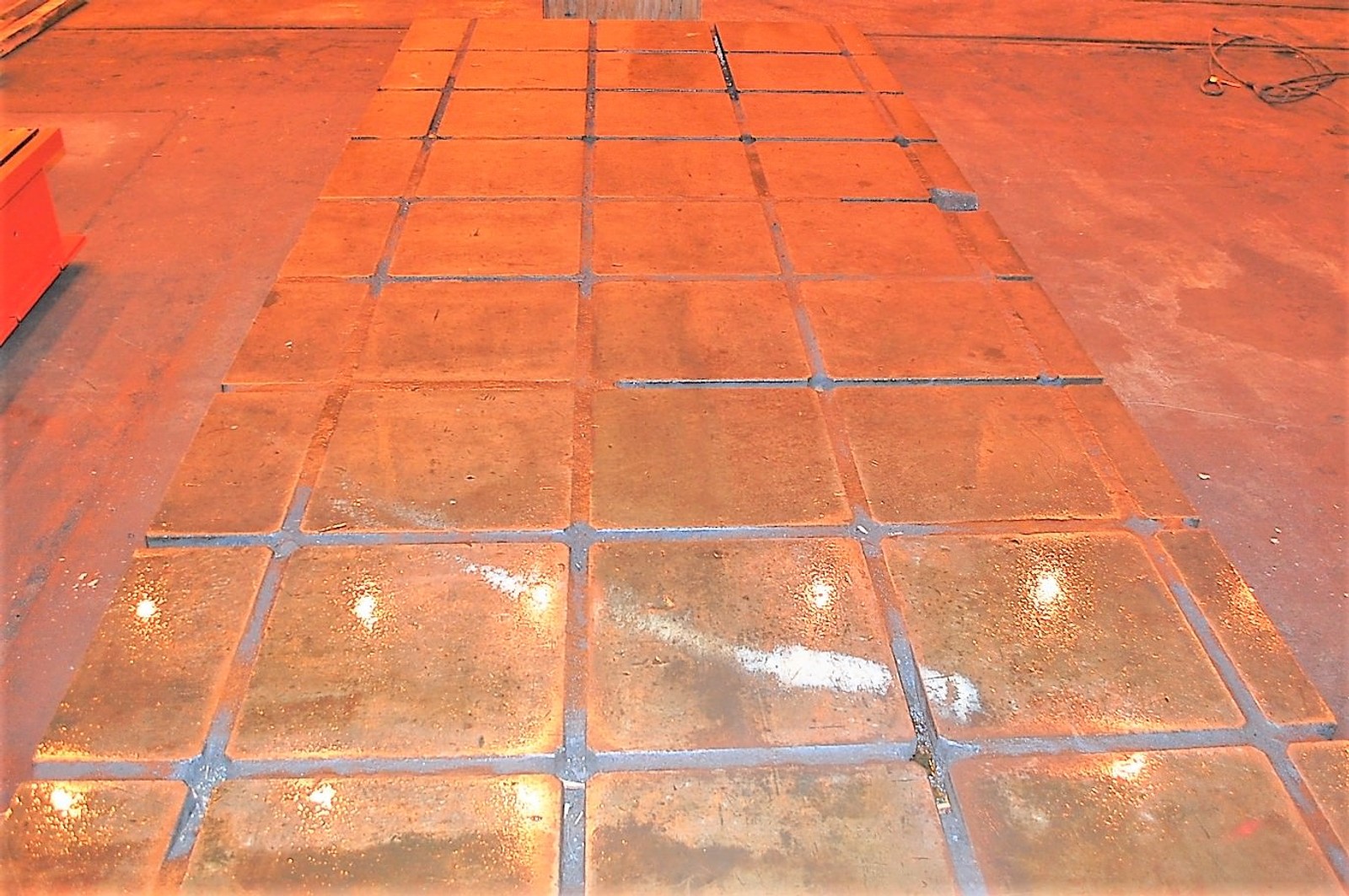

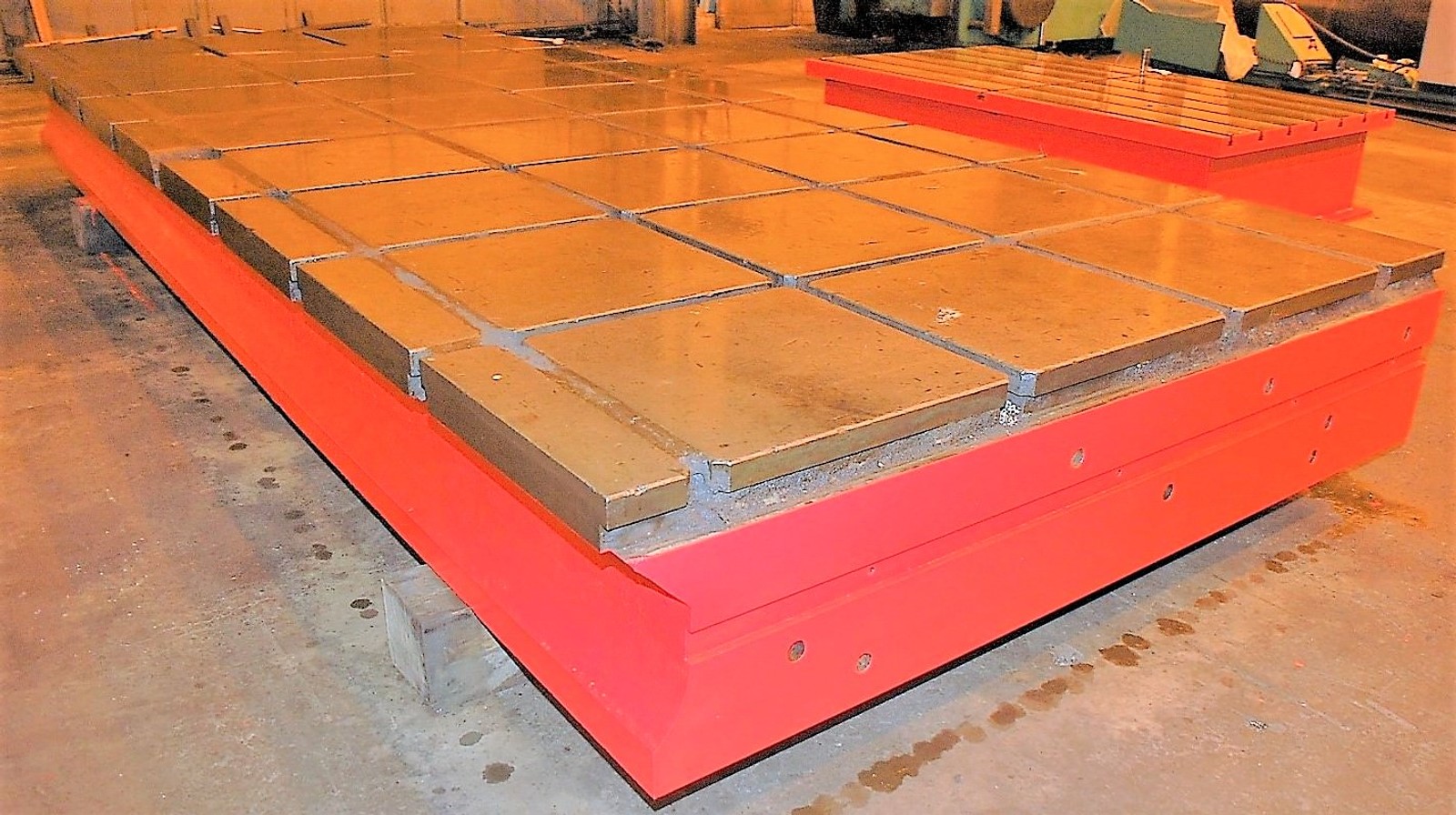

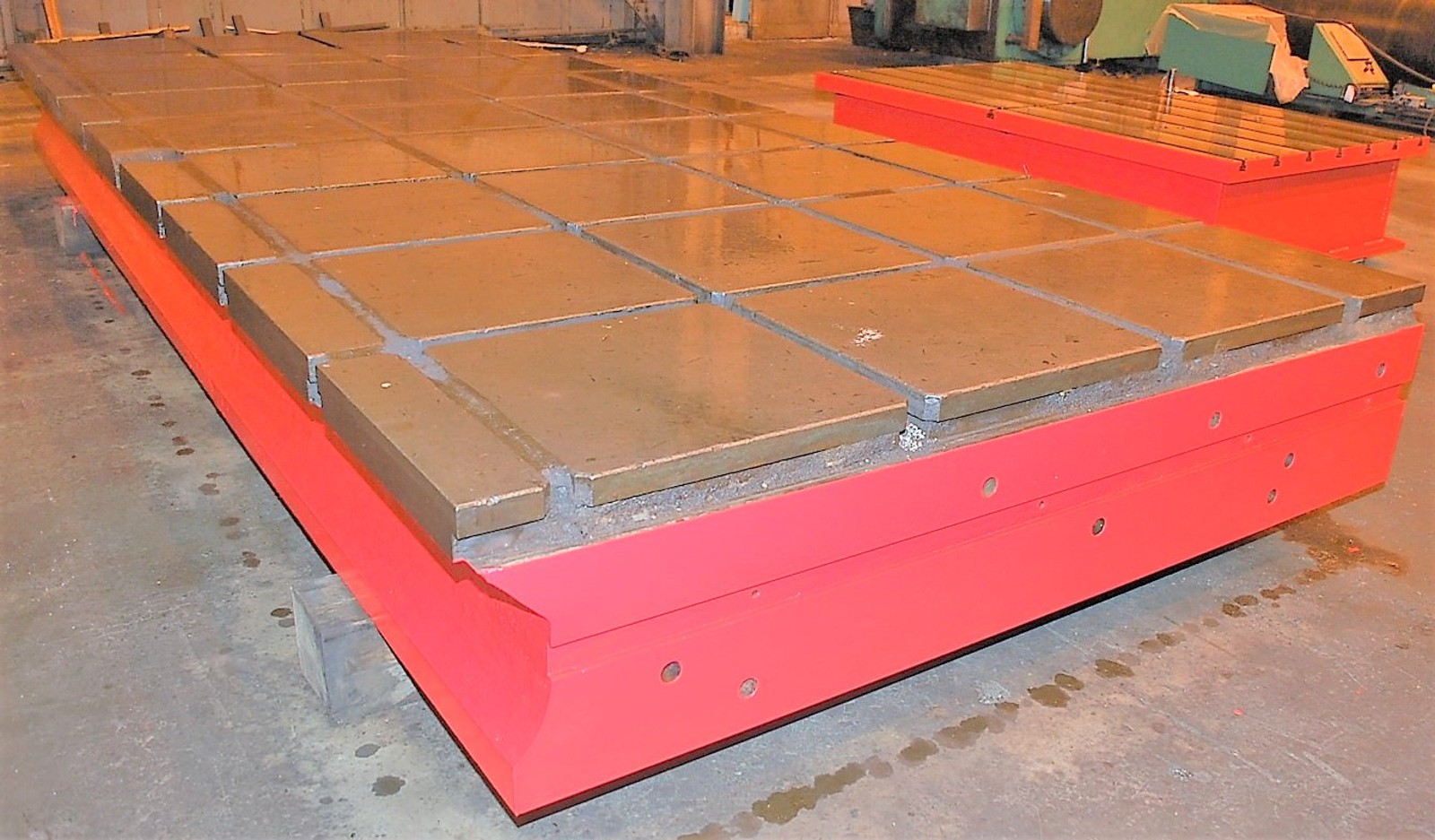

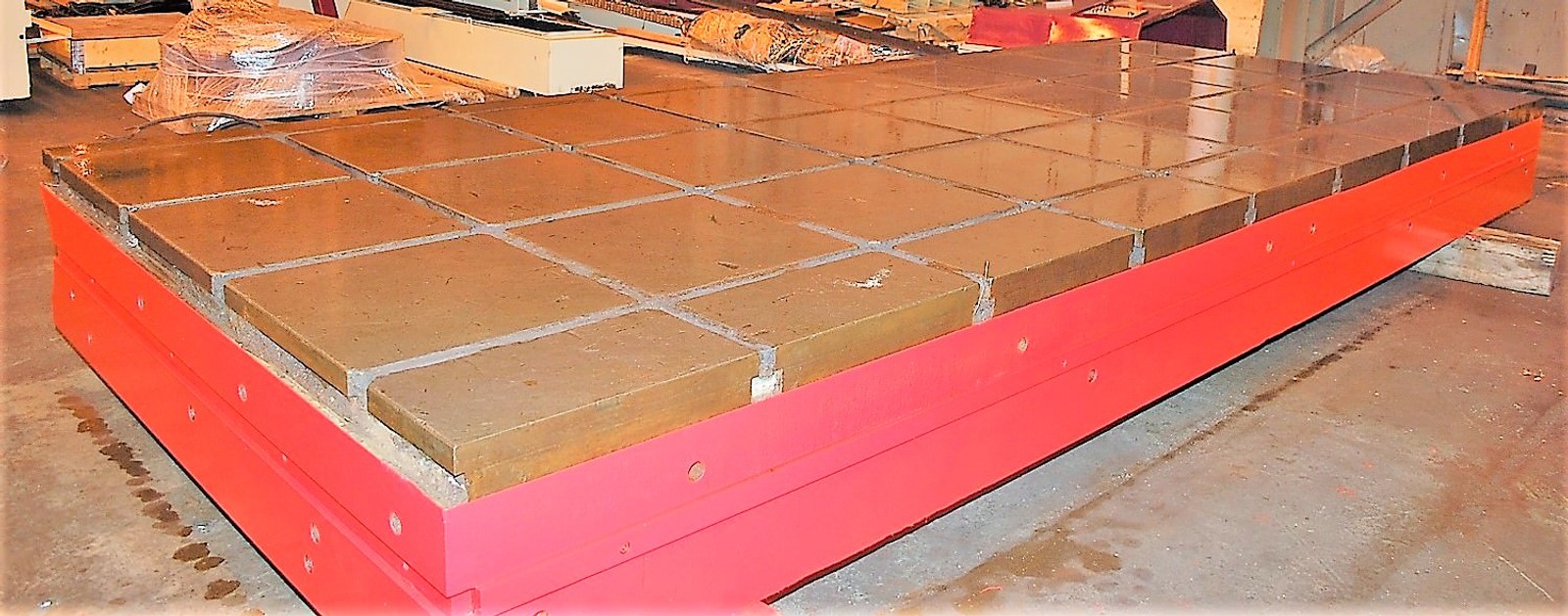

T-Slotted Floor Plates (2) 90" x 215" Cast Iron Construction

Overall Width ......................... 90"
Overall Length ........................ 215"
Thickness ............................. 19"
Material .............................. Cast Iron
Distance Between T-Slot Centers ....... 24"
Number of T-Slots - Width ............. 4
Number Of T-Slots - Length ............ 8
Depth of T-Slot ....................... 3.5"
Size of T-Slot ........................ 1-3/8" x 2-3/4"
Approx Weight Per Each Plate .......... 44,000 lbs.
EQUIPPED WITH:
Cast Iron Contruction
Machined To Bolt Together, End to End Or Side To Side
NOTE:
Price Is Per Each Plate, Must Sell As Pair
Inspect In Our Philadelphia PA Warehouse
Price: |price|
