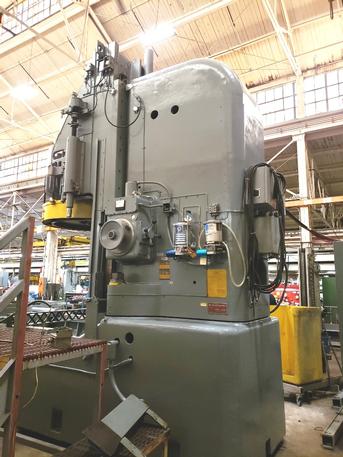

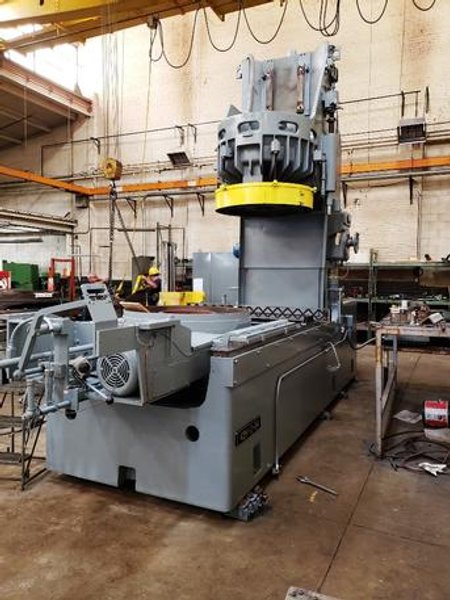

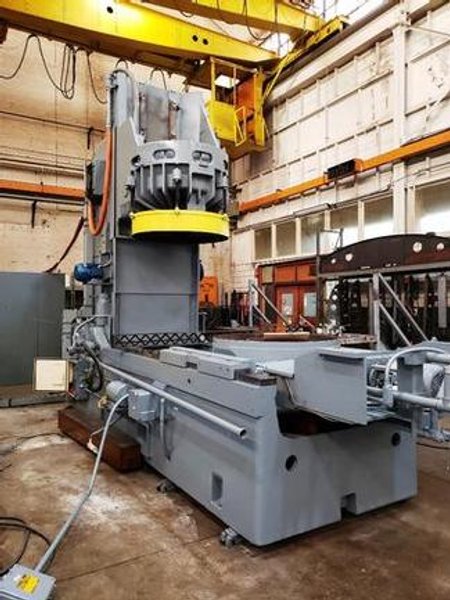

84" Blanchard #42HD-84 Geared Head Rotary Surface Grinder, 1981

Manufacturer

BLANCHARD

Category

Grinding Machines

Type

GRINDERS, SURFACE, ROTARY TYPE, (Vertical Spindle)

Stock

4654

Model

42HD-84

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

84" Magnetic Chuck

Approximately .500" "Chuck Life"

87" Swing Inside Water Guards

40" Maximum Height Under Wheel

42" Grinding Wheel

200 HP Main Spindle Drive,240/480 Volt, Wired 480 Volt (Rewound  July 2019)

(4) Table Speeds of 3, 4.8, 7.8, 11.9 RPM

.008" to .096" Per/Min Variable Vertical Down Feeds

Equipped With:

Power Rapid Raise and Lowering of Head

Hardened Bed Ways

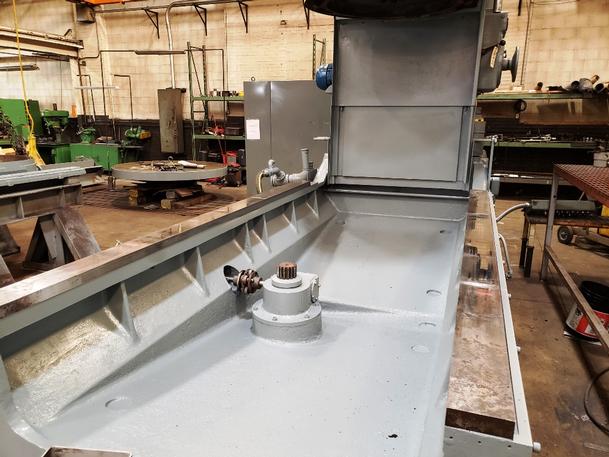

Water Guards

Oil Lubrication

Automatic Lubrication

Grinder Dimensions (Aprox.) 240.57" L x 108" W x 160" H

Weight Approximately: 75,000 Lbs.

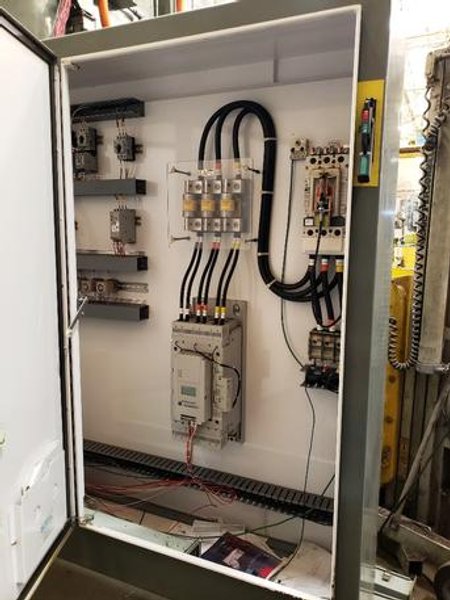

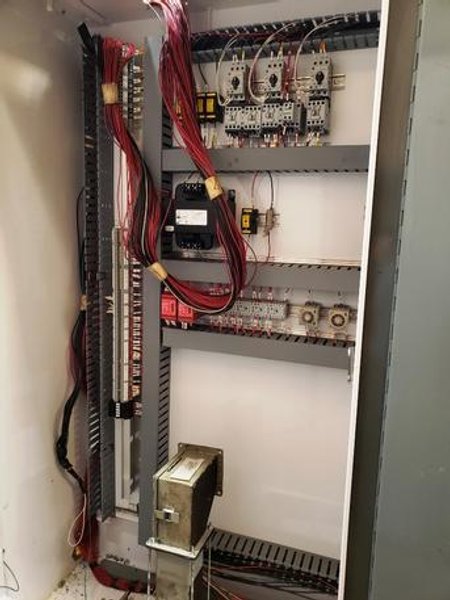

We rebuilt this machine including new electrical system back in 2007, shipped to the UK, where it was used sparingly for 1-1/2 years. then mothballed until we purchased it back in the fall of 2018.  We are re-assembling the machine, Then will tram in the head and column, precision grind magnet, run test parts prior to shipping.
