SNK FSP-120V, 3-Spindles, X120", Y50", Z24", 144"X48" Tbl, 20 HP, Fanuc 18i CNC, #29262

Manufacturer

SNK

Category

Milling Machines

Type

PROFILERS, CNC - See Also M0185, M0120

Stock

29262

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #29262


SNK FSP-120V CNC Vertical Profiler
Age: 1988 Retrofit 2000

FEATURES:

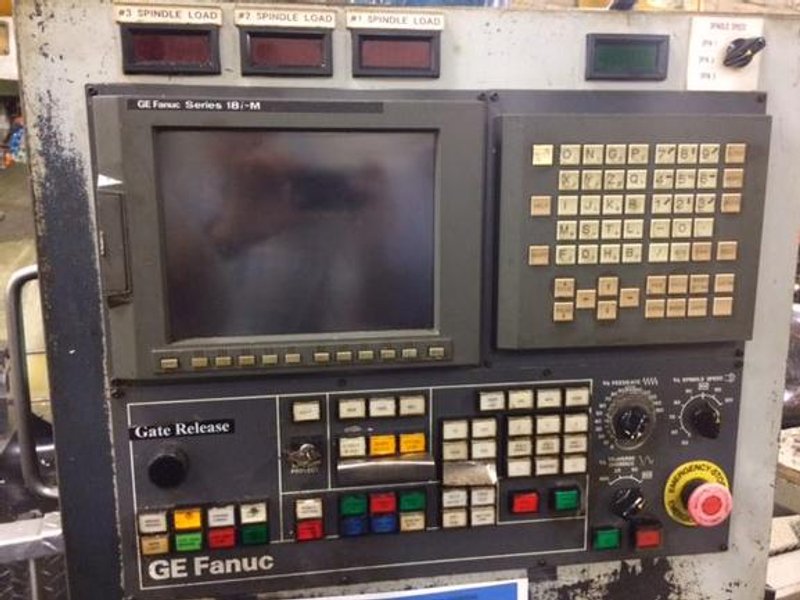

Fanuc 18i-M CNC Controls (Retrofit 2000)

CAPACITY:
X-Axis Travel ..................... 120"
Y-Axis Travel ..................... 50"
Z-Axis Travel ..................... 24"
Table Size ........................ 144" x 48"
Table Load Capacity ............... 22,000 lbs
Distance Table Top to Spindle ..... 20" to 44"

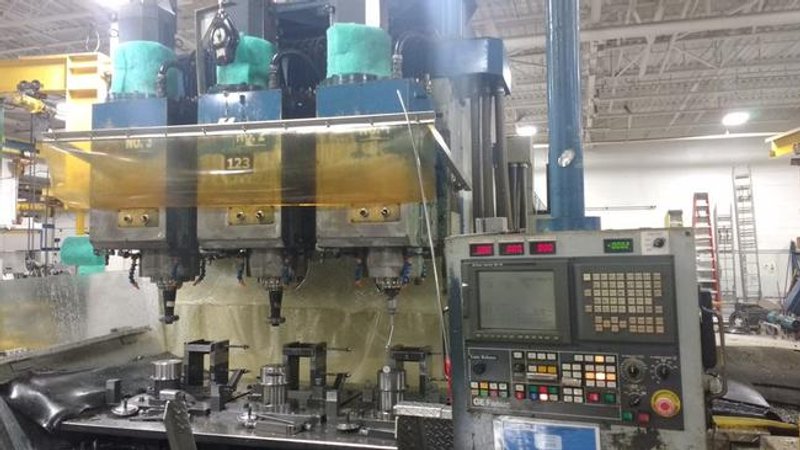

Number of Spindles ................ 3
Distance Between Spindles ......... 24"
Spindle Speeds .................... 20-3200 RPM
Spindle Taper ..................... CAT #50
Spindle Drive Motor ............... 20 HP AC
Feed Rate, X,Y .................... to 200 IPM
Feed Rate, Z ...................... to 100 IPM
Feed Rate, A,B .................... to 240 DPM

EQUIPPED WITH:
Fanuc 18i-M CNC Controls
