84" X 120" Giddings & Lewis Hydrostic Lift, 50,000 Lb. Cap, 4-Pos Shot Pin, #22514

Manufacturer

GIDDINGS & LEWIS

Category

Tables

Type

TABLES, ROTARY

Stock

22514

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #22514

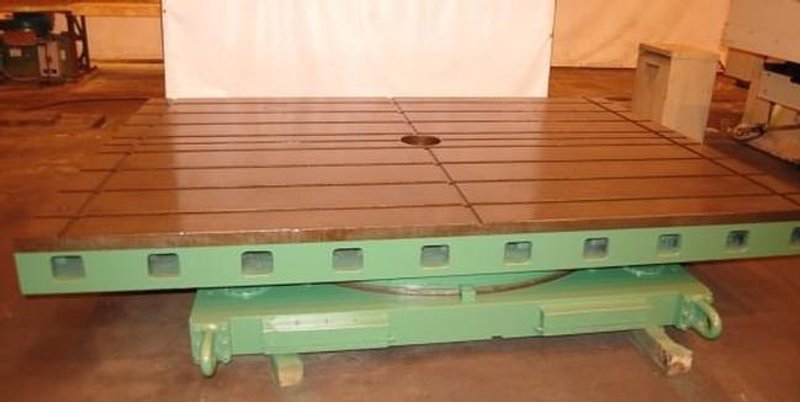

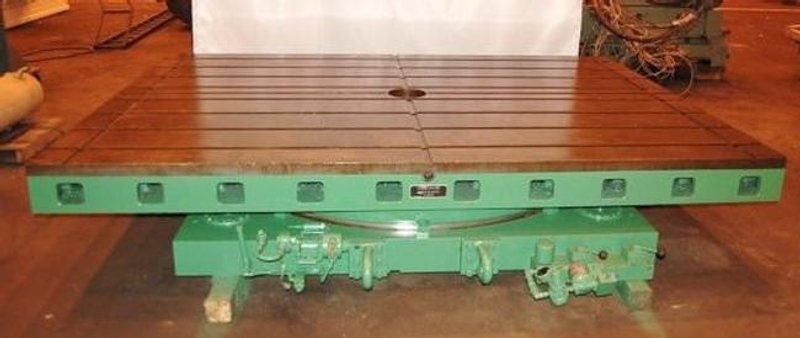

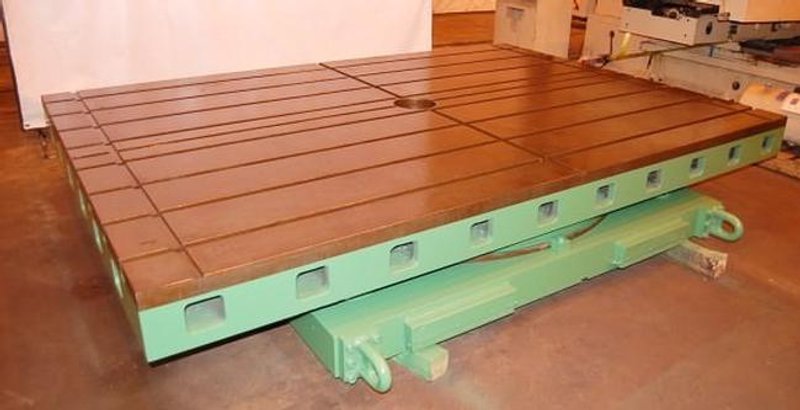

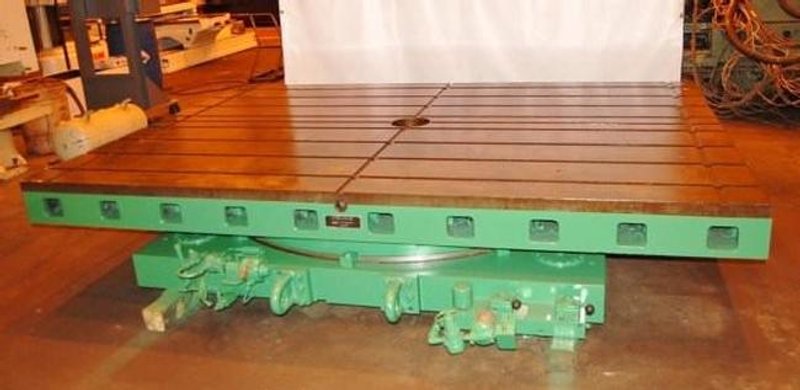

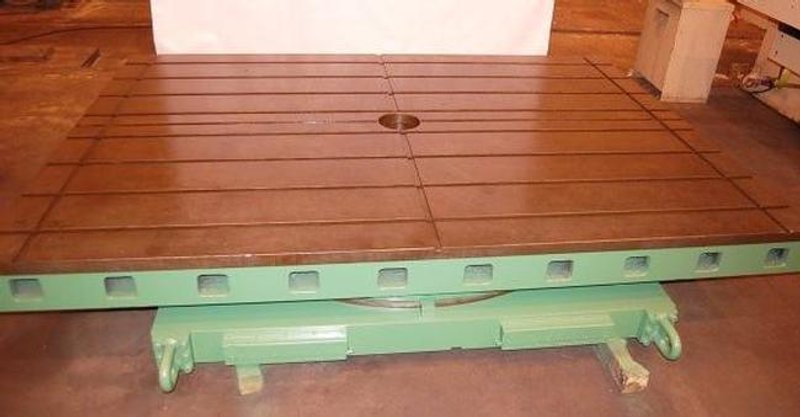

84" x 120" Giddings & Lewis Hydrostatic Rotary Index Table

FEATURES:
50,000 lb Load Capacity
4-Positive Shot Pin Locations

CAPACITY:
Table Size ............................ 84" x 120"
Base Size ............................. 78" x 84"
Table Height Overall .................. 19"
Number Of T-Slots ..................... 8
Width Of T-Slots Top .................. 1"
Width Of T-Slots Bottom ............... 1.875"
Depth Of T-Slots ...................... 2"
Distance Between T-Slot Centers ....... 10"
Maximum Load Capacity ................. 50,000 LBS
360 Degree Scale Increments ........... 1/2 Degree
Approximate Shipping Weight ........... 23,700 LBS

EQUIPPED WITH:
90 Degree Positioning
4-Shot Pin Positions
Fixture Locating Keyway
Power Clamping
Centerbore In Table Platen

NOTE:
Inspect In Our Philadelphia PA Warehouse
