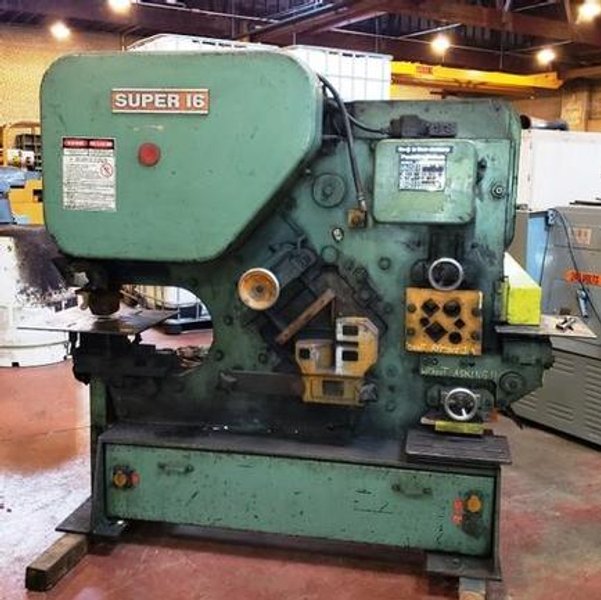

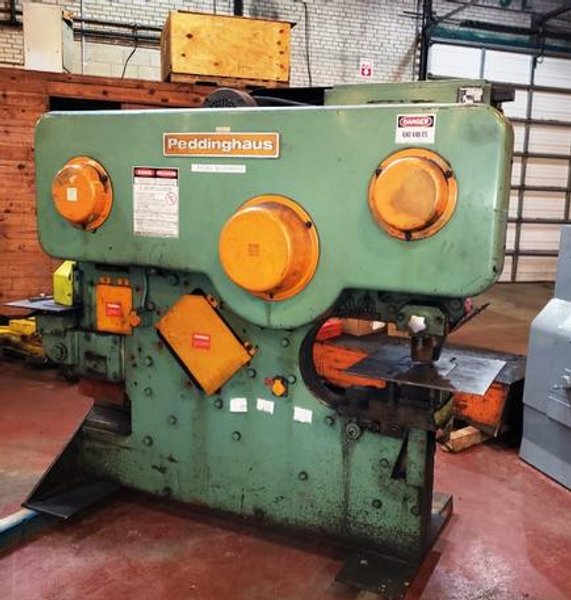

Peddinghaus 210 Super 16, 88 Ton Mechanical Iron Worker, '80

Manufacturer

PEDDINGHAUS

Category

Punches

Type

PUNCH-SHEARS, IRONWORKERS

Stock

4680

Model

None listed

Dealer Location

Michigan

Request a Quote
View Contact Information

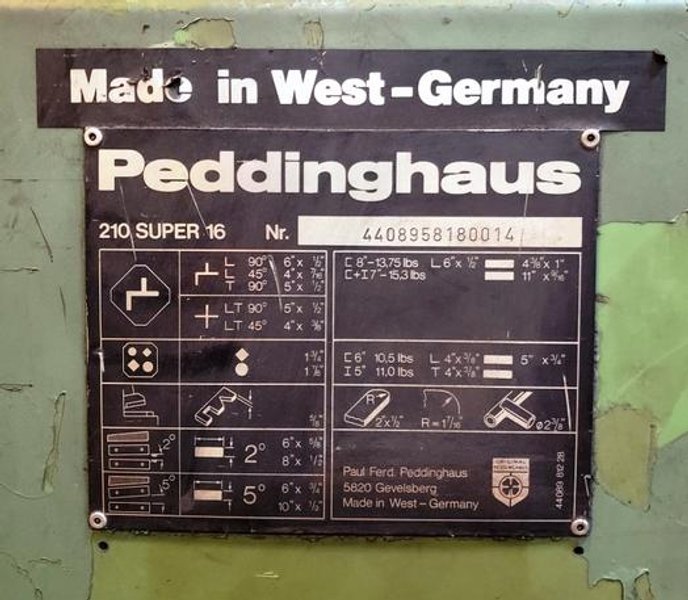

Spec Sheet

Flat Shear:

Length Of Blade 11"

Length of Rake   10.5"

W/2 Degree Rake             6 x 5/8, 8 x 1/2

W/5 Degree Rake             6 x 3/4, 10 x 1/2

Bar Stock Shear:

W/Standard Knives (Round)          1-7/8"

W/Standard Knives (Square)          1.75"

W/Special Knives Channel             6 - 10.5 lbs

W/Special Knives Beams 5 - 11 lbs

W/Special Knives Angles 4 x 1/2"

W/Special Knives Tees     4 x 3/8"

W/Special Knives Flats     5 x 3/4"

Notching:

Notching W/Sq. Notcher (Plates) 5/8"

Notching W/Sq. Notcher (Angles & Tees) 3.5 x 1/2"

Notching W/Sq. Notcher (Flange Of Channels)       8"

Notching W/Sq. Nothcer (Flange Of Beams)           8"

Notching W/Sq. Notcher (Depth Of Cut)   3-5/16"

Notching W/Sq. Notcher (Width Of Cut)   2"

Angles (90 Deg.) 6" x 1/2"

Angles (45 Deg.) 4" x 7/16"

Tees (90 Deg.)    5" x 1/2"

Flange of Channels           6"

Flange of Beams               5"

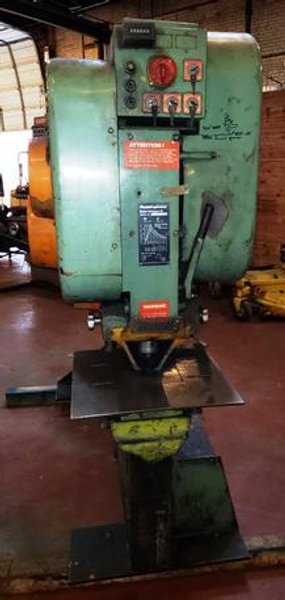

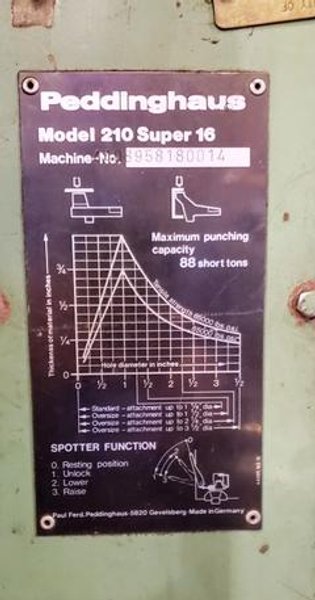

Punch Unit Capacity         88 Tons

Punch Unit Length of Stroke         1-1/16"

Punch Unit Hole Capacity (Mild Steel)        1" x 1", 2" x 1/2", 3" x 1/4"

Strokes per Minute (Shear)            32

Strokes per Minute (Punch)           40

Motor   5 HP

Throat Depth      14"

Approximate Weight       8,000 lbs
Equipped With:

Wired for 480 Volt

Foot Pedal

Assortment of punches and dies

Manuals



Cleaned and Cycled
