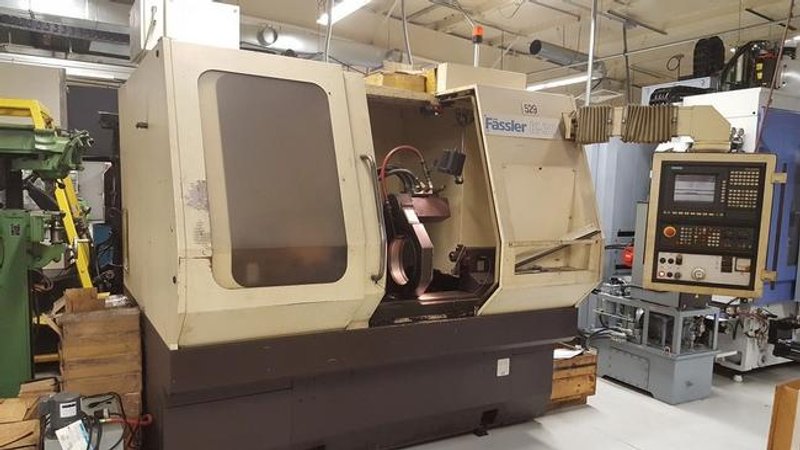

No. K-300 Fassler CNC, Hones Internal & Ext Gear Teeth To 9"Dia, 6"W, 40"L, 1998, #29033

Manufacturer

FASSLER

Category

Gear Machines

Type

GEAR HONERS

Stock

29033

Model

K-300

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #29033

Fassler K-300 CNC Gear Honer
Model: K-300
Age: 1998

FEATURES:
Siemens Sinumerik 840C CNC Controls

CAPACITY:
Workpiece Diameter (Minimum) .................... .19"
Workpiece Diameter (Max.) ....................... 7.08"
Max Workpiece Length ............................ 39.37"
Gear Teet Width (Max.) .......................... 4.72"
Module Range .................................... .011"-.236"
Pressure Angle (Alpha) Max /Min ................. 40 Degree/14 Degree
Helix Angle (Beta) Max. (Left or Right) ......... 30 Degree

WORKPIECE WEIGHTS:
Externally Toothed Between Centers .............. 44 Lbs.
Externally Toothed Cantilevered ................. 44 Lbs.
Internally Toothed (incl. clamping chuck) ....... 110 Lbs.

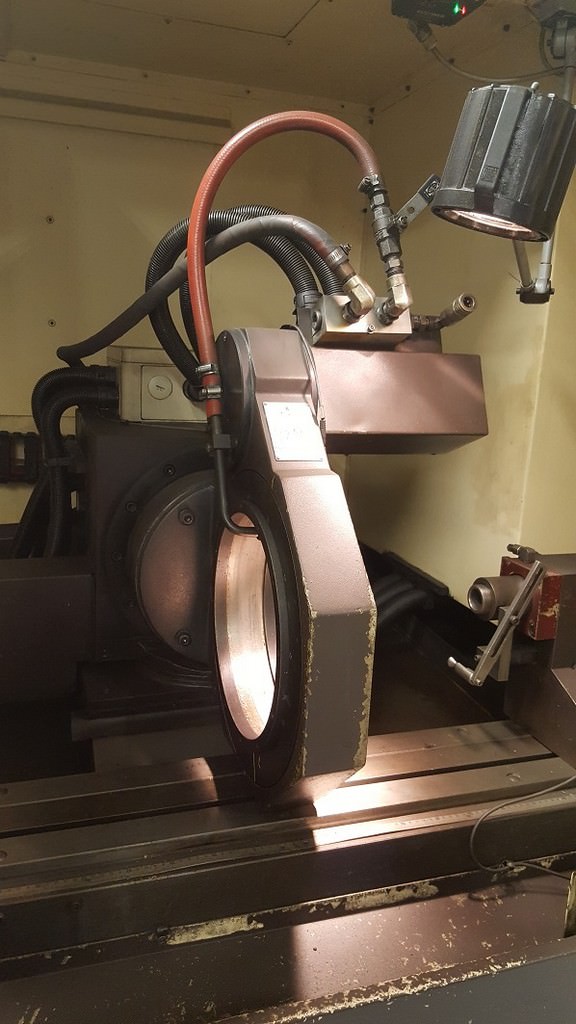

HONING STONE MEASUREMENTS:
External Diameter (Max.) ........................ 11.81"
Honing Stone Widths ............................. 24/30/40/50/60 mm.
Internal Diameter (Min.) ........................ 8.66"

EQUIPPED WITH:

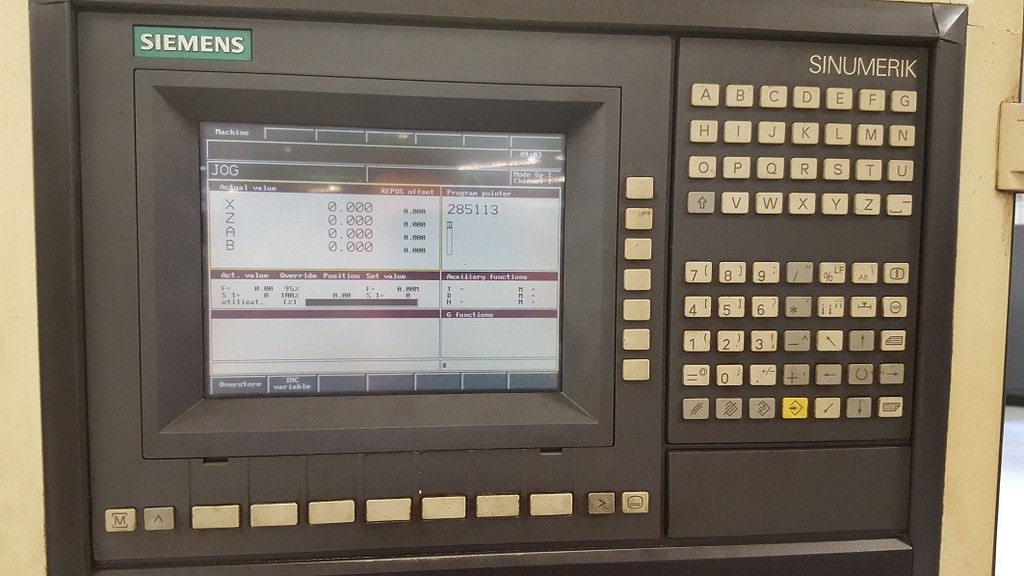

Siemens Sinumerik 840C CNC Controls
Pendant Control
Oil Mist Collection
