147" X 590" Froriep Heavy Duty, 2-Carriages, 33-75 RPM, 120 Ton Capacity, 160 HP, #29121

Manufacturer

FRORIEP

Category

Lathes

Type

LATHES, ENGINE

Stock

29121

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #29121

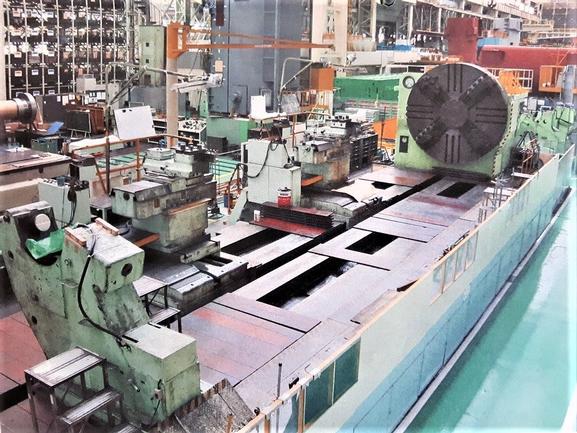

147" x 590" Froriep Heavy Duty Manual Lathe

FEATURES:
2-Carriages
118" Face Plate
160 HP

CAPACITIES:
Maximum Swing Over Bedways ............ 147.63"
Maximum Swing Over Carriage ........... 127.95"
Distance Between Centers .............. 590.55"
Overall Width of Bed Ways (4 Total) ... 141.73"
Tailstock Quill ....................... 19.68"
Spindle Bore .......................... 4.13"
Spindle Motor ......................... 160 HP
Spindle Speeds ........................ .33 - 75 RPM
Feeds (Longitudinal) .................. .009 - 11.81 IPM
Feeds (Cross) ......................... .004 - 5.905 IPM
Weight Capacity (Without Steadies) .... 120 Tons

EQUIPPED WITH:

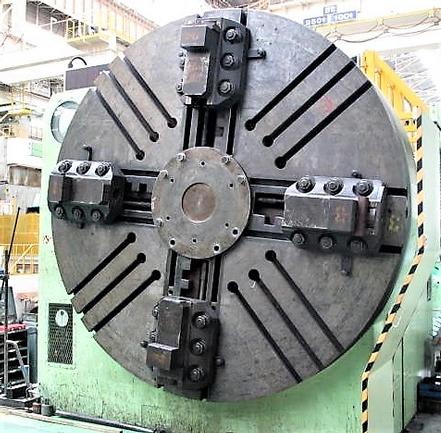

118" Diameter Face Plate

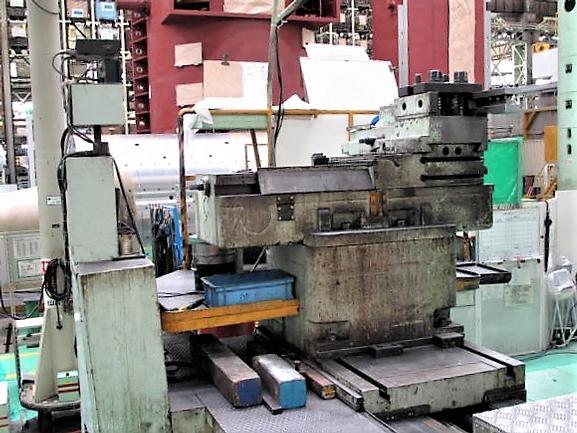

2-Carriages
(6) Steady Rests
4-Way Bed Construction
Taper Attachment
Inch/Metric Threading
Tailstock With Live Center
160 HP Main Motor
