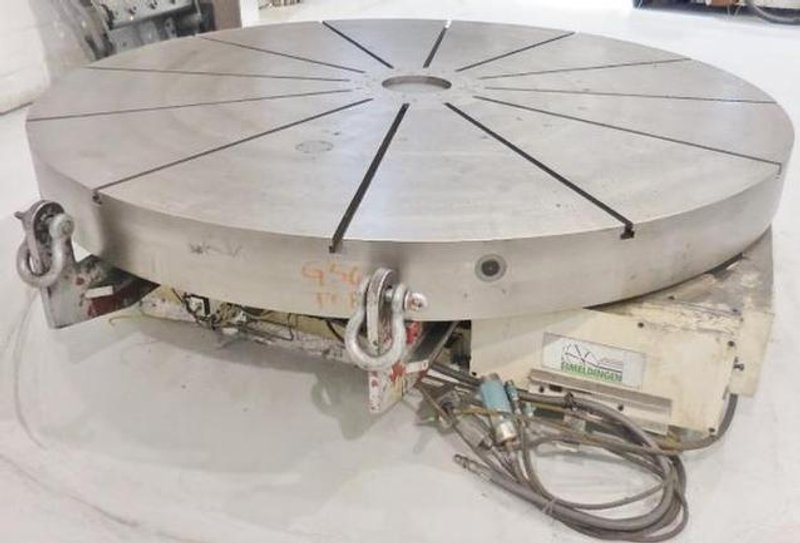

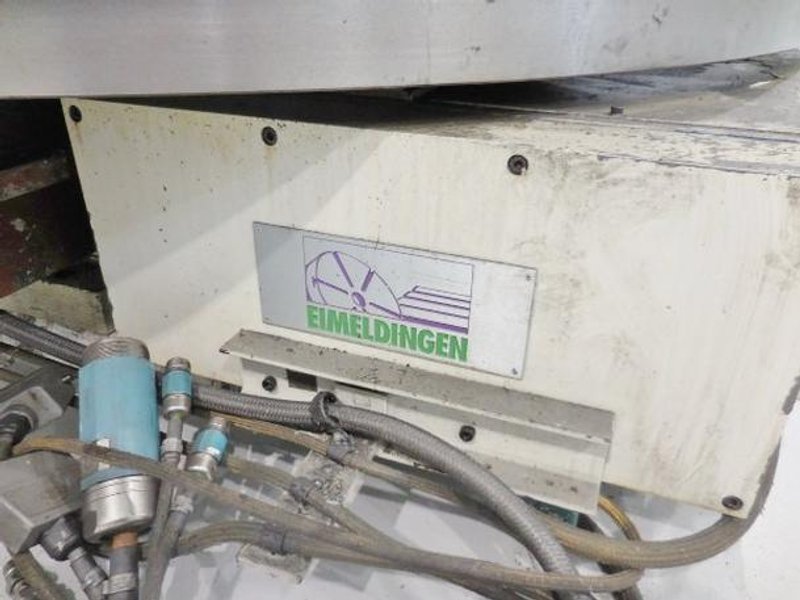

Eimeldingen 96" CNC Rotary Table, 360,000

Manufacturer

EIMELDINGEN

Category

Tables

Type

TABLES, CNC

Stock

4528

Model

None listed

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

FEATURES:
Full B-Axis
High Accuracy
CAPACITY:
Table Diameter (Round) - 98.42"
Table Rotary Indexing, B-Axis - 360,000
T-Slot Size - 0.86"
Number of Radial T-Slots - 12
Table Work Height - 18.07"
Center Hole Diameter - 3.94"
Table Loading Capacity - 55,000 Lbs
Table Speed, Max - 3 RPM
Machining Force - 22,000 Nm
Clamping Torque - 65,000 Nm
Maximum Milling Torque - 60,000 Nm
Main Gear Ratio - 360:1
Parallelism - 0.0012"
Face Plate Runout, 0.9 x D Max - 0.0008"
Runout of Center Bore - 0.0004"
Standard Resolution - 0.0001 Degree
Standard Accuracy - /- 10 Arc Sec
Table Weight, Approx - 18,700 Lbs
EQUIPPED WITH:
Full B-Axis Rotation & Programmable Clamping
Heidenhain Rotary Encoder
NOTE:
Fully integrated with Siemens 840D Control
