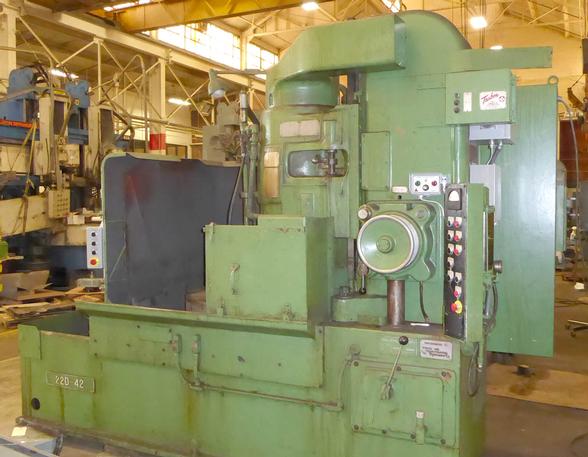

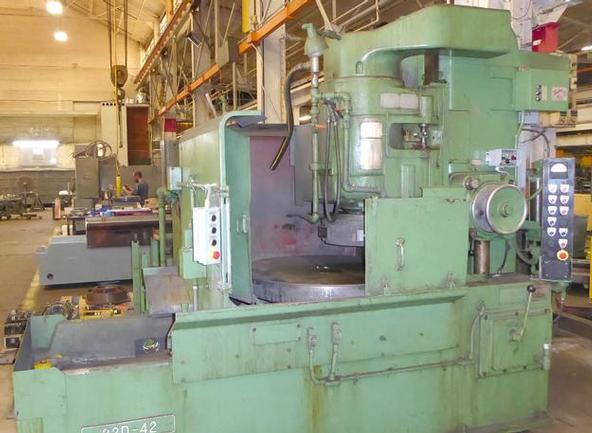

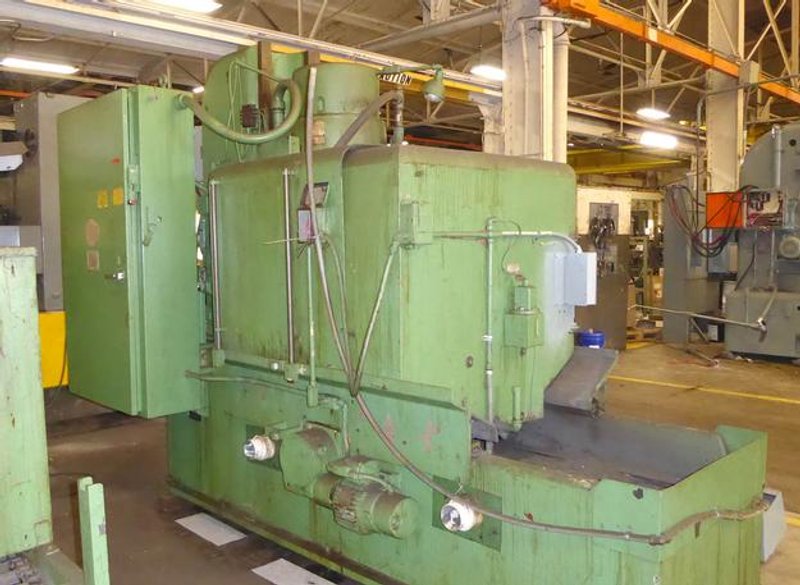

42" Blanchard #22D-42 Vertical Spindle Rotary Surface Grinder, '81

Manufacturer

BLANCHARD

Category

Grinding Machines

Type

GRINDERS, SURFACE, ROTARY TYPE, (Vertical Spindle)

Stock

4698

Model

22D-42

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

42" Magnetic Chuck Diameter,

21"" Approximate Range Over Chuck With New Wheel (TBD)

22" Diameter of Wheel Chuck, Approximately .465" Chuck Life

Cortland 5 Segment Wheel

48" Swing Inside Water Guards

720 RPM Wheel Speed

(6) Ranges of Chuck Speeds 5,7,10,15,20 & 27 RPM

Automatic Down feeds Feed 0 to 70 IN/MIN

40 HP, 3 Phase, 60 Cycle, 440 Volt, 705 RPM

"D" Style base (coolant exit)

Floor Space: 13.5"L x 8.4"W

Height: 8.7" Min., 9.1" Max.

Approx. Weight: 14,250 lbs.



Work to be completed:

Rebuild Table Drive Transmission (Lower Gear Box)

Remove Saddle , Replace Lube Lines and Way Wipers

Replace Front Water Guards and Door

Replace Coolant Lines

Replace Operators Controls Push Buttons

Replace Chuck Controls

Tram Head & Column

Grind Test Parts and Document Tolerances

Clean and Paint
