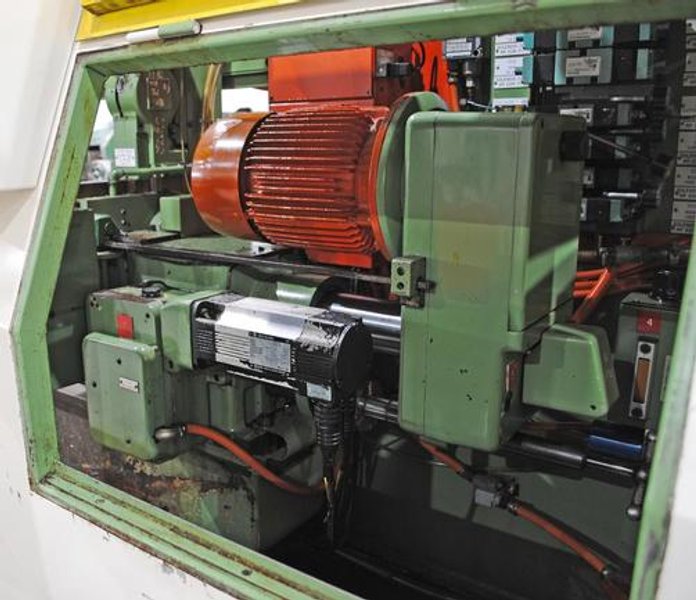

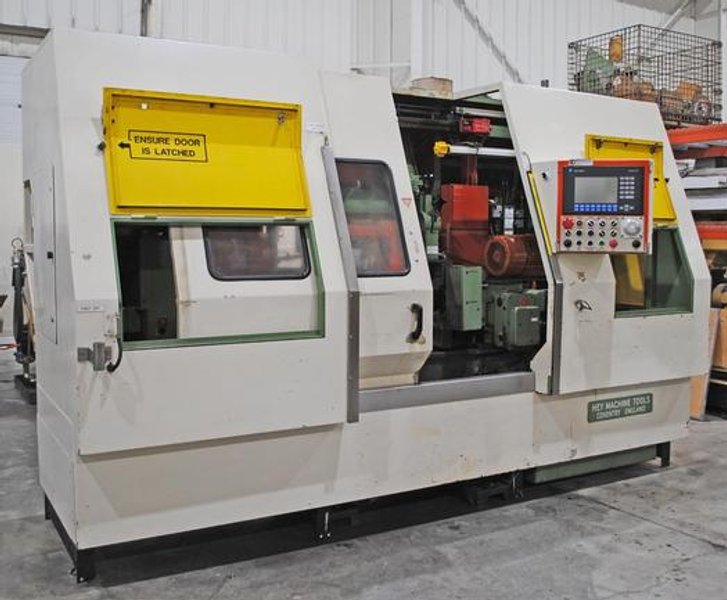

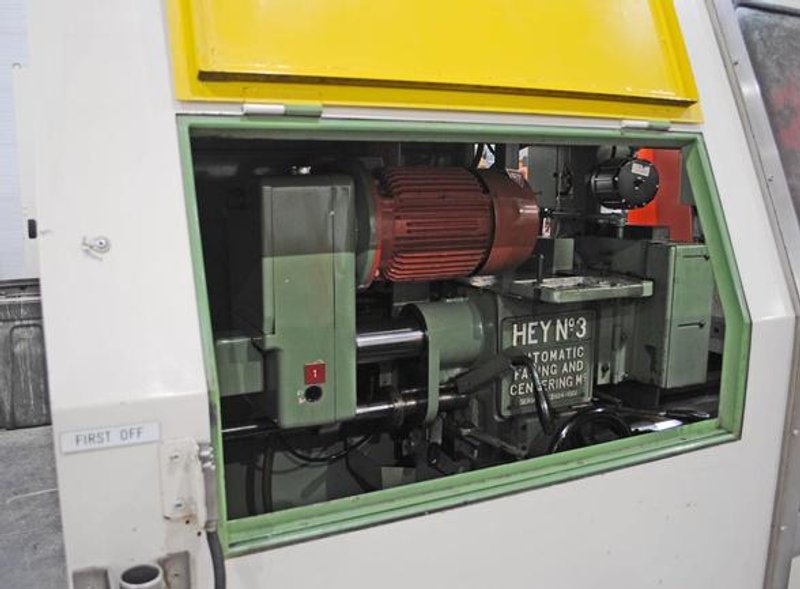

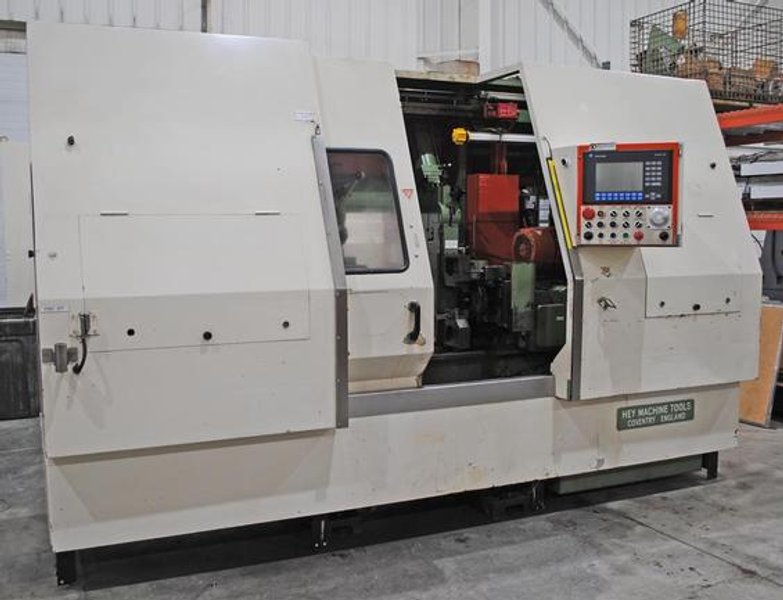

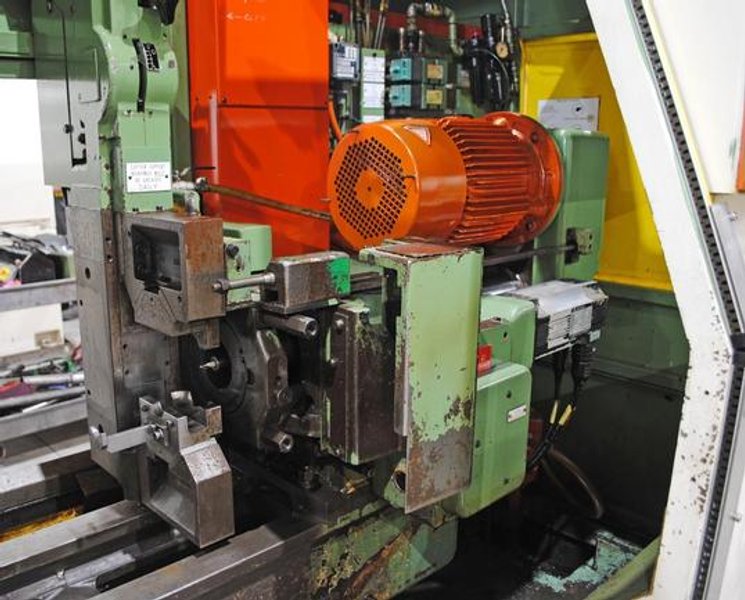

8" X 27" Hey No. 3 CNC Face & Center, Full Machine Enclosure, A/B Ctrl, Chip Conveyor, 1999

Stock

ET-5331

Model

None listed

Dealer Location

Michigan

Spec Sheet

STOCK NO. ET-5331

(1) USED 8 ½” X 27” HEY #3 CNC AUTOMATIC FACING AND CENTERING MACHINE

Serial No. 2824-1001 New: 1999

Maximum work length: 27”
Maximum diameter held in vises: 8 ½”
Maximum cutter diameter: 6.3” (160 mm)
Spindle speed range: 200 – 1200 R.P.M.
Feed stroke of heads: Total – 3”, Feed – 2”
Feed box ratio: 165:1
Feed rates-infinitely variable: 0 to .018”/rev.
Equipped with:
Full machine enclosure w/ Light Guard
Automatic retracting end stop
15 HP AC spindle motors 3/60/230-460 VAC
Self centering air vises – variable pressure
Automatic/manual mode selection
(2) Cutter Body Heads
Heidenhain DRO on LH head
AC feed servo motor
Coolant System
Trabon automatic lube system
Worklight
Chip Conveyor
Electrical controls:
Allen Bradley Panelview 900 LCD display and controller
AB Model 1336 constant torque AC spindle drives for individual motor control
AB Model 1394 AC Servo control system for feed/rapid drive
AB SLC 5/04 programmable controller with memory card and software
Electrics: 415 Volt, 3 Phase, 50 Cycle

Approximate floor space: 12’ L X 76” deep X 92” high
Approximate weight: 8,000lbs.
