6" X 46" Hey No. 3 Face & Center, Walking Beam Auto Loader, 15 HP Motors, Chip Conv, 1988

Stock

ET-5333

Model

None listed

Dealer Location

Michigan

Spec Sheet

STOCK NO. ET-5333

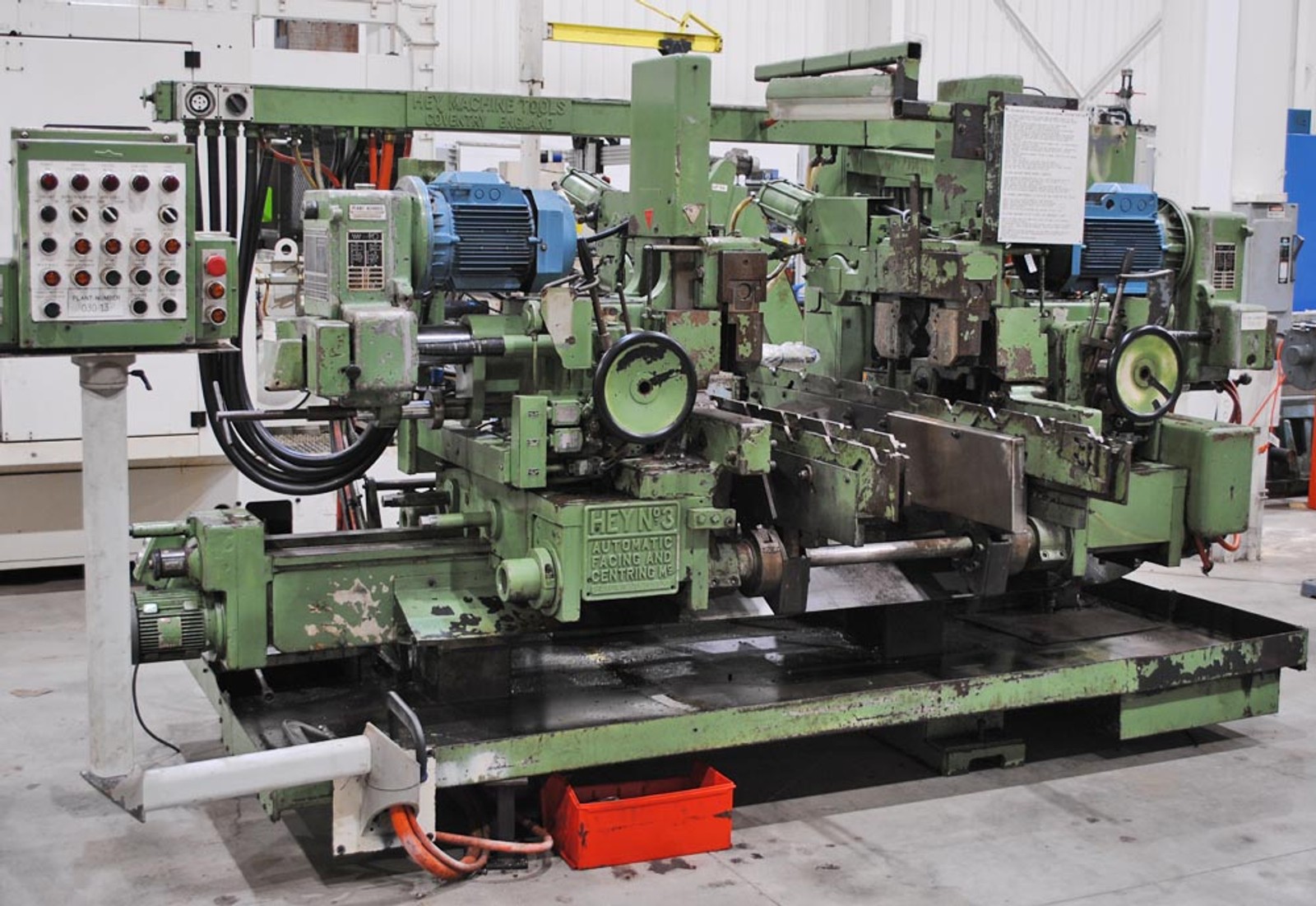

(1) USED HEY NO. 3 46” AUTOMATIC DOUBLE ENDED FACING AND CENTERING MACHINE W/ AUTOMATIC FEED

Serial No. 2824-890 New: 1988

Maximum diameter of work: 6.25”
Minimum diameter of work: .25”
Maximum workpiece length: 46”
Minimum length of work: 3”
Maximum swing over bed: 21”
Spindle speeds: 67 to 1430 RPM in 18 steps
(change gears to produce (1) RPM rate will be supplied with machine)
Length of fine adjustment to cutter: 2”
Feed rates in mm per rev. of spindle:
(4) steps 0.015 to 0.070
Rapid traverse rate: 250”/min.
(2) Pneumatic work hold vises
Spindle drives - 15 HP each
Electrics: 3/50/220/380/420
Automatic Functions:
• Auto feed of work via adjustable walking beam conveyor.
• Auto positioning of work prior to machining w/ inspection of overall length.
• Auto inspection of work after machining.
• Auto stopping of machine in case of detection of incorrect work.
(1) Pair of combination facing and centering cutter bodies to be
Supplied with machine.

Chip Conveyor
Coolant System
Weight: 12,500#
Dimensions: FB X RL – 84” X 128”
Height: 70”
