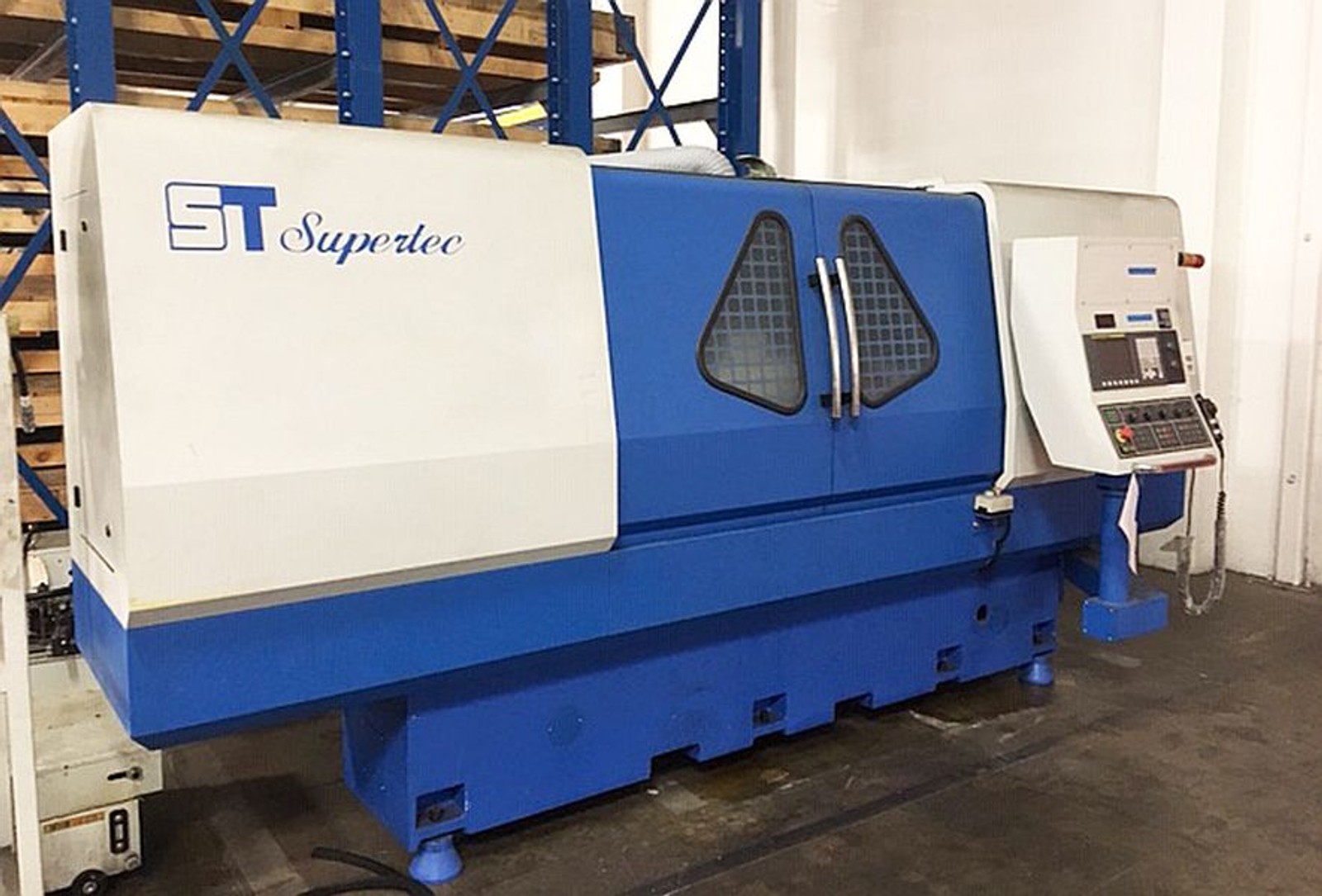

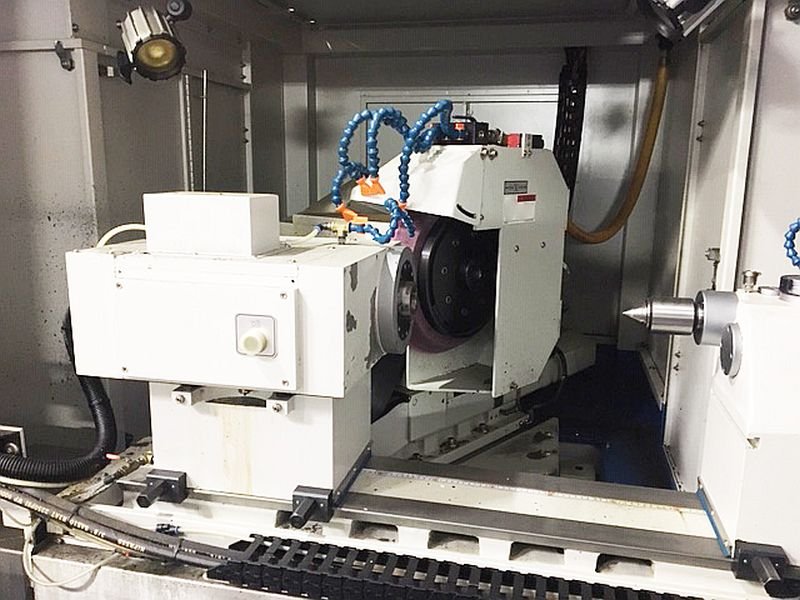

SUPERTEC G60A-80 CNC ANGLE HEAD GRINDER, NEW 2014 , RAISED SWING TO 23.6”

Manufacturer

Category

Grinding Machines

Type

GRINDERS, CYLINDRICAL, PLAIN (Angle Head), CNC

Stock

None

Model

None listed

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

SUPERTEC G60A-80 CNC ANGLE HEAD GRINDER, NEW 2014 , RAISED SWING TO 23.6”

CATALOG SPECIFICATIONS:
SWING OVER TABLE ............... 23.6"
DISTANCE BETWEEN CENTERS ....... 32"

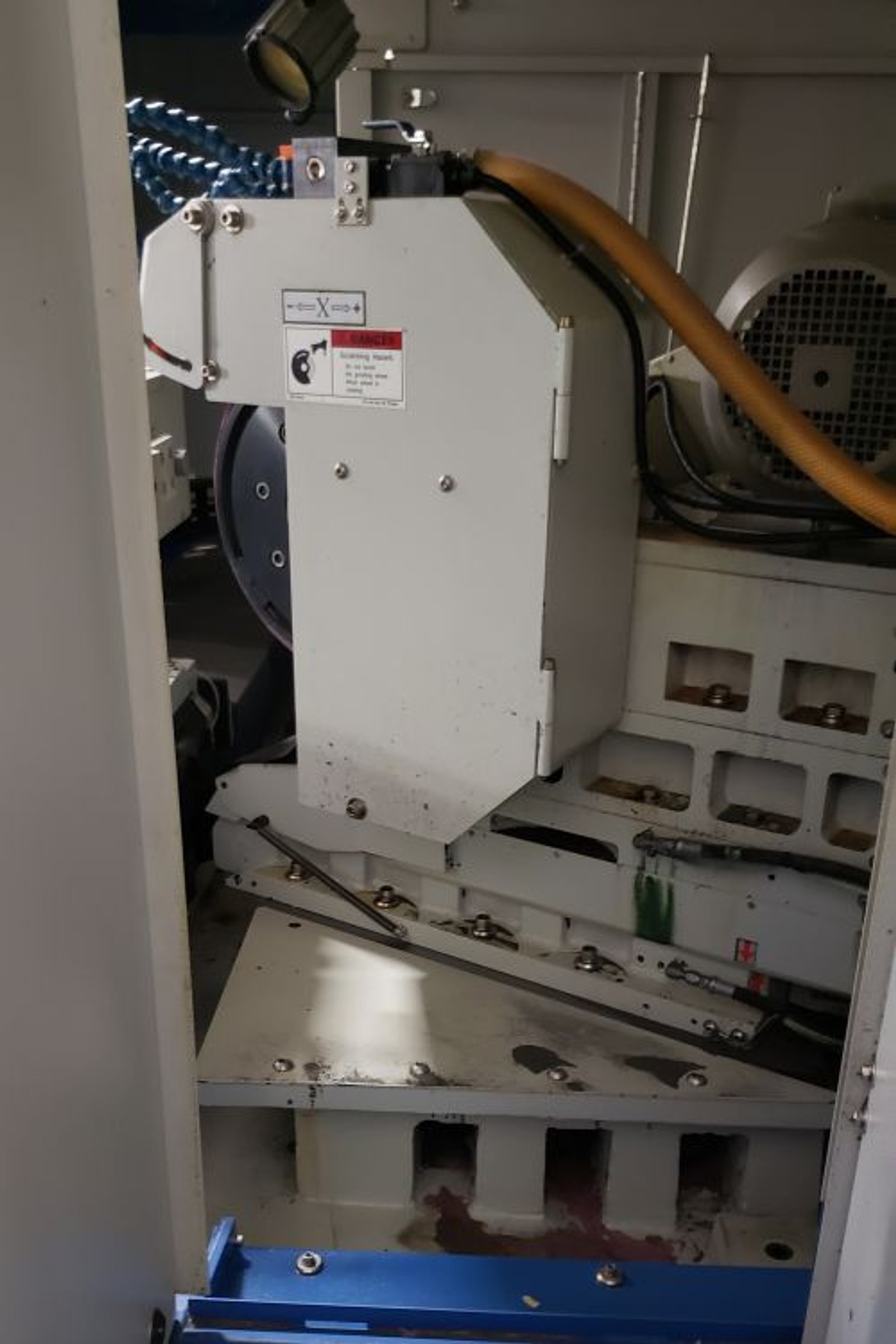

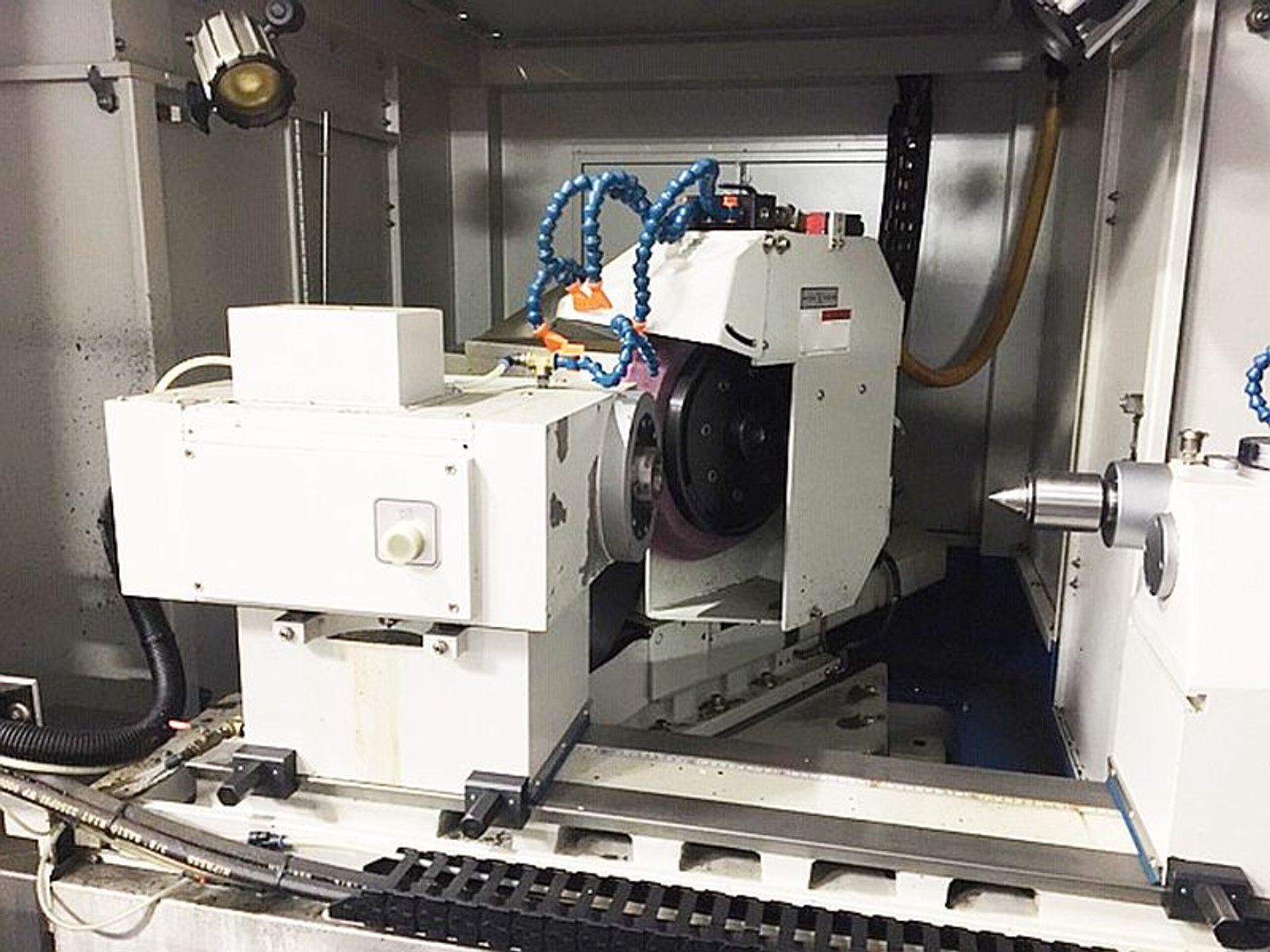

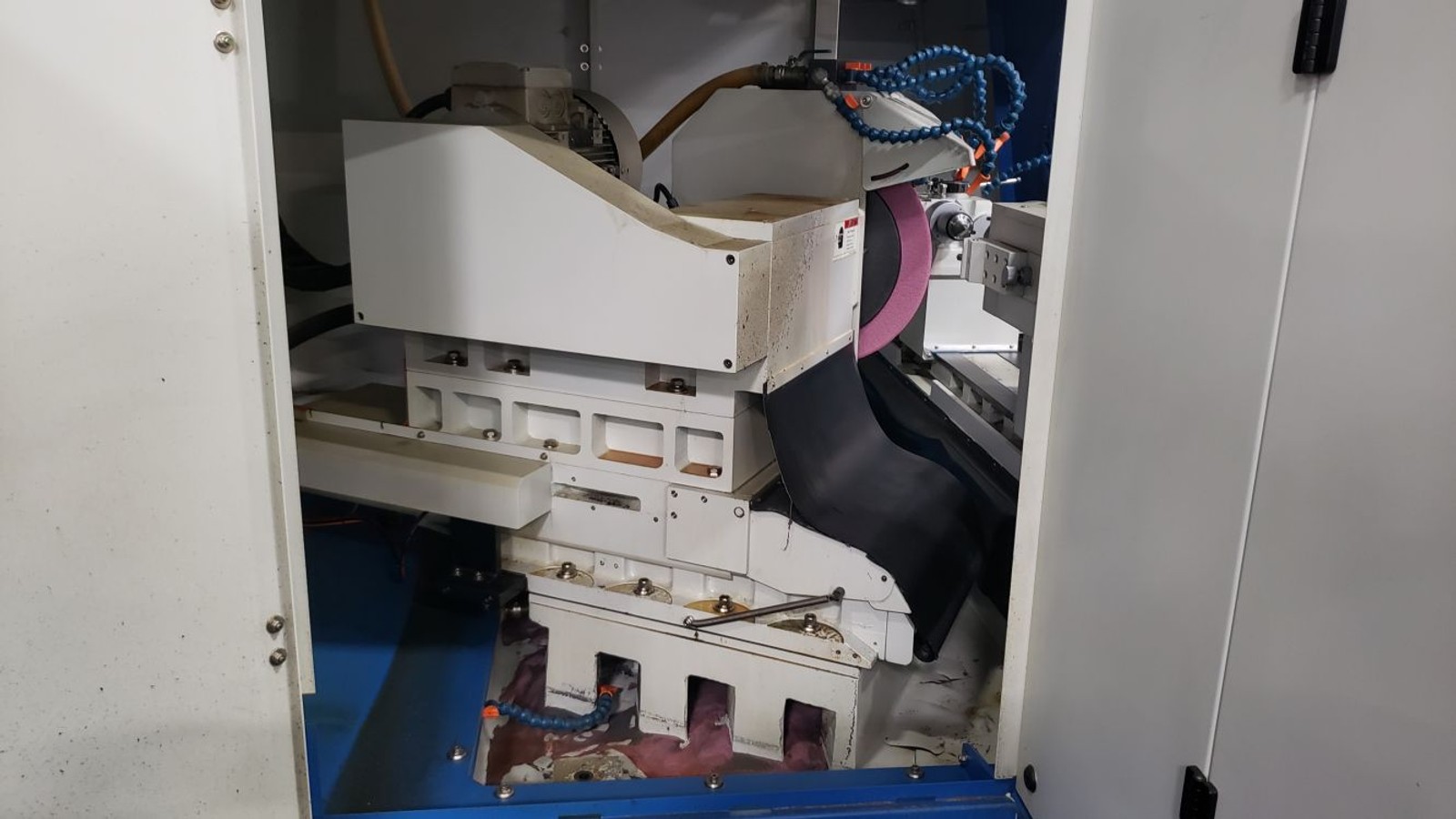

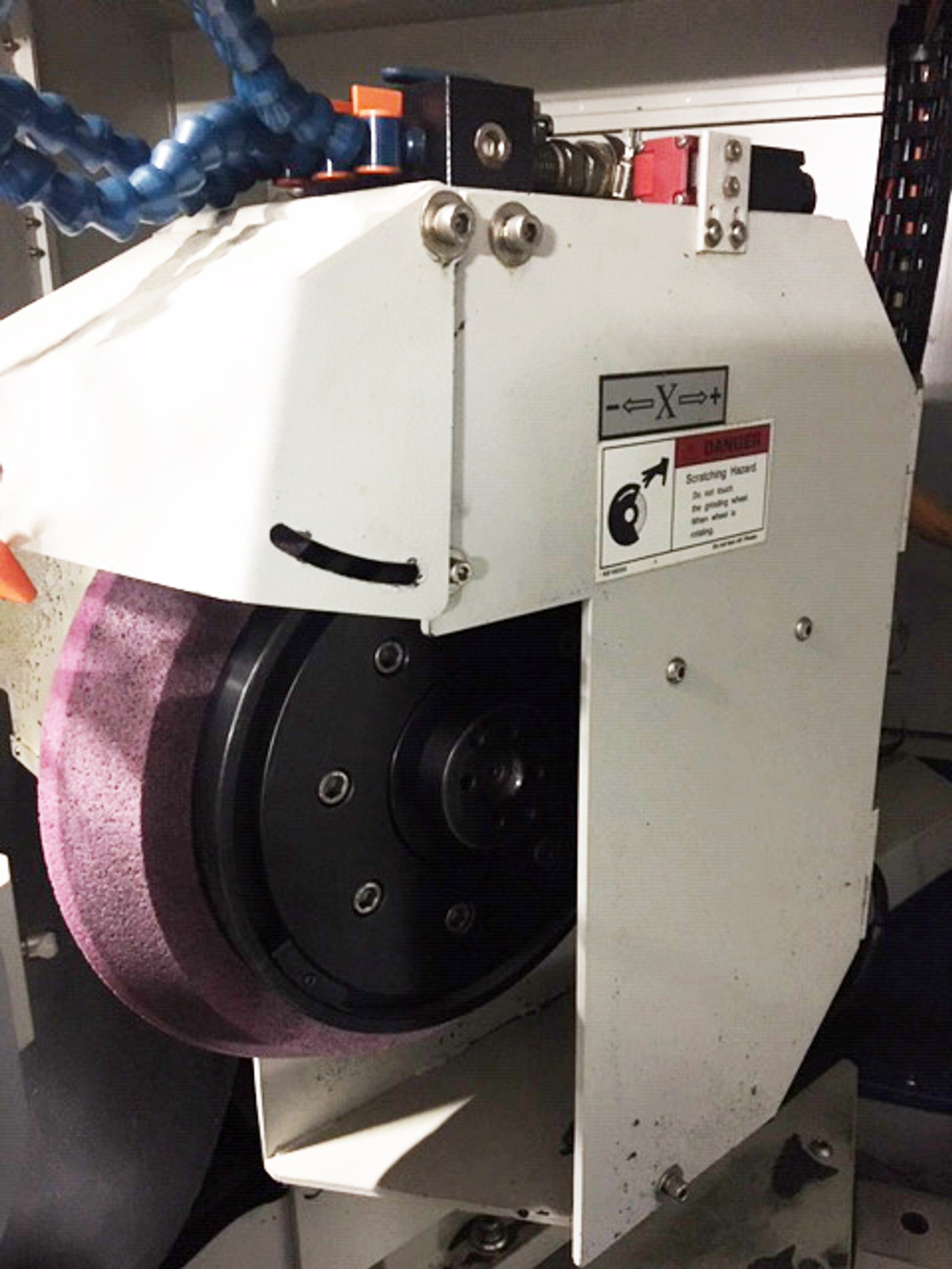

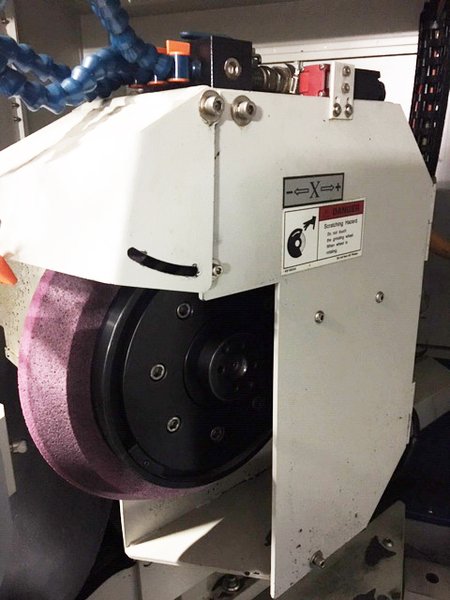

WHEELHEAD:
MOTOR ......................... 10 HP
WHEEL SPEED ................... 1390 RPM
WORKHEAD:
SPINDLE SPEEDS-INF. VARIABLE .. 30 - 350 RPM
SPINDLE NOSE .................. #4 MT
MOTOR ......................... 2 HP

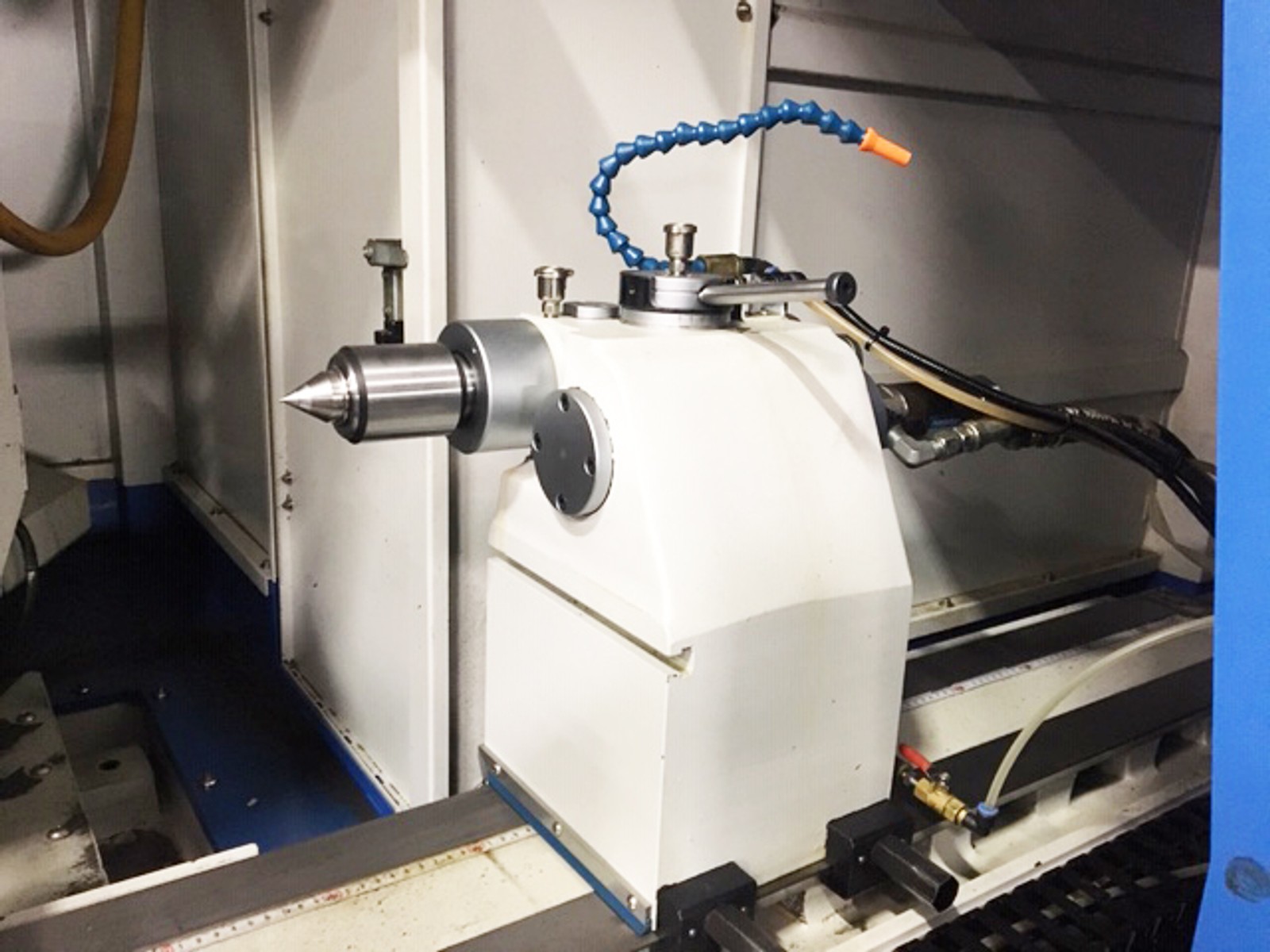

TAILSTOCK:
TAPER OF WORK CENTER .......... #4 MT
TRAVEL OF SPINDLE ............. 1"

APPROXIMATE DIMENSIONS ......... 90" X 90" X 80"h
APPROXIMATE WEIGHT ............. 13,000 lbs

EQUIPPED WITH:

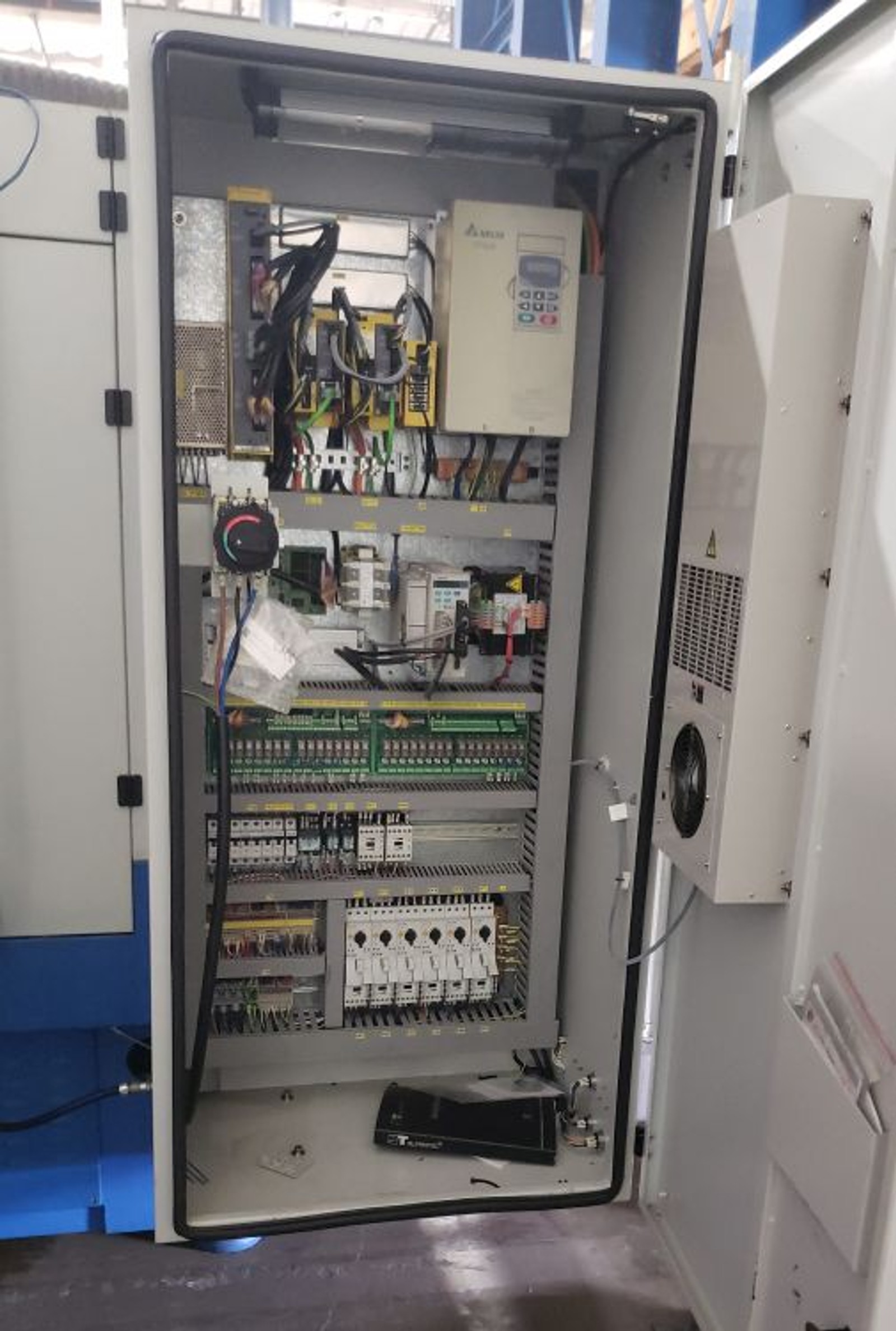

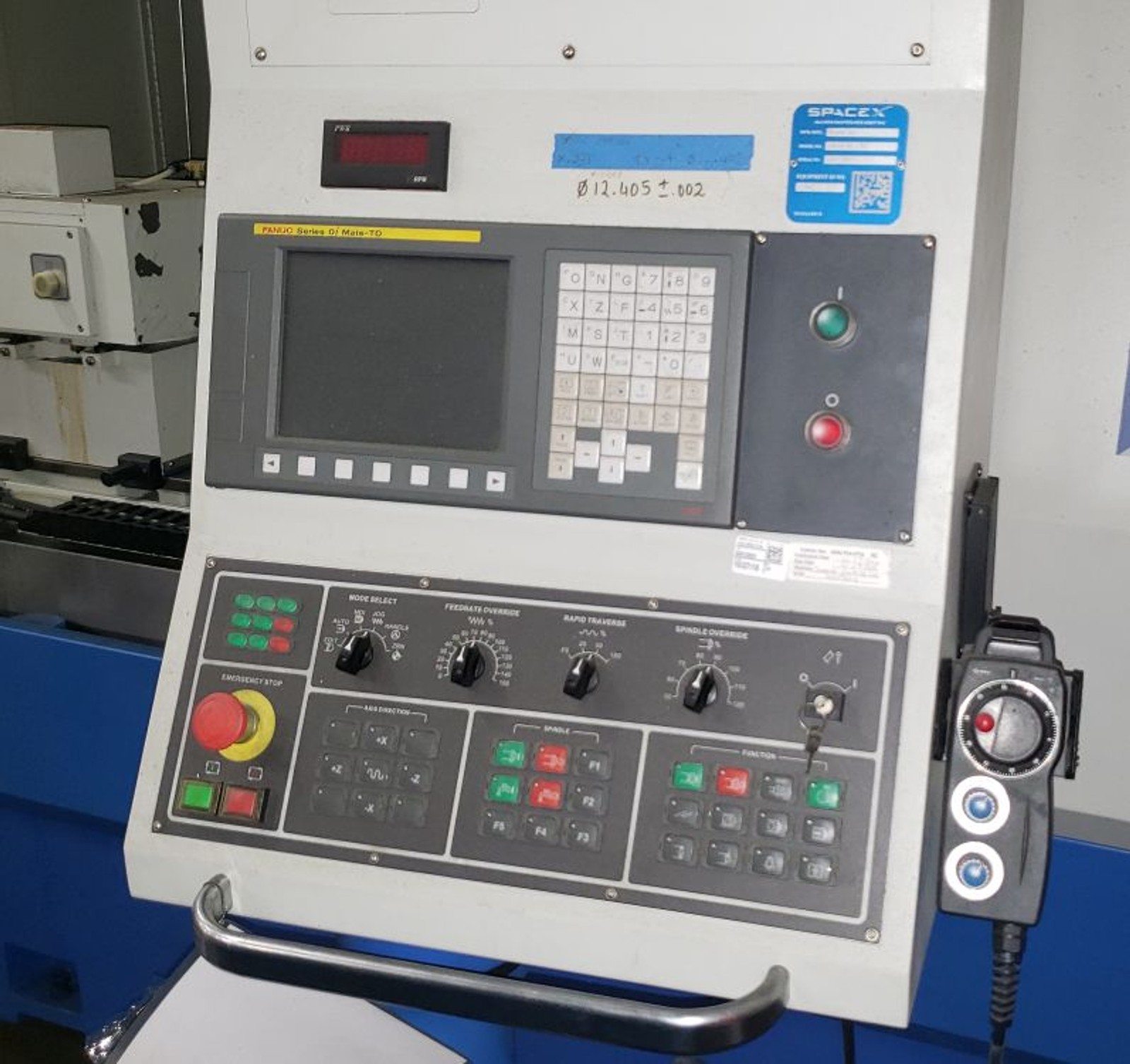

*FANUC 0i-TD CNC CONTROL

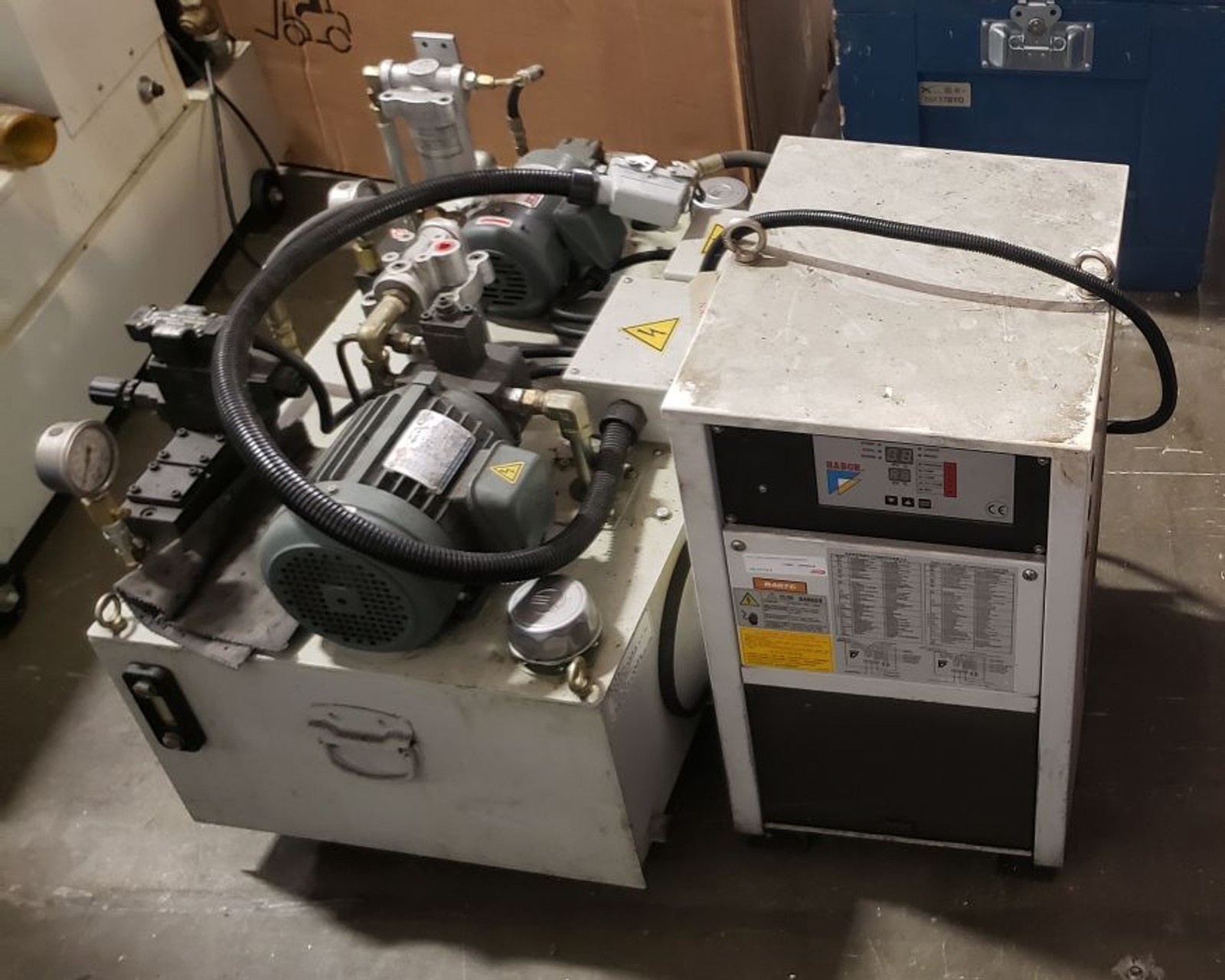

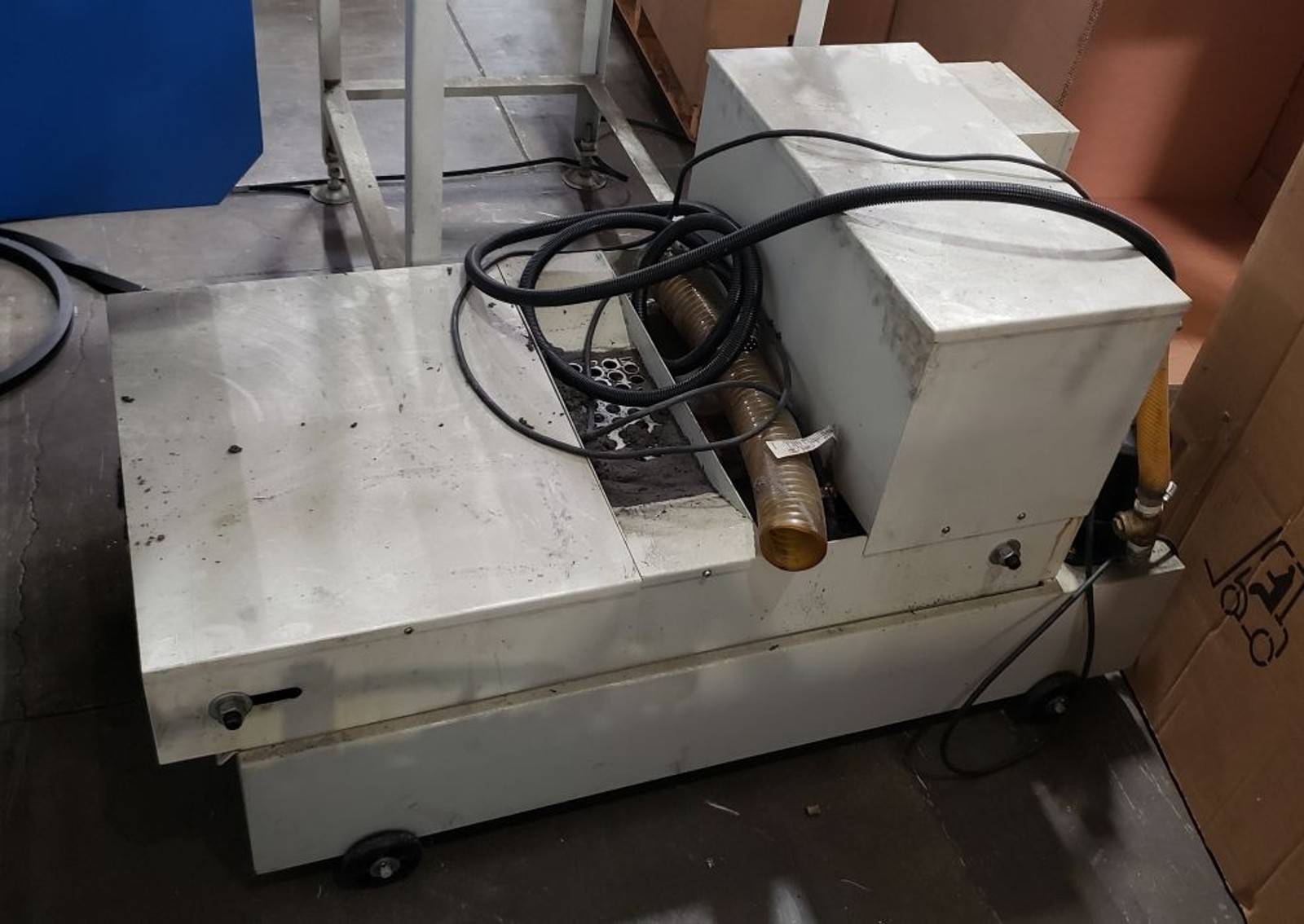

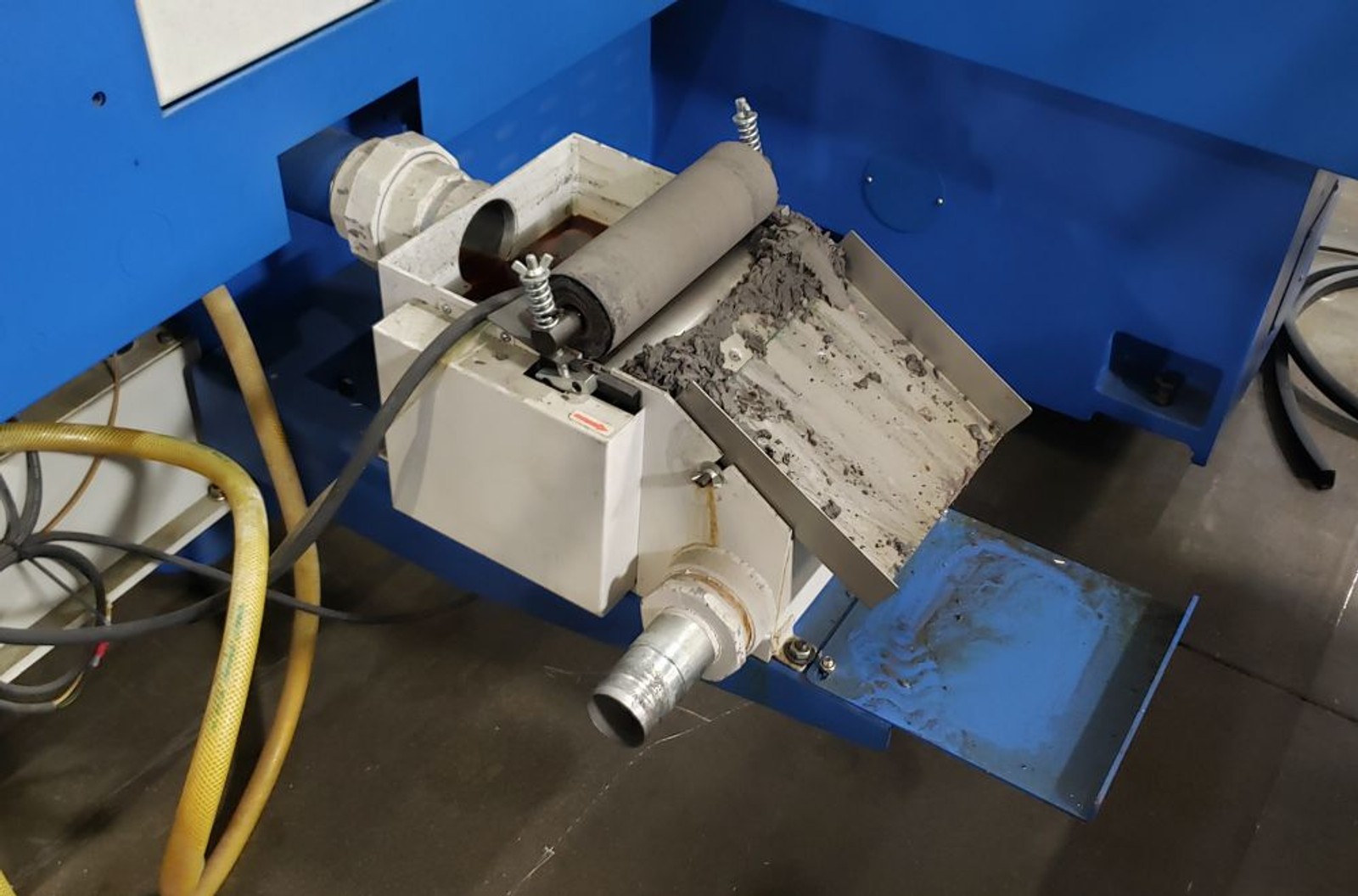

*COOLANT SYSTEM WITH PAPER FILTER
*10 HP, Babbitt bearing Spindle Upgrade w/Inverter
