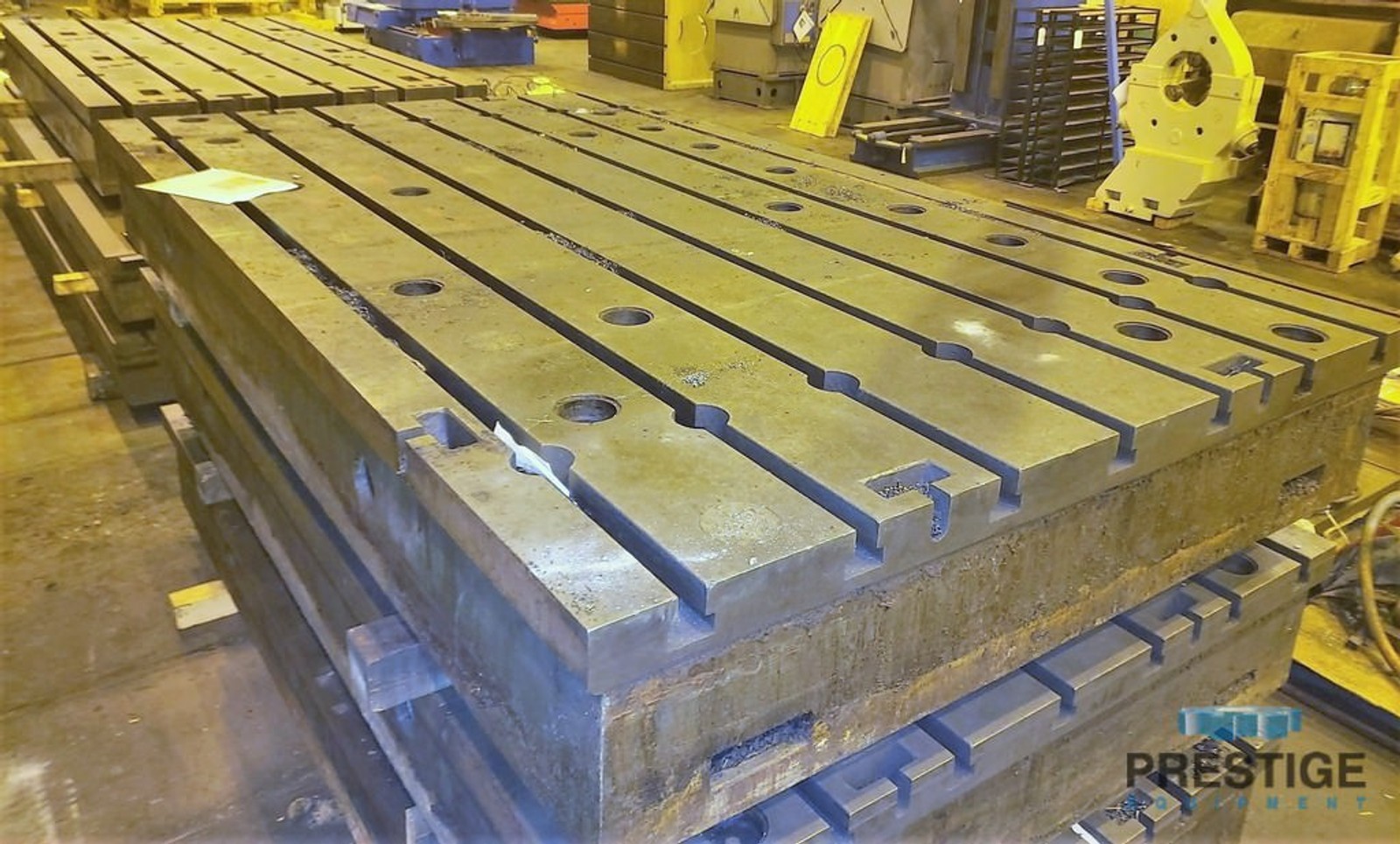

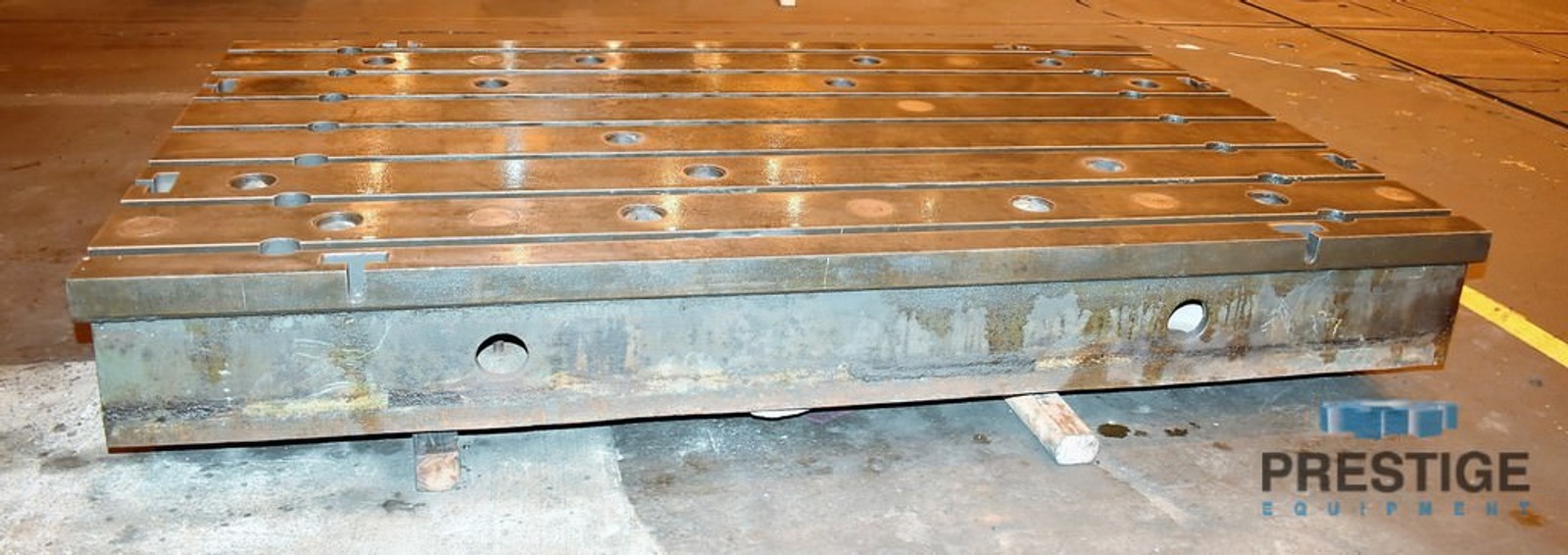

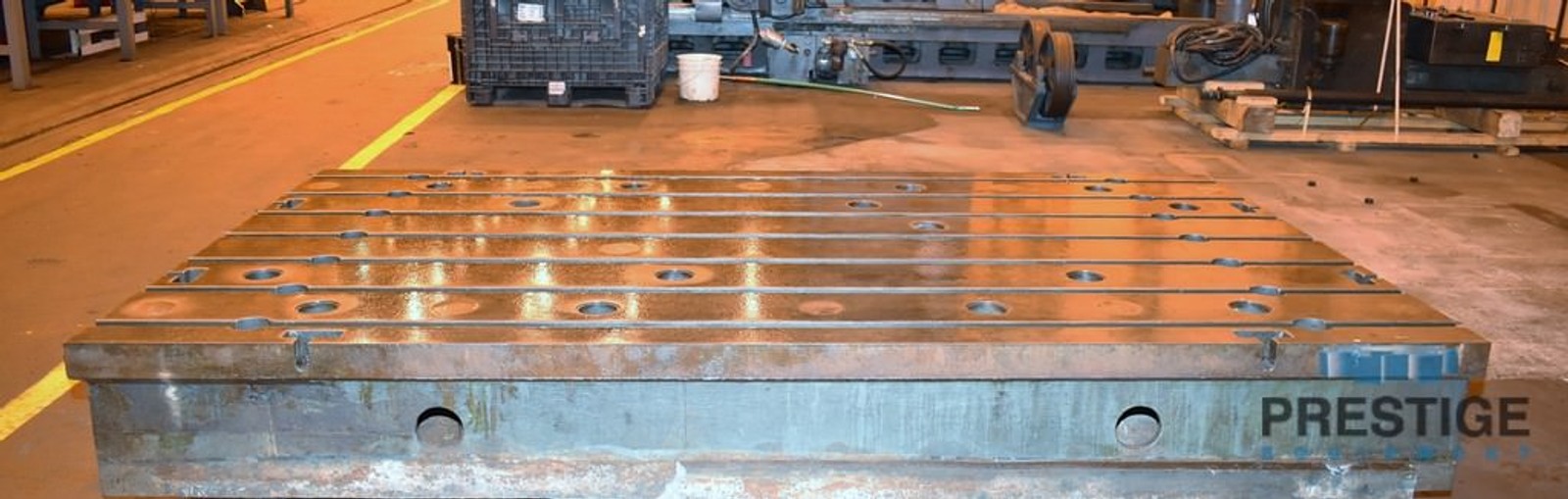

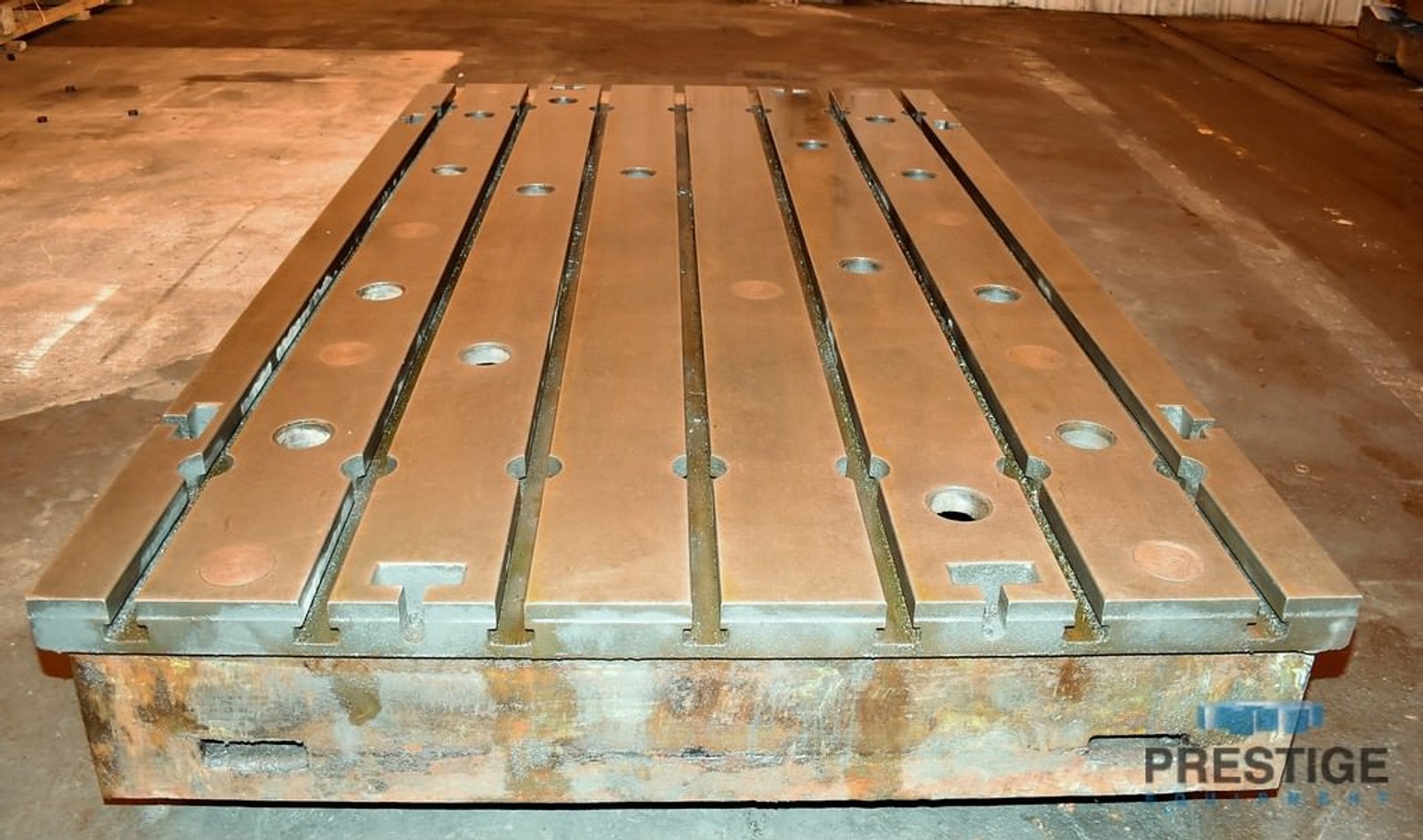

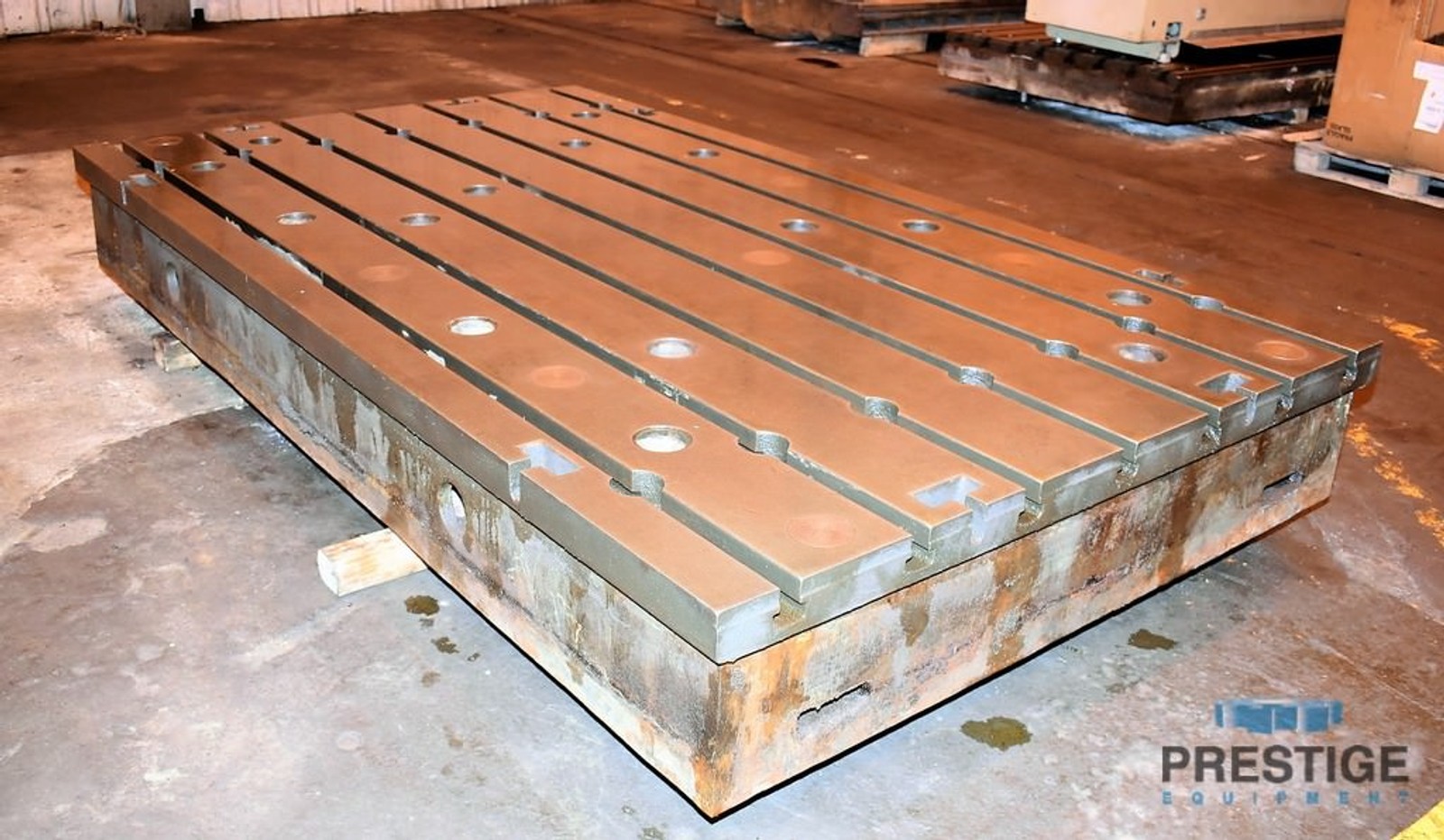

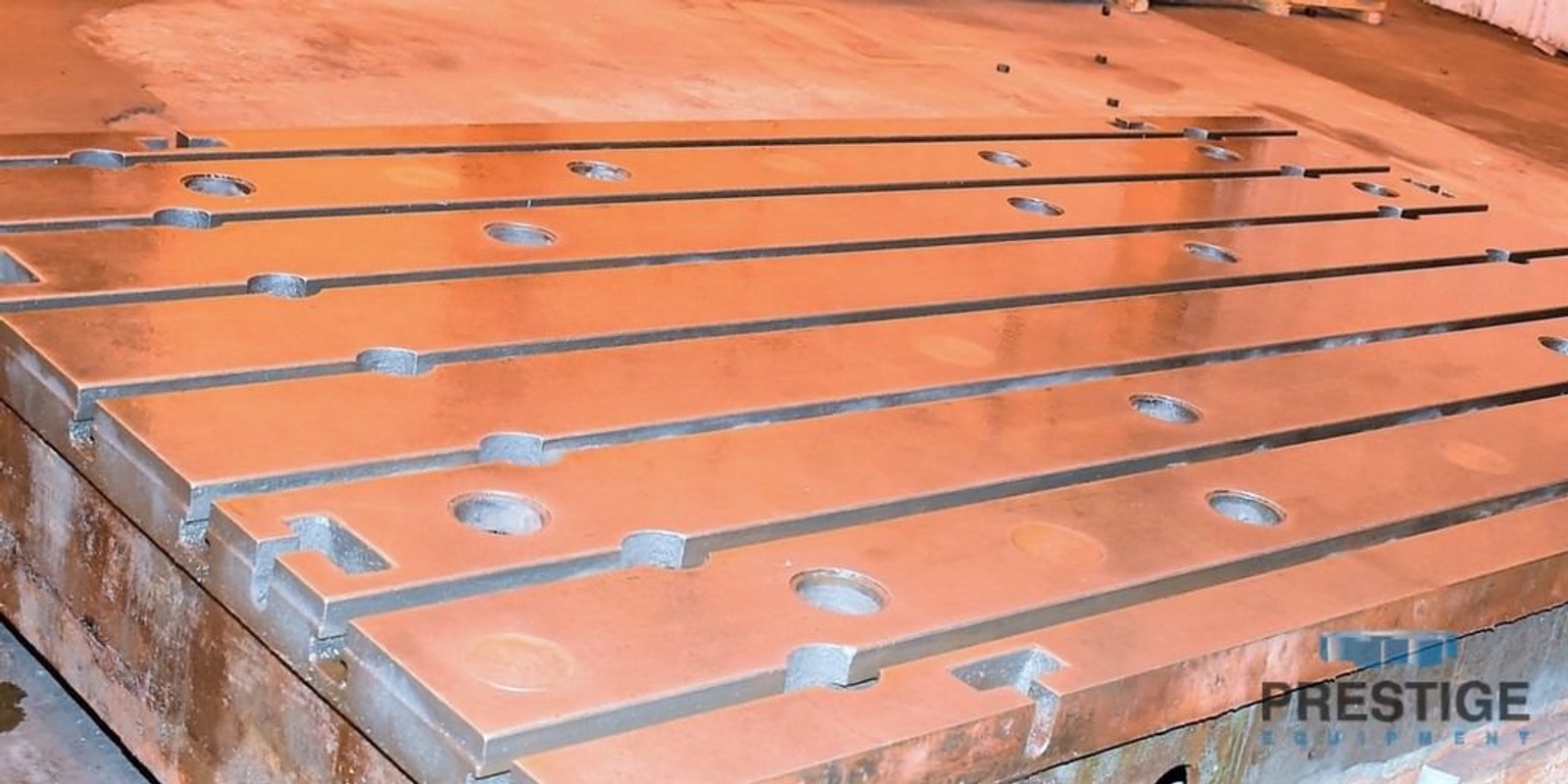

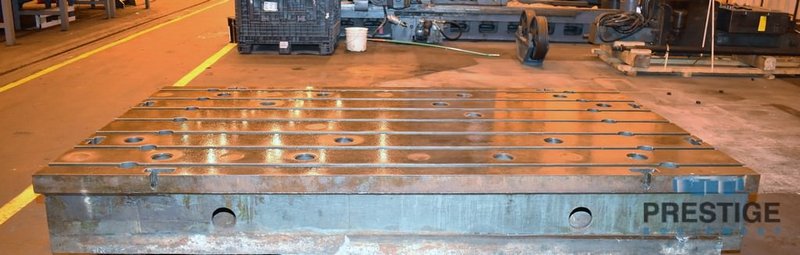

69" x 118" T-Slotted Floor Plates, 14" Thick, Cast Iron, (4) Available, Matched, #30291

Manufacturer

UNION

Category

Tables

Type

TABLES, FLOOR & LAYOUT PLATES, (Radial & Boring Mill)

Stock

30291

Model

T-SLOTTED

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #30291

T-Slotted Floor Plates, (4) 69" x 118" x 14" Thick, Matched

FEATURES:
T-Slotted
Cast Iron Construction
Matched
Leveling Screws

CAPACITY:
Available Quantity ................... 4
Overall Length, Each .................. 118.11"
Overall Width, Each ................... 69"
Possible Configuration, 1 ............. 138" x 236"
Possible Configuration, 2 ............. 69" x 472"
Thickness ............................. 14"
Size Of T-Slots ....................... 1.375 x 2.25" x 2.5"
Number Of T-Slots ..................... 7
T-Slot Centers - Width ................ 9.75"
Approx. Weight Of Each Plate .......... 11,000 lbs

EQUIPPED WITH:
T-Slotted
Cast Iron Construction
Matched
Leveling Screws

NOTE:
Cost is Per Plate, Each
Must Sell In Pairs

Location:
Inspect In Our Philadelphia PA Warehouse
