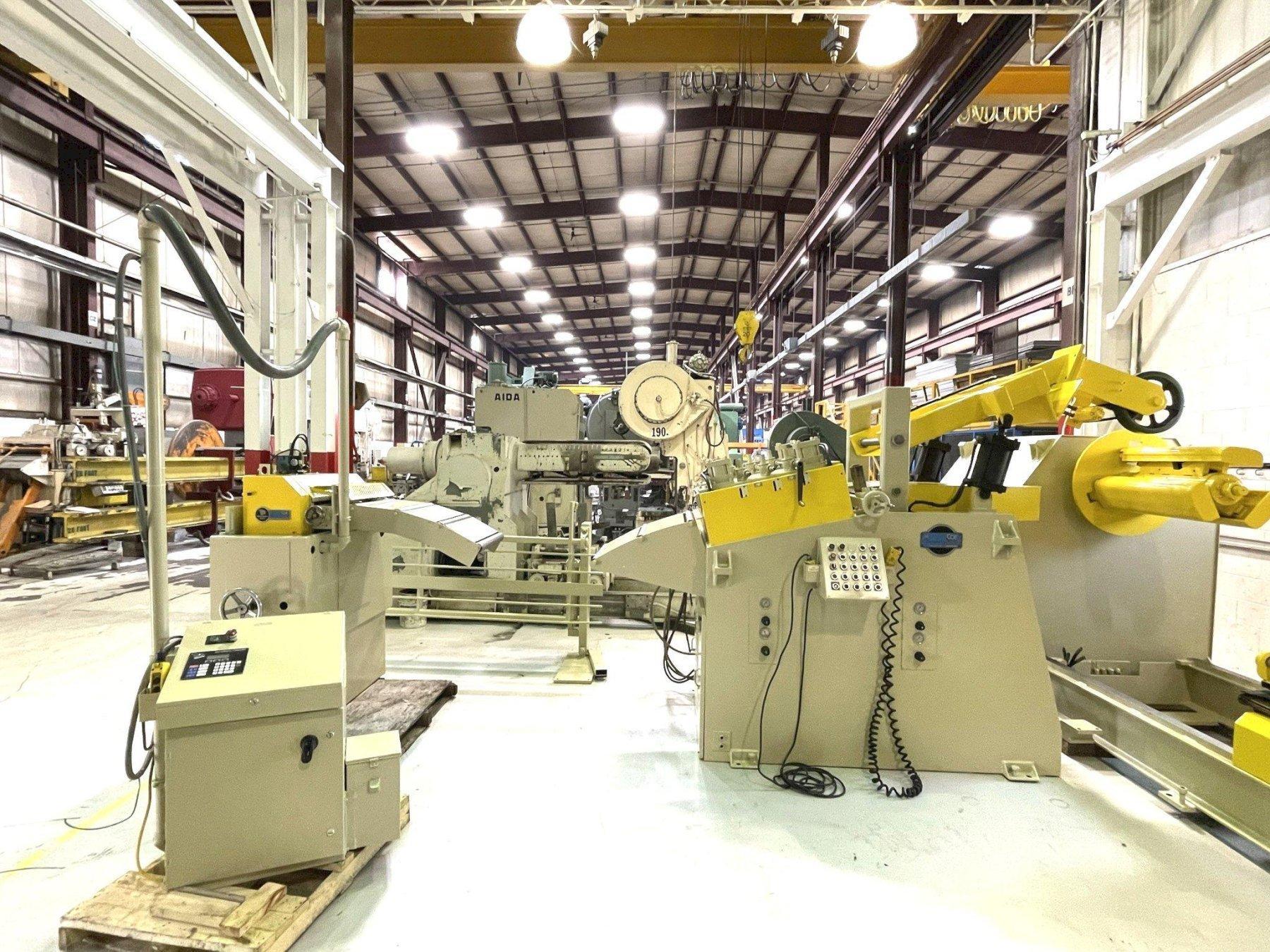

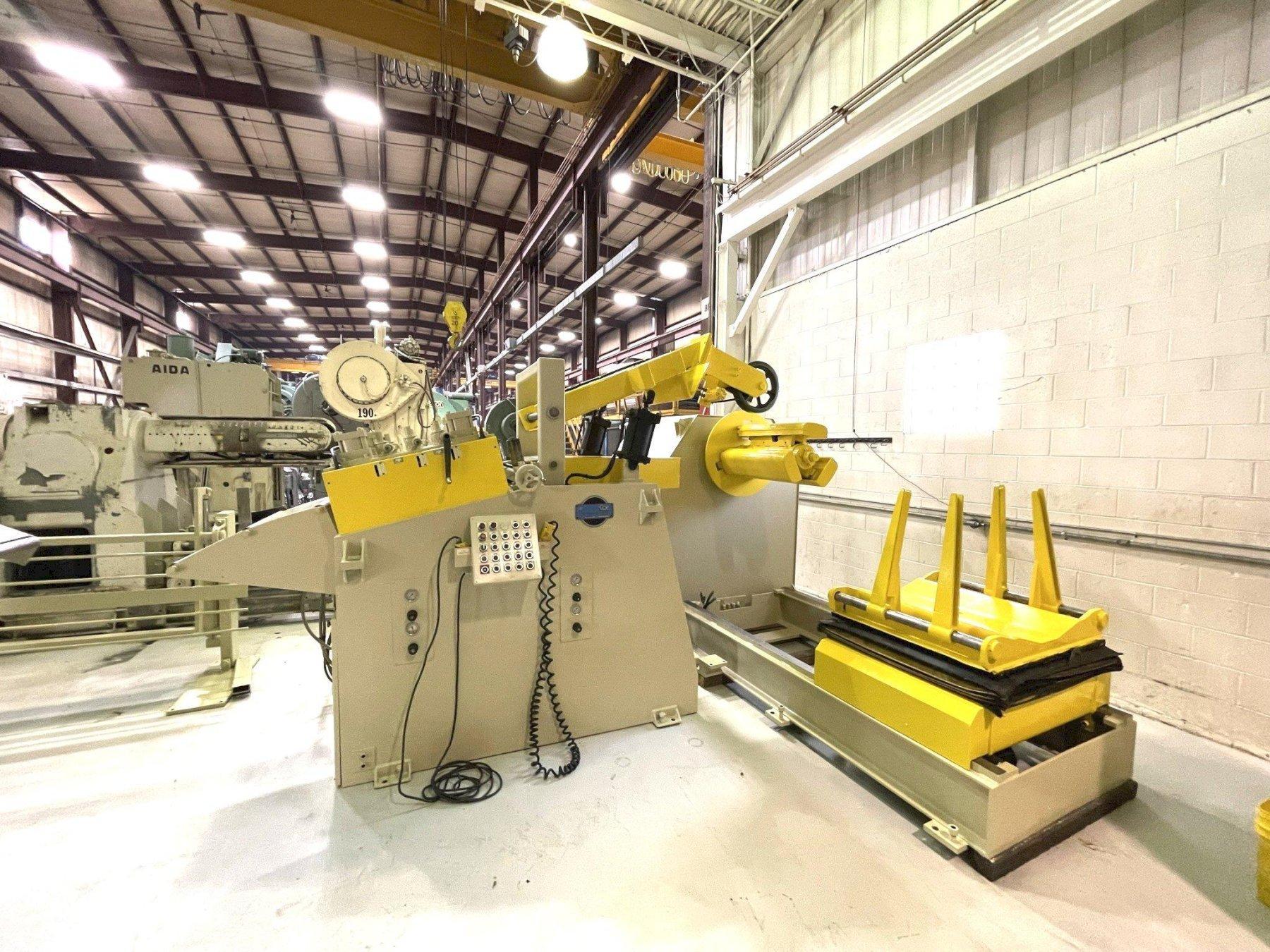

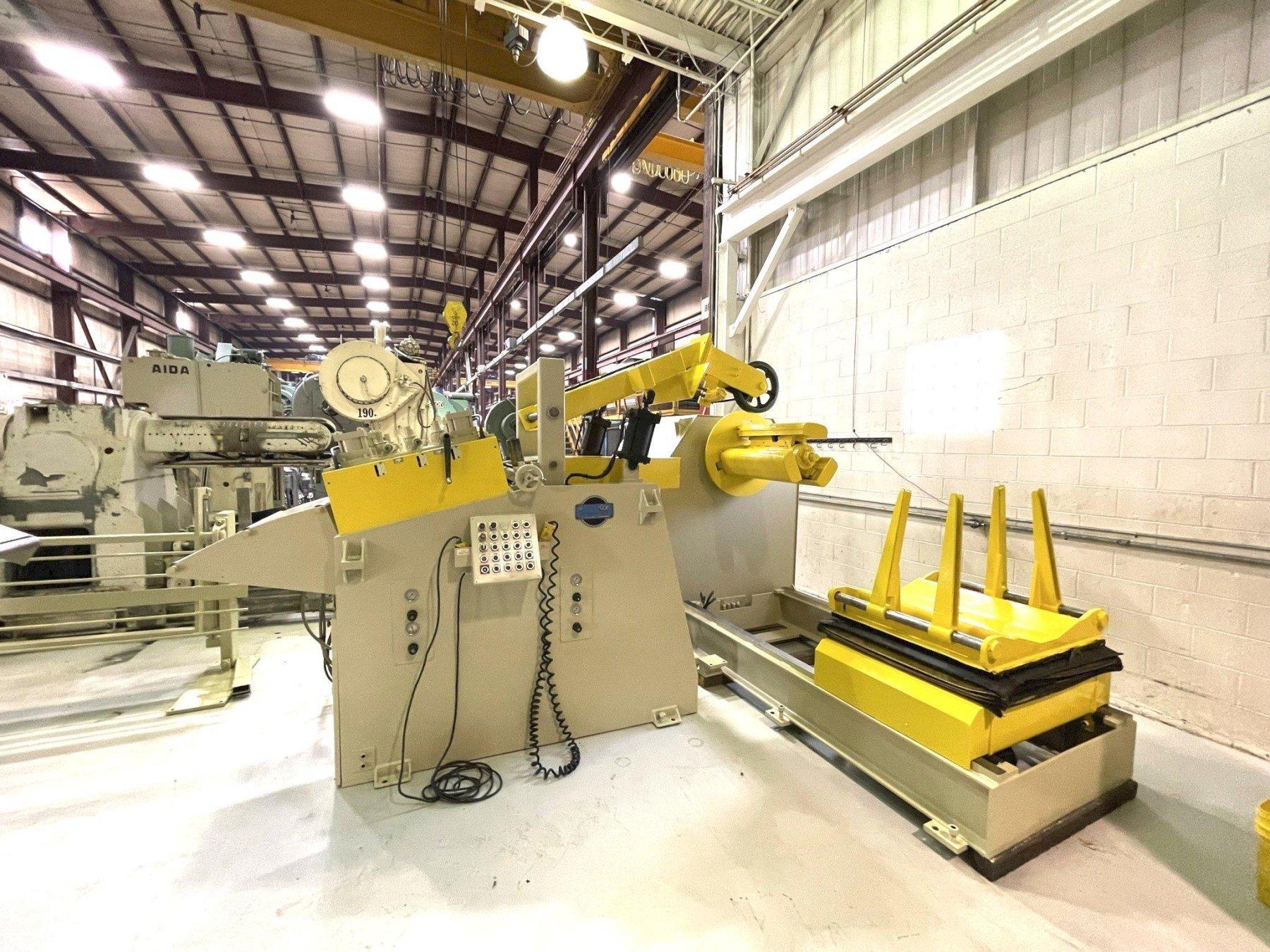

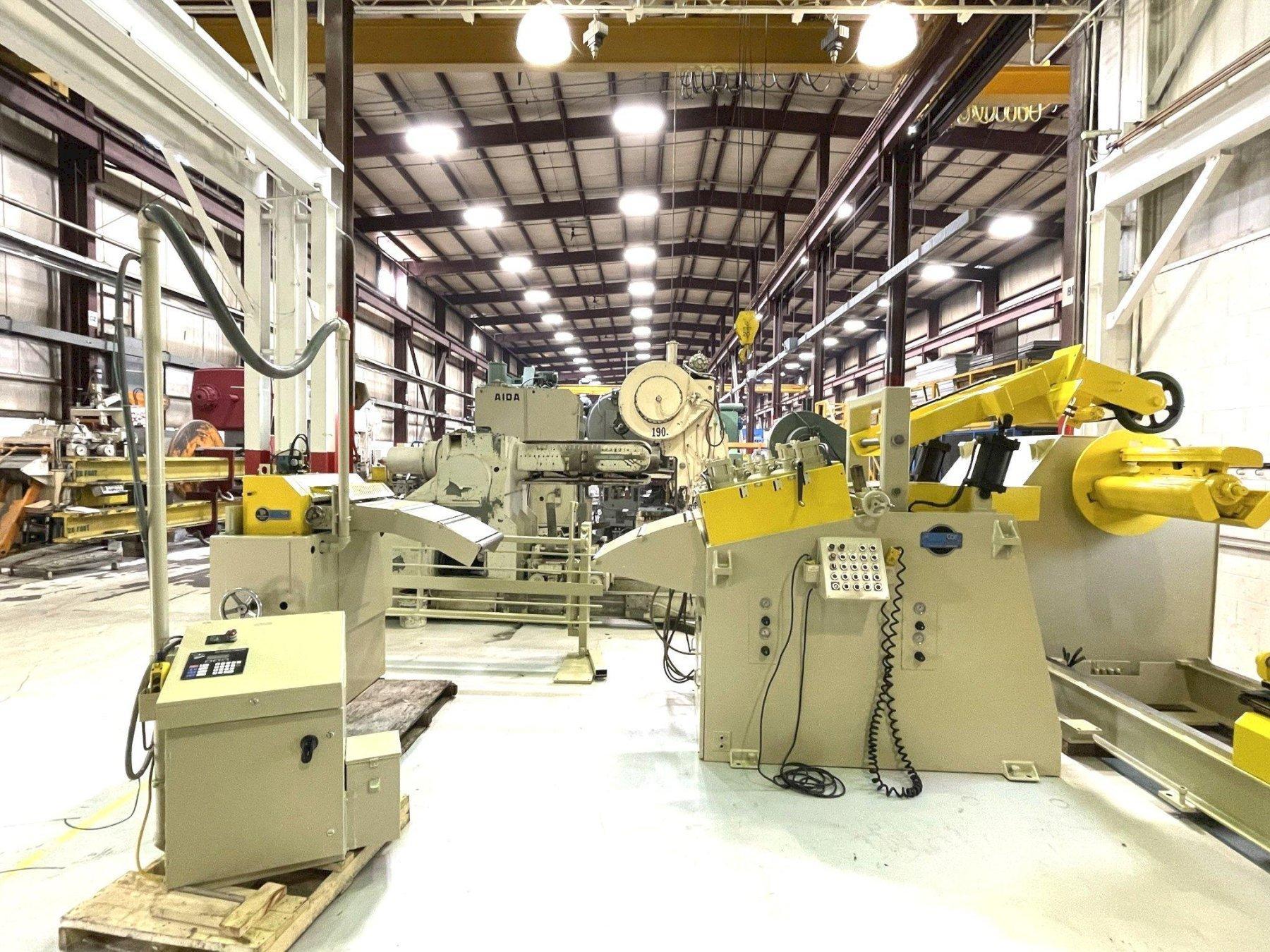

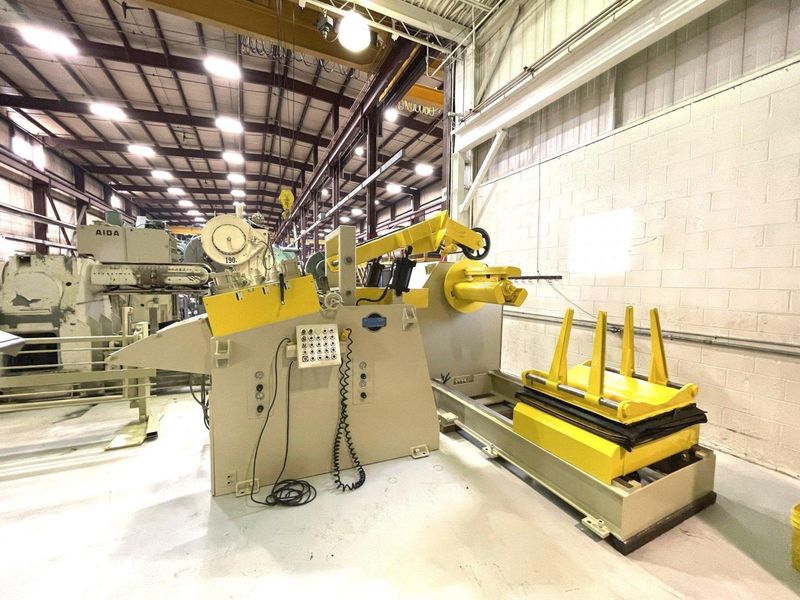

COE Press 15,000 lbs x 24" Wide Servo Coil Feed Line

Manufacturer

COE

Category

Coil Processing Equipment

Type

COIL FEED LINES

Stock

2584

Model

CPR-PO-15024 / CPPS-PO-350-24 / CPRF-S424

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Coil Weight - 15000 pounds
Coil Width - 24 inches
Coil Thickness - .187 inches


Specifications:
Coil weight capacity: 15,000 Lbs.
Coil width capacity: 24"
Stock thickness capacity: .187" x 24" Wide
Stock thickness capacity: .210" x 12' Wide
Expansion range: 19" - 24"
Coil O.D. capacity: 60"

Equipment and Features:

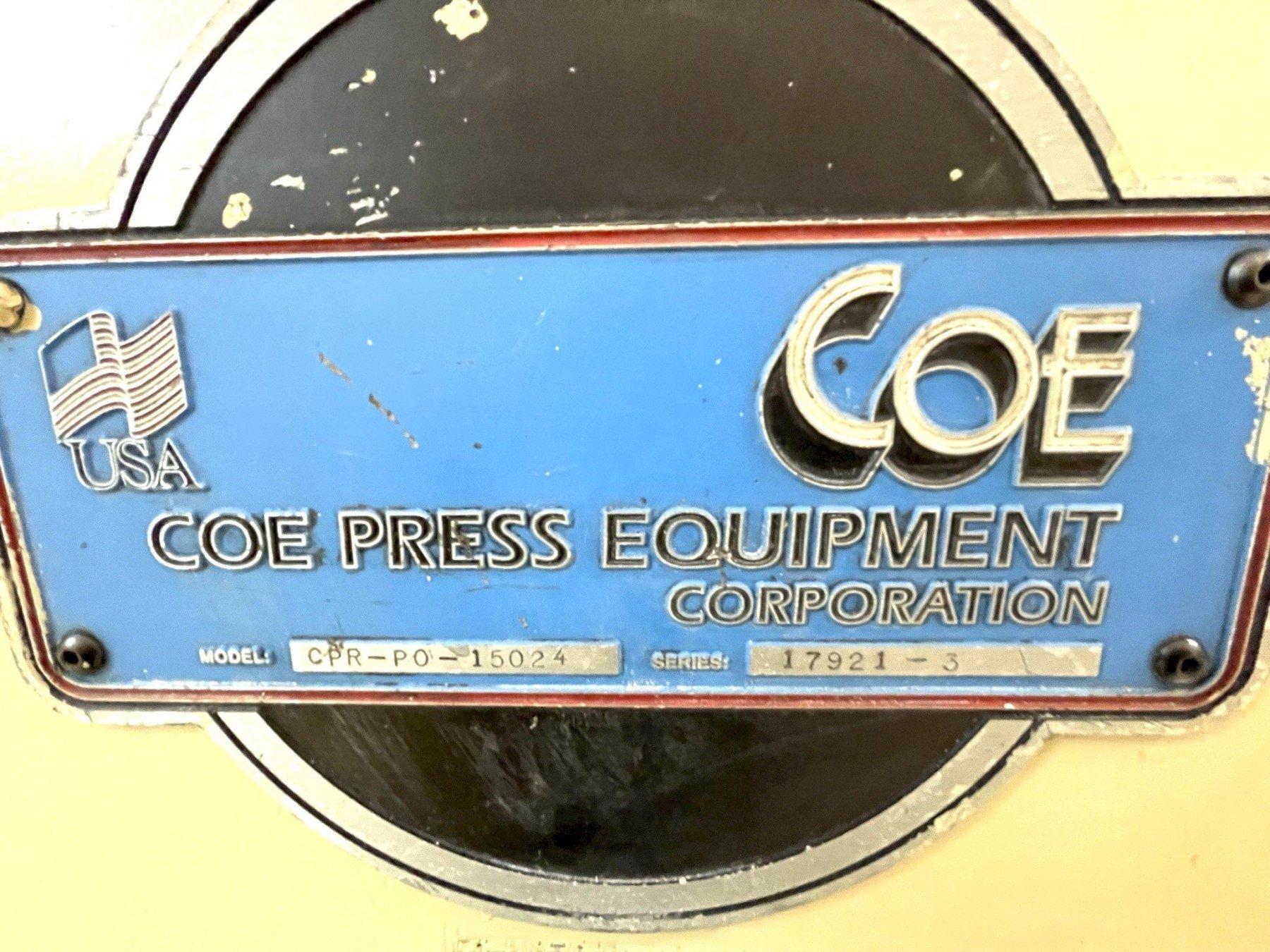

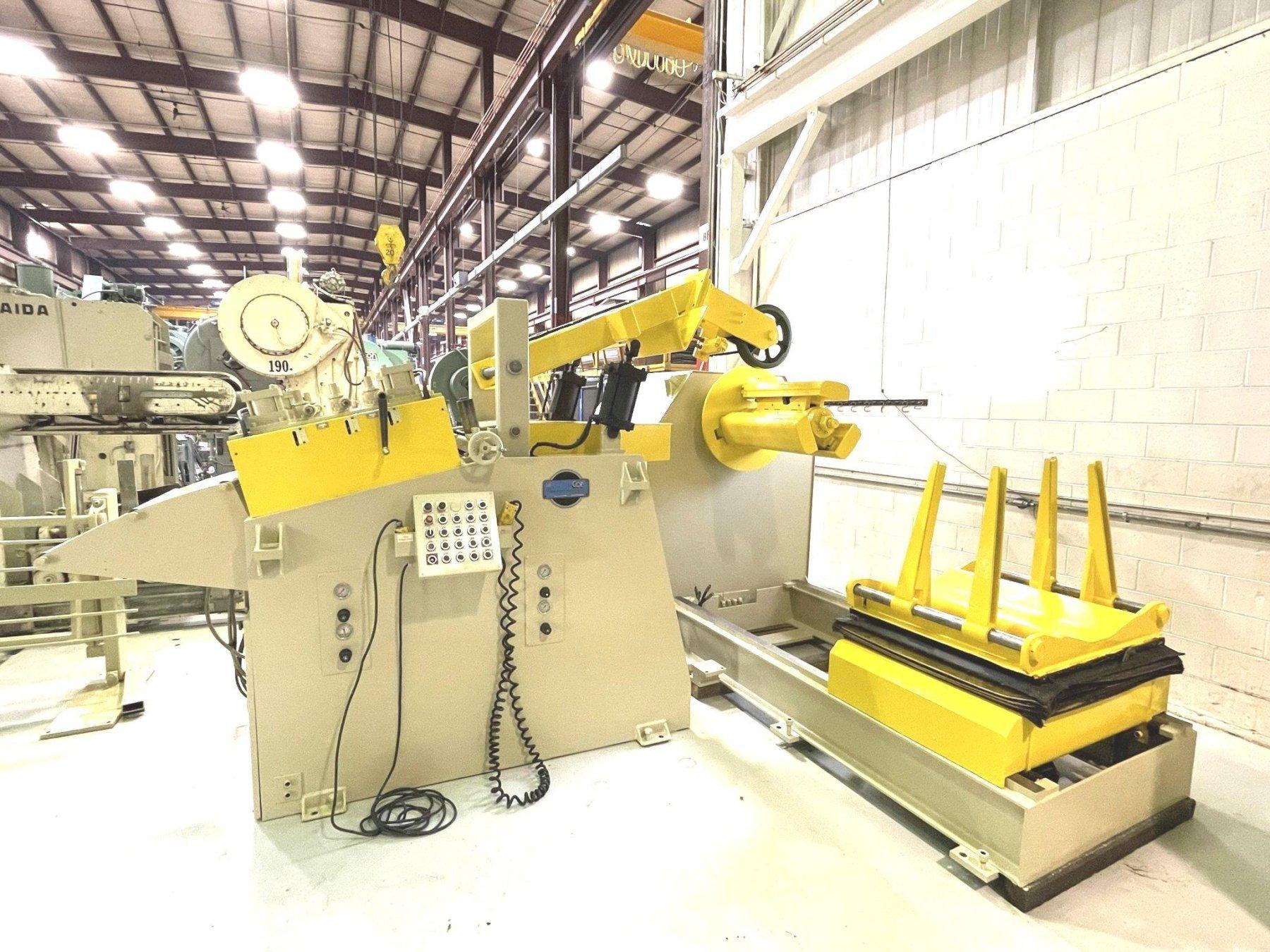

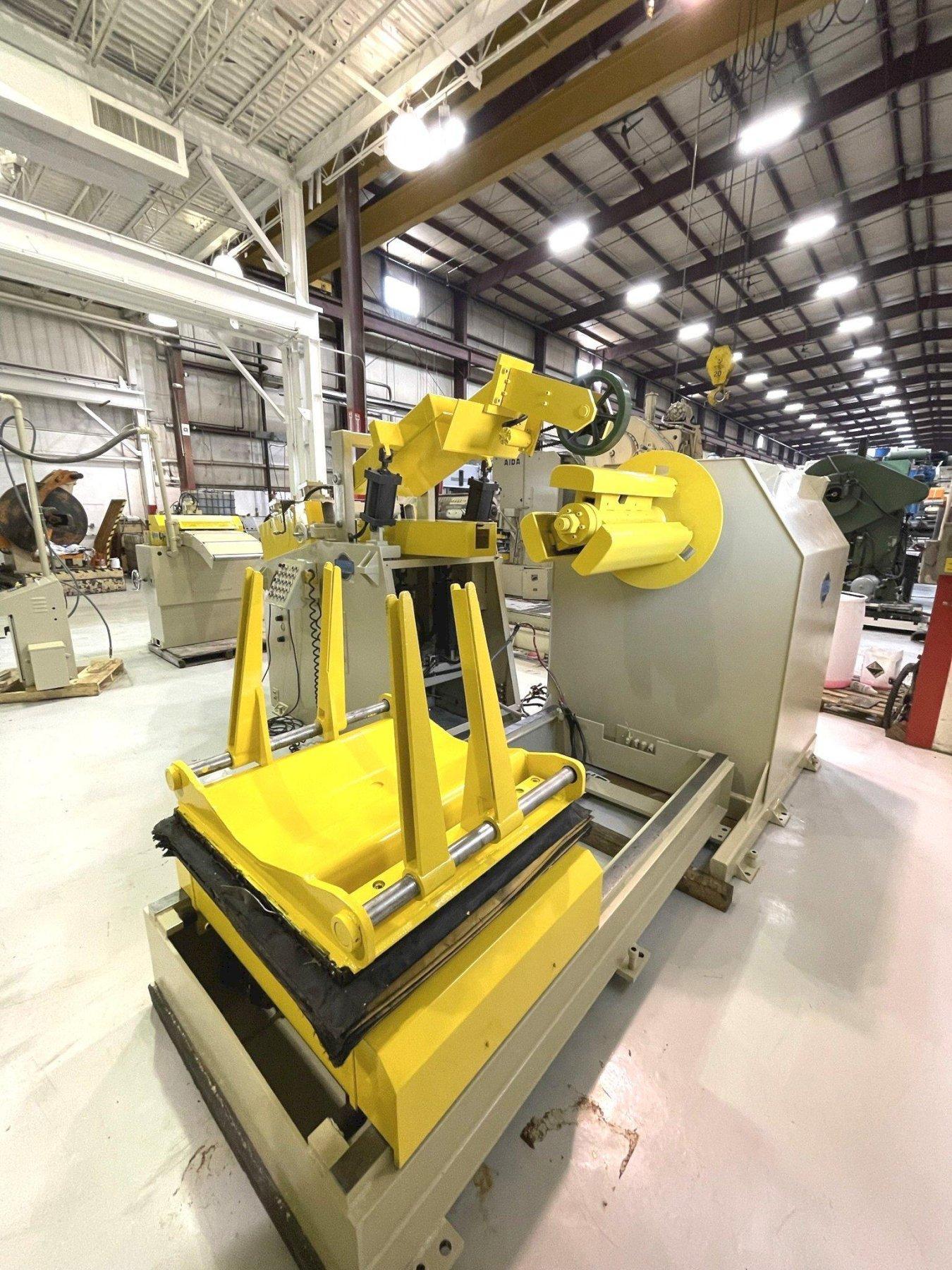

Coil reel Model No.: CPR-PO-15024, Serial No.: 17921-3
Three leaf mandrel with heavy duty wedge type hydraulic expansion
Coil keeper arms
Threading drive for jog forward and reverse
Air brake with adjustable tensioning

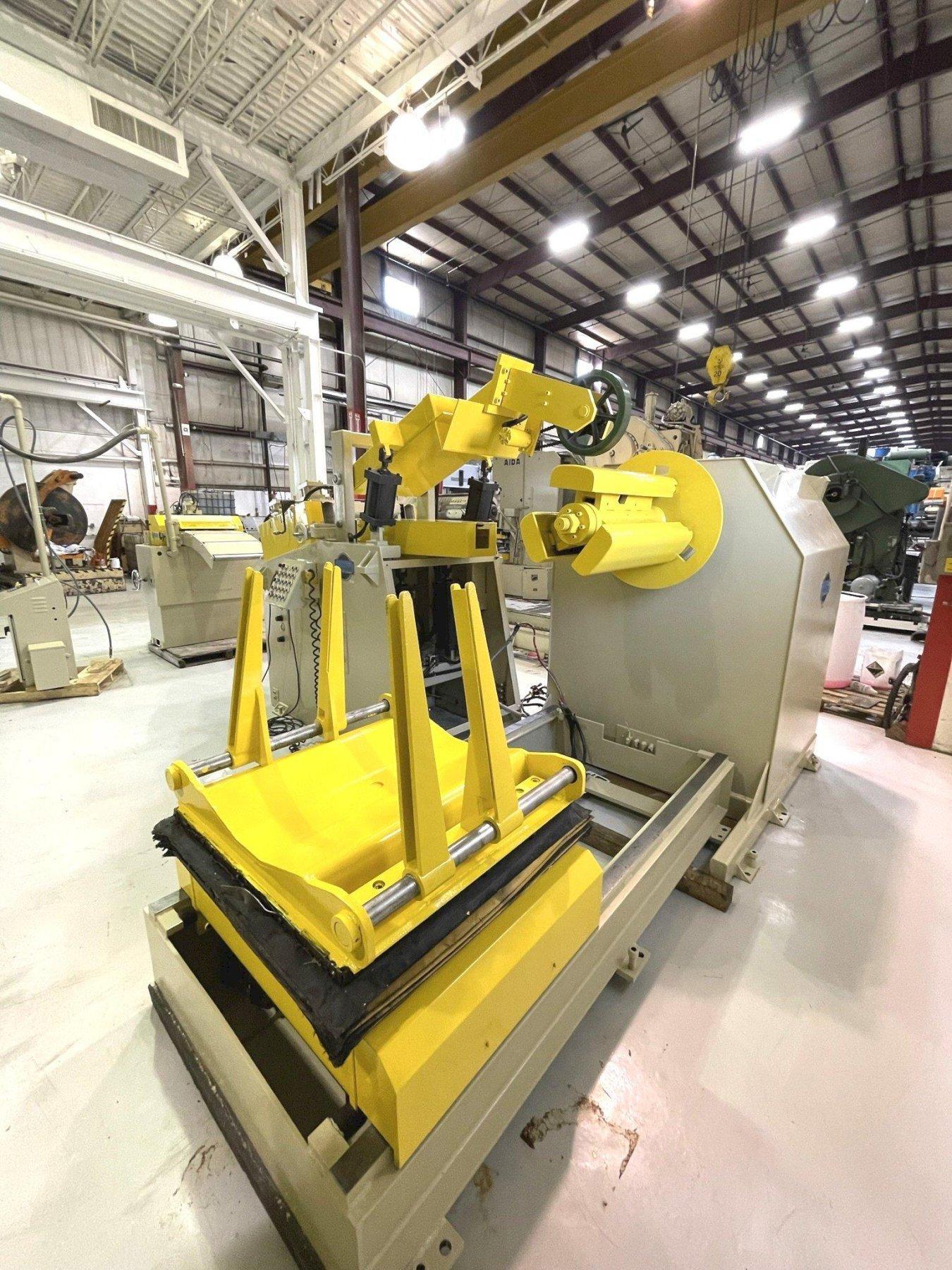

Traveling coil load car
Powered lift and travel
Narrow coil support arms

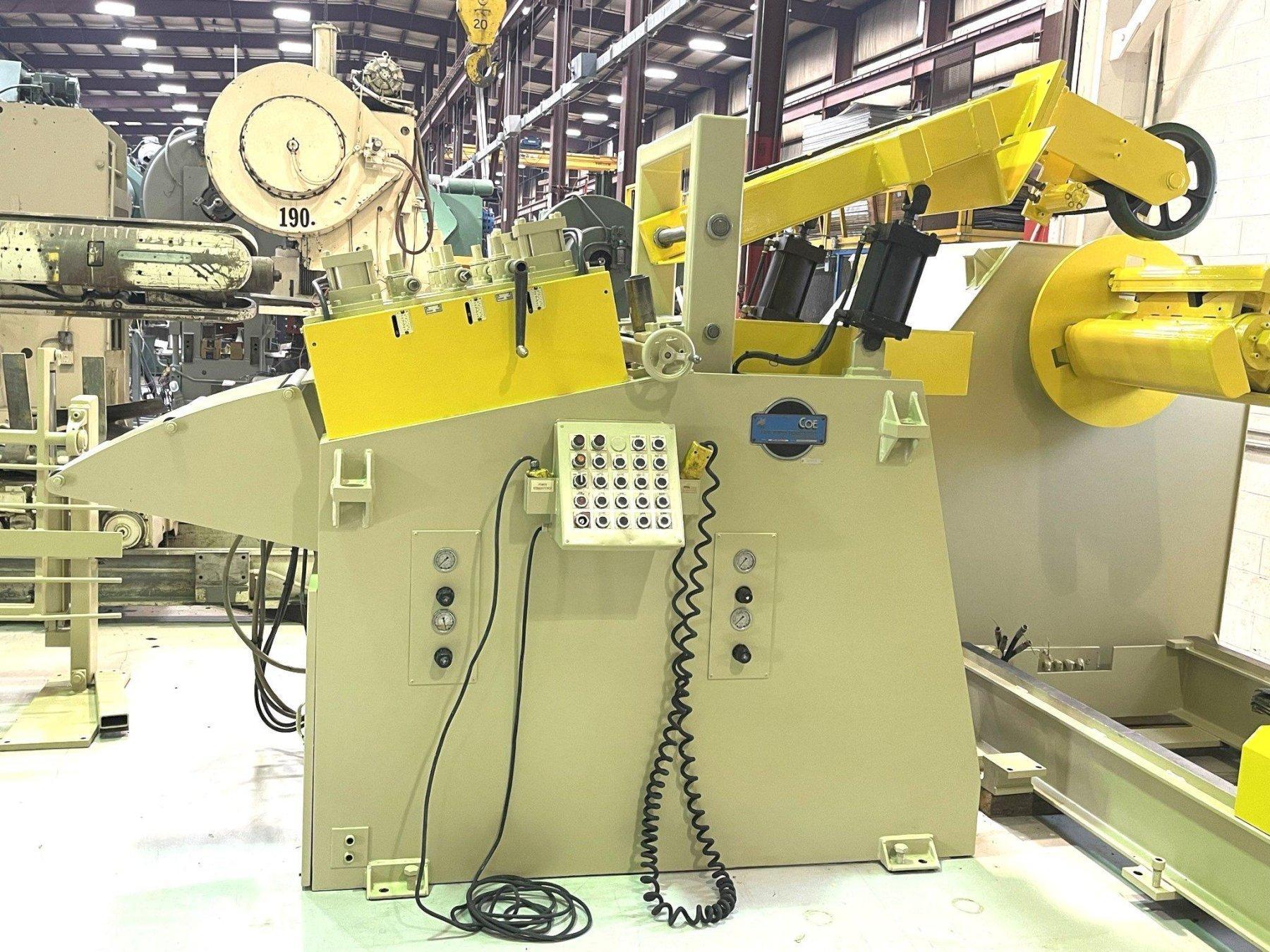

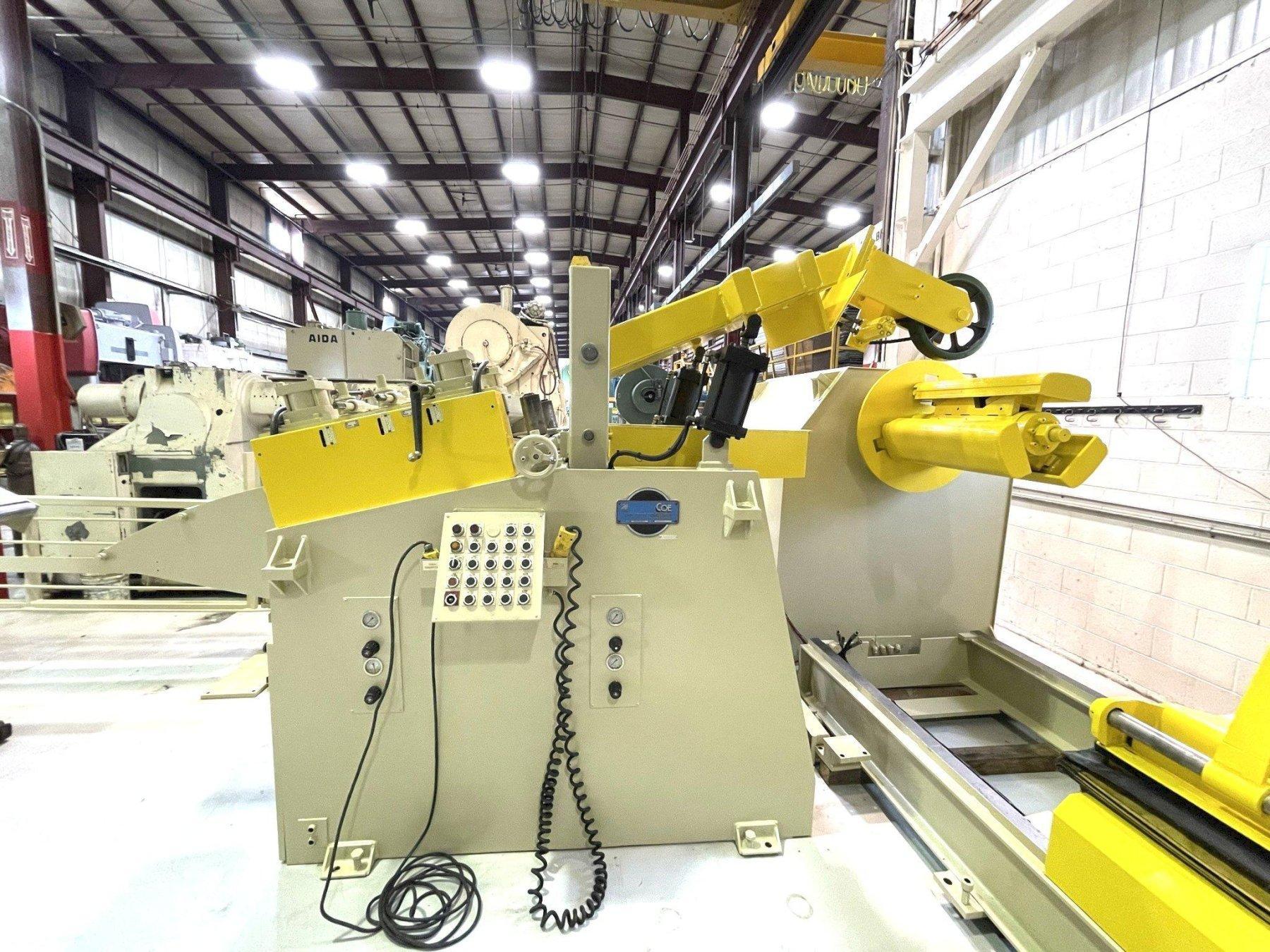

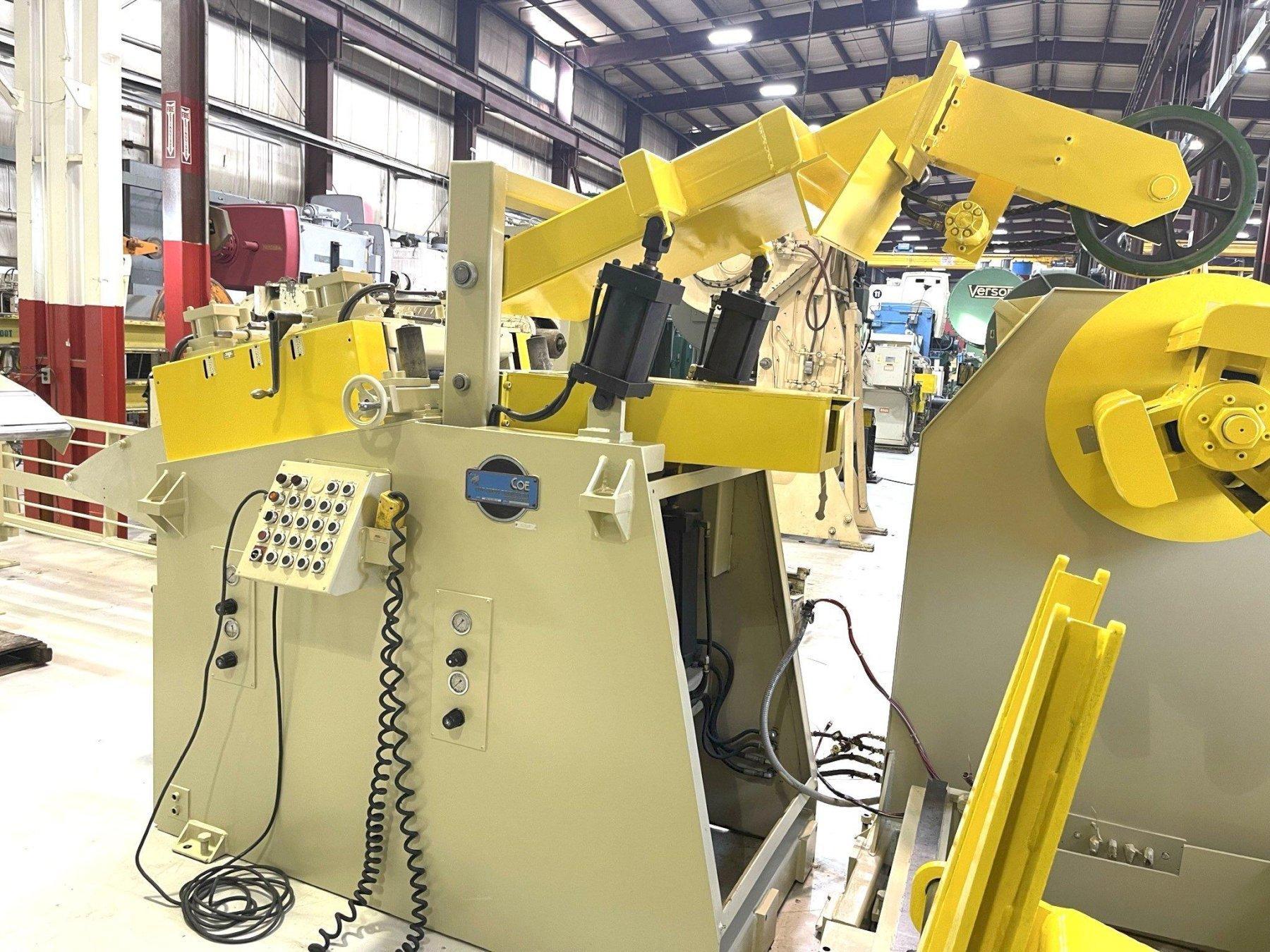

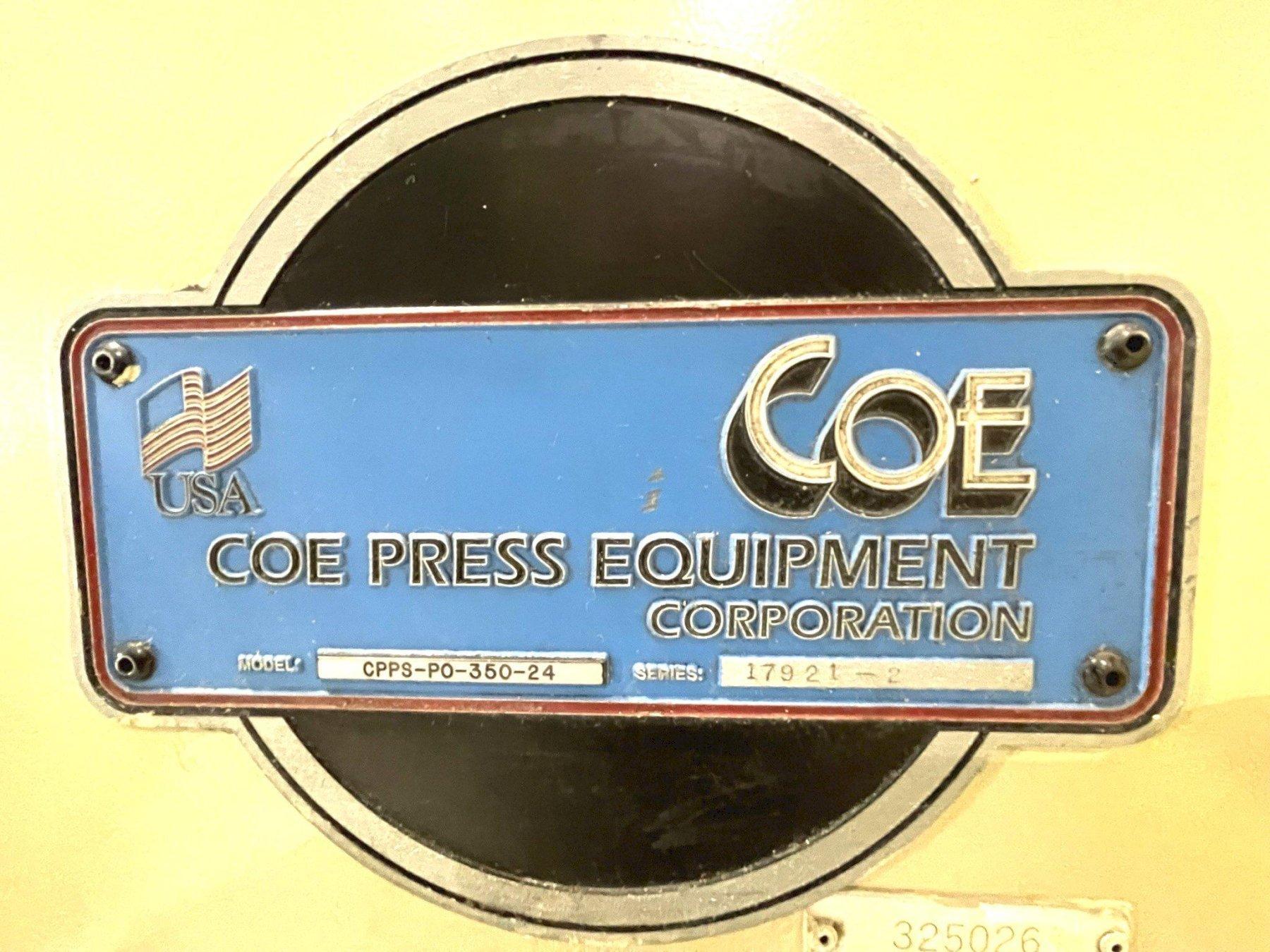

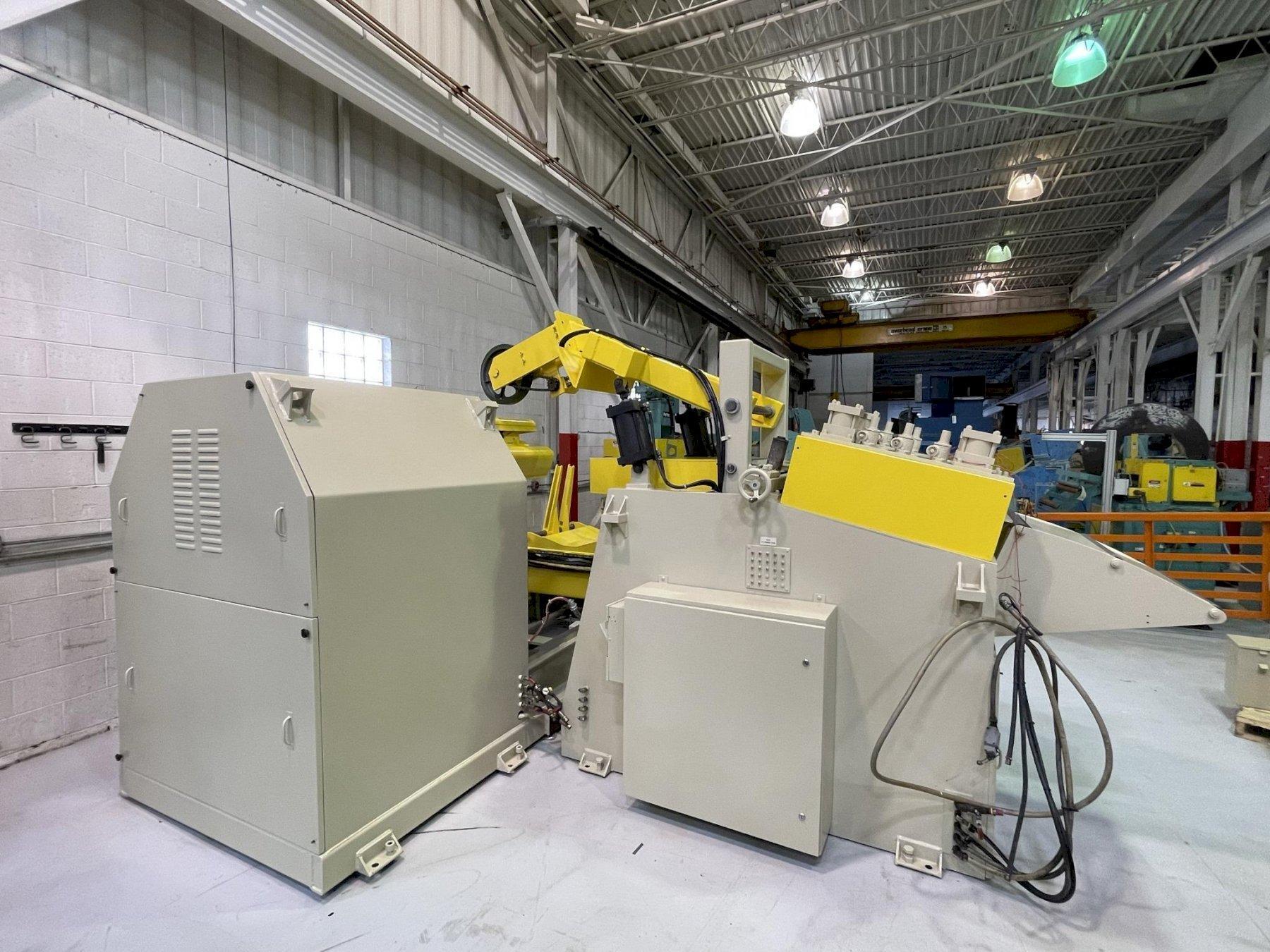

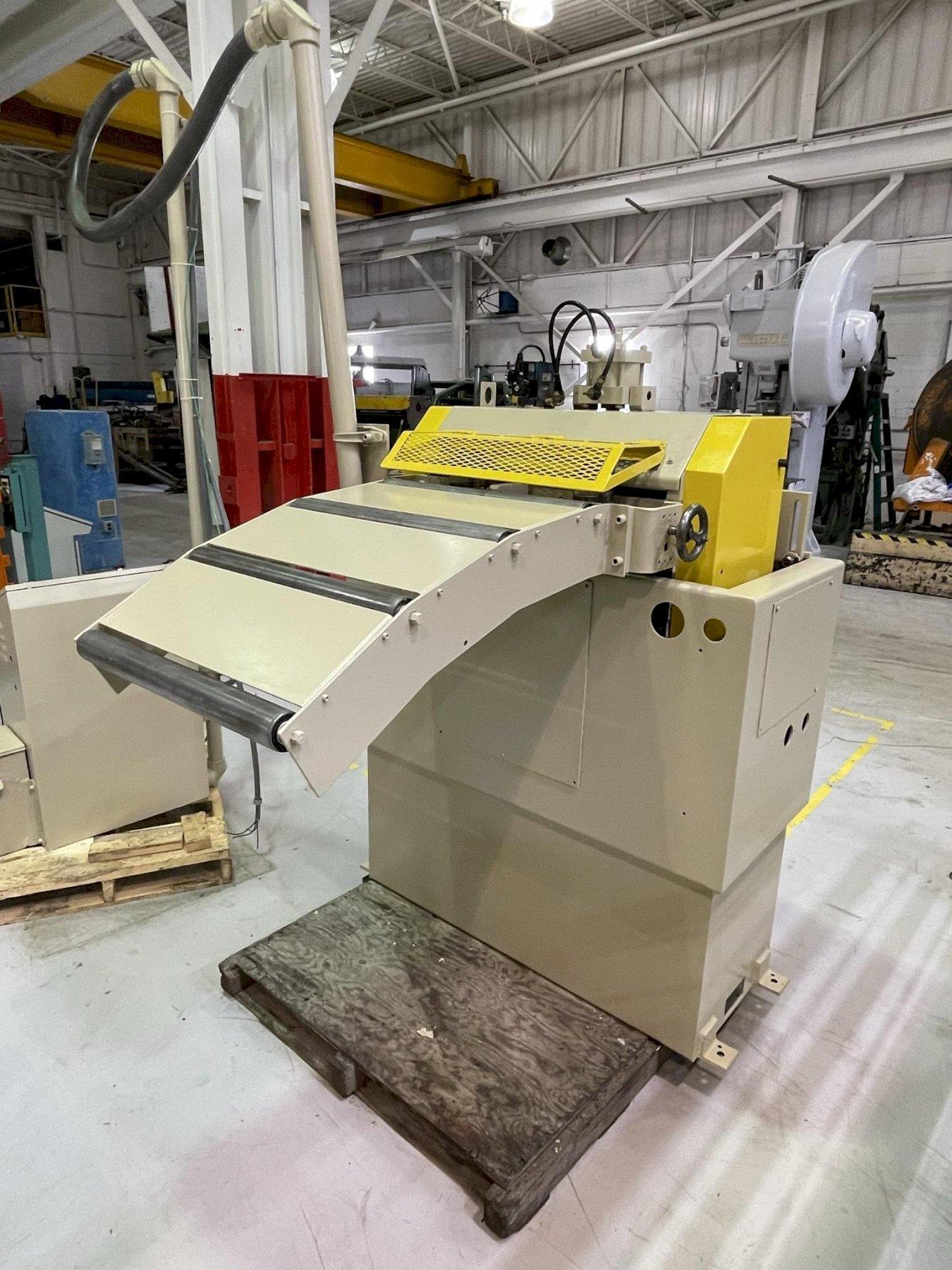

Powered straightener Model No.: CPPS-PO-350-24, Serial No.: 17921-2
Entry and Exit pinch rolls with air operated adjustments
Seven 3.5" diameter straightening rolls
Scales for upper straightening roll position
Hand crank edge guides
Inclined straightening head
Stock peeler / de-bender / hold down station
Motorized end wheel on coil hold down arm
Hand held pendant control for jog forward and reverse
Variable speed drive and control package
Common operator control station
Auto/Run cycle
Variable speed loop control
Exit threading table
Bombay door style
Air operated actuation

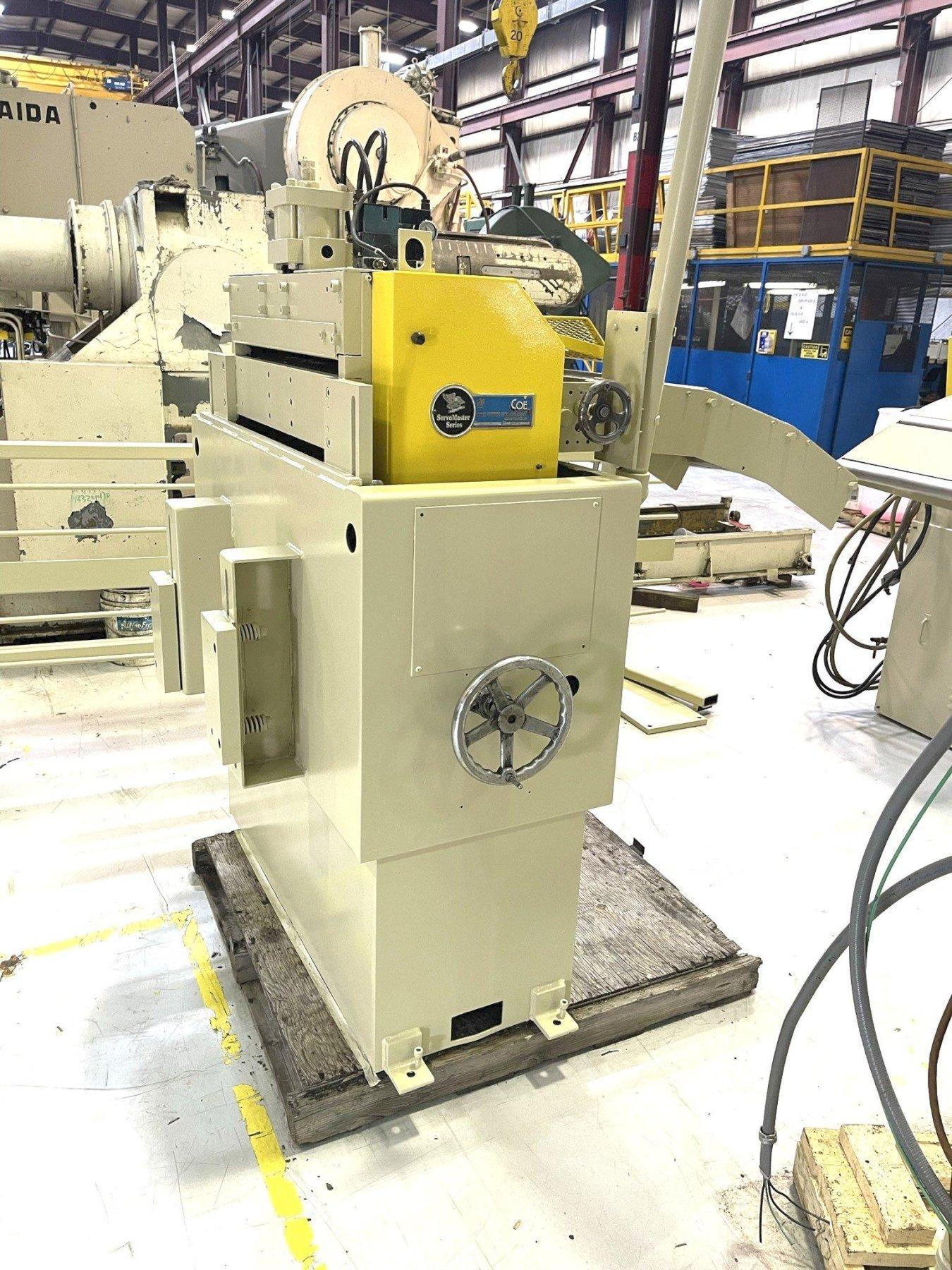

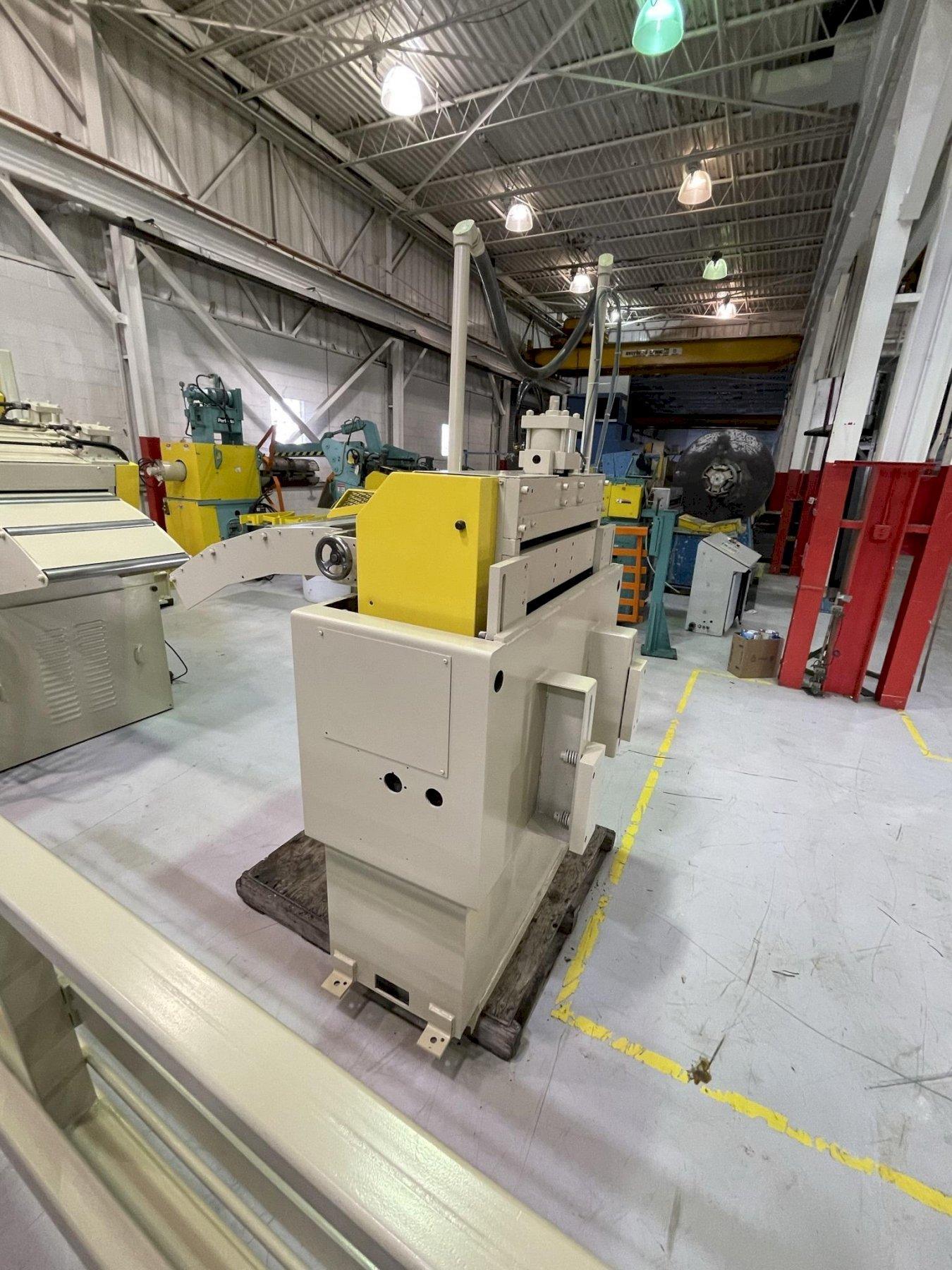

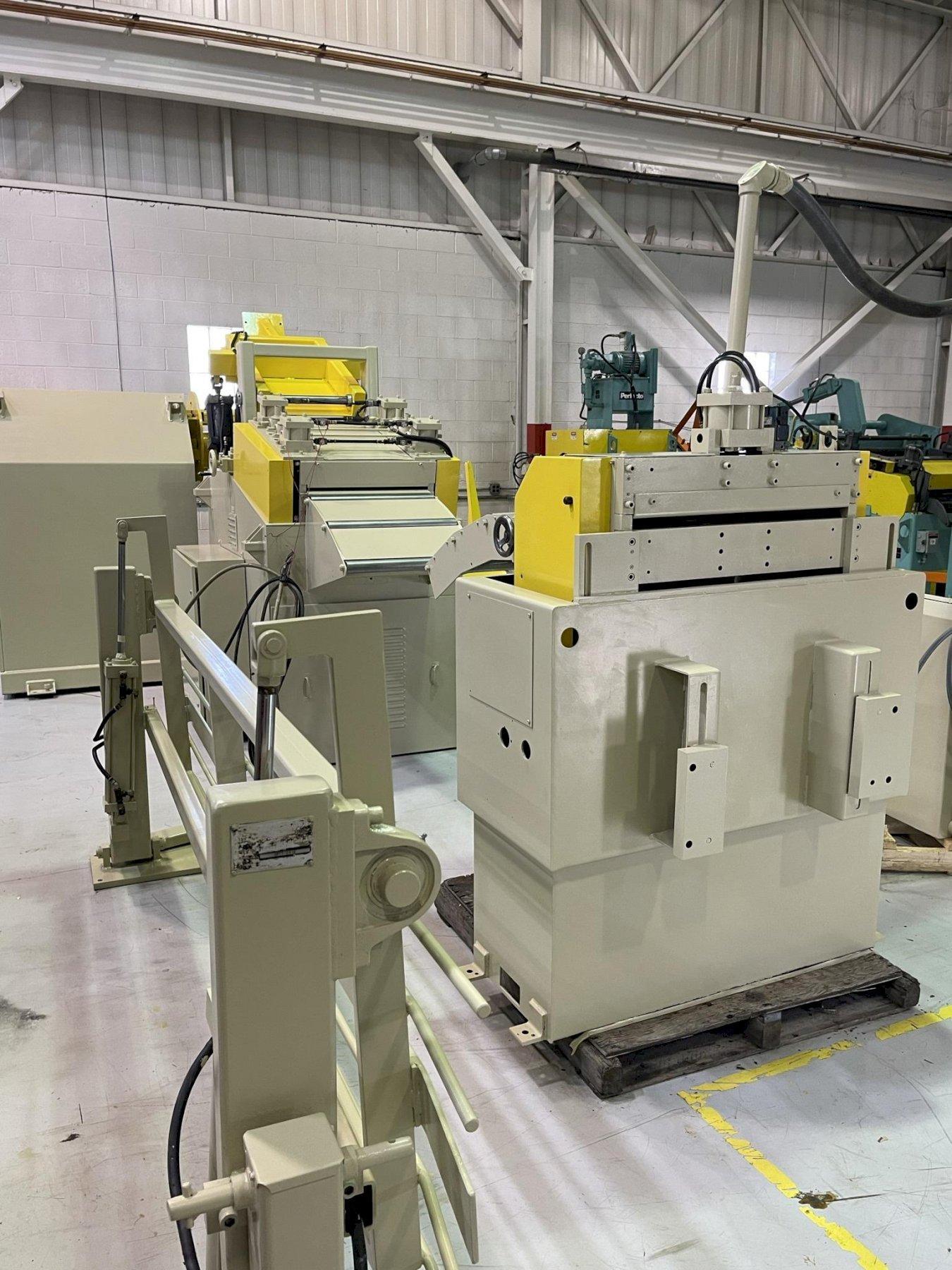

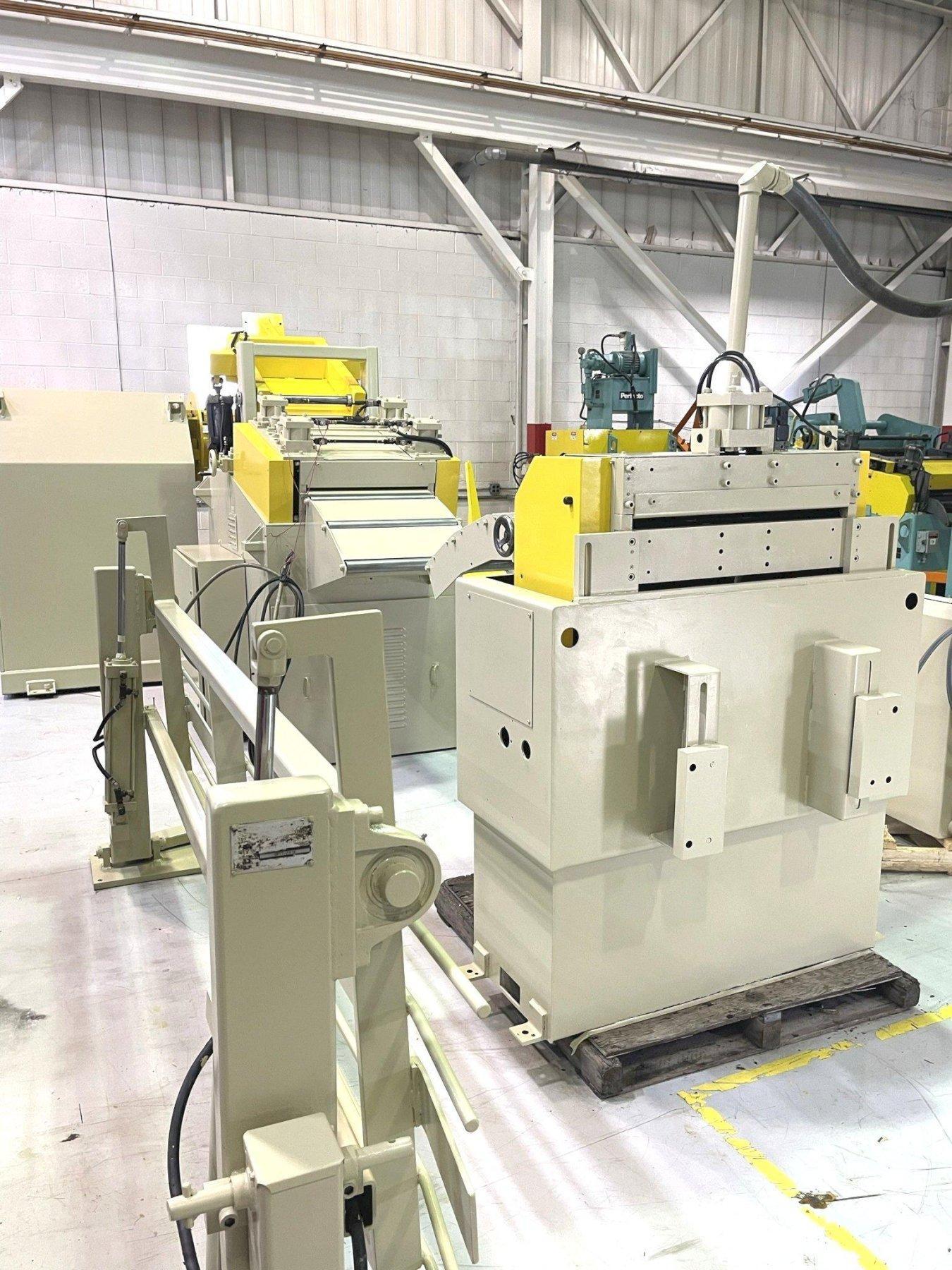

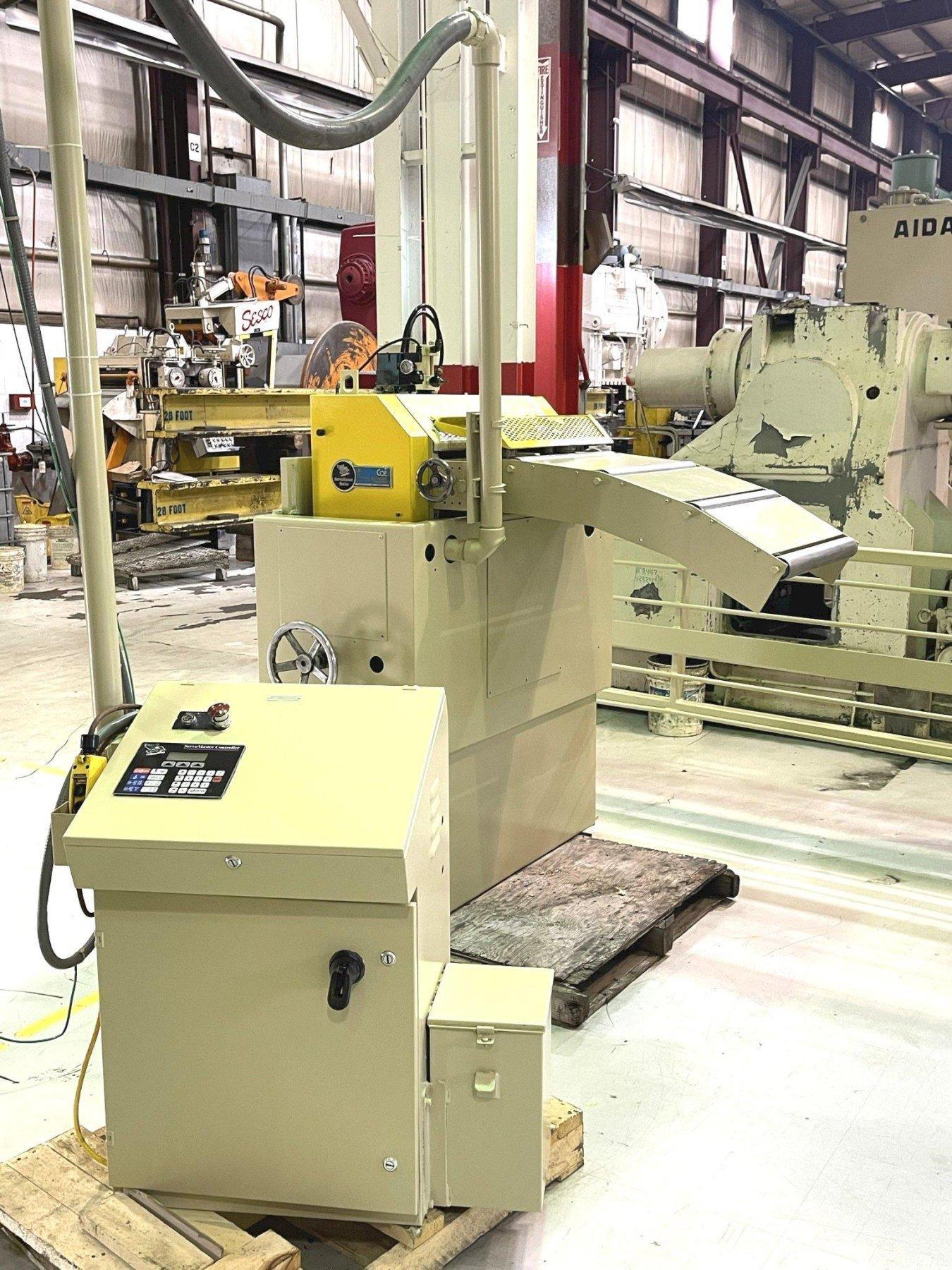

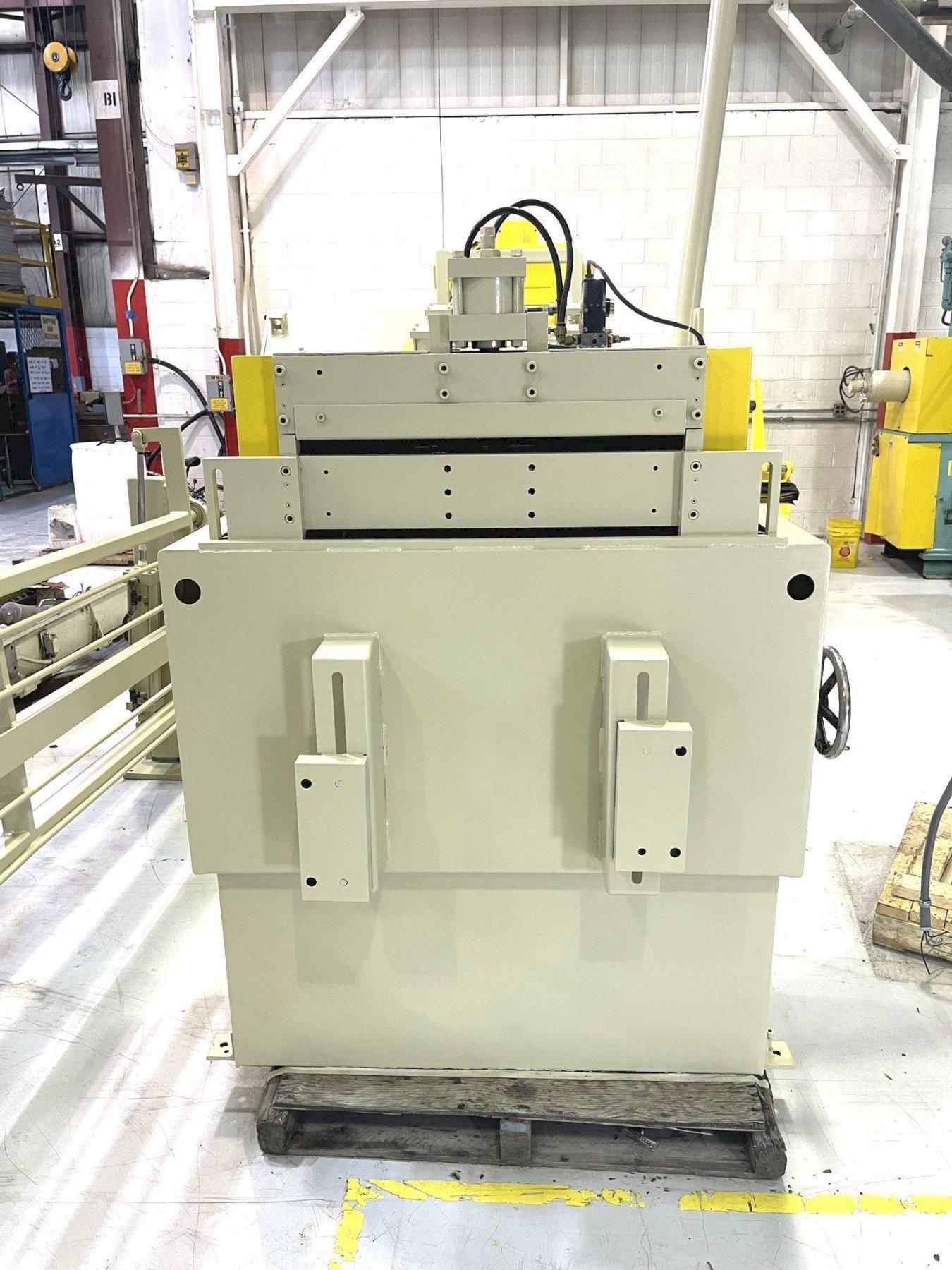

Servo Driven Roll Feed Model No.: CPRF-S424, Serial No.: 29147-1
Upper and lower matte chrome finished rolls four inch diameter
Air operated upper roll lift / pilot
Cabinet base mounted with pass line adjustments
Hand crank entry stock width edge guides
AC Servo drive and controls
Job memory, micro adjust, batch count, etc (Consult sales for complete details)
Pilot pin mode

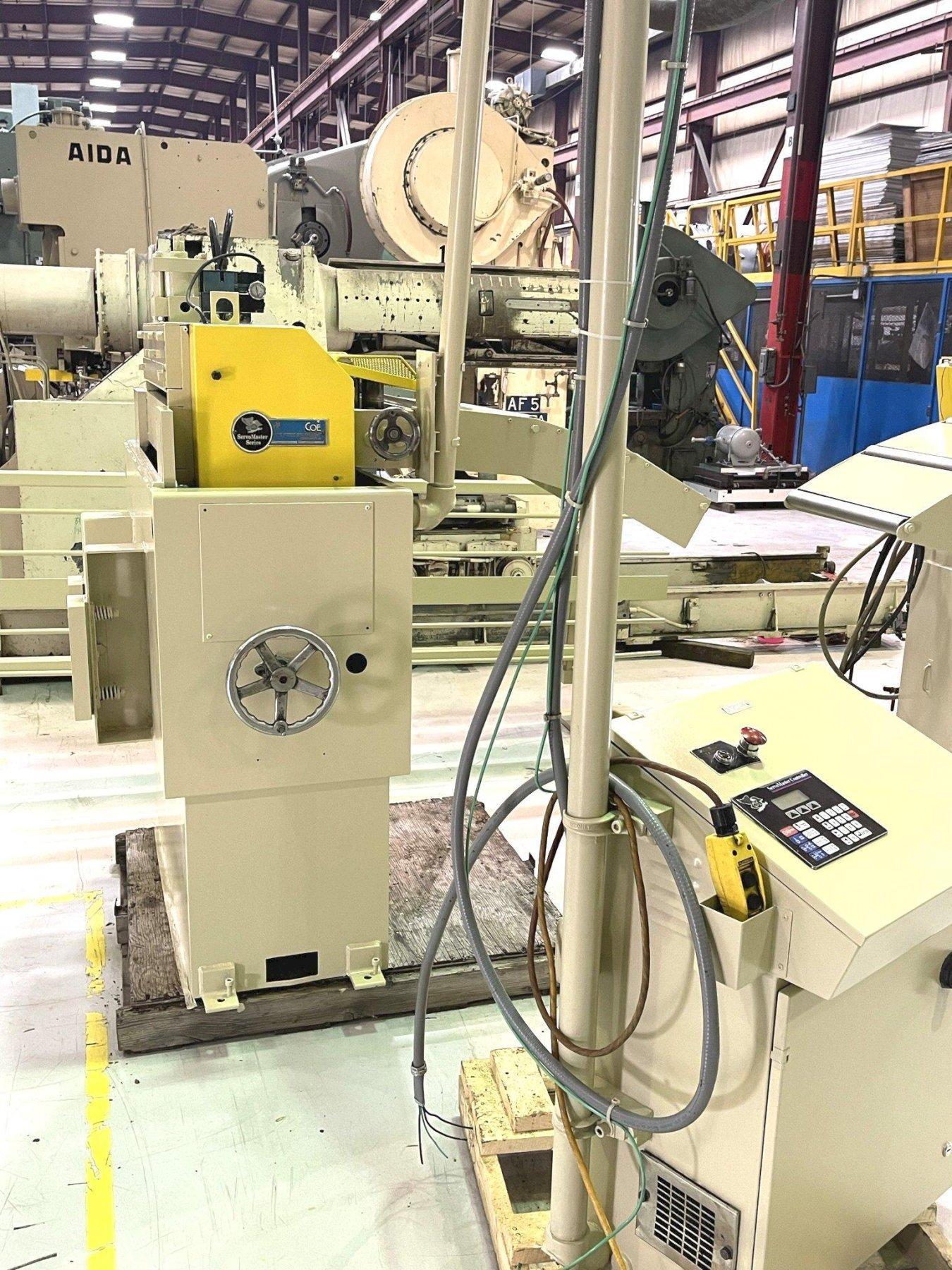

Free standing sloped front control console
Remote pendant control for jog forward and reverse
Fused disconnect
