95" x 275" Tacchi DB 132 HS, 86" Over C/S, 60 Ton Wt Cap., 250 RPM, 172 HP, 2015 #30241

Manufacturer

TACCHI

Category

Lathes

Type

LATHES, ENGINE

Stock

30241

Model

DB 132 HS Type 14x7000

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #30241

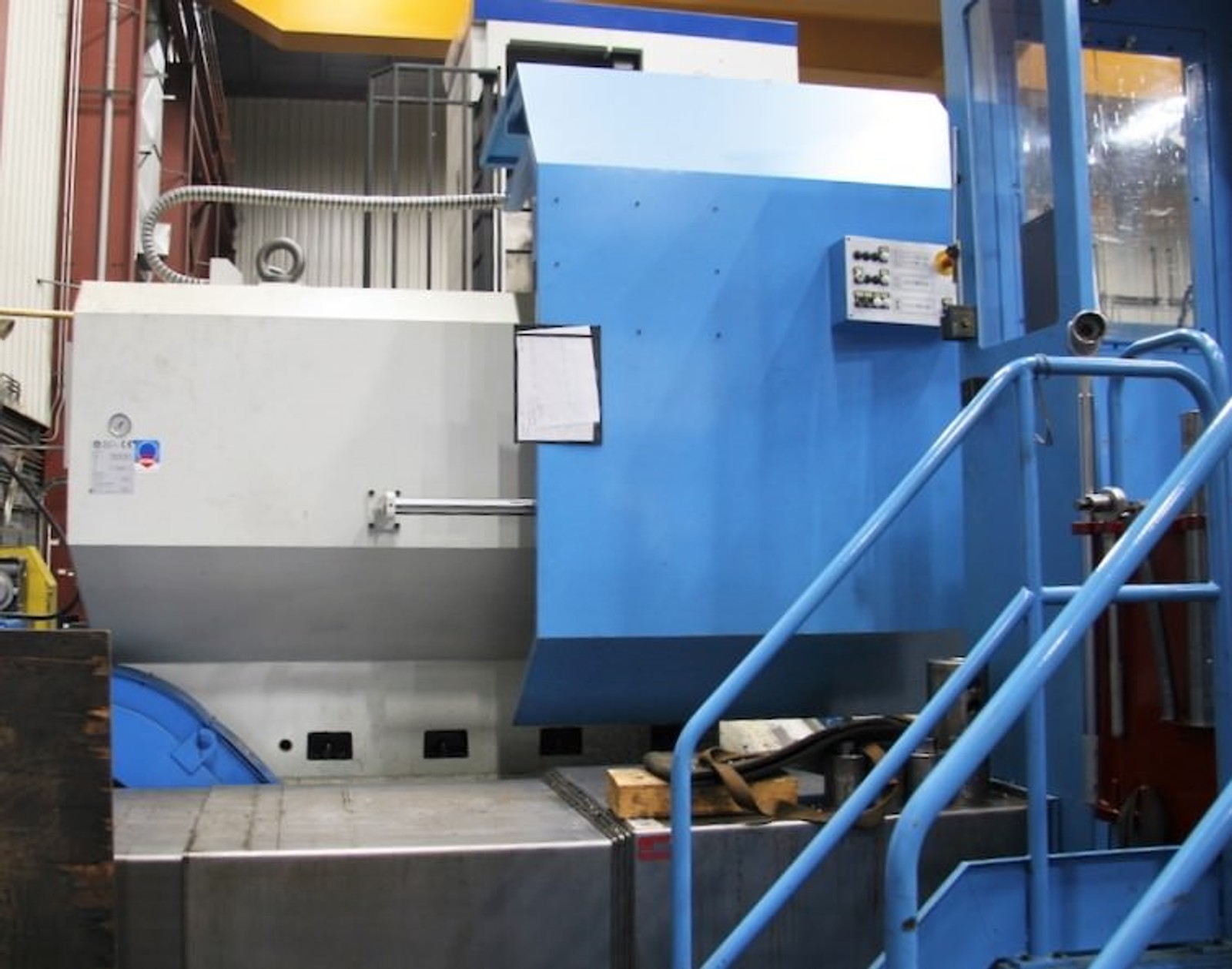

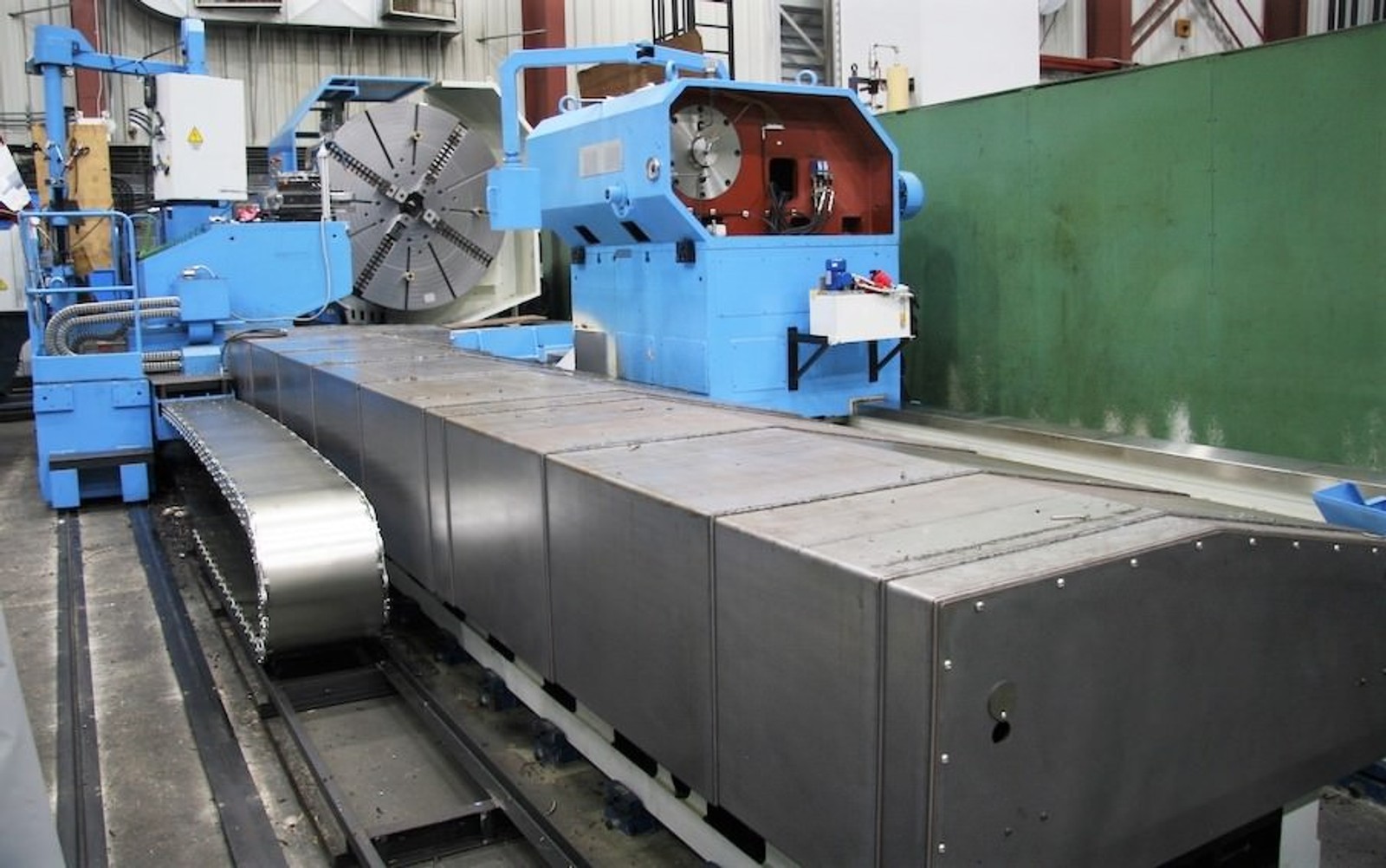

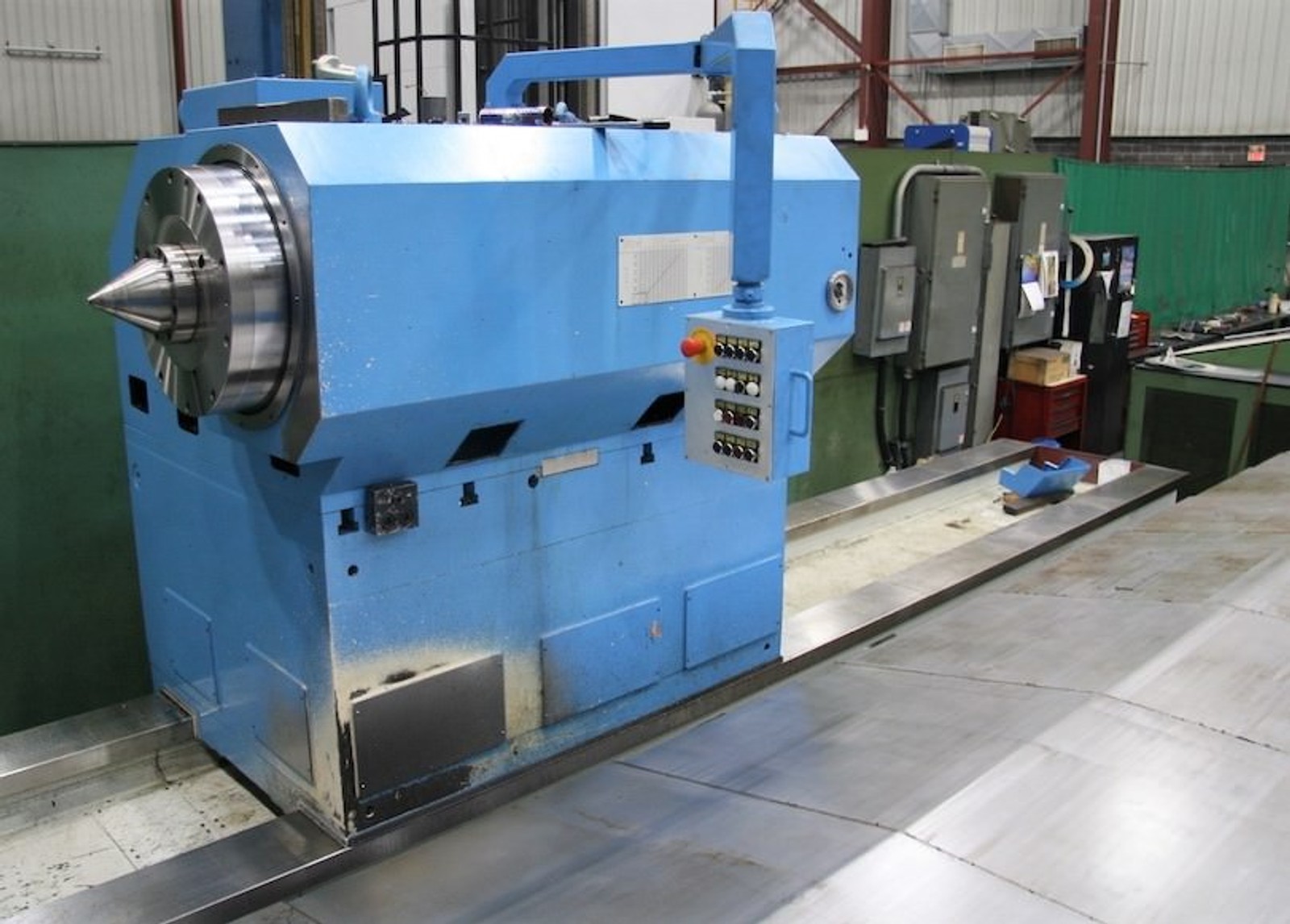

Tacchi DB 132 HS Type 14x7000, 94" x 275" CNC Roll Lathe

FEATURES:

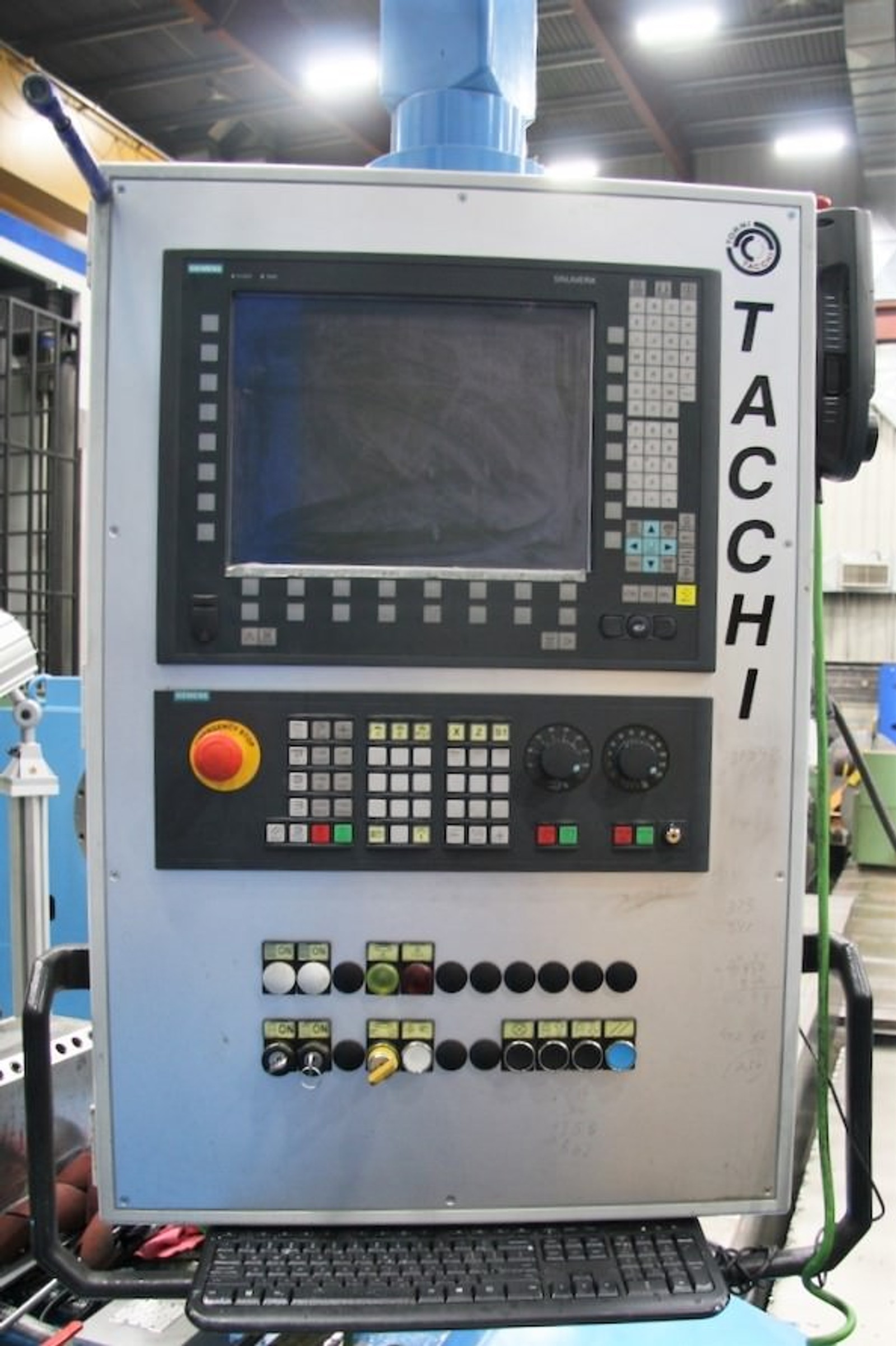

SIEMENS 840D CNC Control

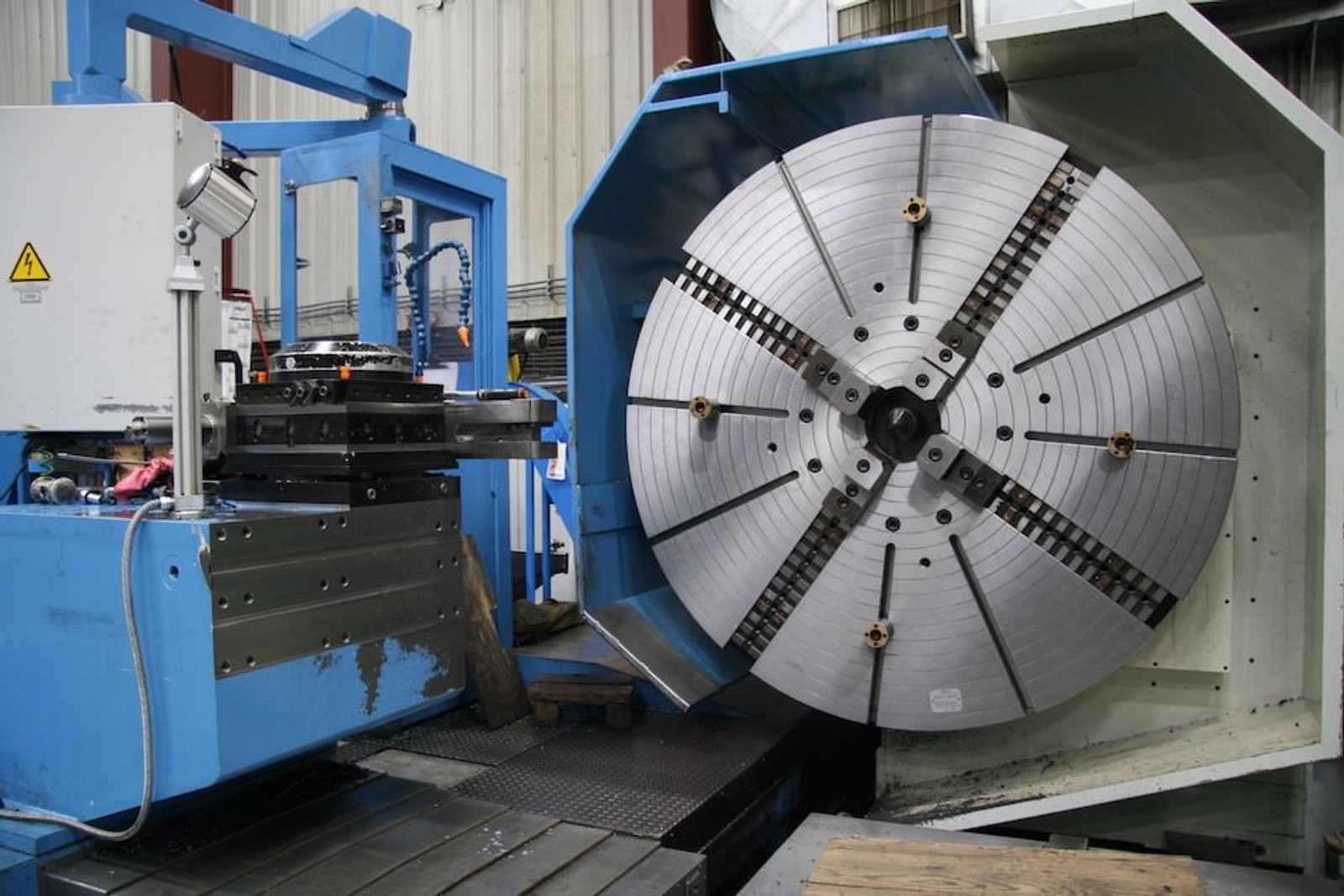

78.74" Diameter 4-Jaw Chuck
Steady Rest
Steel Sliding Way Covers

SPECIFICATIONS:
Maximum Turning Diameter .............. 94.48"
Maximum Swing Over Saddle ............. 86.61"
Distance Between Centers .............. 275.59"
Weight Between Centers without Rests .. 132,000 lbs
Spindle Speeds ........................ 1-250 RPM
Spindle Speeds At Constant Power ...... 9-250 RPM
Number of Speed Ranges ................ 3
Main Motor, AC Brushless .............. 172 HP
Maximum Torque ........................ 110,000 Nm
Spindle Nose .......................... 20"
Spindle Hole .......................... 6.3"
Quill Diameter ........................ 21.25"
Quill Stroke .......................... 7.87"
Internal Taper ........................ Metric 60
Machine Footprint, Approx ............. 520" x 220"
Machine Weight ........................ 181,000 Lbs

EQUIPPED WITH:
SIEMENS 840D CNC Control
78.74" Dia. 4-Jaw Chuck
Steady Rest
Steel Sliding Way Covers
172 HP Spindle Drive Motor
