CINCINNATI CNC Gantry Profiler, X-300", Y-82", 14,400 RPM, (3) 20 HP spindles, MS Tech CNC, #29307

Manufacturer

CINCINNATI

Category

Milling Machines

Type

PROFILERS, CNC - See Also M0185, M0120

Stock

29307

Model

3-Spindle

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #29307

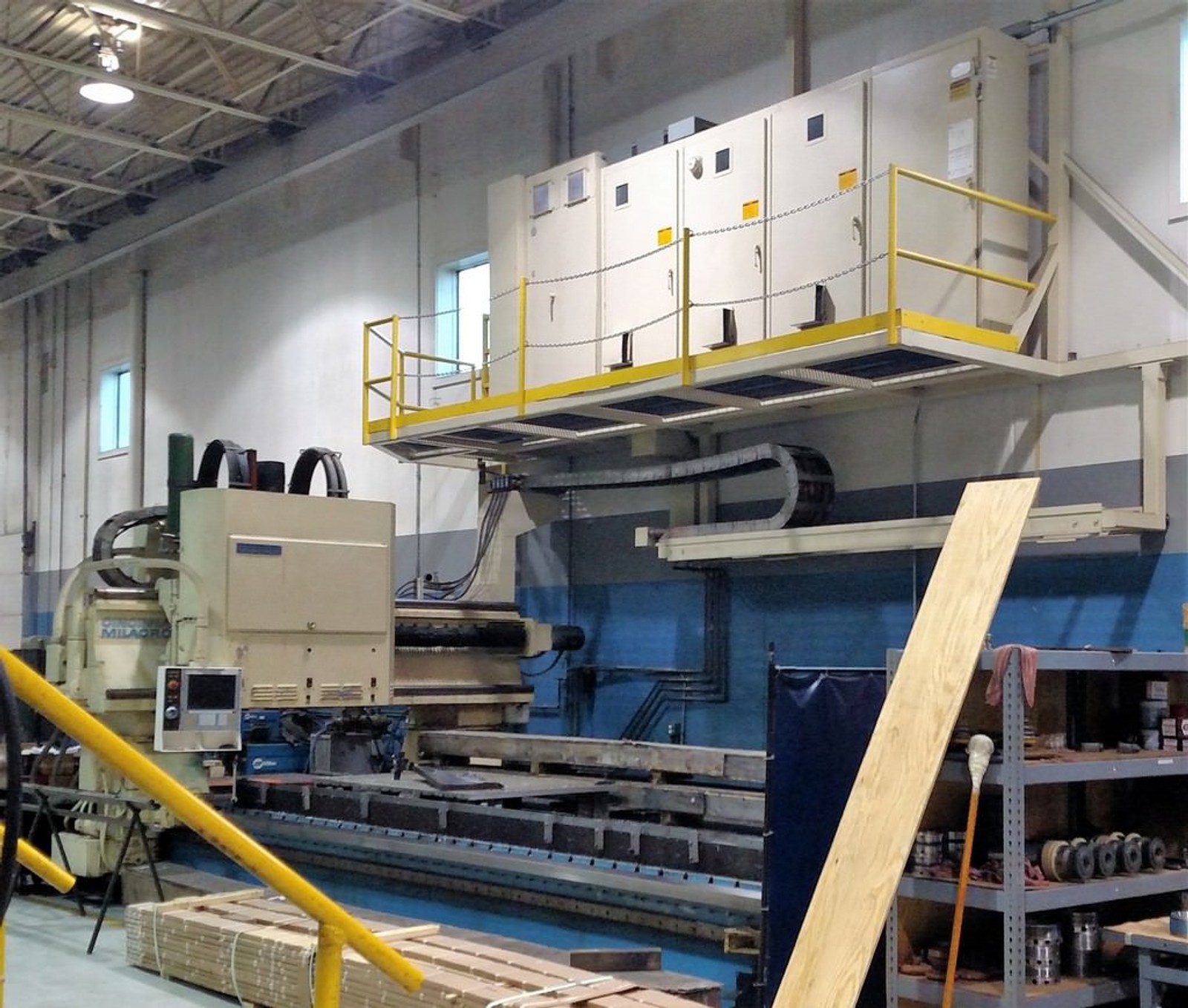

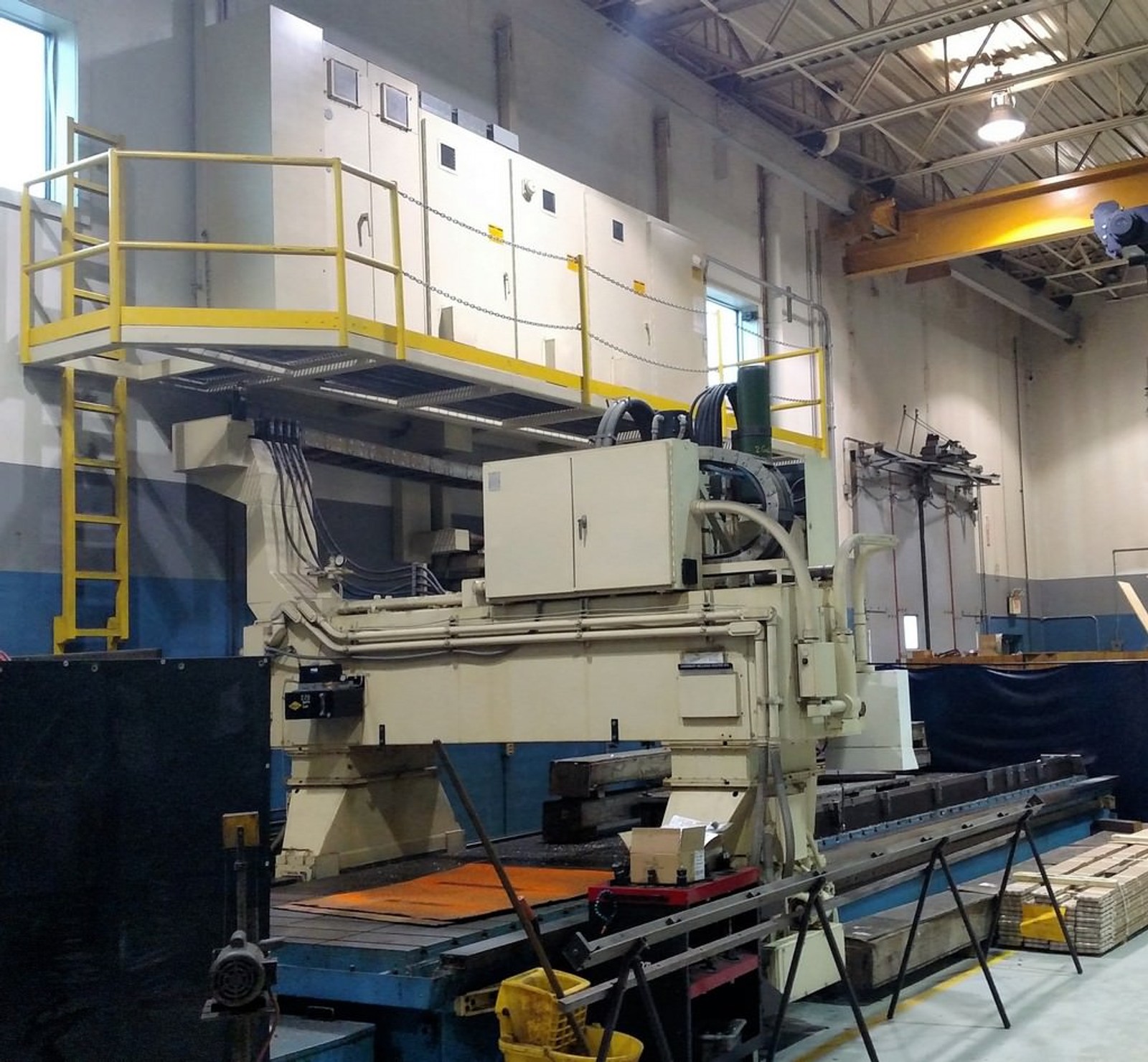

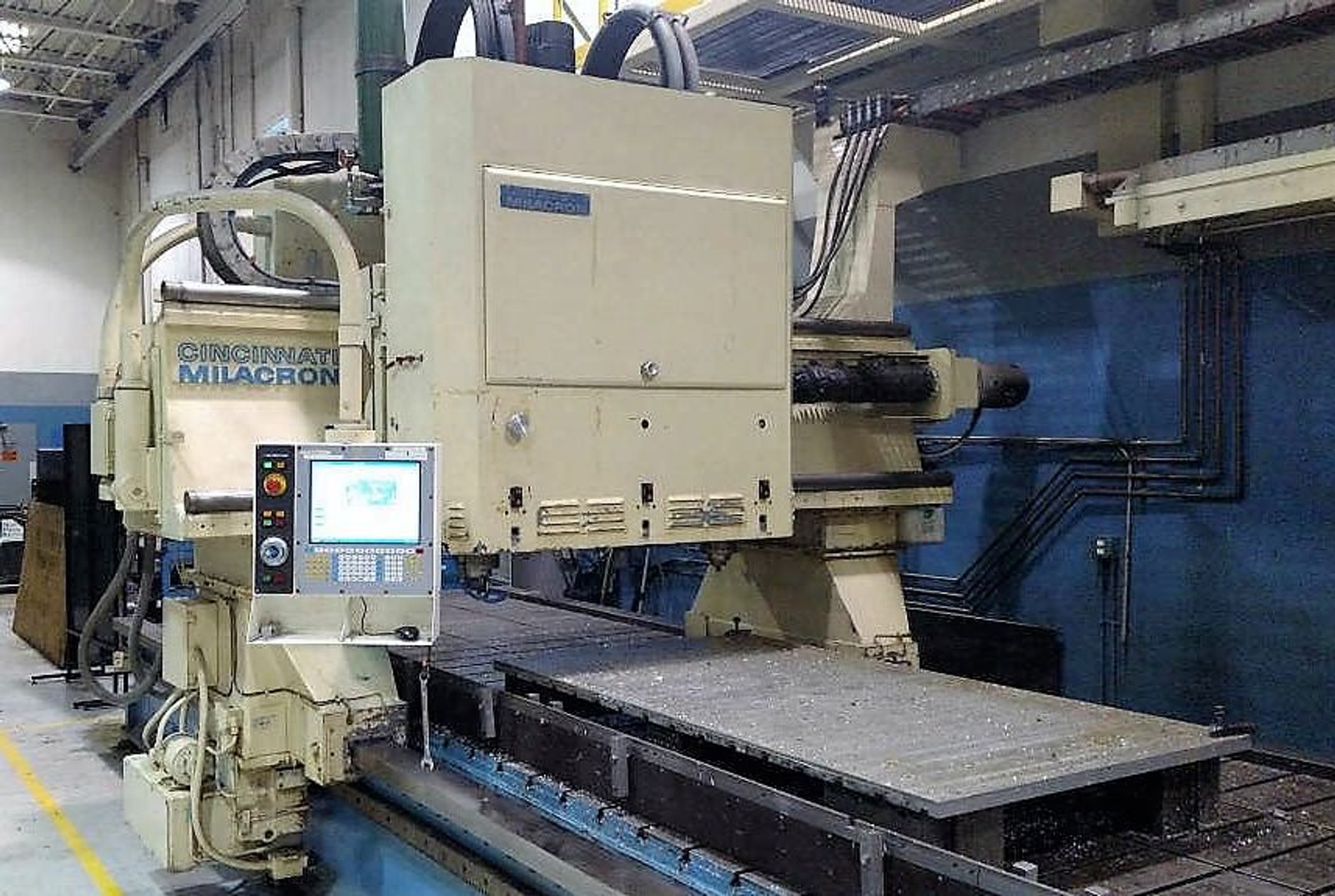

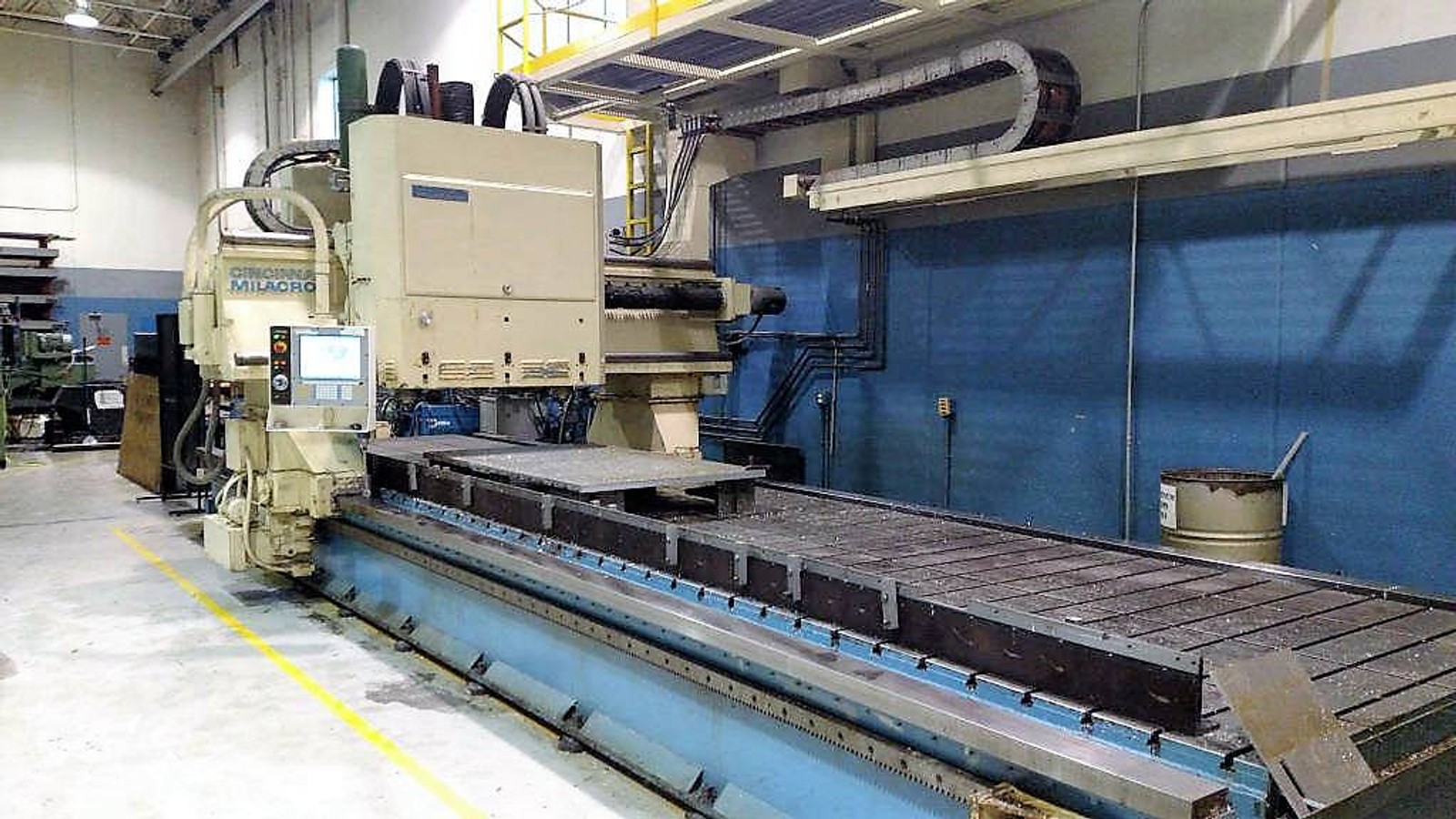

CINCINNATI 3-Spindle CNC Gantry Profiler

FEATURES:

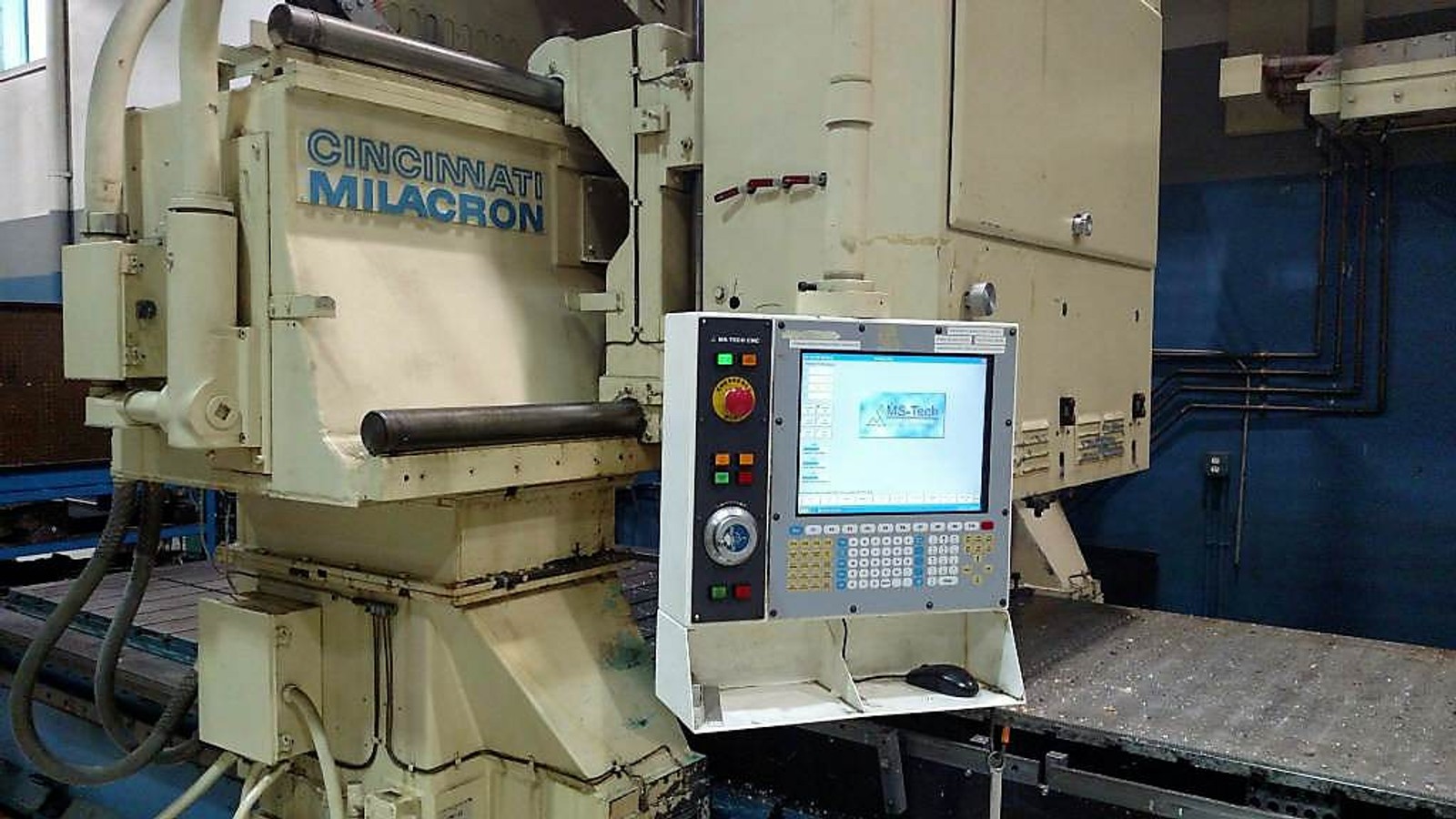

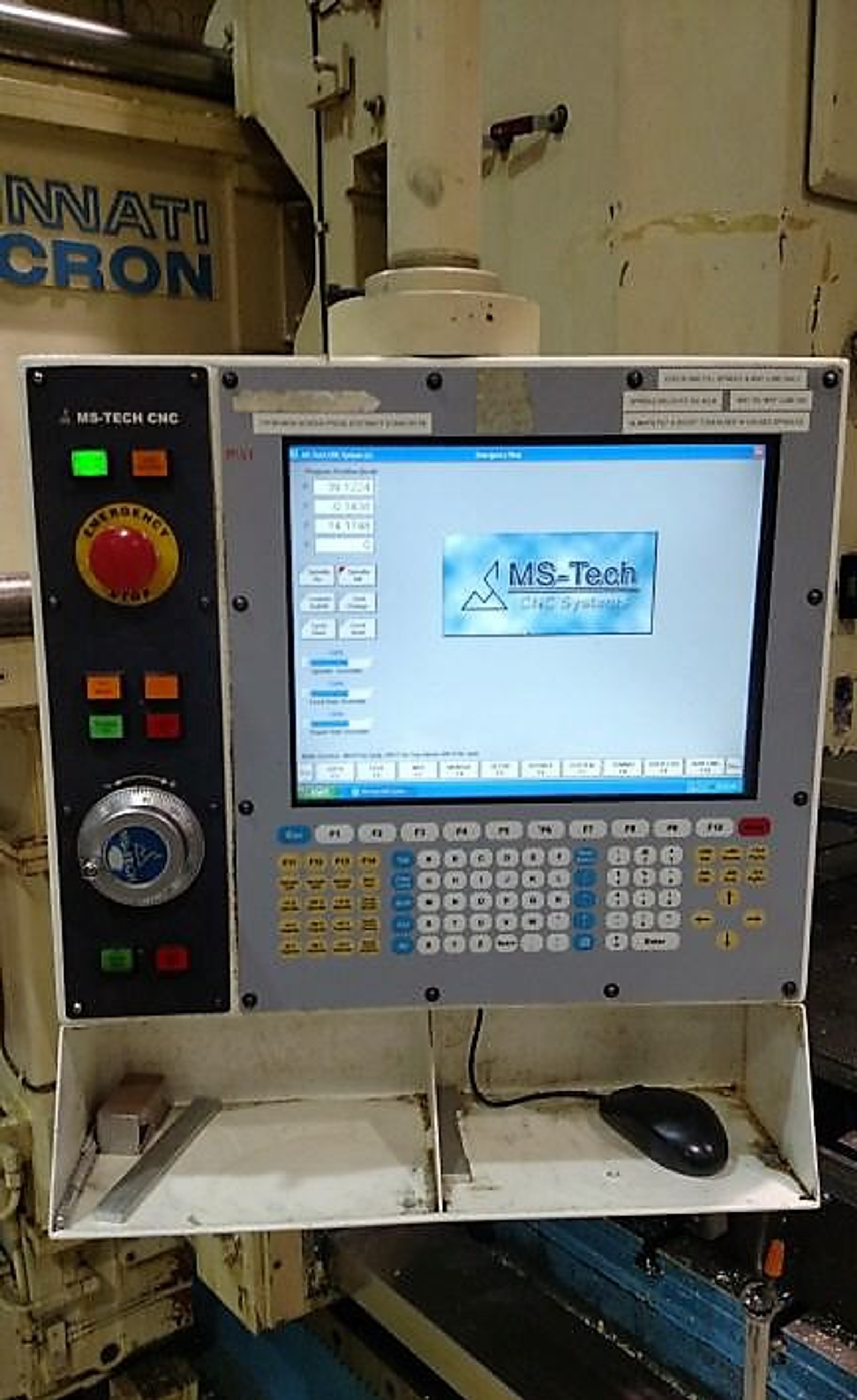

MS Tech CNC Control (Retrofit in 2009)
3-Spindle Heads
Gantry Design

TRAVELS:
X-Axis Travel ......................... 300"
Y-Axis Travel ......................... 78"
Z-Axis Travel ......................... 20"
Table Size ............................ 360" x 78"
Distance Between Spindle Centers ...... 20"
Height Under Spindles ................. 5" -18"
Height Under Cross Rail ............... 20"
Spindle Drive Motor ................... 20 HP
Spindle Speeds (Max) .................. 14,400 RPM
Spindle Taper ......................... #40
Rapids (X & Y) ........................ 400 IPM
Rapids, Z-Axis ........................ 100 IPM
Machine Dimensions .................... 360" x 162"
Machine Height ........................ 118"
Machine Weight ........................ 80,000 lbs
Electrics ............................. 480/3/60

EQUIPPED WITH:
MS Tech CNC Control (Retrofit in 2009)
3-Spindle Head
Gantry Design

Note: Machine is Disassembled in Midwest Rigger's Facility
As taken From Service.
