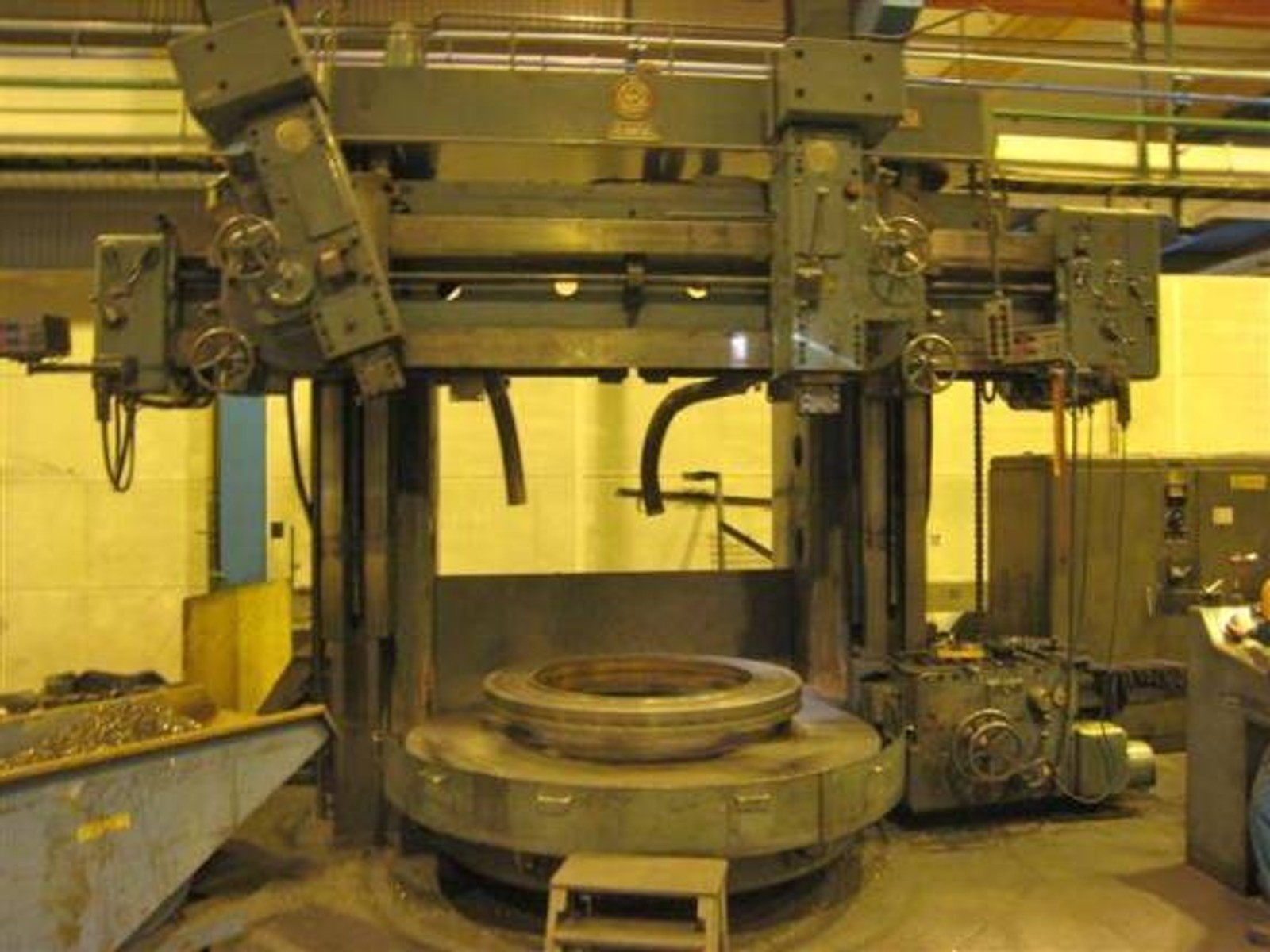

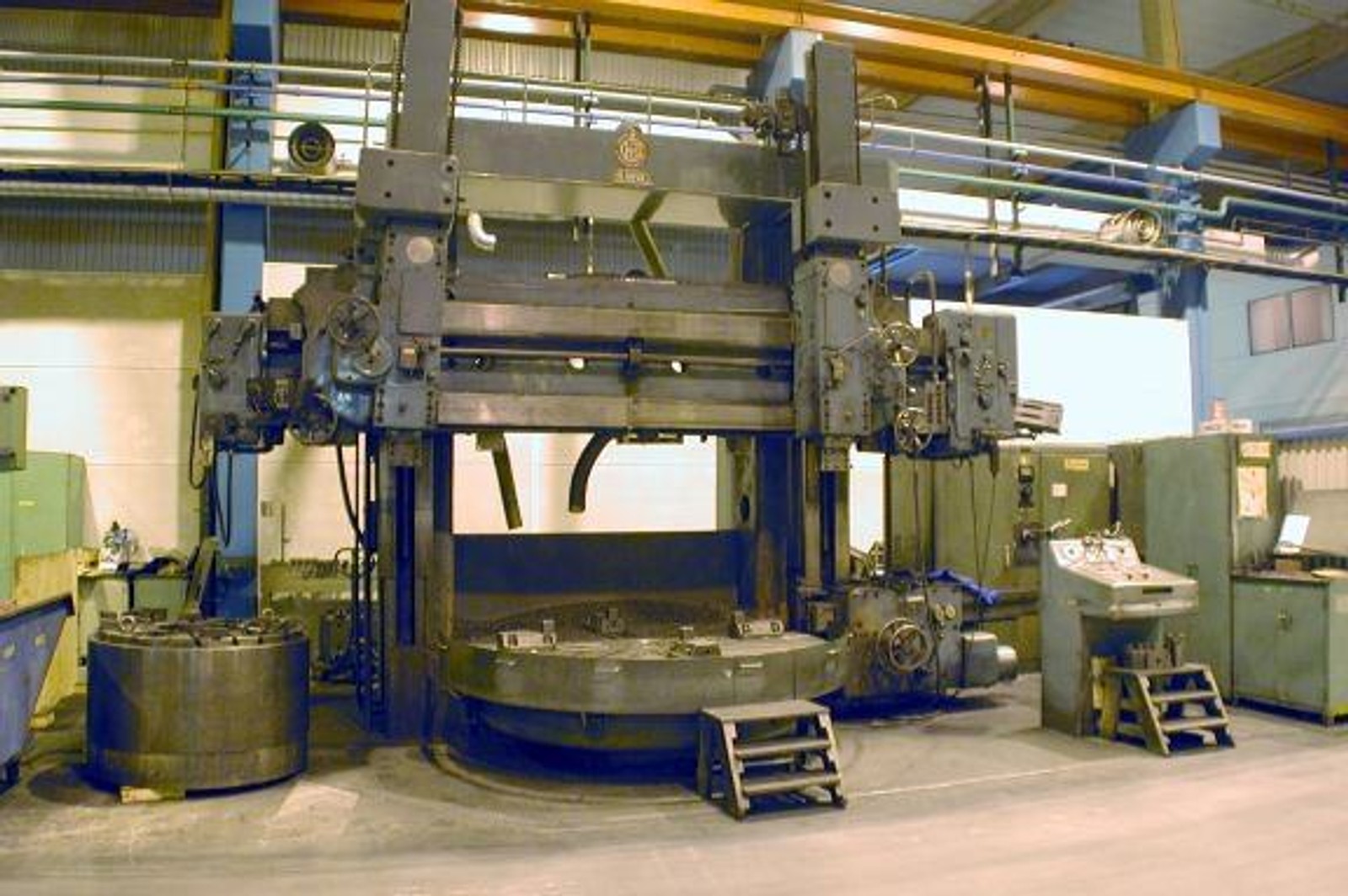

94" SKODA SK25A, 2-Rams, Side Hd, 110" Swing, Taper, Thread, 107 HP, '64 #19300

Manufacturer

SKODA

Category

Boring Mills

Type

BORING MILLS, VERTICAL - (Including Vertical Turret Lathes)

Stock

19300

Model

SK 25A

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #19300

Skoda/Blansko SK25A 98.42" Vertical Boring Mill

FEATURES:
2-Swivelling Rams
Side Head

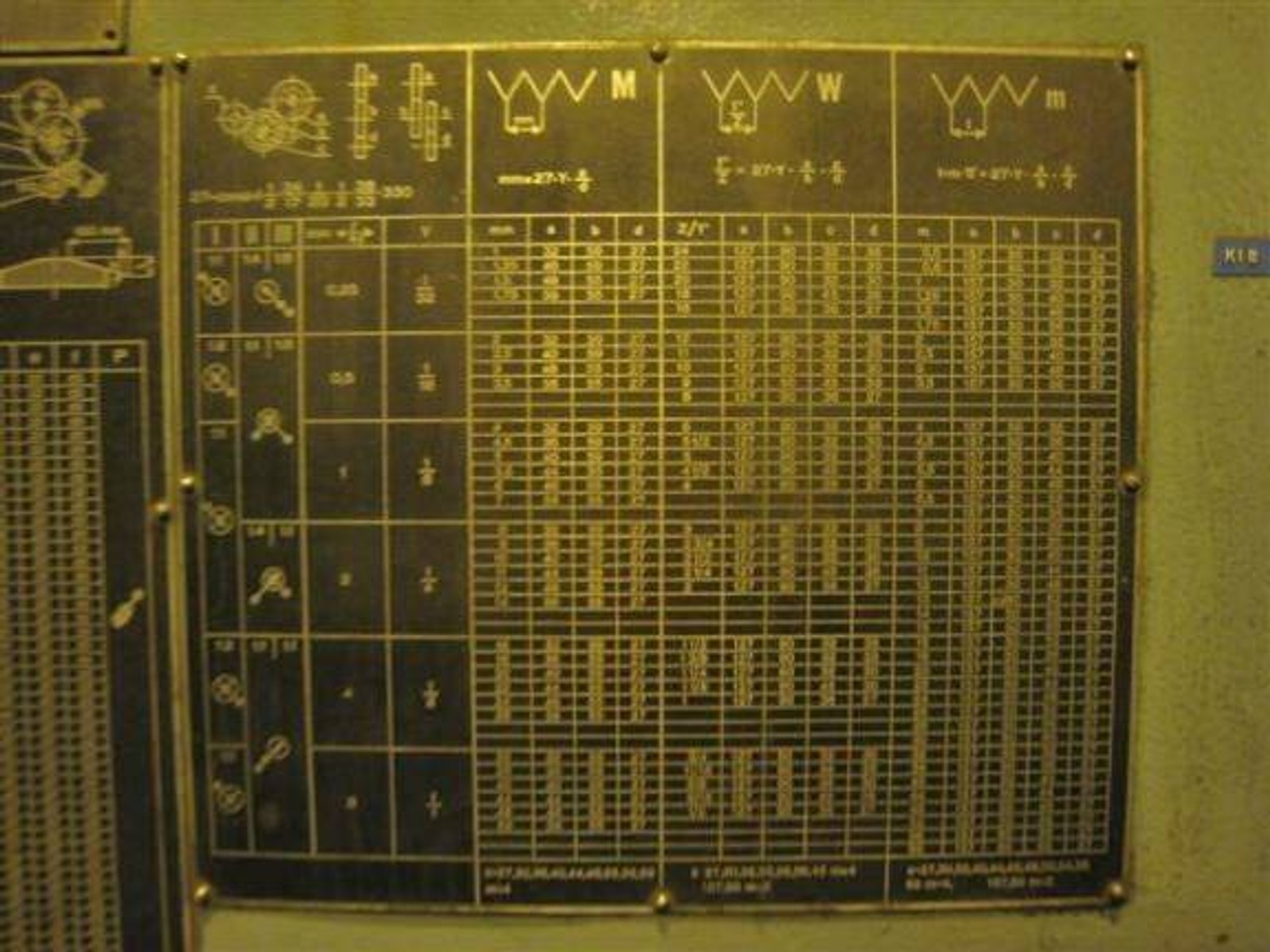

Threading & Taper Turning

SPECIFICATIONS:
Table Diameter ....................... 98.42"
Maximum Swing ........................ 106.29"
Maximum Height Under Rail ............ 63"
Table Speeds (inf. variable) ......... 1.15-117 RPM
Table Load Capacity .................. 22,032 Lbs
Ram Stroke ........................... 39.37"
Ram Swivel ........................... 45 degrees
Feeds (18) ........................... .0012-.44 IPR
Floor Space L x W .................... 198" x 253"
Overall Height ....................... 208"

EQUIPPED WITH:
Digital Readout System
98" 4-Jaw Face Plate
2-Swivelling Rams
Side Head
Constant Cutting Speed
Threading Attachment
Taper Attachment
107 HP Table Drive 380/3/50
