Tsugami C300H-XZ, Fanuc 0i Mate-TD, 80-6,000 RPM, 7.3/10 Hp, 1.5" Max. Bar Cap, 5C Hyd. Collet Chk, 4.5"x20.5" Tool Stage, Parts Catcher, Parts Conveyor, Misc Tool Holders, Coolant Manifold, 2015, Put In Service 2017, 129 Hours, Aluminum and Plastic

Manufacturer

TSUGAMI

Category

Lathes

Type

LATHES, GANG TYPE, CNC

Stock

2310

Model

C300H-XZ

Dealer Location

Massachusetts

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

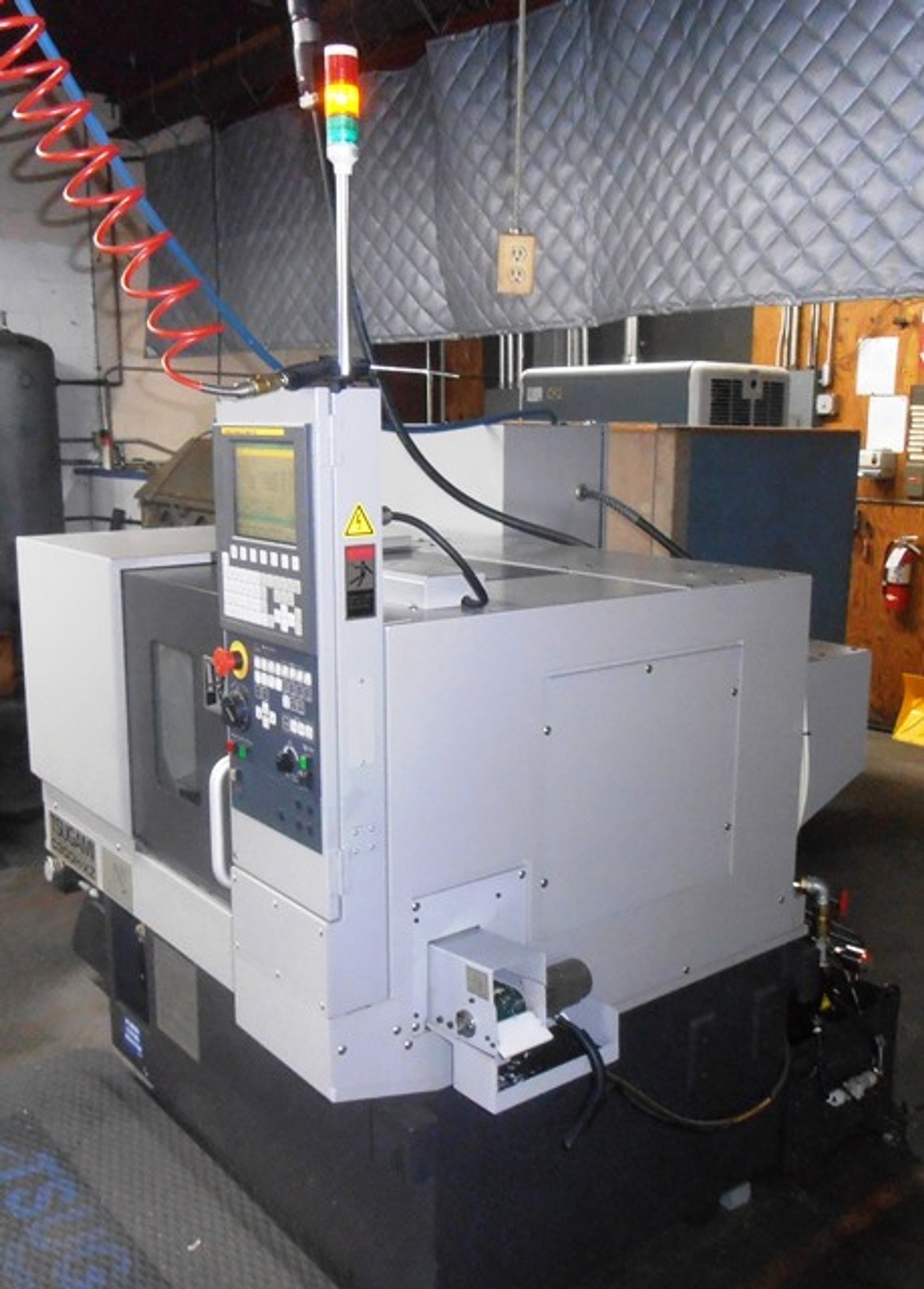

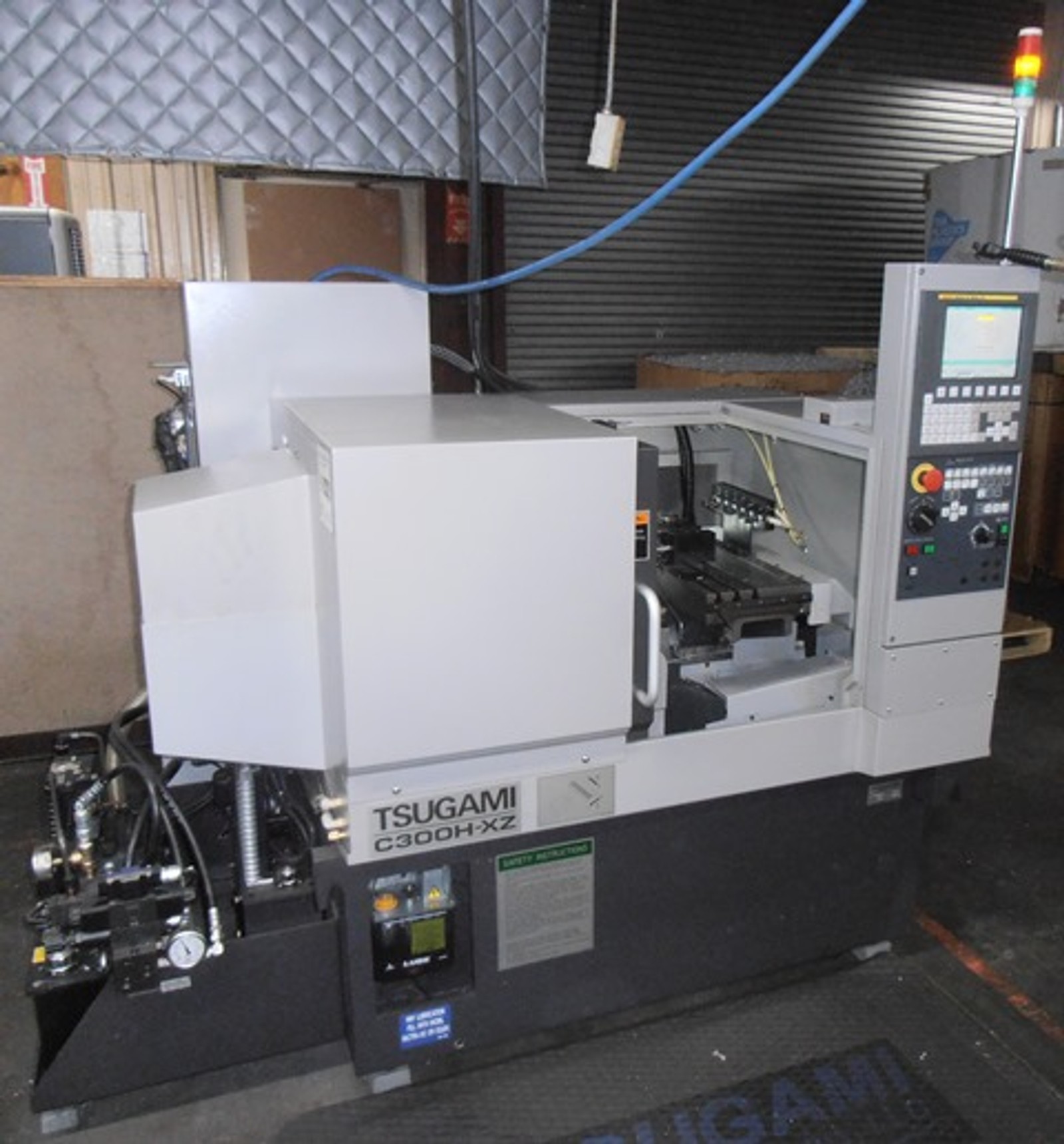

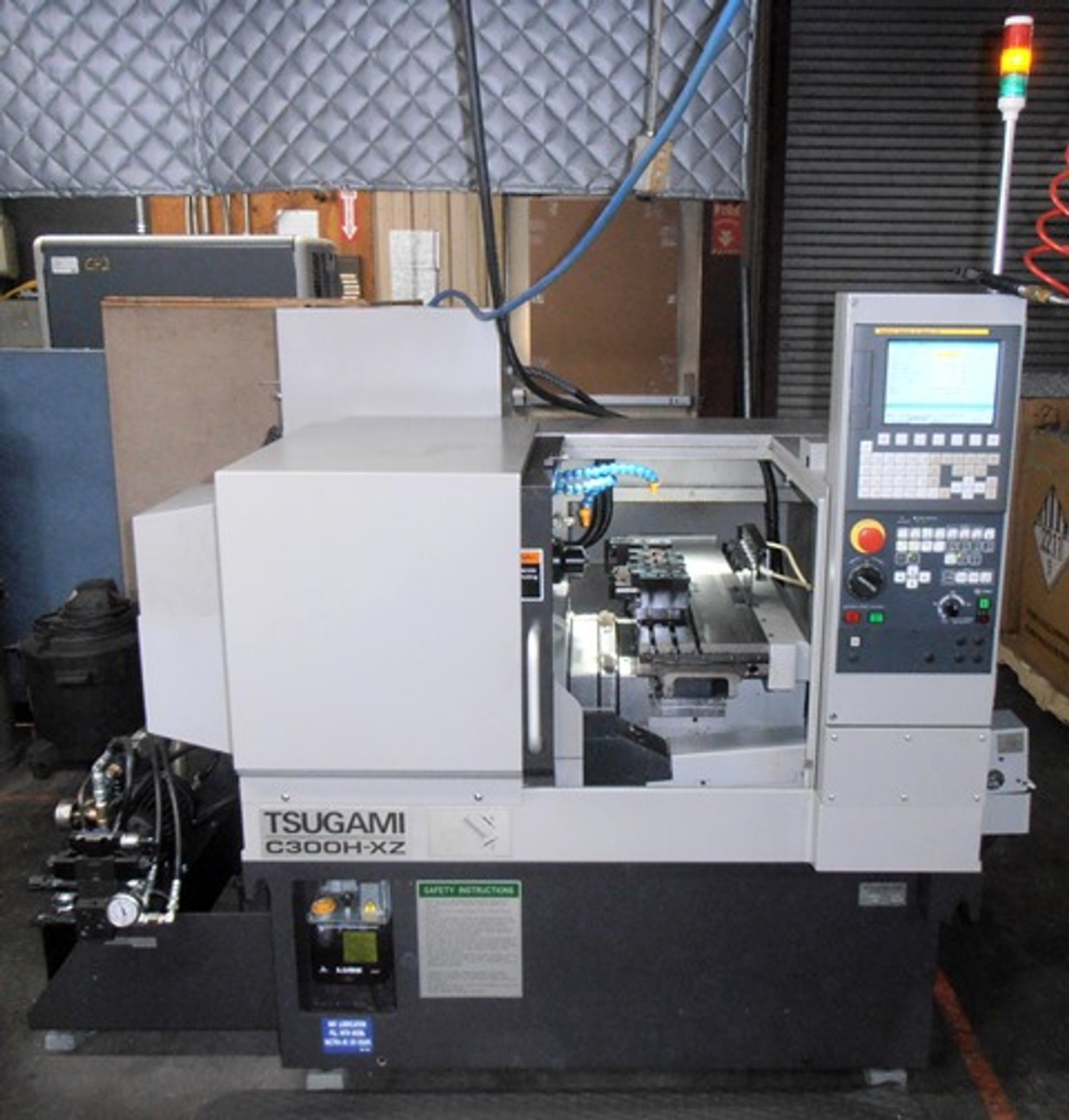

1-(used) Tsugami Model C300H-XZ CNC High Precision Automatic Lathe, New 2015.

SPECIFICATIONS:
Swing over bed............................................ 260mm (10.2")
Tool stage size............................................ 4.5" x 20.5"
Spindle center height over X-slide......................... 50mm (1.97")
Spindle end to X-slide surface (min/max)....... 123/423mm (4.84"/16.65")
Spindle nose................................................. 140mm flat
Max spindle bar capacity.................................... 38mm (1.5")
Spindle speeds........................................... 80 - 6,000 rpm
Axes travel (X & Z)....................................... 300mm (11.8")
Rapid traverse (X & Z)................................. 24 mpm (945 ipm)
Tool size............................................ 16mm (5/8") square
Spindle motor.................................... 5.5/7.5 kW (7.3/10 Hp)
Dimensions (approx.)................................. 64"L x 61"D x 63"H
Weight (approx.).............................................. 4,180 lb.

EQUIPPED WITH:

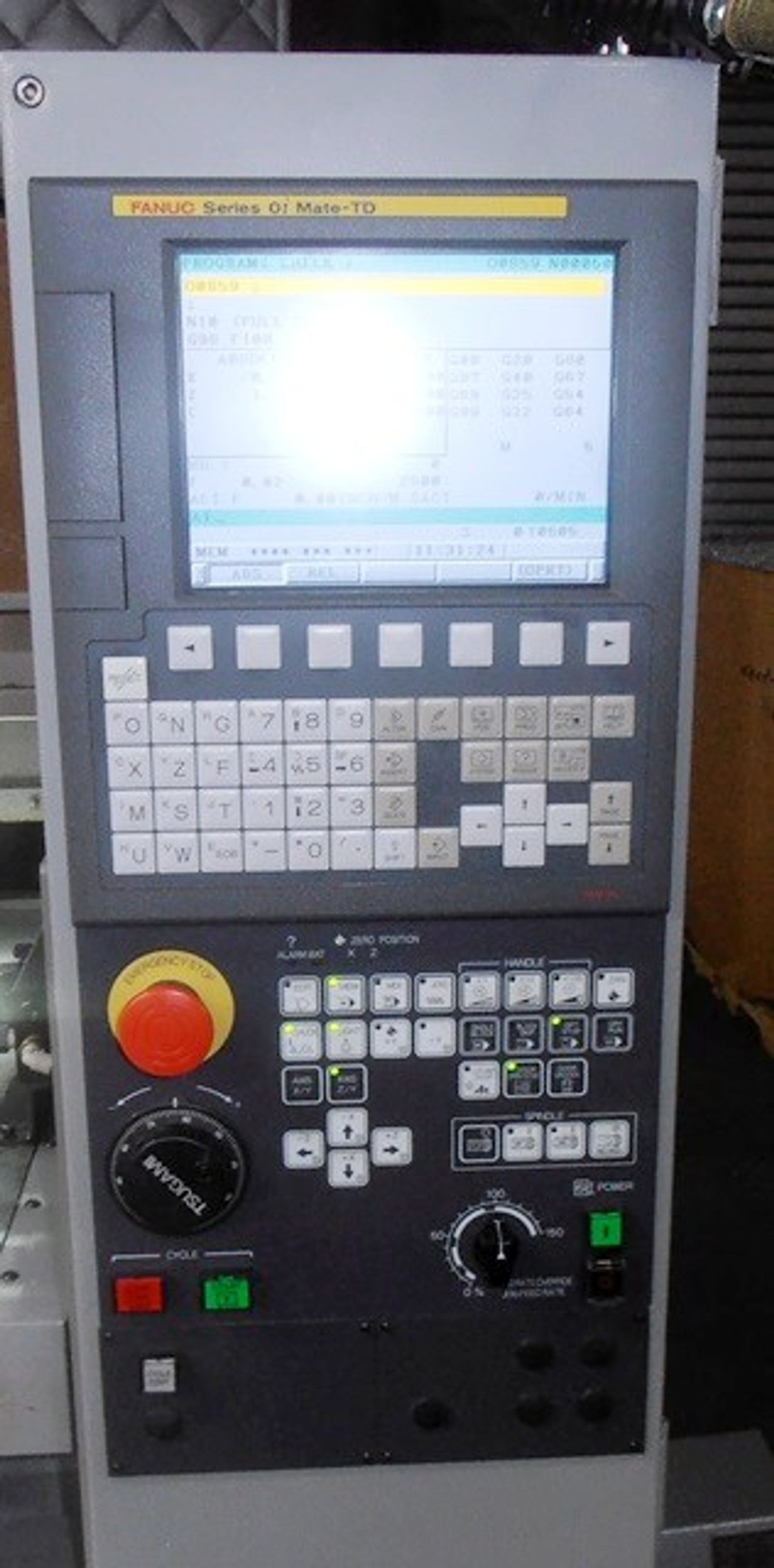

Fanuc 0i Mate-TD CNC control

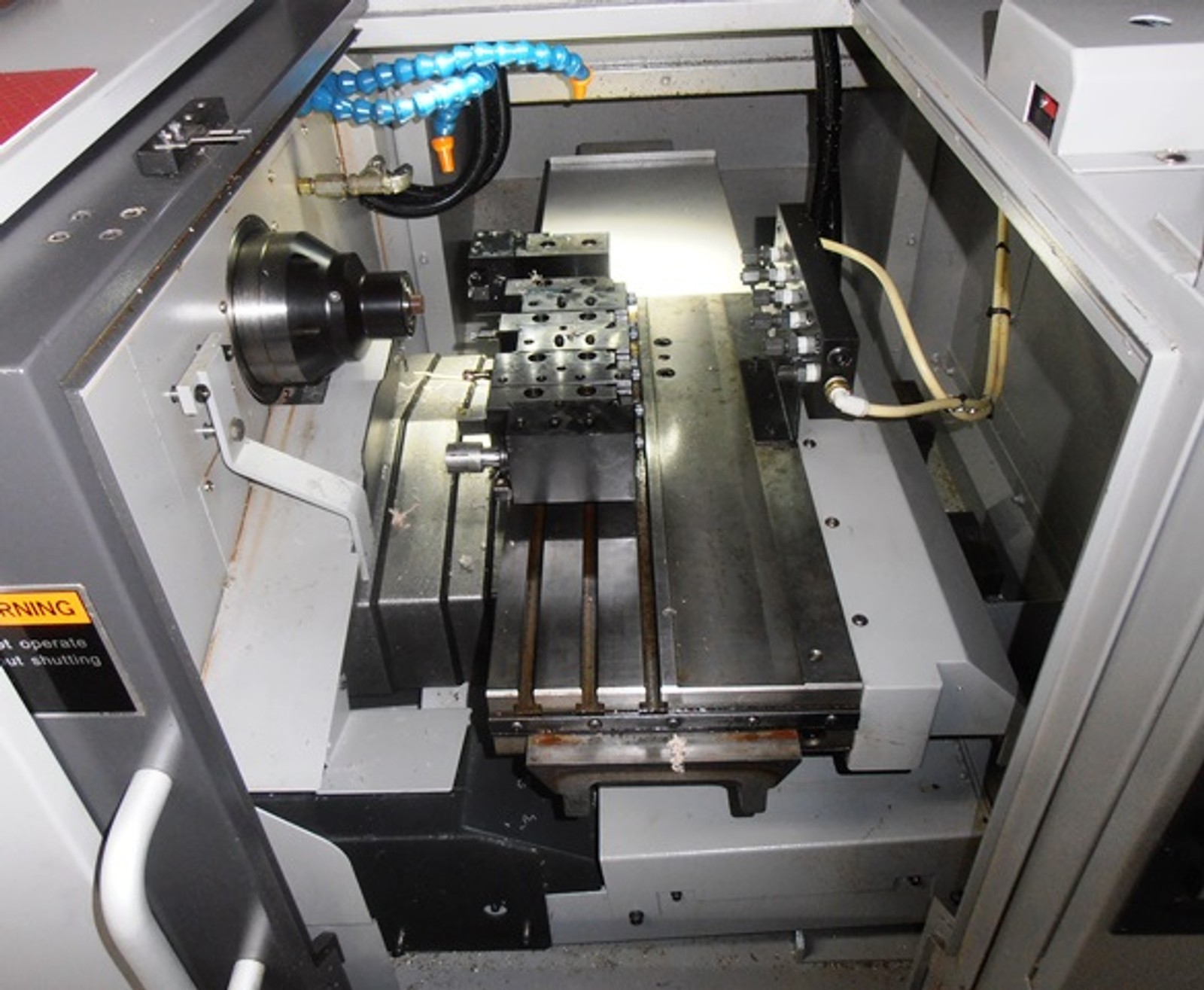

Tee-slotted tool stage
5C Hydraulic collet chuck
Parts catcher

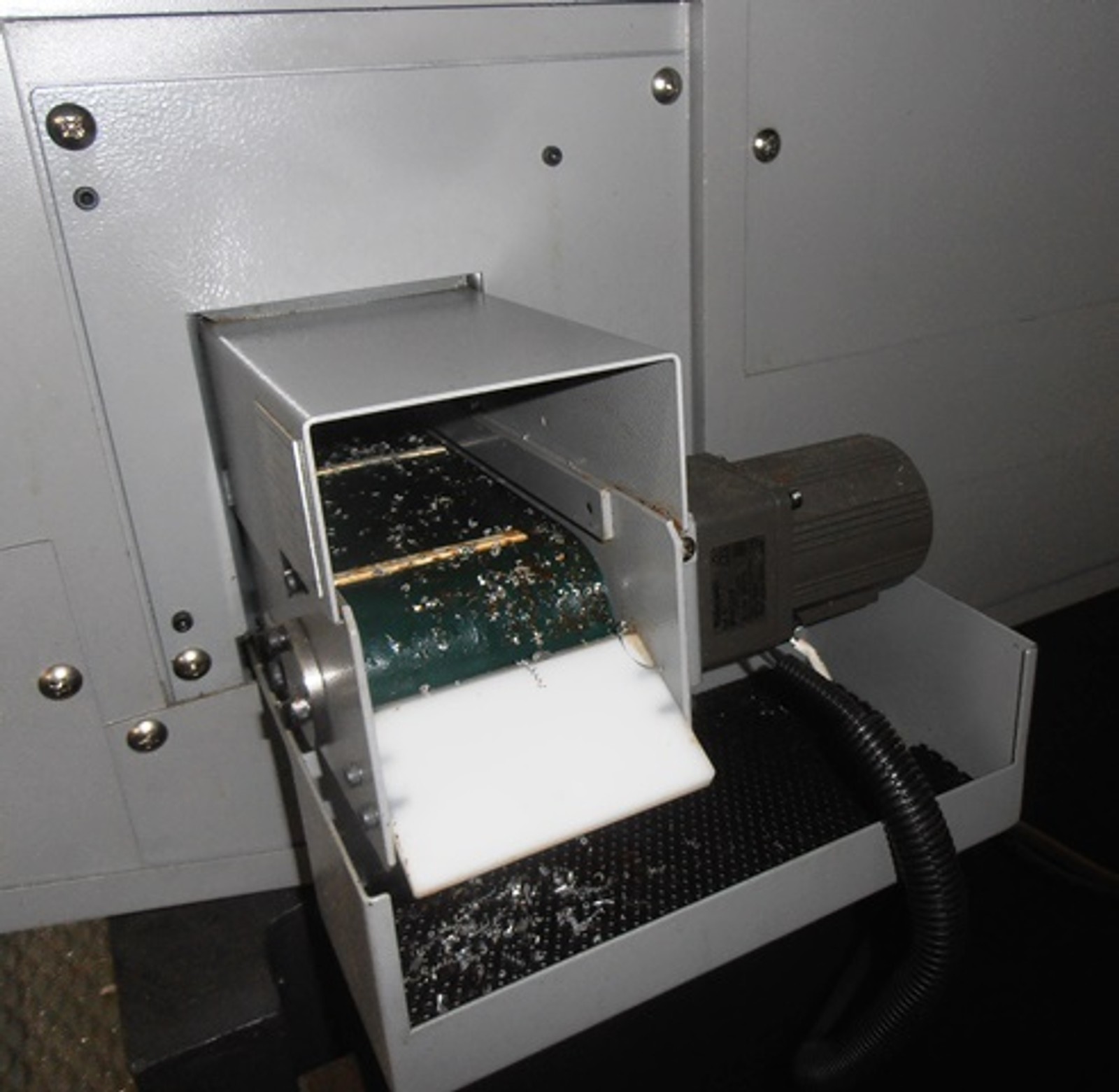

Parts conveyor
Miscellaneous tool holders
Coolant manifold

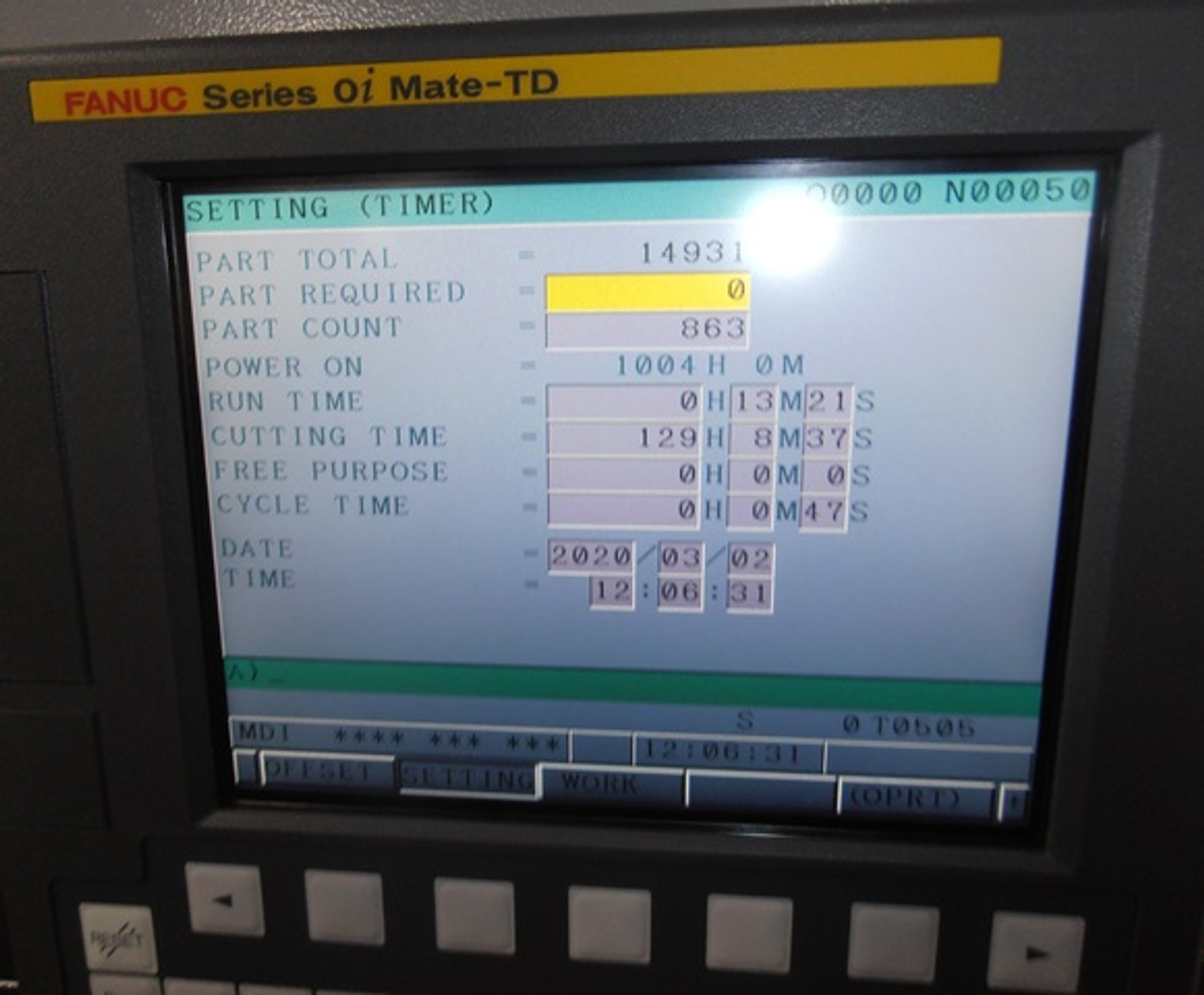

Put into Service 2017 - Only 129 Cutting Hours - Cutting Aluminum and Plastic
