Summit SC2000, 78" Table, 82" Swing, 59" U.R, 30" Turret Stroke, 36" Ram Stroke, 140 RPM, Pendant Control, #30665

Manufacturer

SUMMIT

Category

Boring Mills

Type

BORING MILLS, VERTICAL - (Including Vertical Turret Lathes)

Stock

30665

Model

SC2000

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #30665

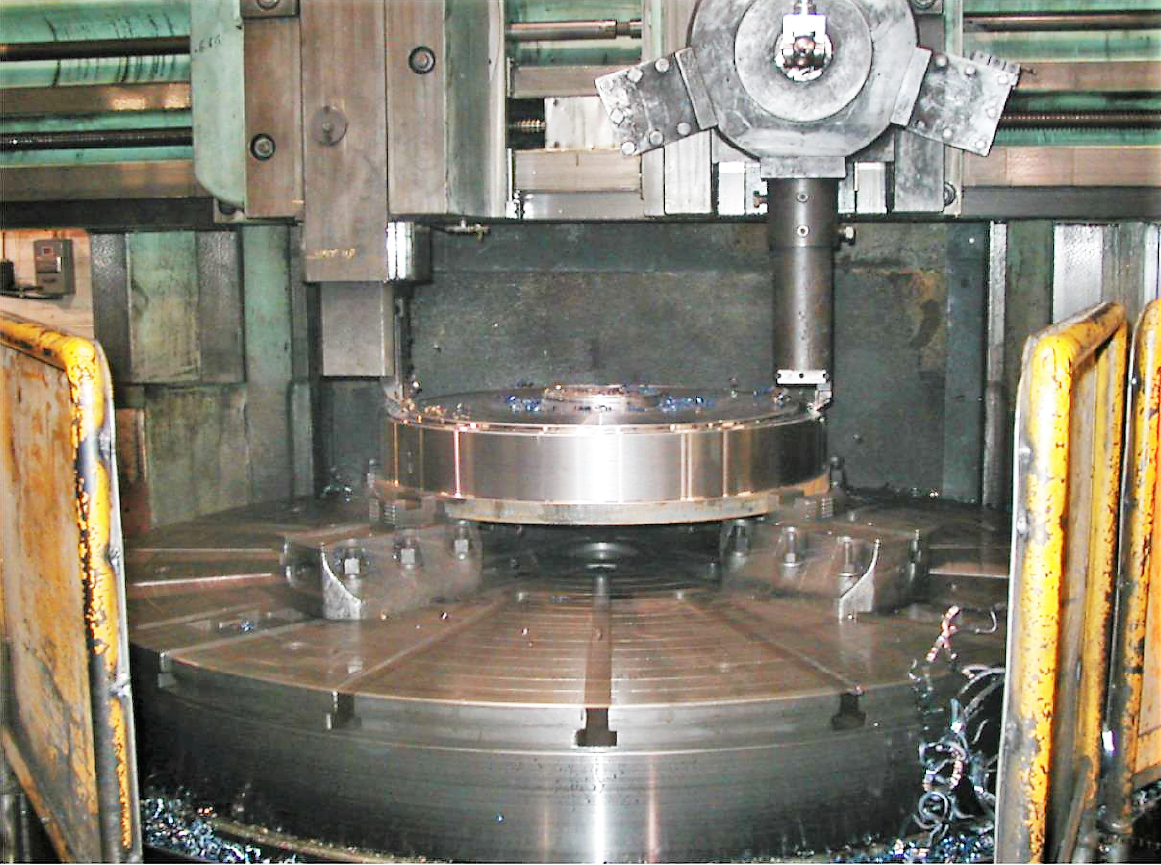

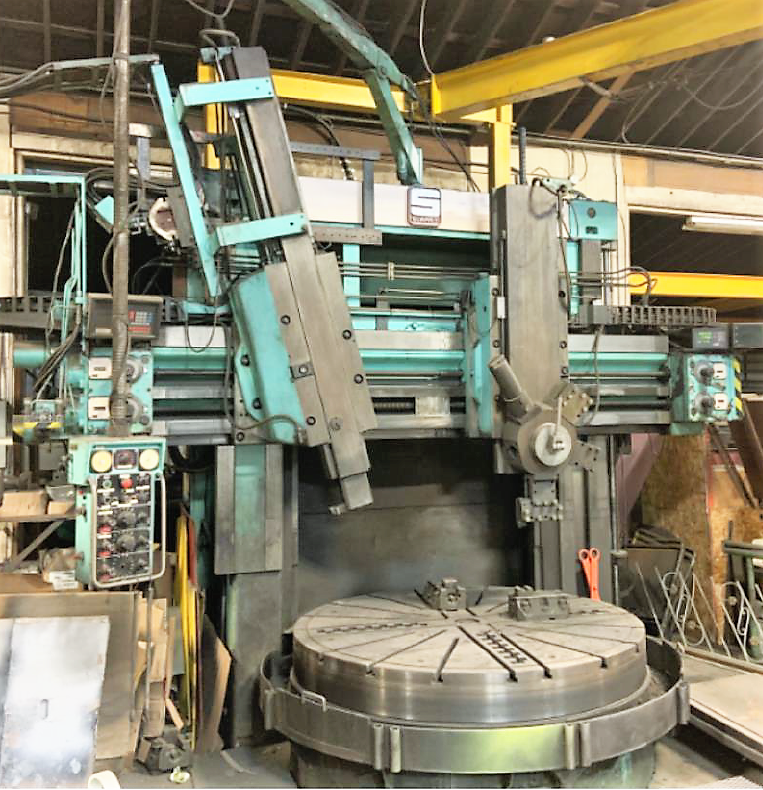

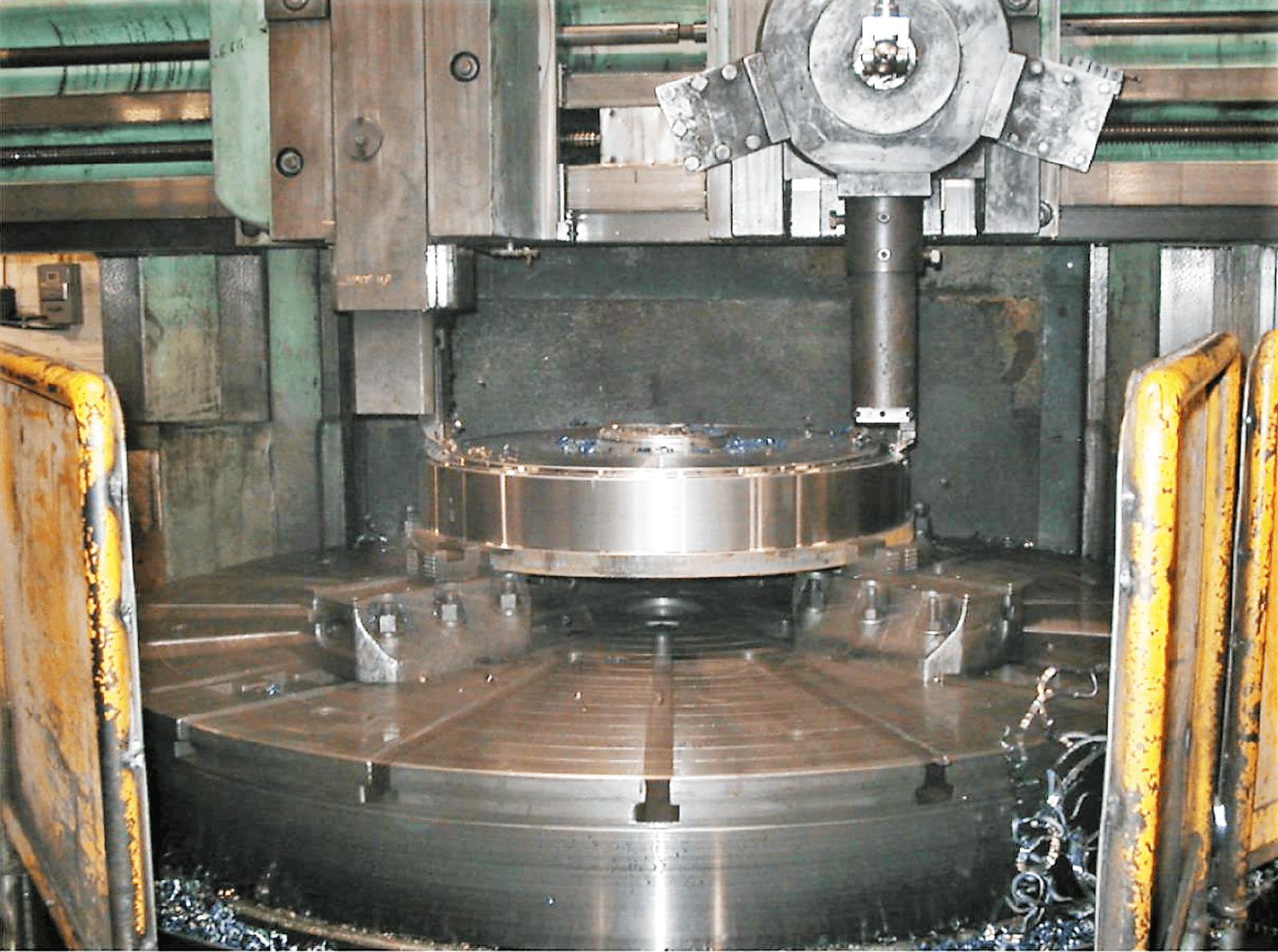

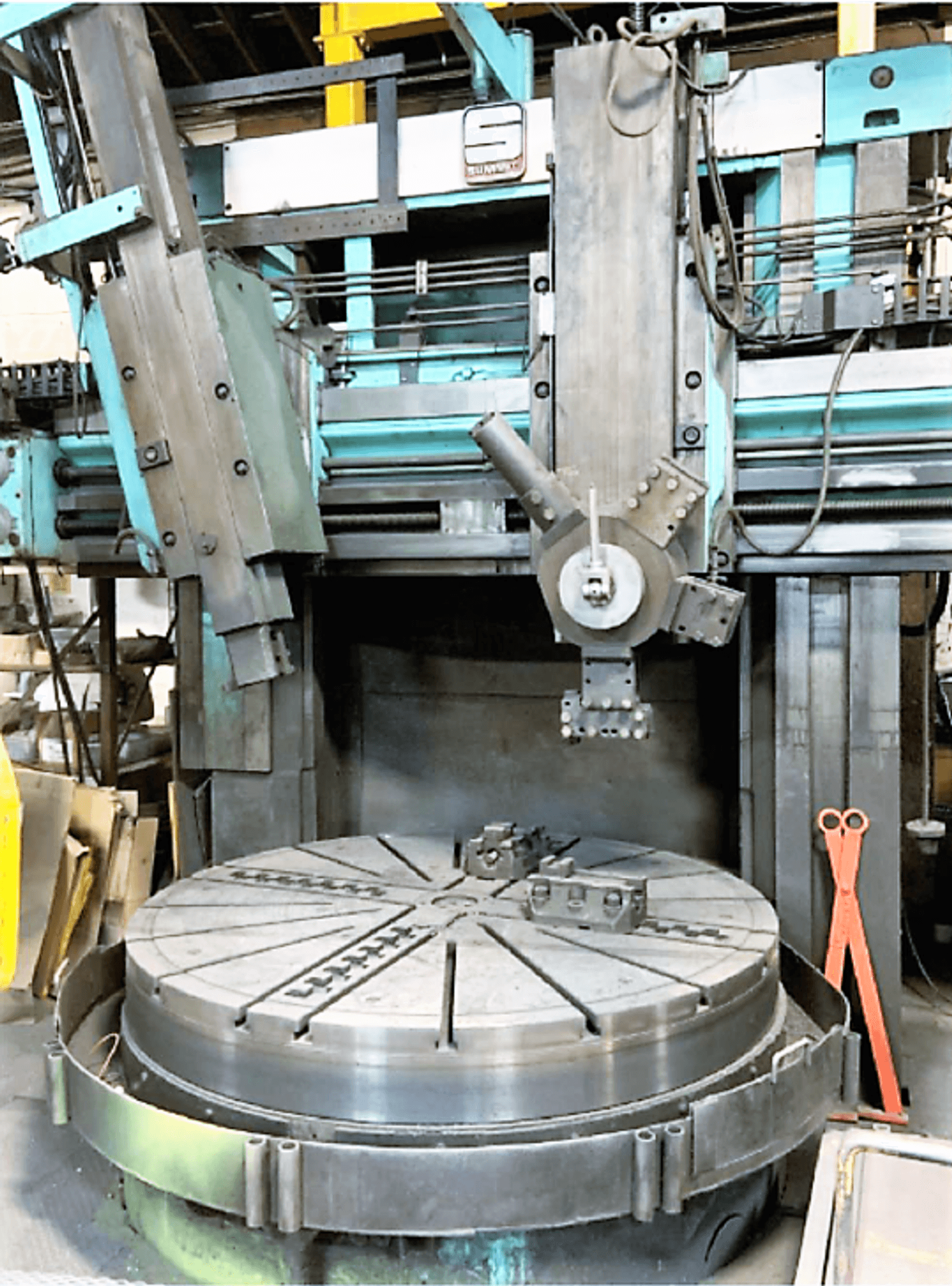

Summit SC2000 78" Vertical Turning Lathe

FEATURES:

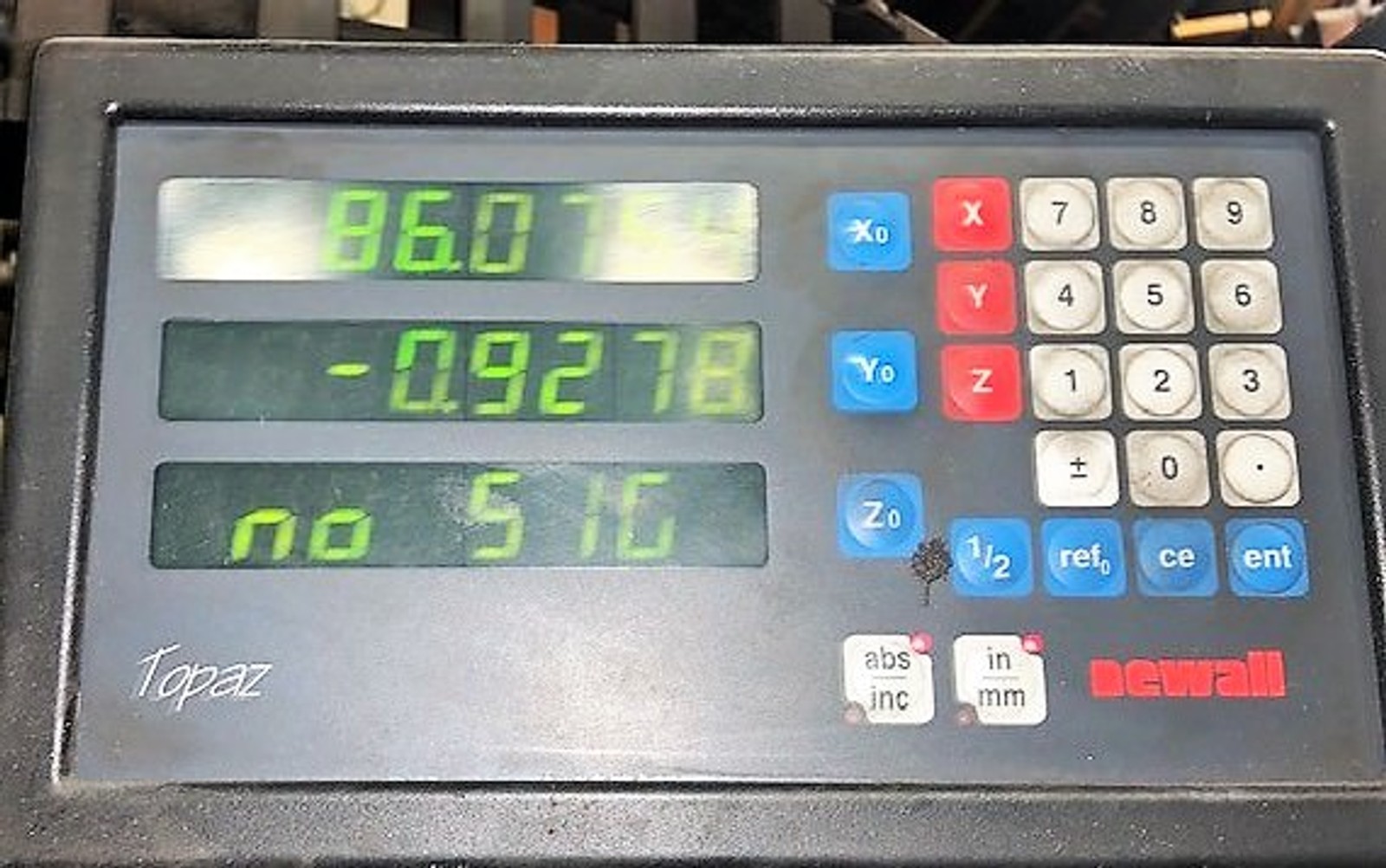

Newall Topaz 2-Axis Digital Readout
Pendant Control
Left Hand Ram
5-Position Right Hand Turret

CAPACITY:
Table Diameter ........................ 78.74"
Maximum Turning Diameter .............. 82.67"
Maximum Height Under Rail ............. 59.05"
Turret Stroke ......................... 30"
Ram Stroke ............................ 36"
Head Swivel ........................... 35 Degrees
Table Speeds .......................... 1.55-140 RPM
Feeds ................................. .002-.199 IPR
Rapid Feed ............................ 98 IPM

EQUIPPED WITH:
Newall Topaz 2-Axis Digital Readout
Full Pendant Controls
Hydraulic Tracer
Left Hand Ram
5-Position Right Hand Turret
89 HP Main Drive Motor

NOTE:
Inspect in Plant Under Power
