3" Pines #2 Hydraulic, 12" Max. Radius, 89" Max. Length, Mandrel Extractor 2009, #28958

Manufacturer

PINES

Category

Benders

Type

BENDERS, PIPE, TUBE & BAR

Stock

28958

Model

#2

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #28958

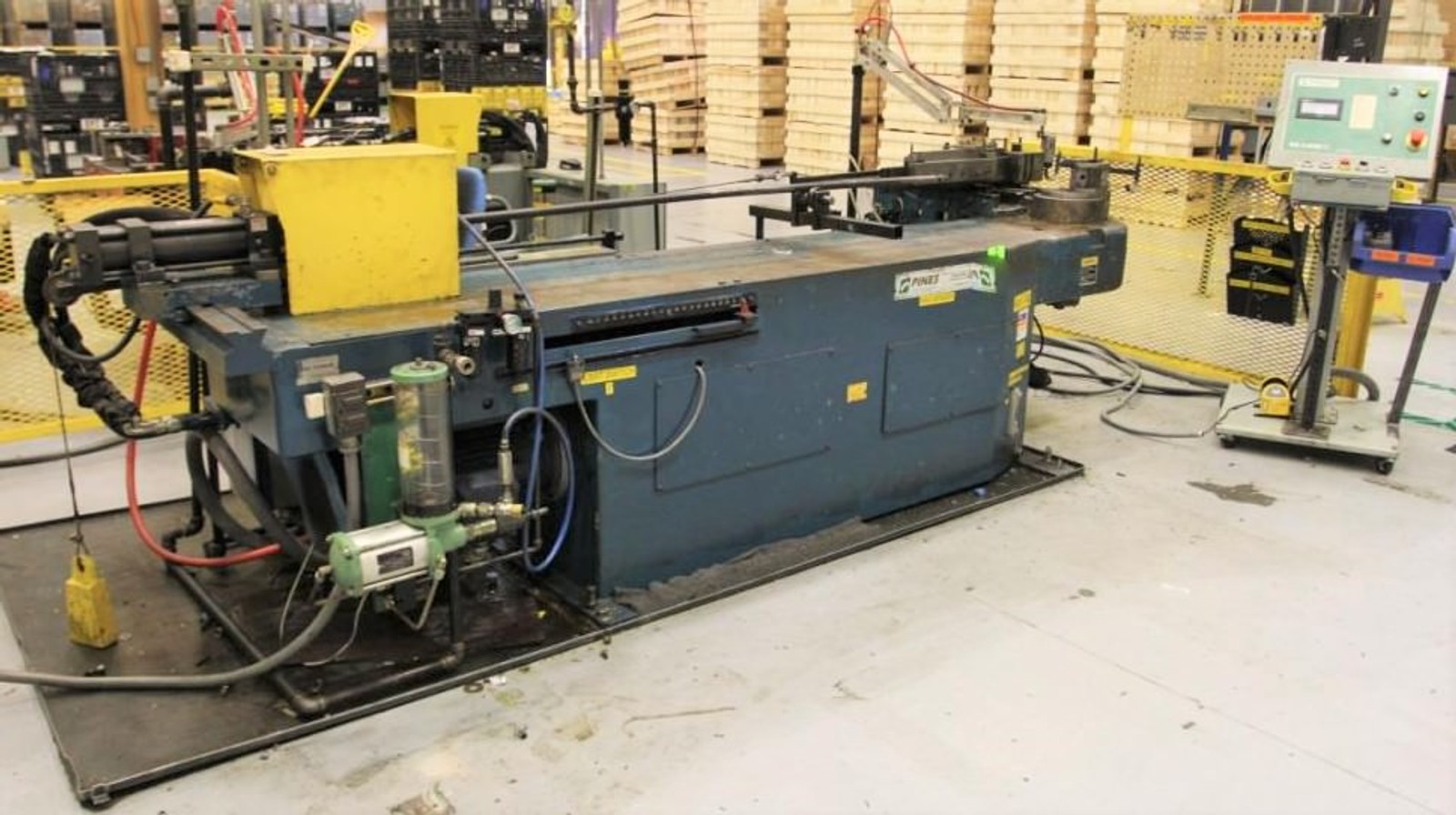

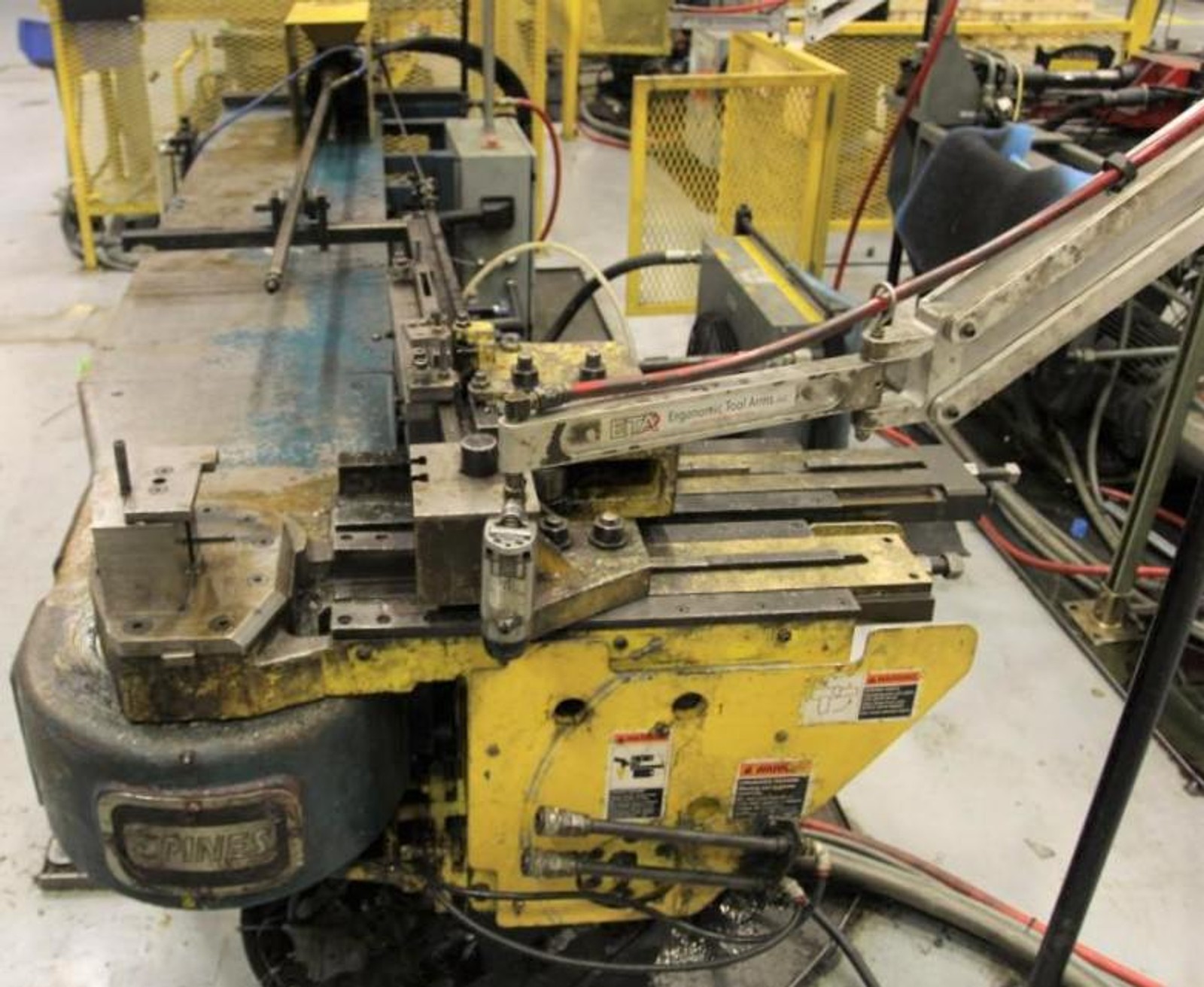

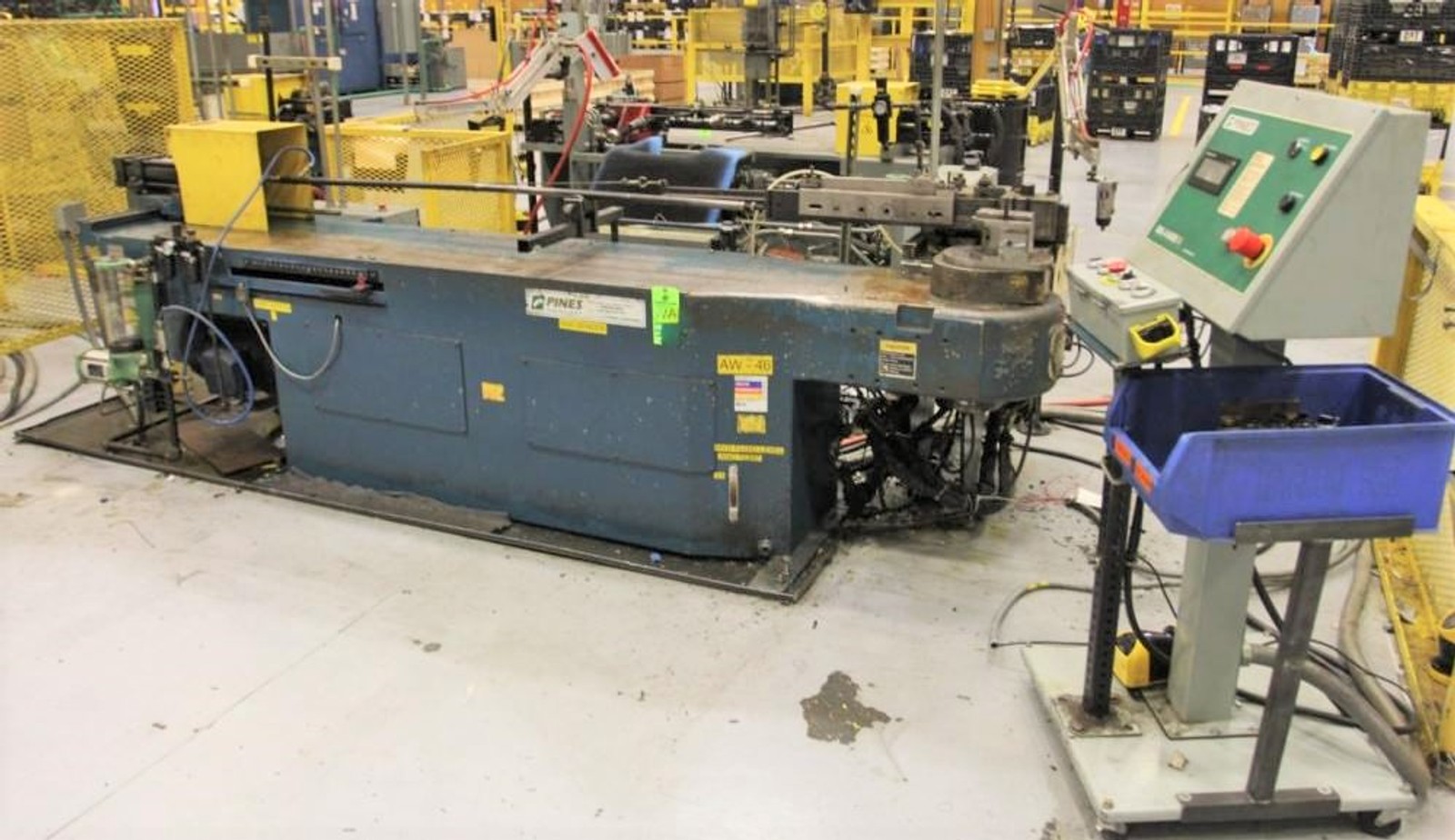

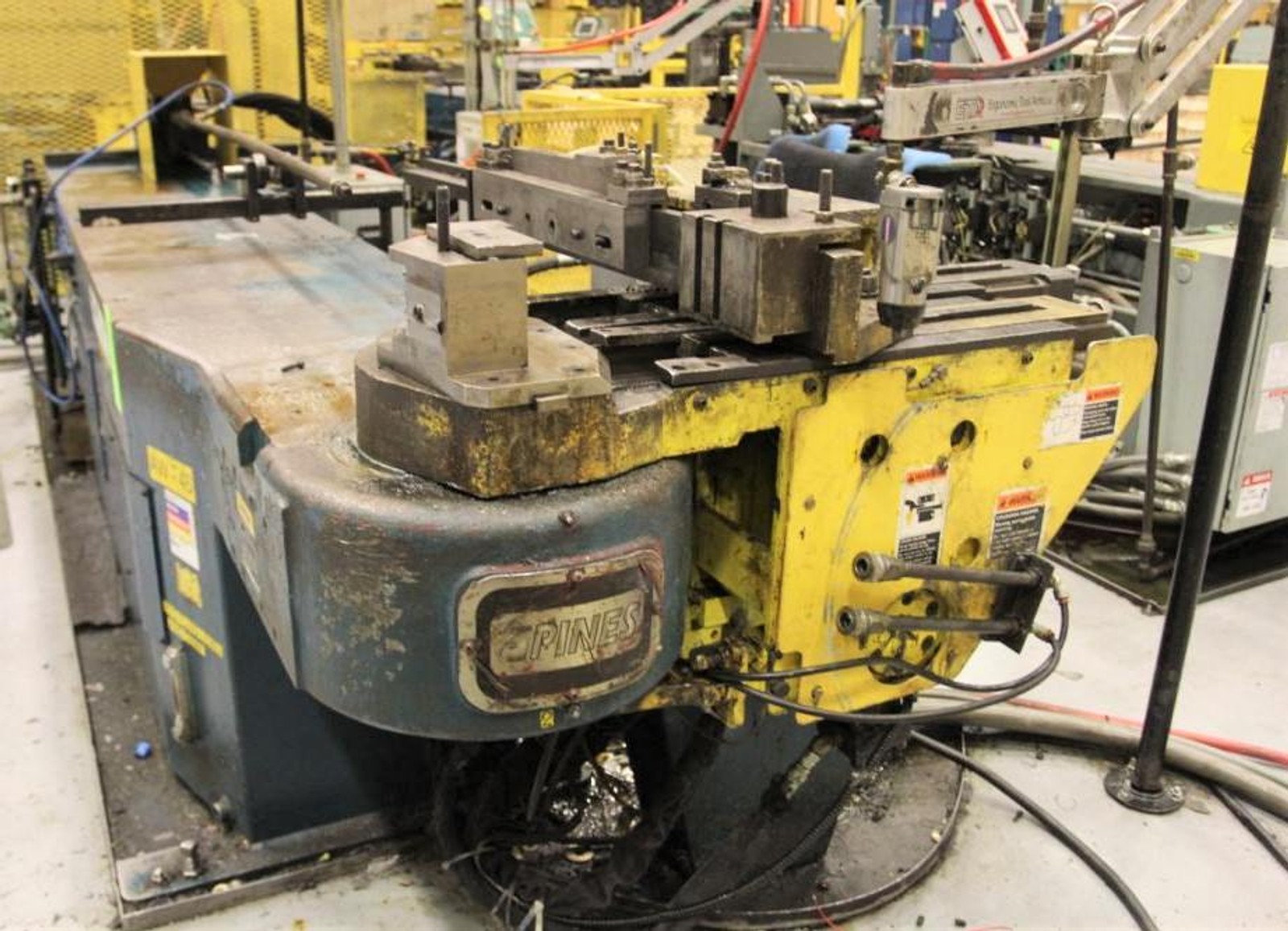

Pines #2 Hydraulic Rotary Tube & Pipe Draw Bender

FEATURES:

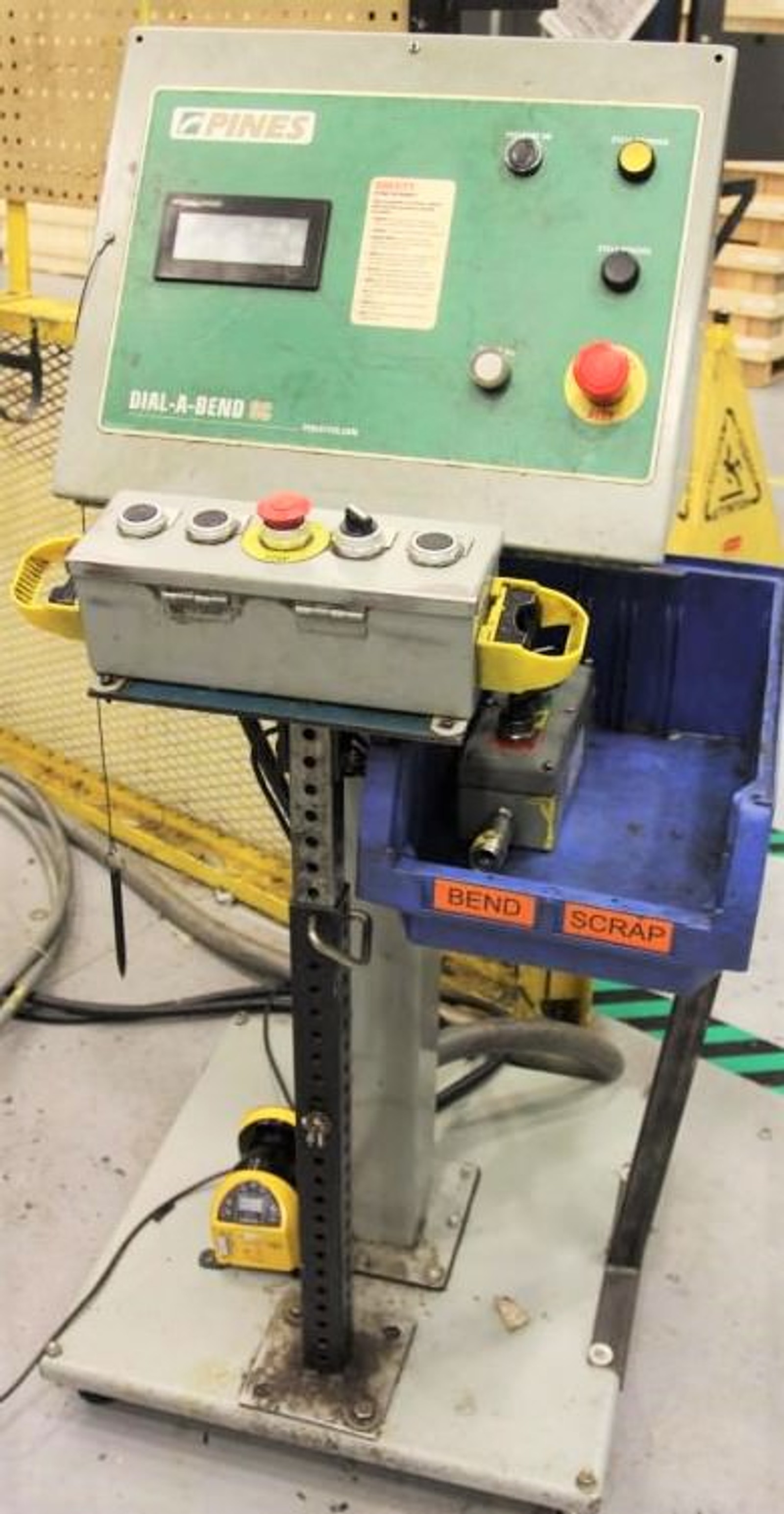

Dial-A-Bend-SC Control
Right-Hand Machine (Clockwise Rotation)
Hydraulic Mandrel Extractor

CAPACITY:
Maximum Bend Radius ................... 12"
Maximum bend Angle .................... 180 Degrees
Maximum Tube Length Over Mandrel ...... 7'5"
Bend Arm Speed ........................ 6 RPM
Operating Pressure .................... 2000 PSI
Motor ................................. 10 H.P.
Round Tubing(Non Ferrous) ............. 3" X .188 Wall
Round Tubing(Mild Steel) .............. 3" X .109 Wall
Schedule 80 Pipe ...................... 2"
Rectangular Tubing(Mild Steel) ........ 1 1/2" X 3" X .148 Wall

EQUIPPED WITH:
Dial-A-Bend-SC Control
Right-Hand Machine (Clockwise Rotation)
Hydraulic Mandrel Extractor

NOTE:
Inspect In Our Philadelphia PA Warehouse
