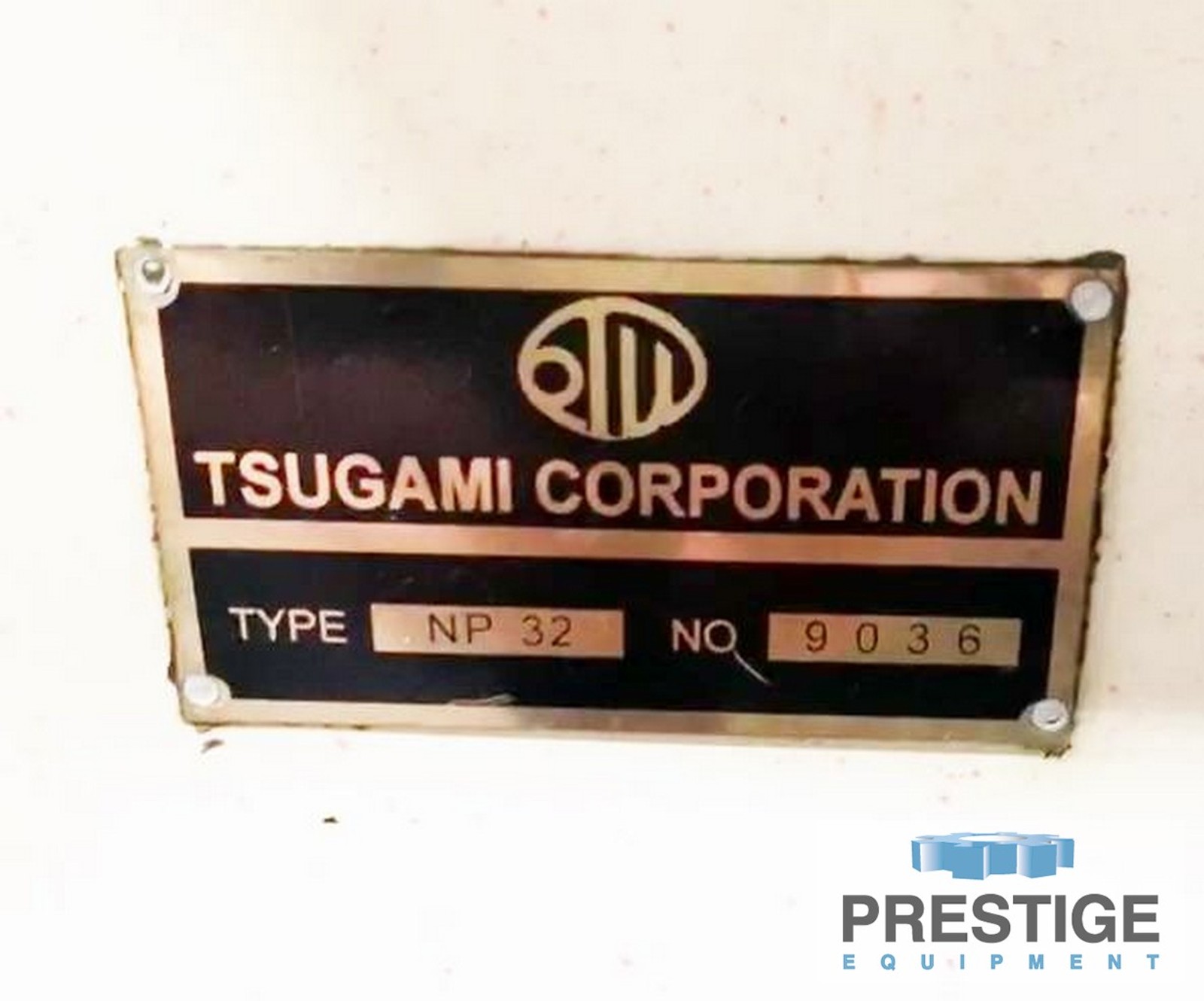

Tsugami NP-32, 1.26" Diameter, Twin 8-Position Turrets, Live Milling, Pickoff, LNS Bar Feed, Fanuc 0T S/N 9036, #29774

Manufacturer

TSUGAMI

Category

Automatic Screw Machines

Type

AUTOMATIC SCREW MACHINES, SWISS TYPE, CNC

Stock

29774

Model

NP32

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #29774

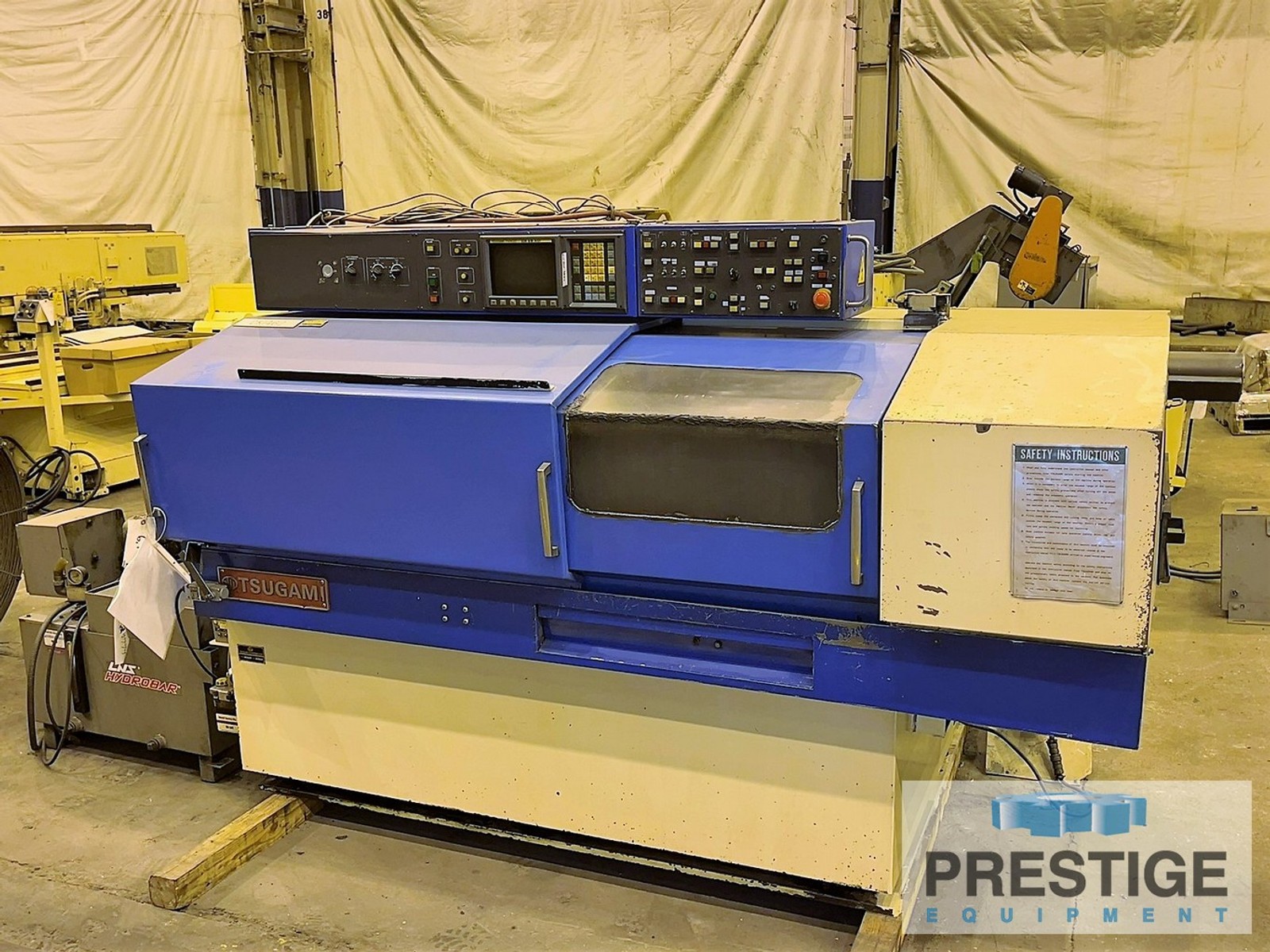

TSUGAMI NP-32 CNC Swiss-Type CNC Turning Center

FEATURES:
Fanuc 0T CNC Control

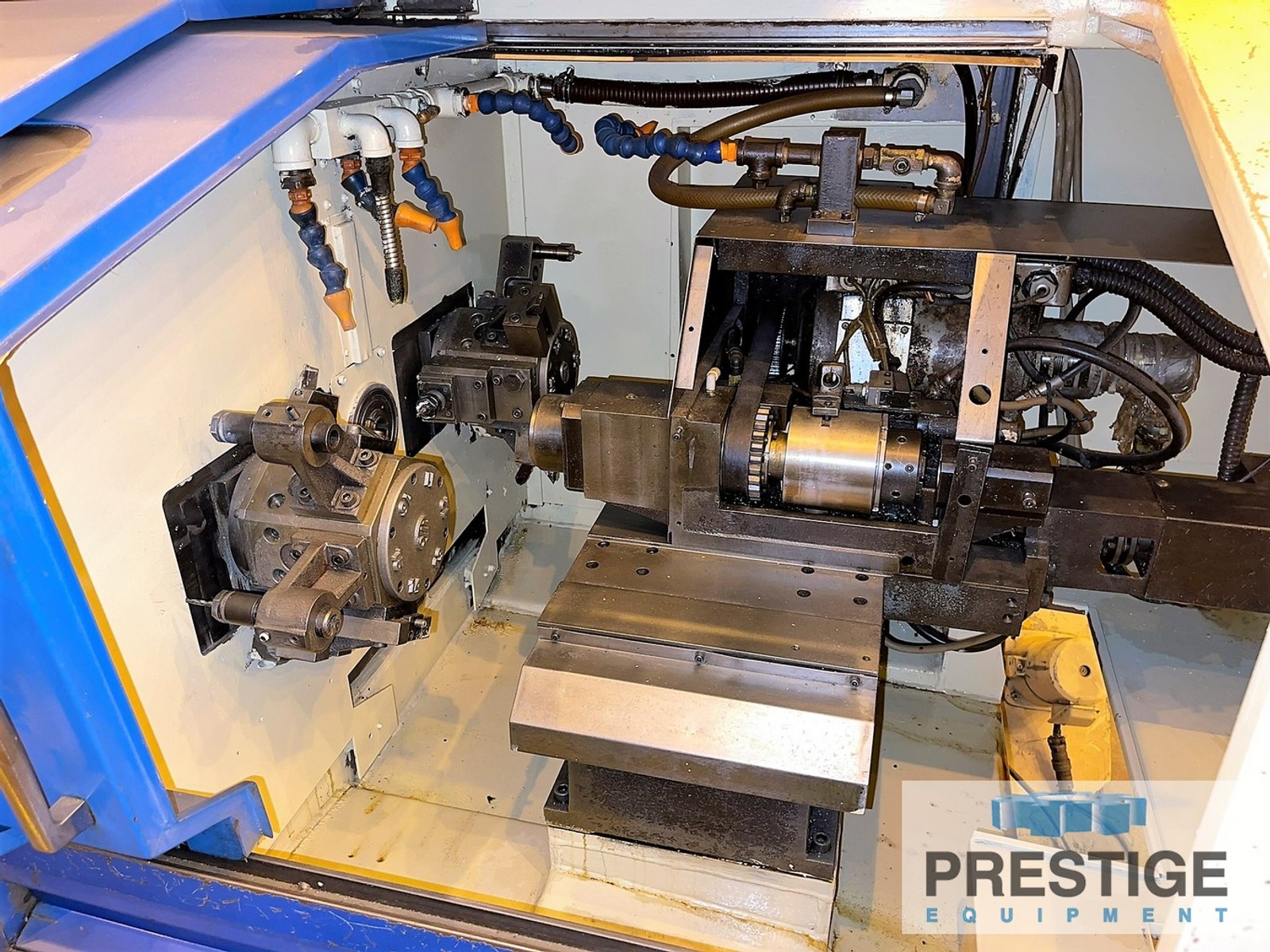

Twin Turrets

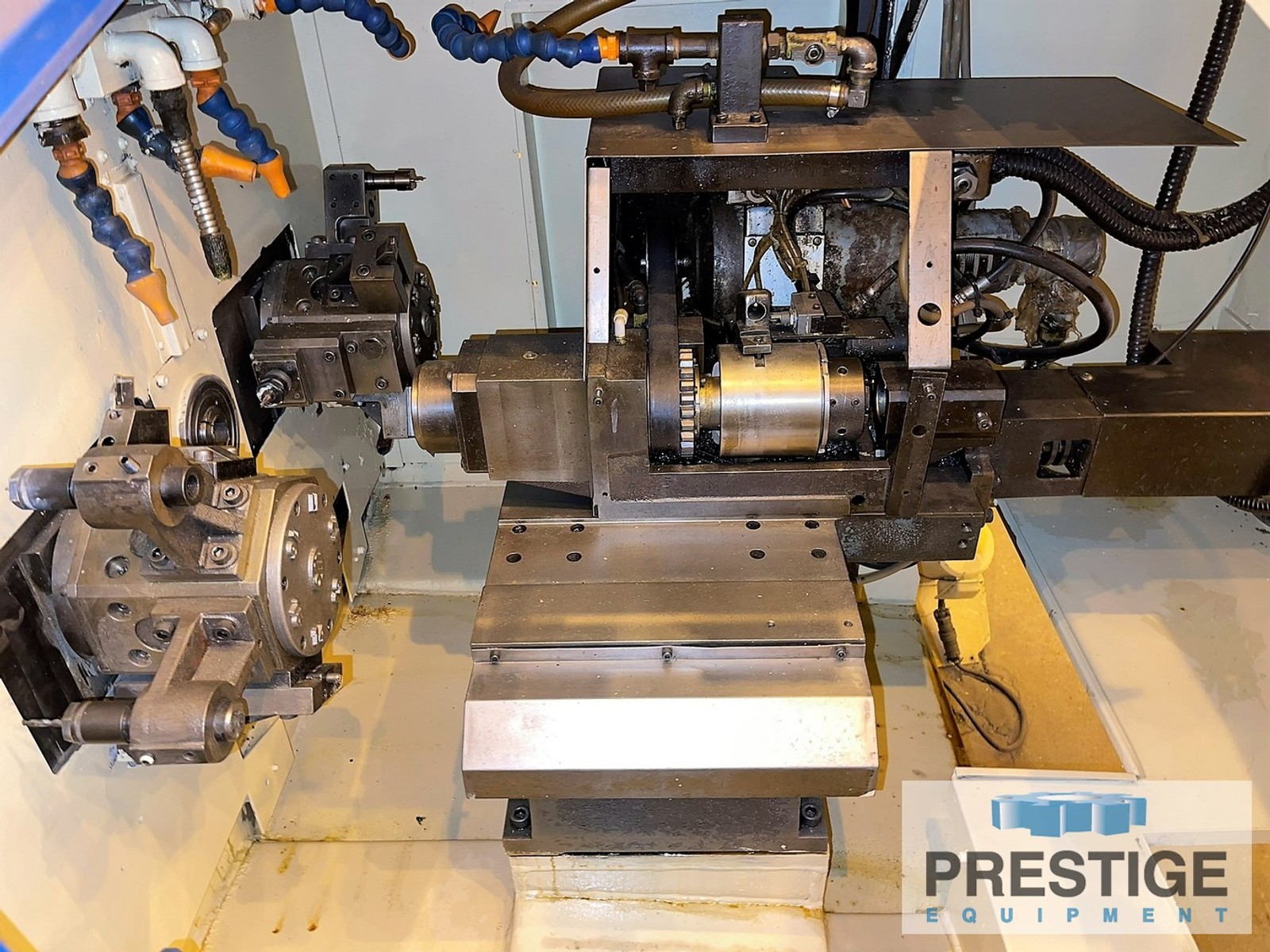

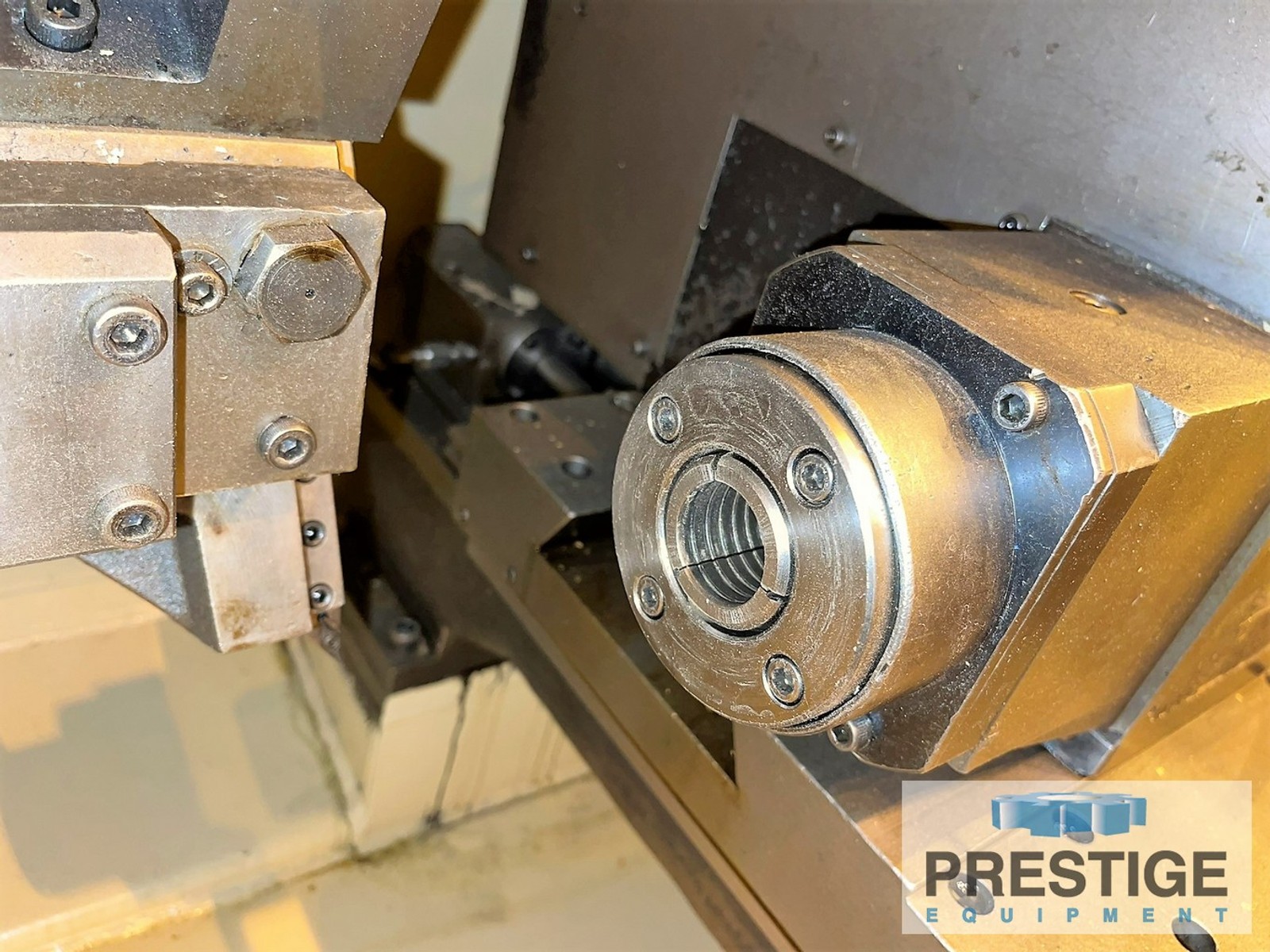

Pickoff Spindle
LNS Bar Feed

SPECIFICATIONS:
Bar Stock Diameter Range .............. .314"-1.26"
Maximum Drilling Diameter ............. .787"
Cross Travel Front Turret (X1-Axis) ... 3.46"
Cross Travel Rear Turret (X2-Axis) .... 4.52"
Headstock Travel (Z1-Axis) ............ 8.46"
Subspindle Travel (Z2-Axis) ........... 8.46"
Rapid Traverse X1, X2, Z1, Z2 Axes .... 315 IPM

MAIN SPINDLE:
Minimum Indexable Degree (C-Axis) ..... 5 Degrees
Spindle Center Height ................. 35.43"
Main Spindle Speeds ................... 35-4500 RPM
Main Spindle Horsepower ............... 10 HP

TURRETS:
Number of Turrets ..................... 2
Number of Tool Mounting Stations ...... 16
Number of Rotating Tool Stations ...... 16
Rotary Tool Spindle Speed ............. 270 - 5400 RPM

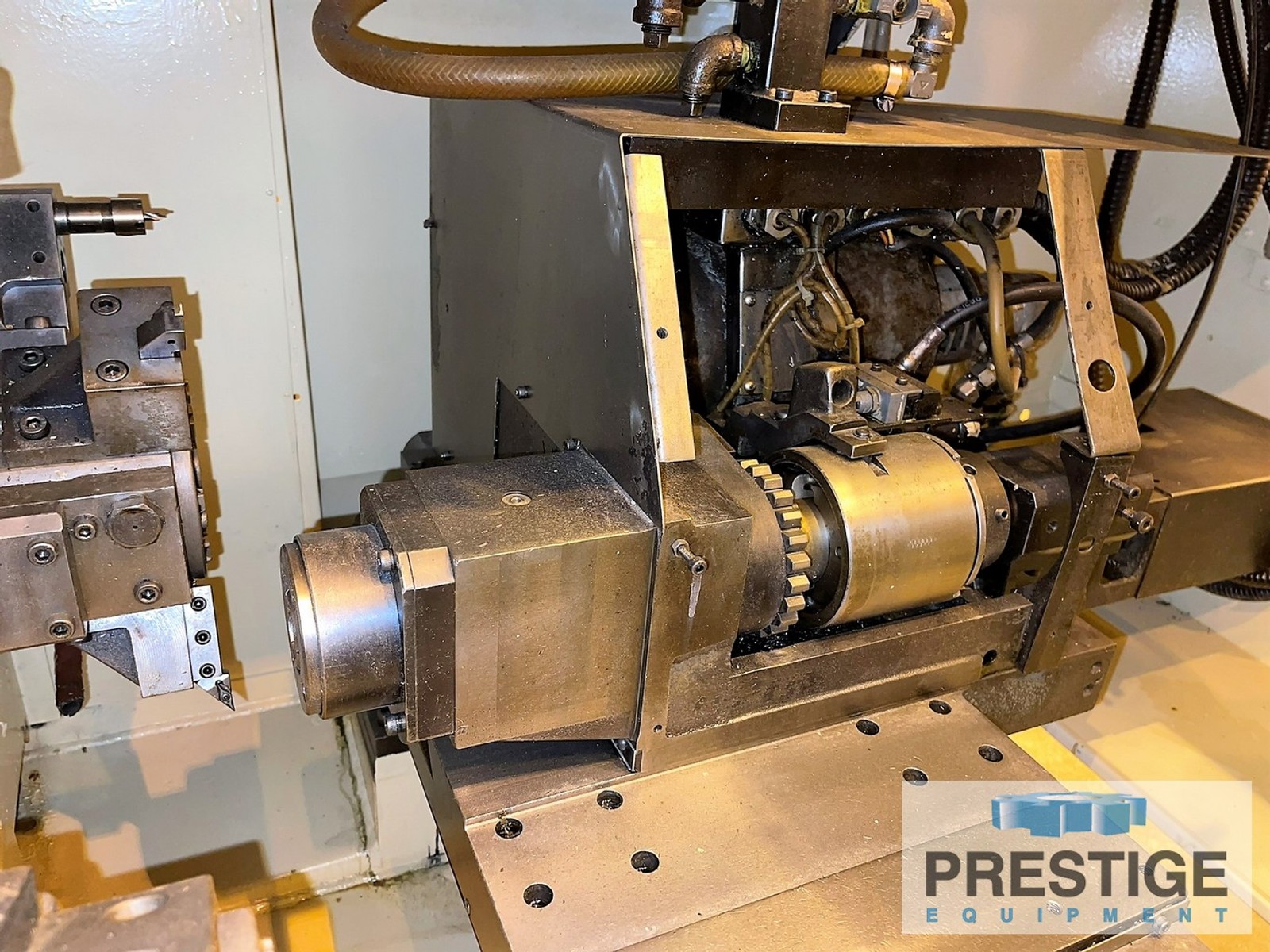

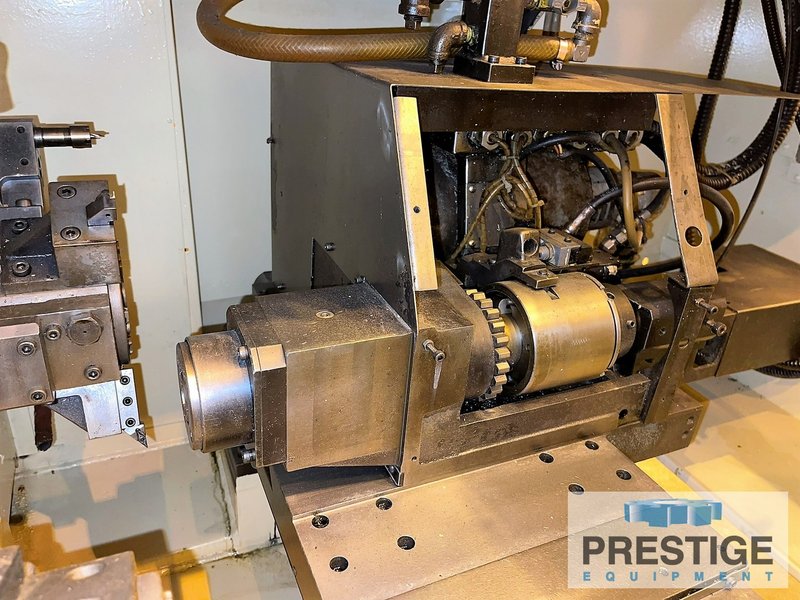

PICKOFF SPINDLE:
Maximum Chucking Diameter ............. 1.26"
Pickoff Spindle Speeds ................ 200 - 3000 RPM
Indexing Degree ....................... 15 Degrees
Pickoff Spindle Motor ................. 2 HP

DIMENSIONS & WEIGHT:
Approx. Dimensions, Machine Only ...... 114" x 65"
Approximate Machine Height ............ 69"
Approximate Machine Weight ............ 6,700 LBS

EQUIPPED WITH:

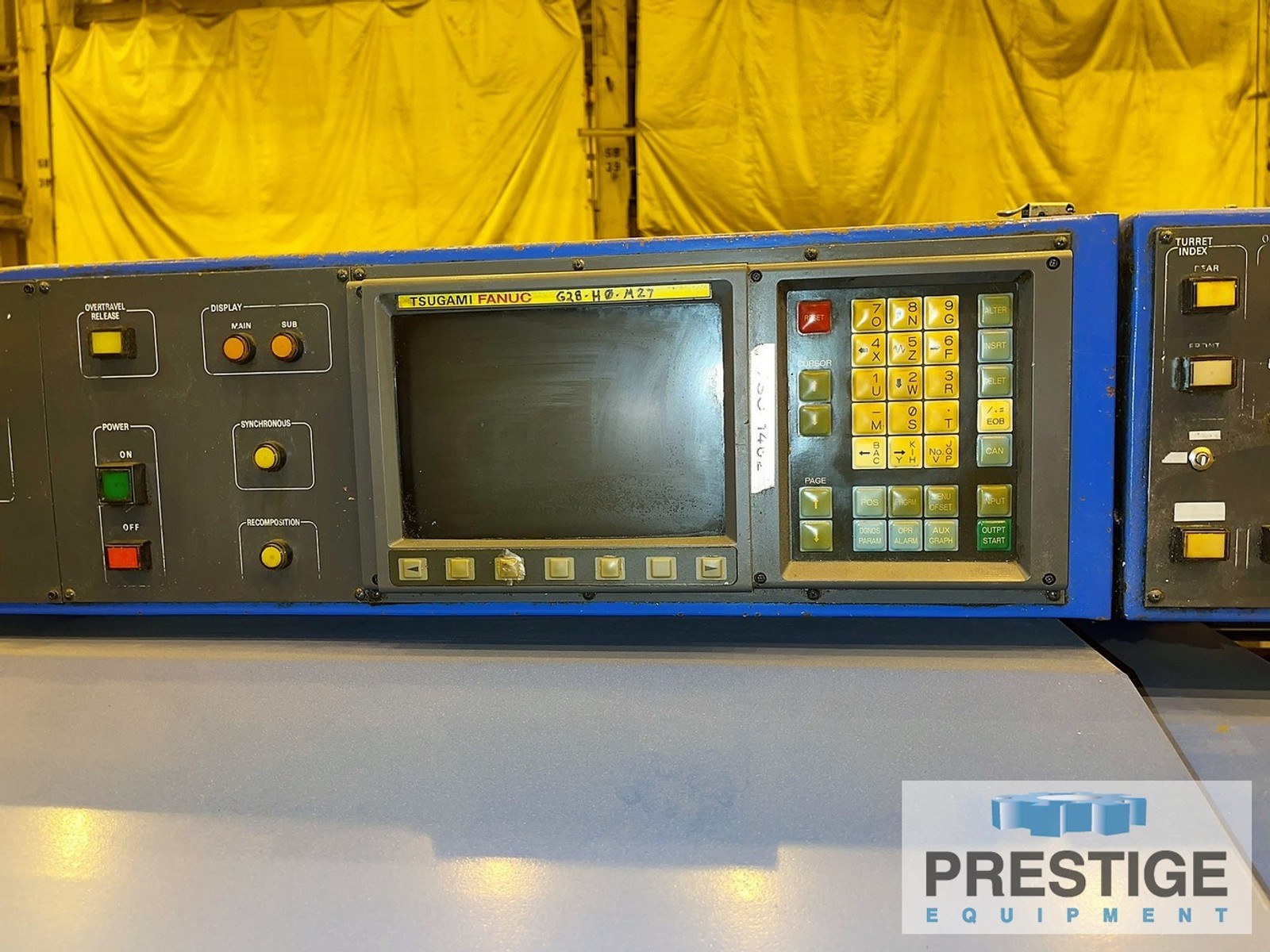

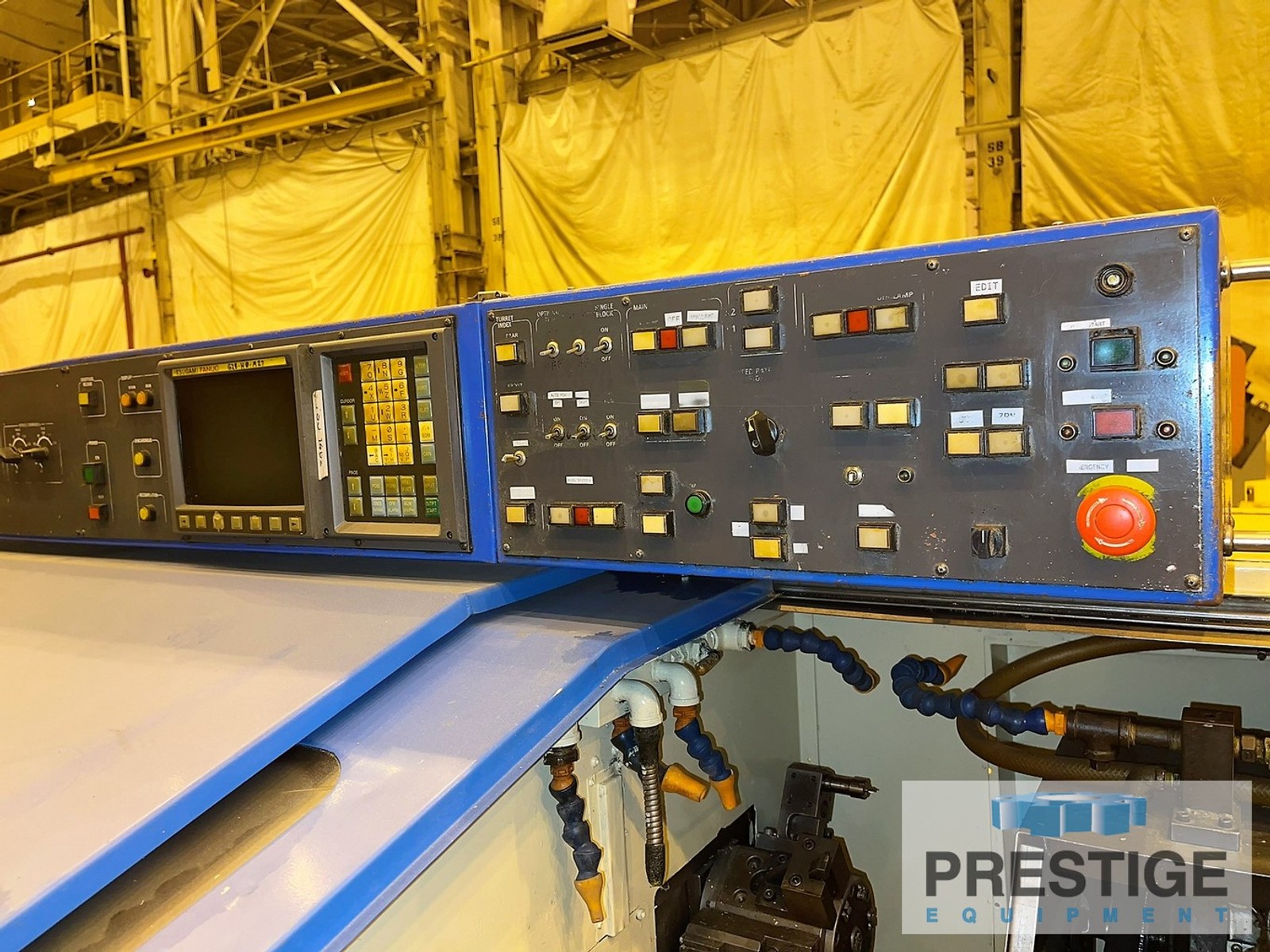

Fanuc 0T CNC Control w/ CRT

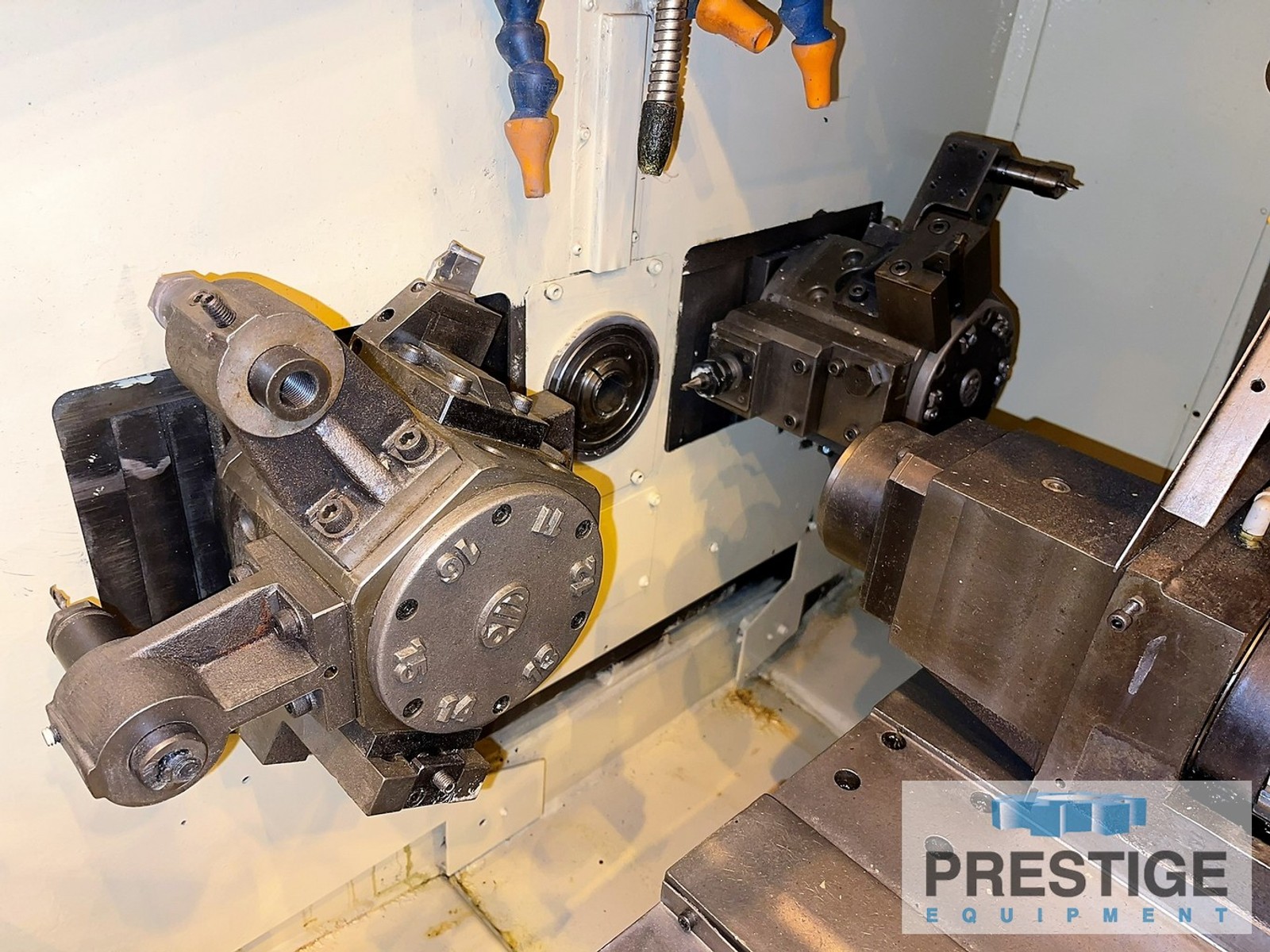

Twin Turrets With Live Tooling
Pickoff Spindle

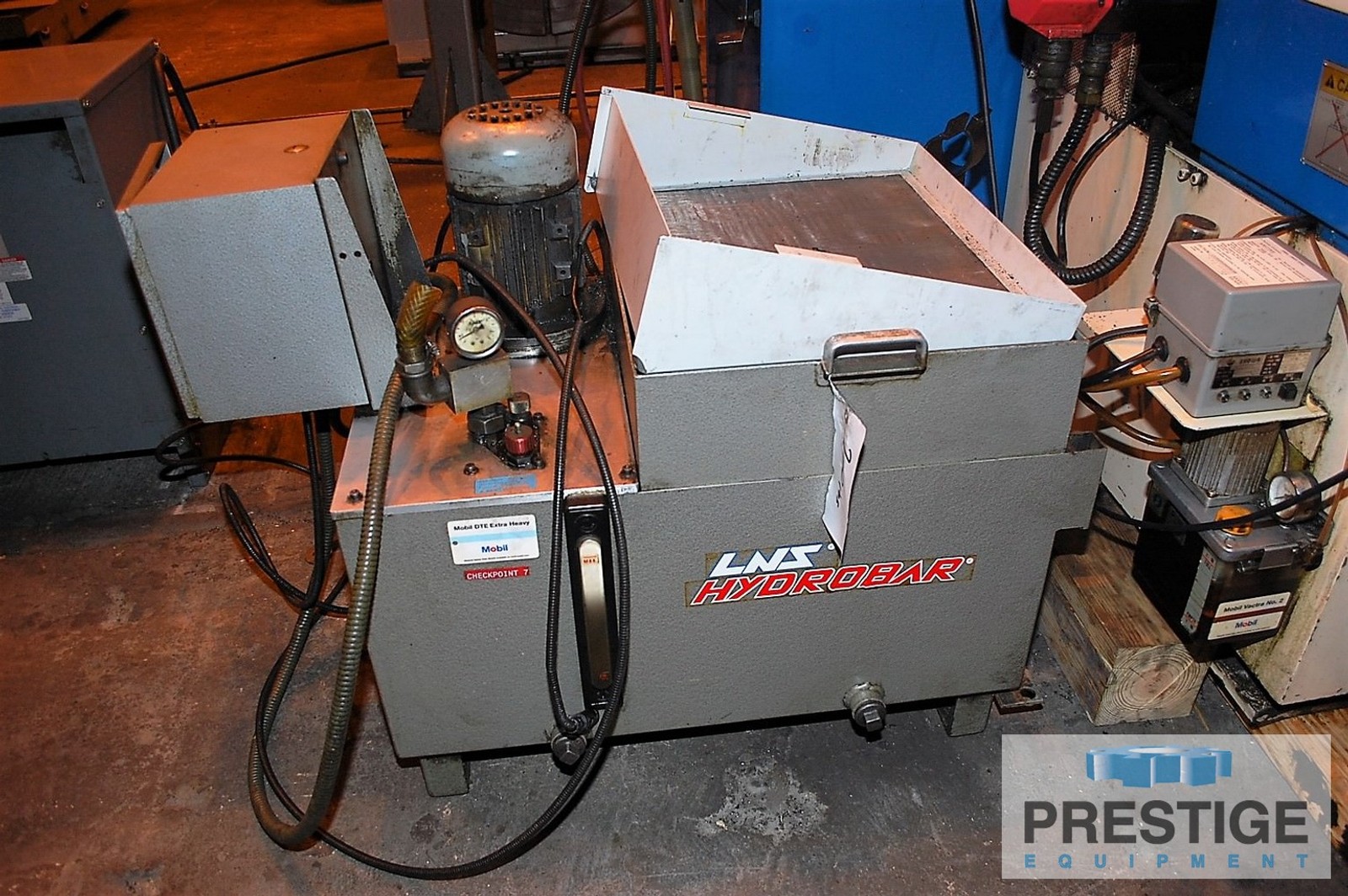

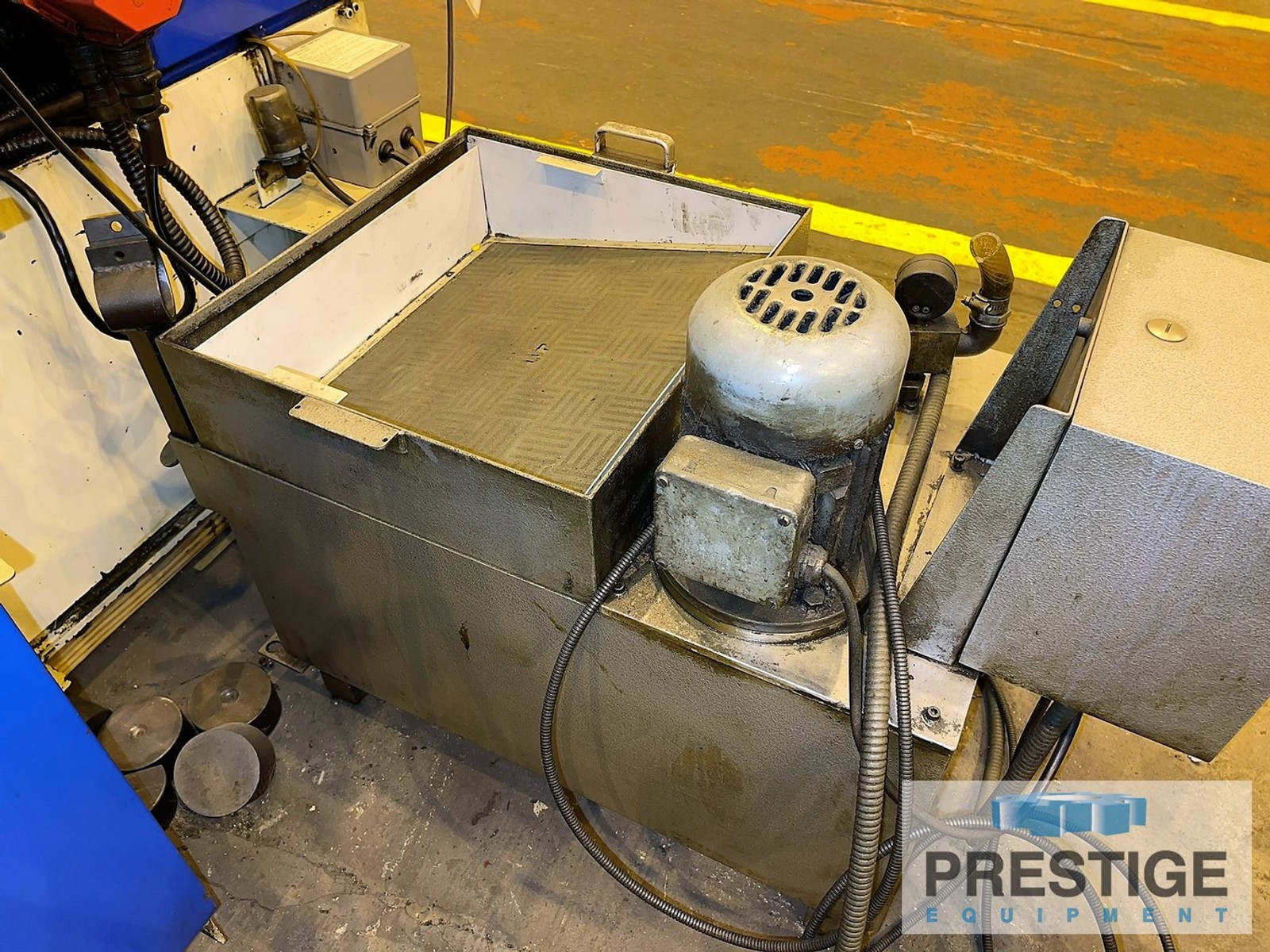

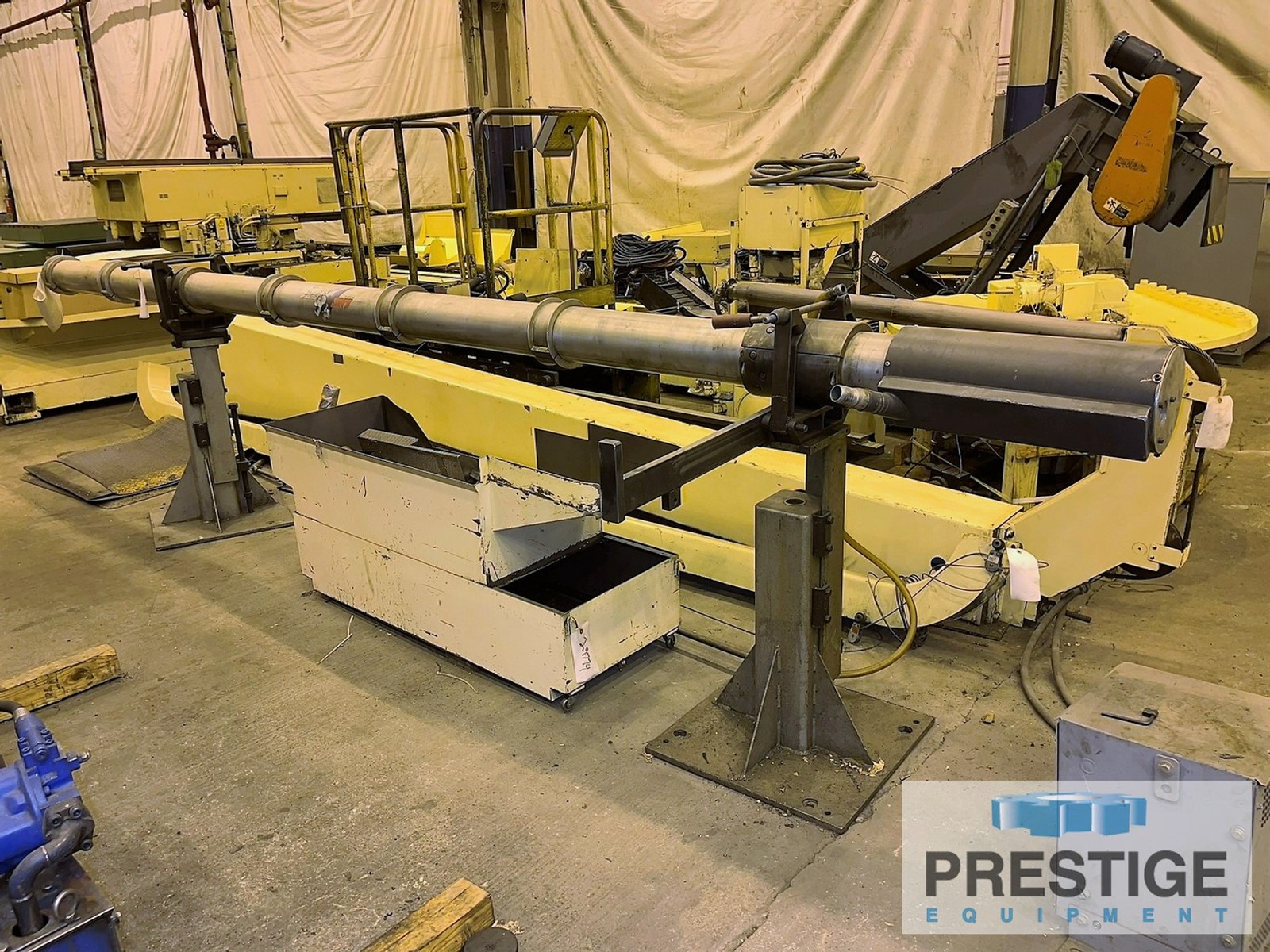

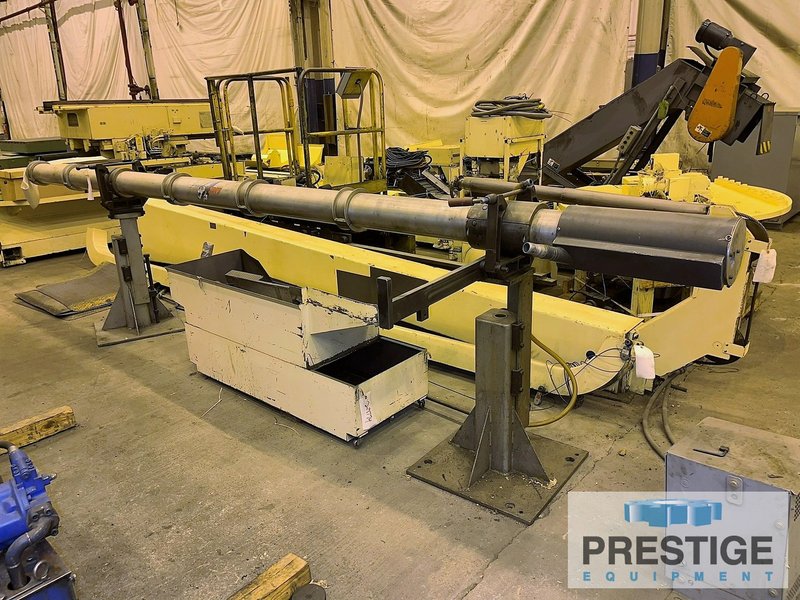

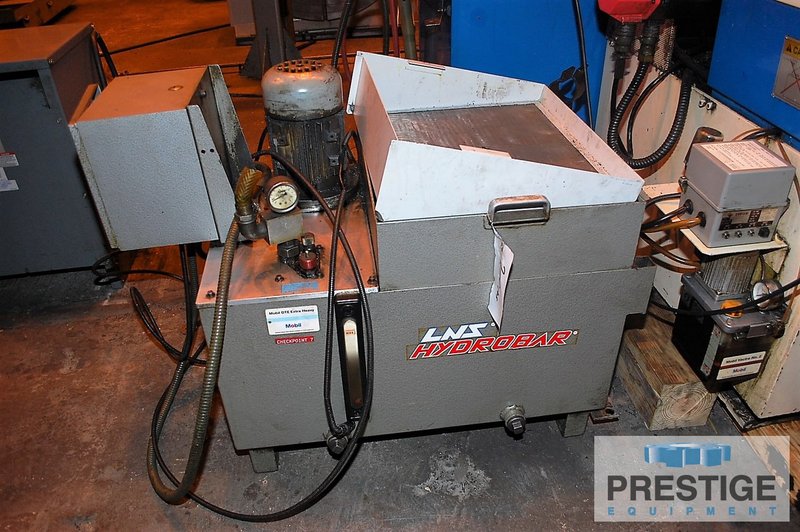

LNS Hydrobar Feed
Coolant

NOTE:
This Machine Was Running Product For An Electric Motor Manufacturing
Facility
