BRYANT 108" CENTER HOLE GRINDER, MAX WORK LENGTH 108", 6" MAX. DIAMETER WORK IN VISE, 13,000 TO 45,000 RPM SPINDLE, CONE DRESSER, INSPECT UNDER POWER, REBUILT WITH WARRANTY

Manufacturer

BRYANT

Category

Grinding Machines

Type

GRINDERS, CENTER HOLE

Stock

None

Model

None listed

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

BRYANT 108" CENTER HOLE GRINDER
SERIAL NO. C-13155 STOCK NO. 6538

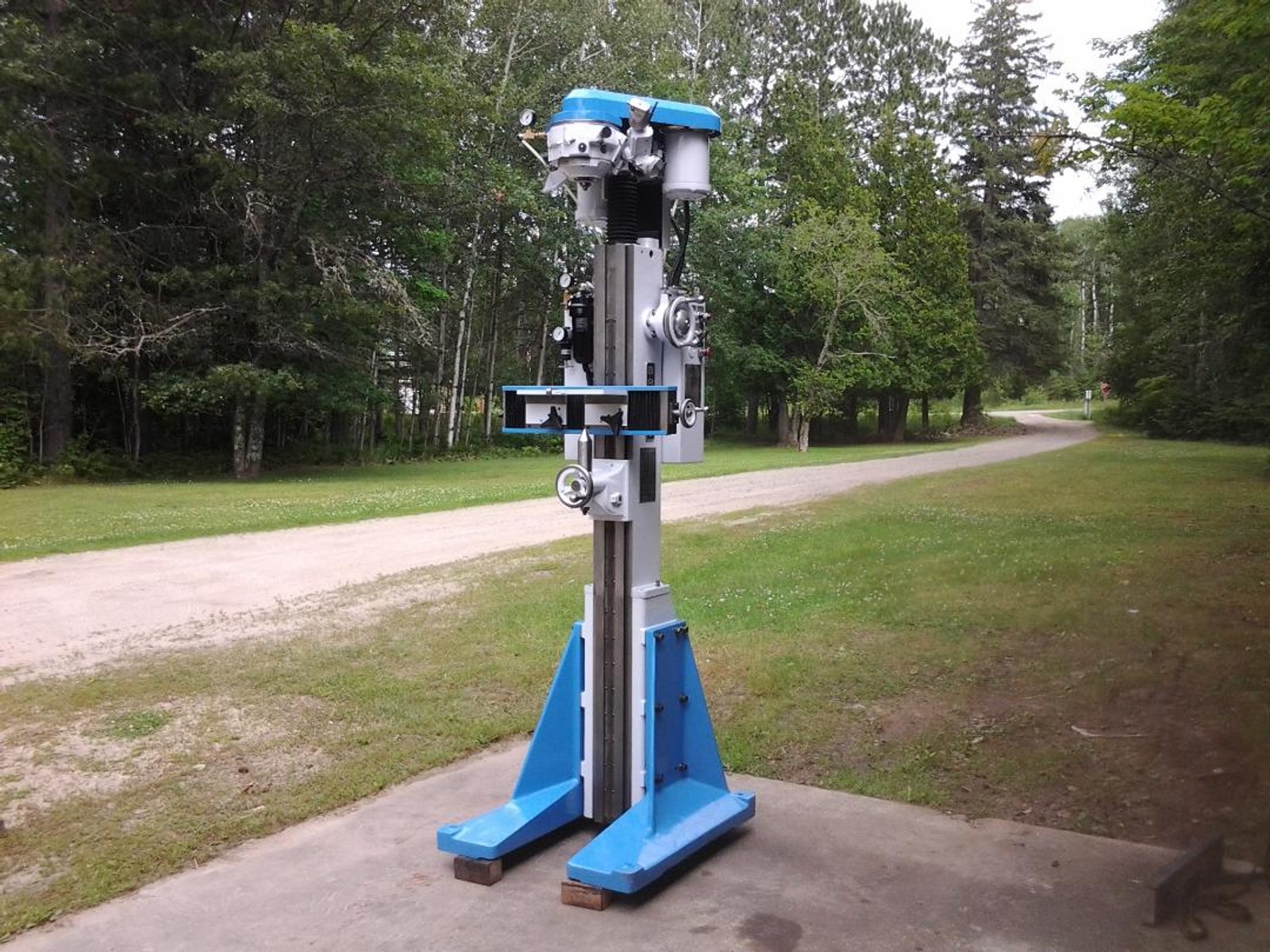

NOW BEING REBUILT. PHOTO ABOVE SIMILAR MACHINE

CATALOG SPECIFICATIONS:
WORKPIECE LENGTH: 2" TO 108"
CLEARANCE FROM TAILSTOCK CENTER TO COLUMN: 6.2"
VISE CAPACITY: .060" - 6"
CONE ANGLE OF HOLES GROUND: 60 DEGREES
MAXIMUM CENTER HOLES GROUND: 2"
GRINDING SPINDLE SPEEDS (WITH CORRECT PULLEY): 13,000, 21,500 & 45,000 RPM
PLANETARY DRIVE SPEEDS:330 RPM
OVERALL DIMENSIONS (APPROX.): 40" x 32" x 140" HIGH

EQUIPPED WITH:
REBUILT WITH 6 MONTH WARRANTY
CONE DRESSER
ADJUSTABLE VISE-.060" to 6"
1/2 HP SPINDLE DRIVE MOTOR
MISC. OPERATOR PLATFORM

INSPECT UNDER POWER

ROBERTS MACHINERY SALES, LTD.
930 E. DRAYTON, FERNDALE, MI 48220
TEL: (248)543-4466
E-mail: rmsused@aol.com
Web Site: robertsmachinery.com
