Chiron FZ08W High Speed VMC, New 2006, (2) Machines Available, Pallets , 12” x 10” x 10” Travels, 10,500 RPM Spindle Speeds, 12 ATC, Fanuc 21i-M, Traveling Column Design

Manufacturer

CHIRON

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

None

Model

FZ08W

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

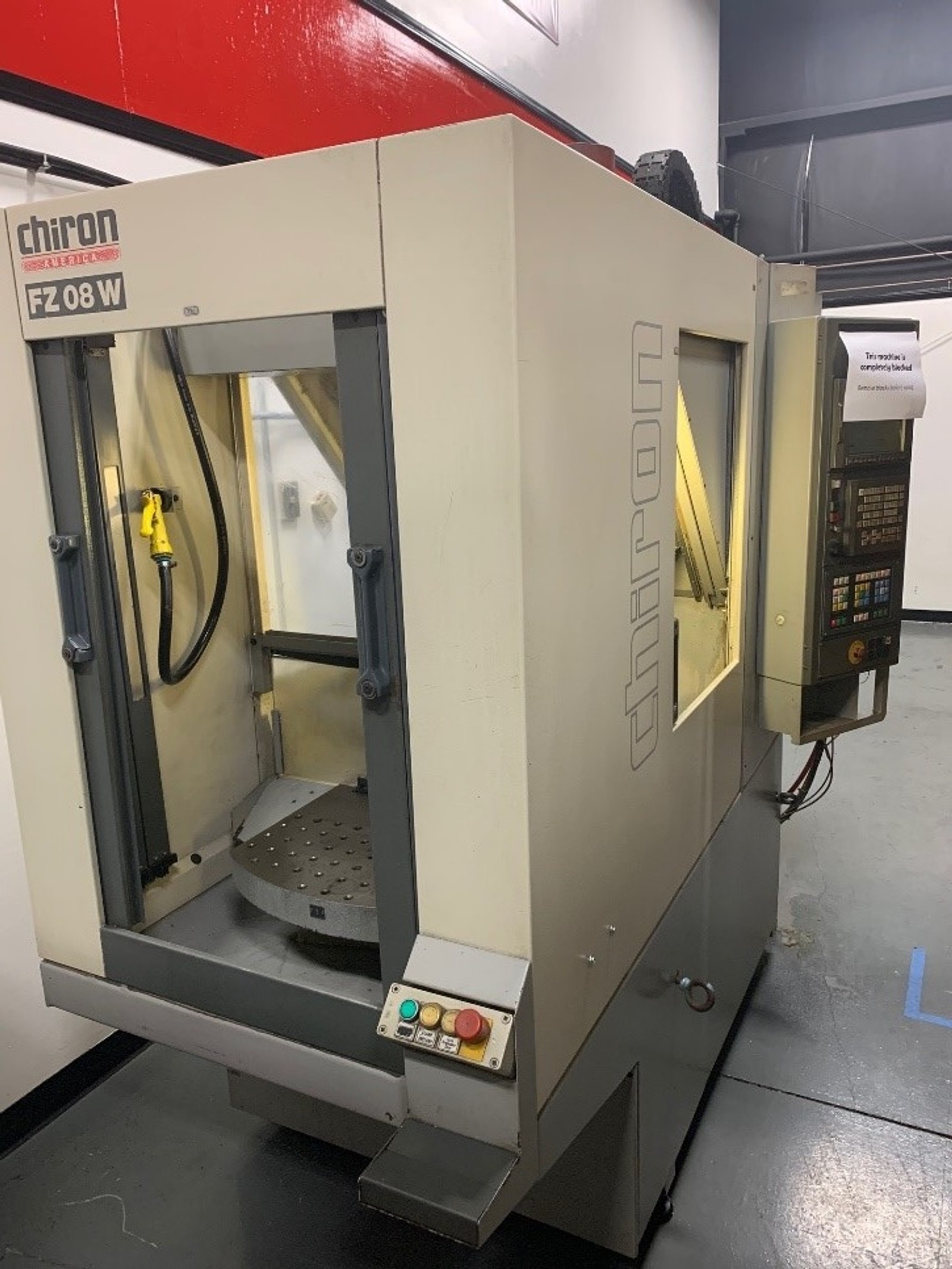

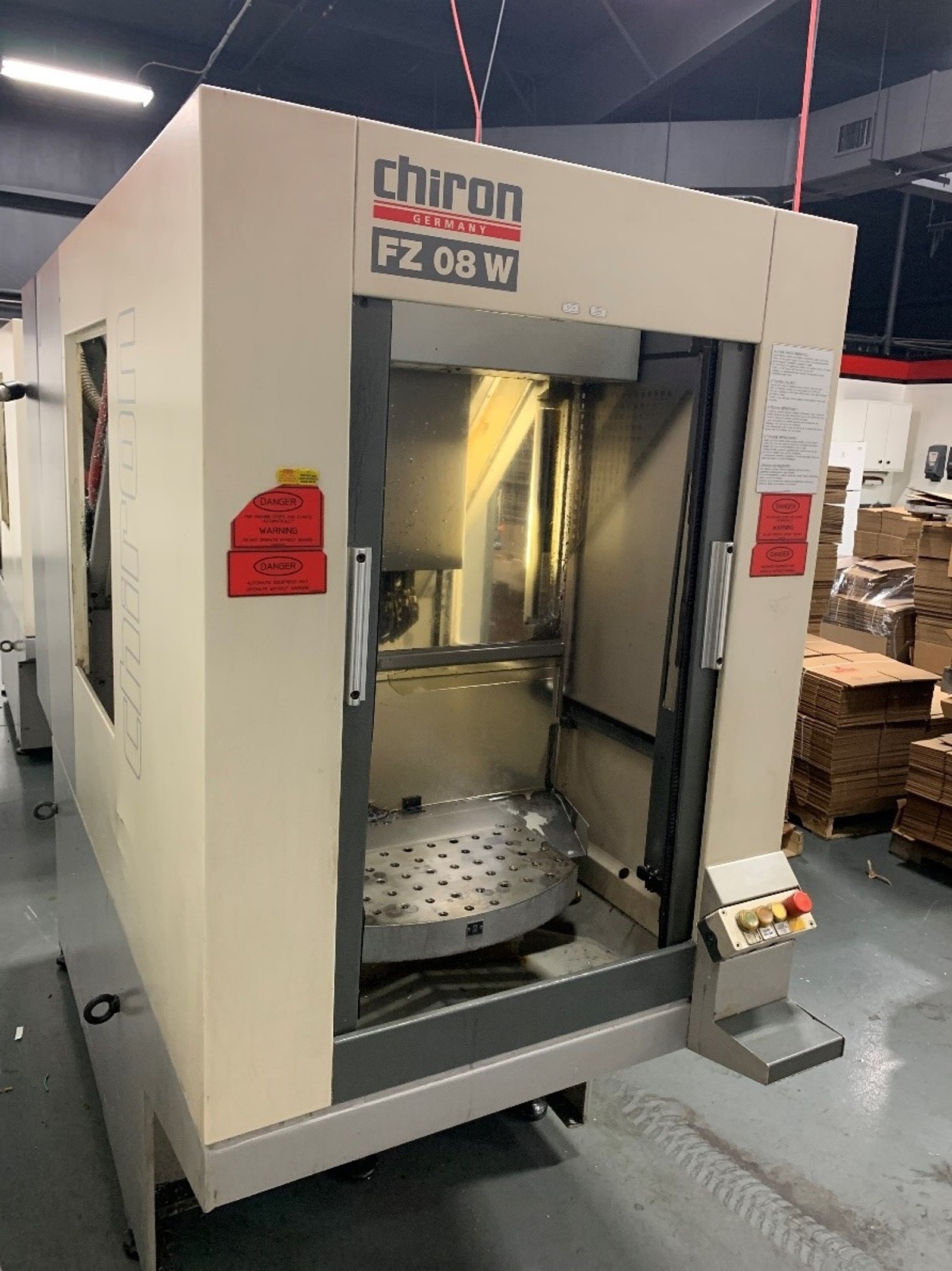

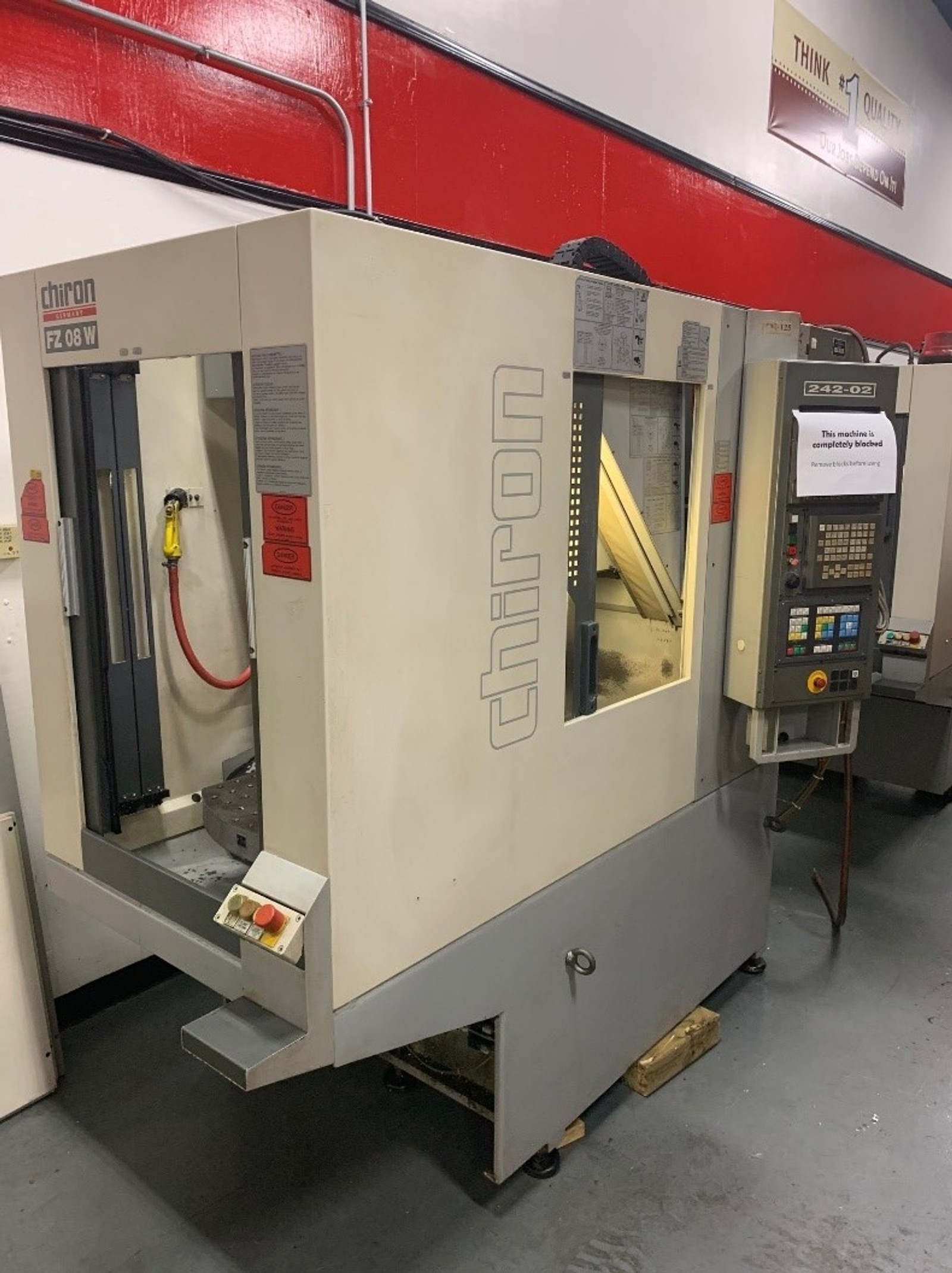

Chiron FZ08W High Speed Vertical CNC Machining Center, New 2006, (2) Machines Available

Catalog Specifications:
Table Size / Number of Pallets 17.7" x 11.8" / 2
Table Load Capacity 165 lbs.
Pallet Index Time 2.9 seconds
X-Axis Travel 12"
Y-Axis Travel 10"
Z-Axis Travel 10"
Spindle Speed up to 10,500 RPM
Spindle Taper HSK32A
Spindle Motor 5 HP
Rapid Traverse X, Y / Z 1600 / 2400 IPM
Tool Magazine Capacity 12 Tool Positions
Machine Dimensions 87"x54"x85"
Machine Weight 4,000 lbs.

Equipped With:

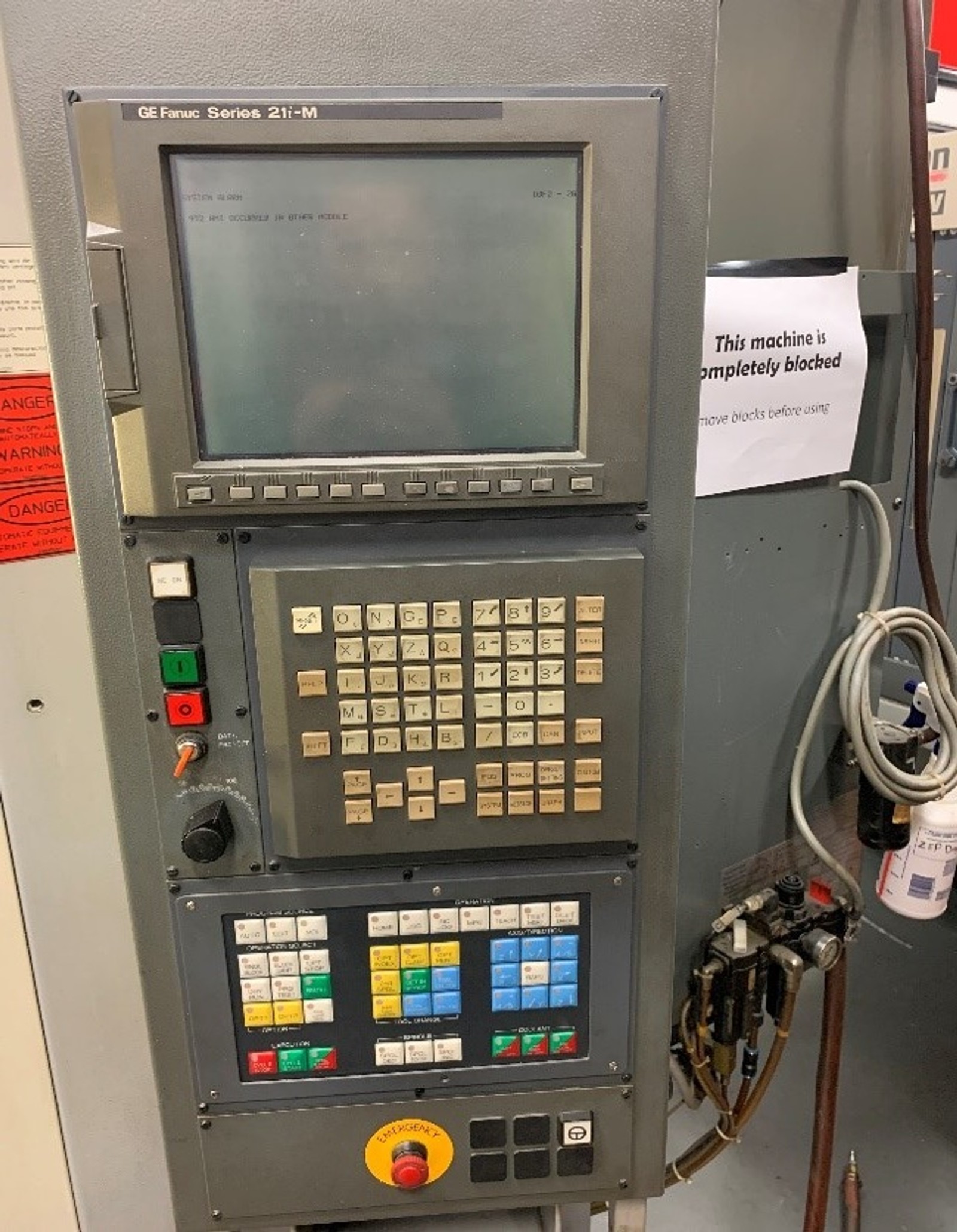

Fanuc 21i-M CNC Control
High Speed 2 Pallet Changer
High Speed Tool Changer
Traveling Column Design
