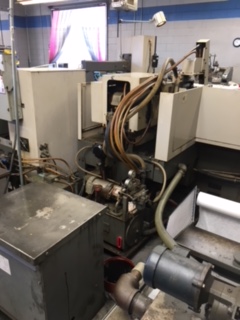

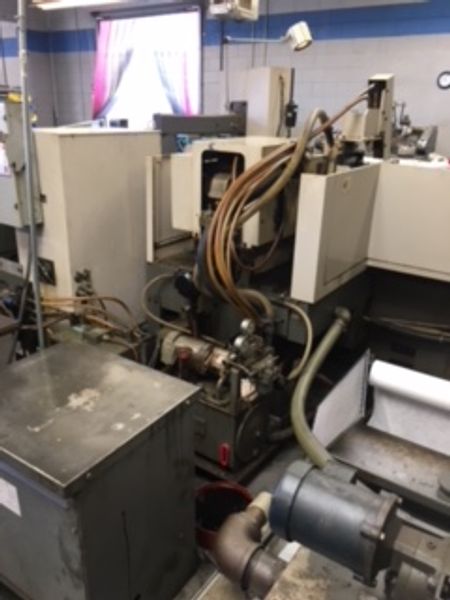

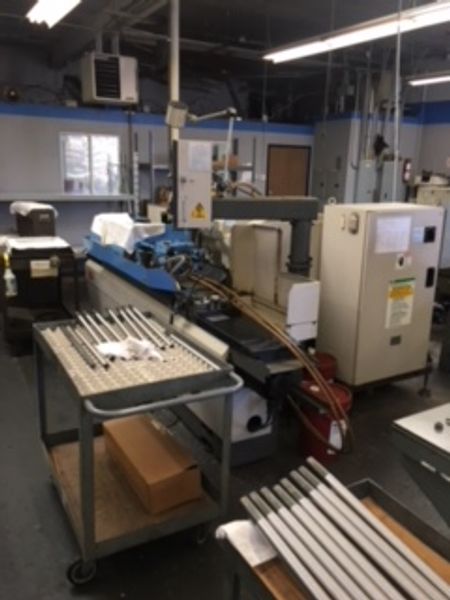

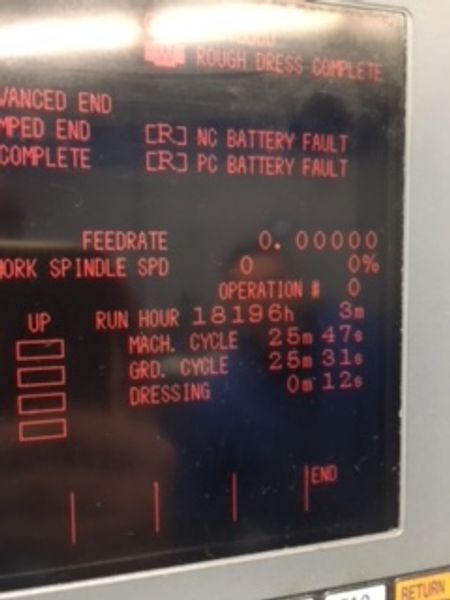

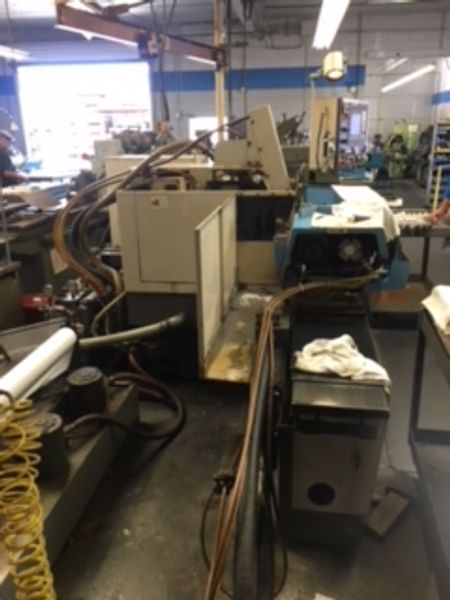

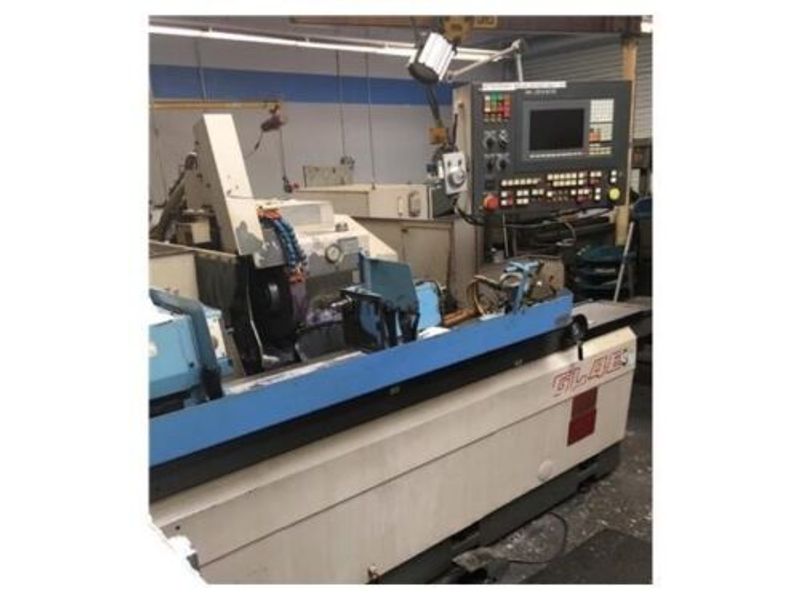

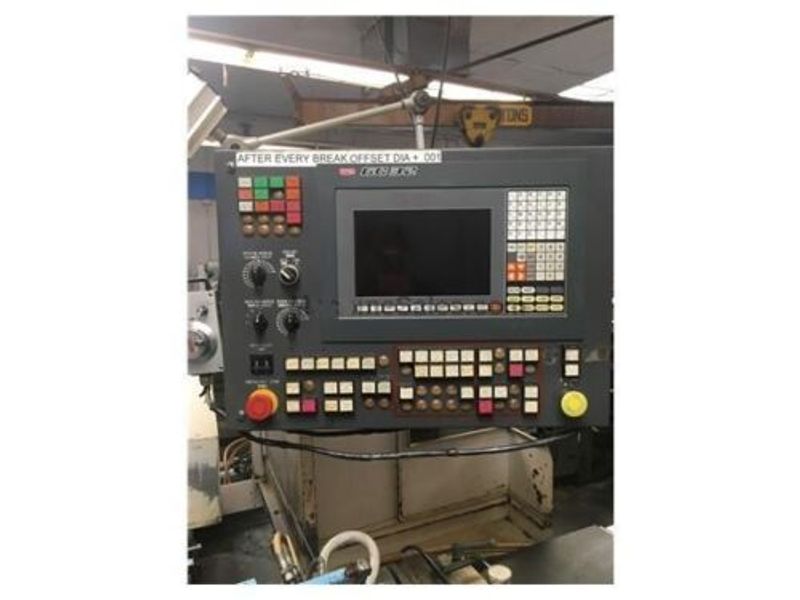

EQUIPPED WITH GC 32 CONTROL, 12.6' X 19/7" TRAVELS, REBUILT BY TOYODA IN 2017 18,196 HOURS

Manufacturer

TOYODA

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

Ez13558

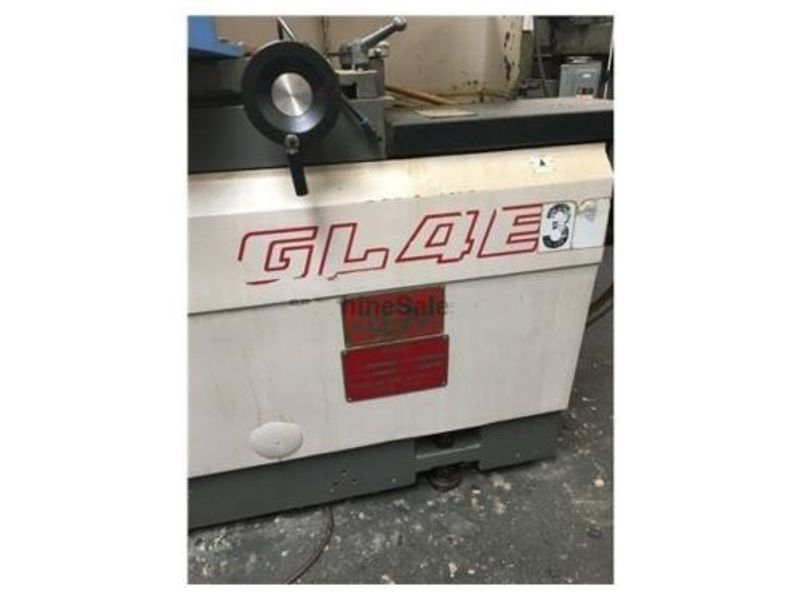

Model

GL4E

Dealer Location

California

Request a Quote
View Contact Information

Spec Sheet

>Model ... ... ... ... ... ... ... ... ... ... ... .. GL4E
Brand ... ... ... ... ... ... ... ... ... ... ... TOYODA
Type ... ... ... ... ... ... ... Grinder

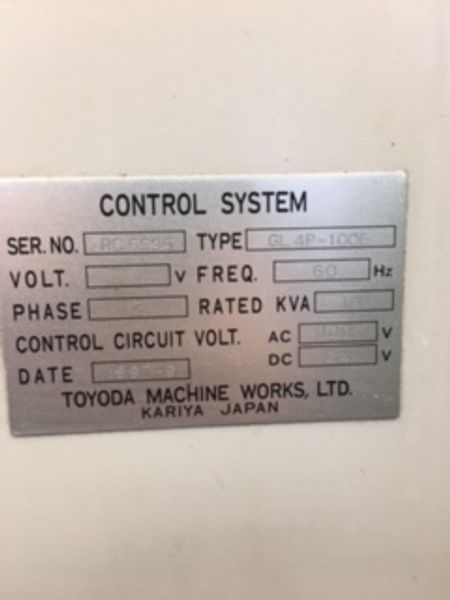

Control . ... ... ... ... ... ... ... ... ... GC 32 CONTROL
Weight .. ... ... ... ... ... ... ... ... ... .. 9,920 lbs
TableW .. ... ... ... ... ... ... ... ... ... ... ... 90"
TableL .. ... ... ... ... ... ... ... ... ... ... .. 125"
MAX PART SIZE:
Swing 320 mm
Center distance (GL4A/P-32E) 320 mm
Center distance (GL4A/P63E) 630 mm
Max grinding diameter Ø220 mm
Max load between centers 150 kg
EXTERNAL GRINDING WHEEL:
Wheel spindle bearing Hybrid-type Toyoda STAT® bearing
Max wheel size (OD x ID) (GL4A-E) ø455 x 127 mm
Max wheel size (OD x ID) (GL4P-E) ø405 x 127 mm
Standard wheel width 100 mm
Wheel surface speed 45 m/sec
WHEELHEAD:
Wheelhead rapid feed (infeed) Dia. 20m/min
CONTROL: Toyoda GC50
TABLE:
Table rapid feed 20 m/min
WORKHEAD:
Workhead centertaper MT #4 (5)
Workhead spindle speed (variable) 22 - 500 rpm
FOOTSTOCK:
Footstock center taper MT #4 (5)
Footstock quill stroke 25 mm
MACHINE SIZE:
Floorspace (GL4A/P-32E) 2,300 x 3,200 mm
Floorspace (GL4A/P-63E) 3,050 x 3,200 mm
Net weight (GL4A/P-32E) 4,500 kg
Net weight (GL4A/P-63E) 5,000 kg
