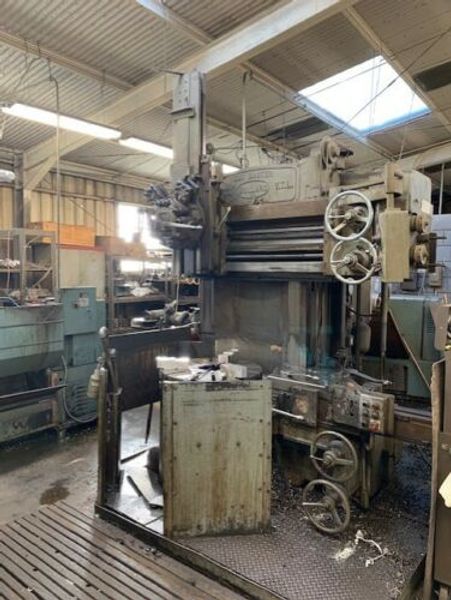

3 JAW 30" CHUCK, 29" UNDER RAIL, COOLANT TANK, UNDER POWER & RUNNING

Manufacturer

Bullard

Category

Lathes

Type

LATHES, UNIVERSAL, CNC

Stock

Ez22425

Model

Custmaster 30"

Dealer Location

California

Request a Quote
View Contact Information

Spec Sheet

>Subcategory: Vertical Boring Mills / Vertical Turret Lathe

3 JAW 30" CHUCK, 29" UNDER RAIL, COOLANT TANK, UNDER POWER & RUNNING

Specification Description
Table Size 30" 4 Jaw
Swing Side Head Above Table 34"
Swing Side Head Below Table 44"
Height Under Rail 25"
Table Speed 6.1 To 225 RPM's
Feeds .004 To .500 I.P.R.
Main Motor 30 Hp. 240 / 480
Turret Head Travel Left To Right 22"
Turret Ram Head Turret Travel Up & Down 27"
Turret Head Position 5
Turret Head Swivel Yes
Side Head Travel In & Out 22"
Side Head Travel Up & Down 30"
Floor Space 94" F To B
Floor Space Length 100"
Height 7'8"
Machine Weight 24,000 Lbs.
Top Jaws (3) Yes
