Equipped with: N-EIA/ISO option package, Programmable tailstock, multi-tap transformer, Windows 2000 operating system, high pressure coolant (213 psi@ 2.5 gpm., tool eye, thread start point compensation, re-threading function, SMW SLU-Z4 hydraulic s

Manufacturer

MAZAK

Category

Lathes

Type

LATHES, UNIVERSAL, CNC

Stock

Ez33079

Model

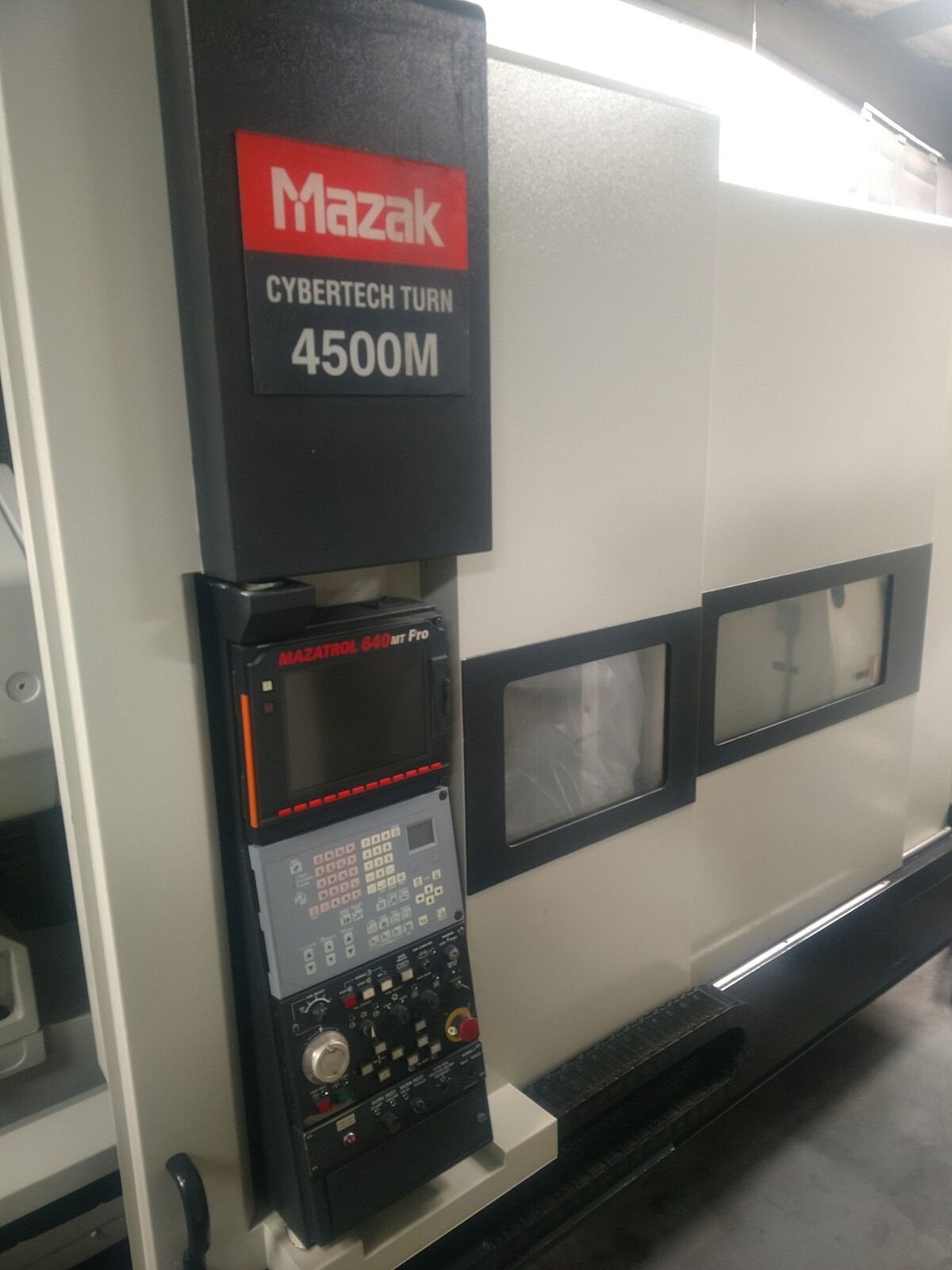

CYBERTECH TURN 4500M

Dealer Location

California

Request a Quote
View Contact Information

Spec Sheet

>Specifications:
Model Cyber Turn 4500M
CNC control Mazatrol PC-Fusion 640MT PRO, Mazatrol
conversational or G-code programming.

Swing over bed 33.86”
Max. machining diameter 31.89”
Max. machining length 120”
Turret stations 12 stations
Spindle bore 7.23”
Chucks F& R SCA 18” 4-jaw with 7.5” bore
Spindle speed -2,400 rpm
Main motor 50 hp.
Front turret tool stations 12
Milling head capability 15 hp./3,000 rpm
C-axis travel 0.001’ increments
X-axis travel 21.26”
Z-axis travel 123.23”
W-axis travel 120.08”
Coolant 211 gallons
Chip conveyor Yes
Weight 46,600 lbs.
Dimensions 9’ 6” High x 24’ Long x 8’ 4” Wide

Equipped with: N-EIA/ISO option package, Programmable tailstock, multi-tap transformer,
Windows 2000 operating system, high pressure coolant (213 psi@ 2.5 gpm., tool eye, thread
start point compensation, re-threading function, SMW SLU-Z4 hydraulic steady rest 1.18—9.65”
capacity, absolute positioning system, prep for rear chuck, auto lube system, Optomizer technical library, digital documentation.
