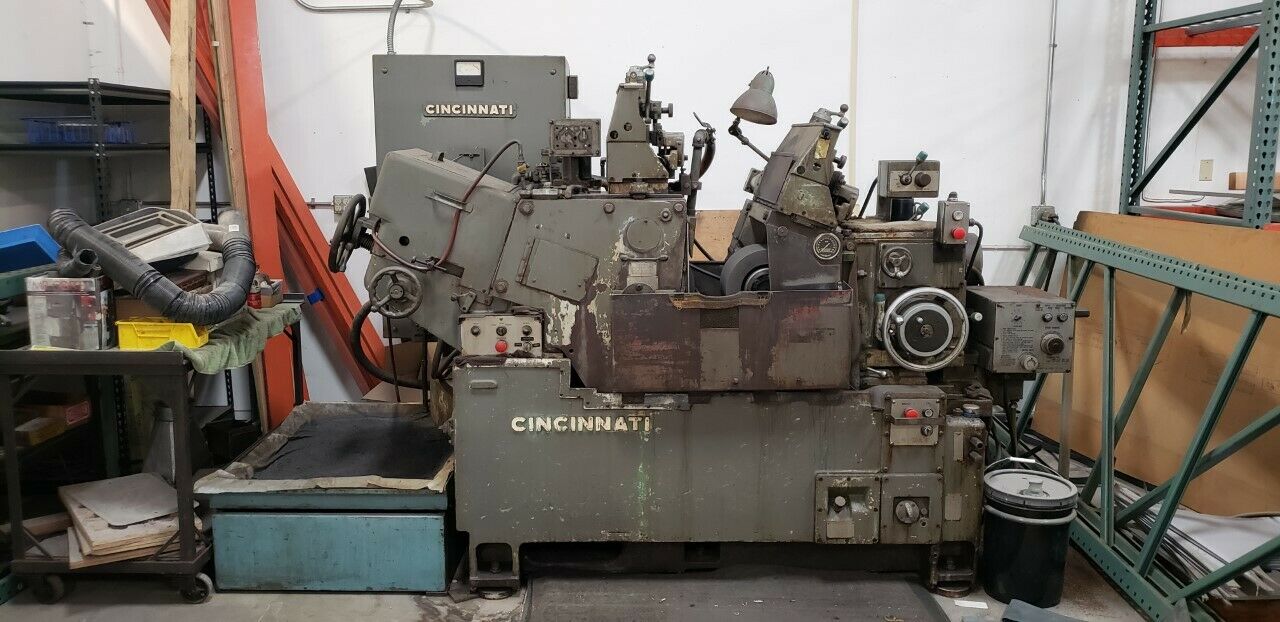

CINCINNATI 220-8 CENTERLESS GRINDER 24" DIA

Manufacturer

Cincinnati

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

Ez39846

Model

220-8

Dealer Location

California

Request a Quote
View Contact Information

Spec Sheet

>Specifications
Subcategory: Centerless Grinders
Maximum workpiece diameter: 475"
Grinding wheel diameter: 24"
20 HP
1800 RPM
RPM 300 RPM
Length 9'
Width 5'
Height 68"
TableW 3/8"
TableL 4-1/2"

Extra added 12/12/19
Specifications:
Machine Capacity 0.063-3.000″ w/Std. Thrufeed
Max. Work Diameter 4.750″
Min. Diameter Wheelhead 17″
Max. Diameter Wheelhead 24″
Collet Hole Diameter 12″
Grinding Wheel Width 3-8″ Max. 10″
Grinding Wheel Speed 6500 ft/min.
Motor 20-HP / 1800 RPM
New Regulating Wheel 12″
Used Regulating Wheel 10″
I.D. Regulating Wheel 5″
No. Regulating Wheel Speeds Infinite
Low Wheel Speeds 15-56 RPM
High Wheel Speeds 56-300 RPM
Regulating Wheel Motor 1-1/2HP @ 1200 RPM
Max. Lower Side Travel 6.375″
Max. Upper Side Travel 2.875″
Hydraulic Reservoir 21 Gal.
Automatic Feed Lubrication 3 Gal.
Approx. Weight 12,500 lbs.

Preliminary Specifications – Subject to Verification
