Manufacturer

Mazak

Category

Lathes

Type

LATHES, UNIVERSAL, CNC

Stock

Ez33123

Model

Quick Turn 28N Universal

Dealer Location

California

Request a Quote
View Contact Information

Spec Sheet

>Specifications:

Model Quick Turn 28N Universal

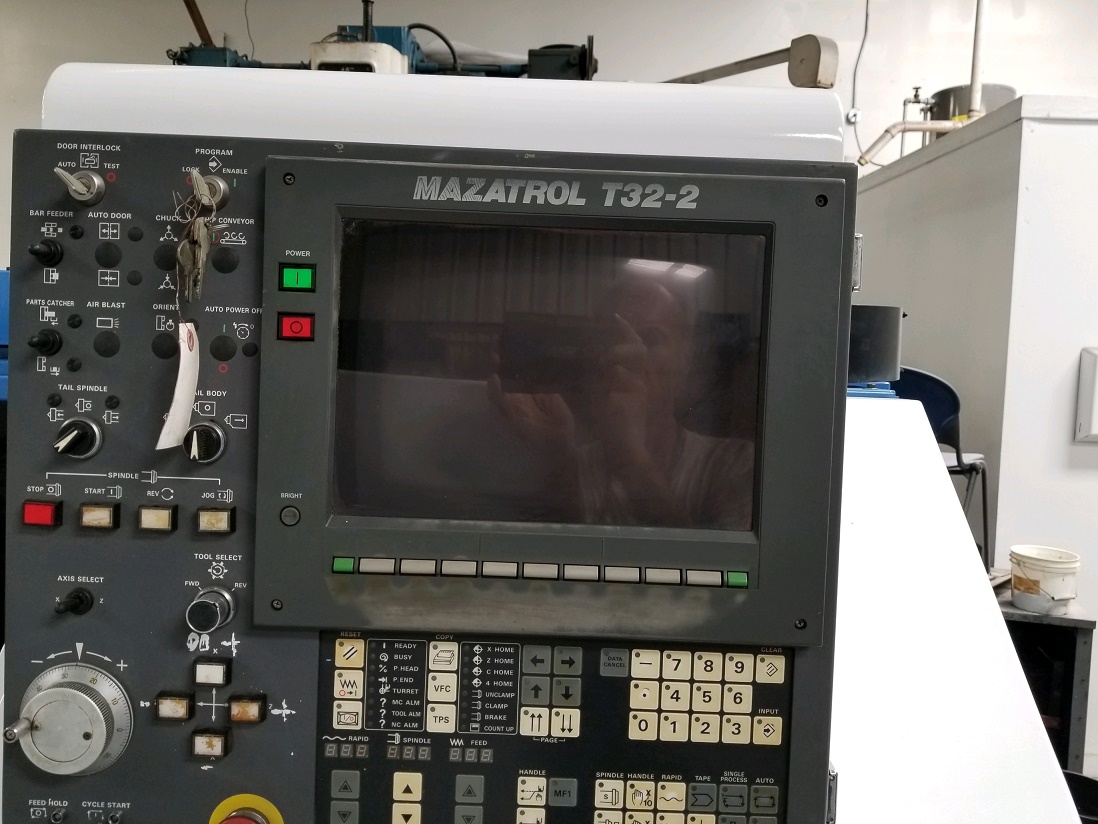

CNC control Mazatrol T-32 2
Tool pre-setter Yes
Max. swing 20.08”
Max. machining diameter 12.6”
Center distance 39”
Tailstock Yes

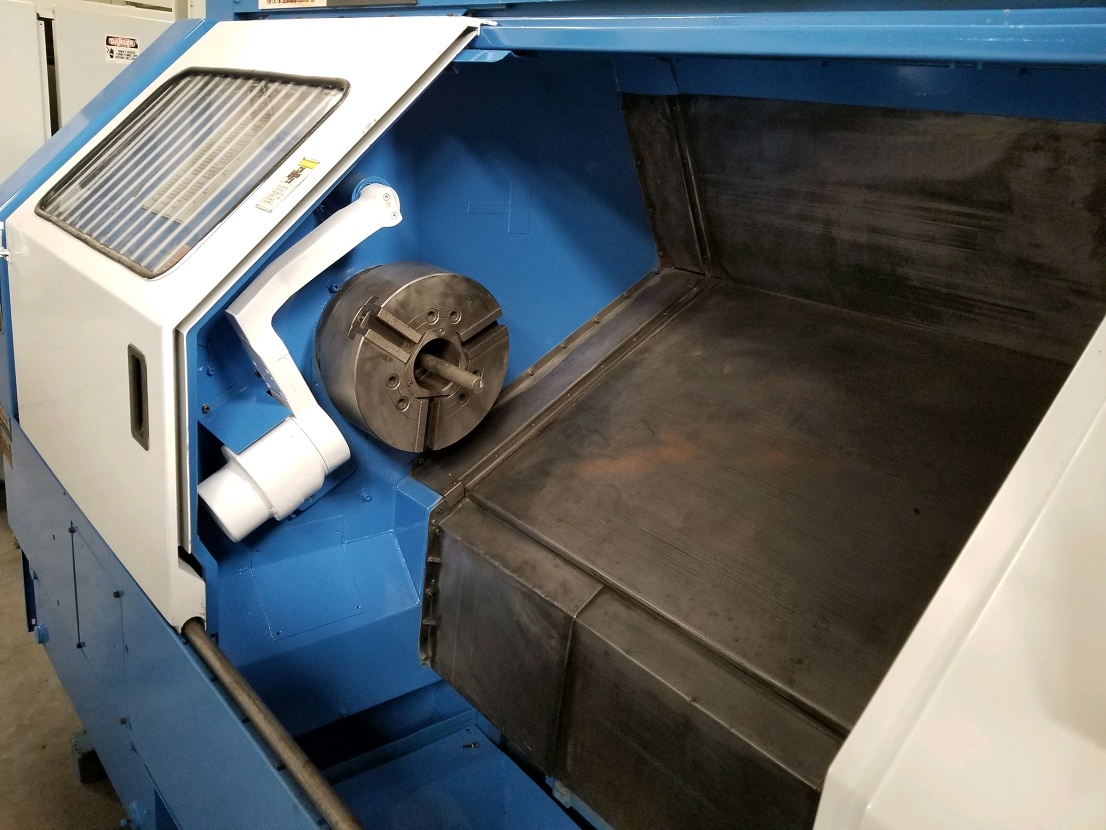

Chuck diameter 12” 3-jaw Kitagawa B-312
Spindle nose A-2-8
Spindle bore 3.15”
Max. bar diameter 2.75”
Stroke, X & Z 7.87” & 40”
Traverse rate, rapid X & Z 707 & 945 IPM
Spindle speed 50-3,000 rpm.

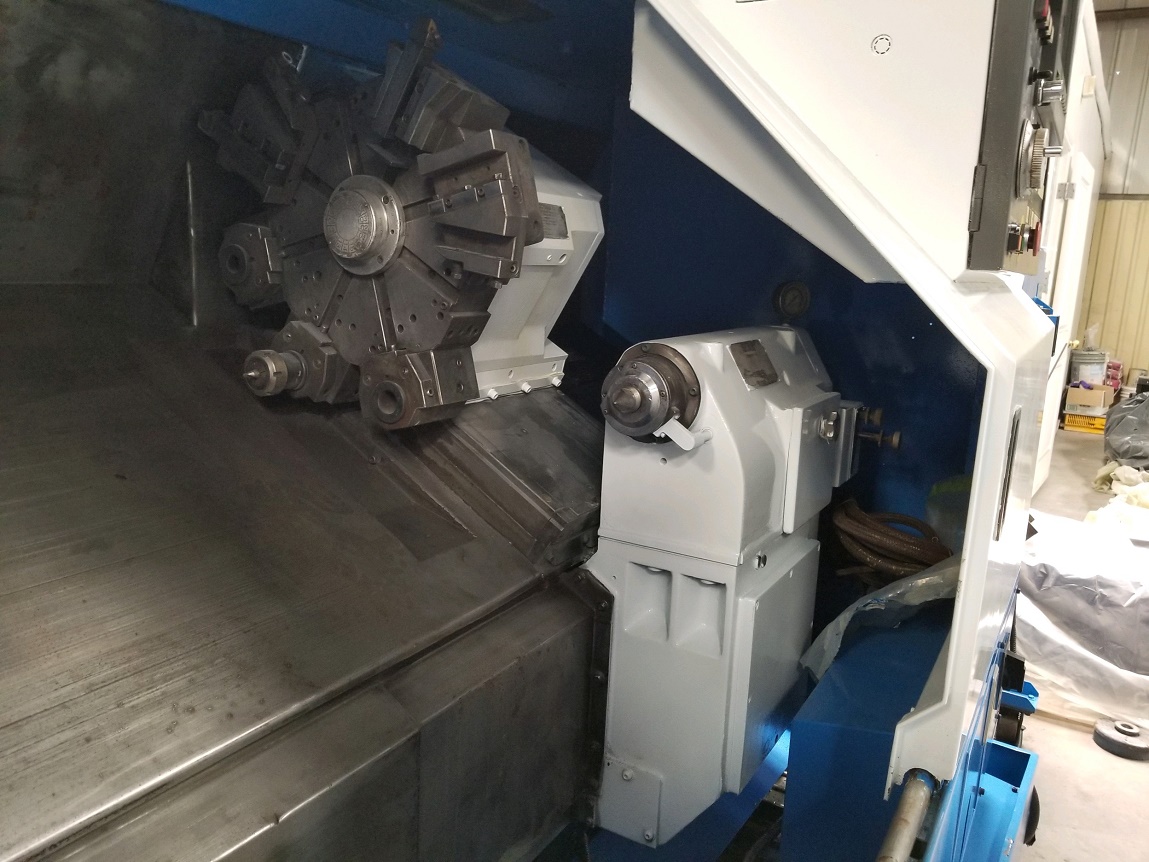

Turret stations 16 stations
Turning tool shank 1”
Boring bar diameter 1.5”
Main motor 30 hp./ 26 hp.

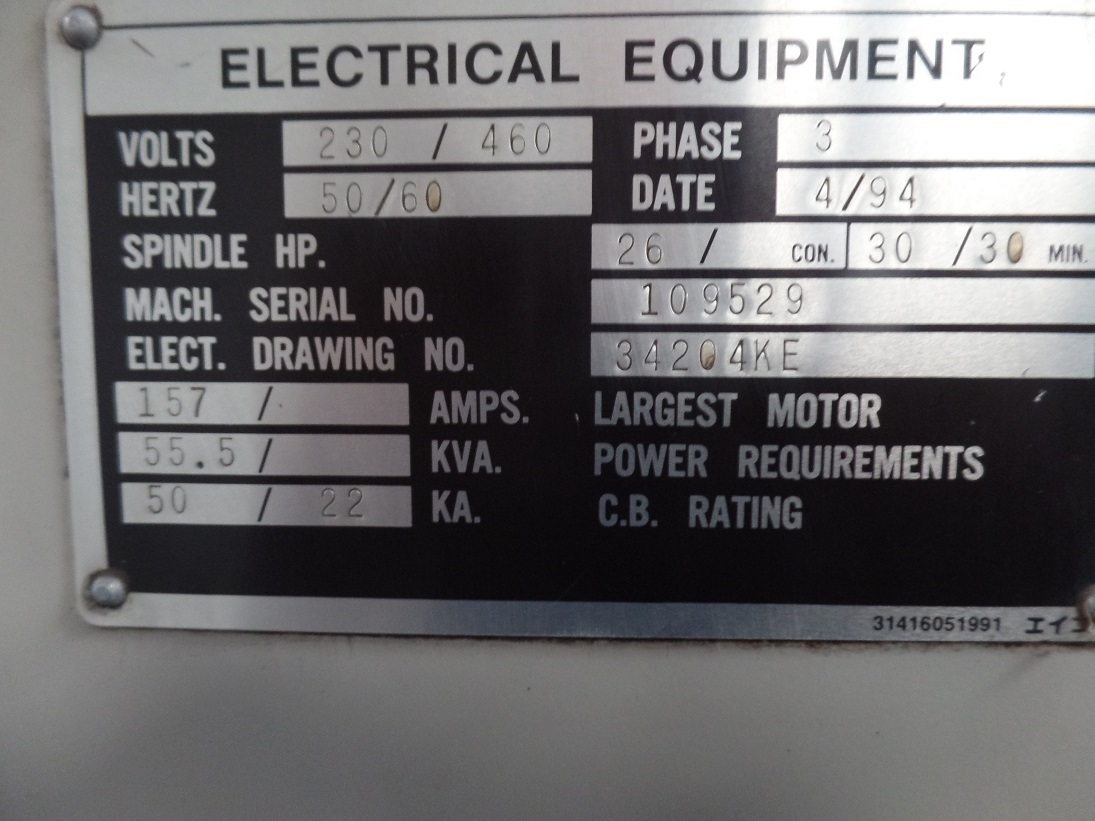

Electrics 230/3/60
Max. electric draw 48 kVA/36 kVA

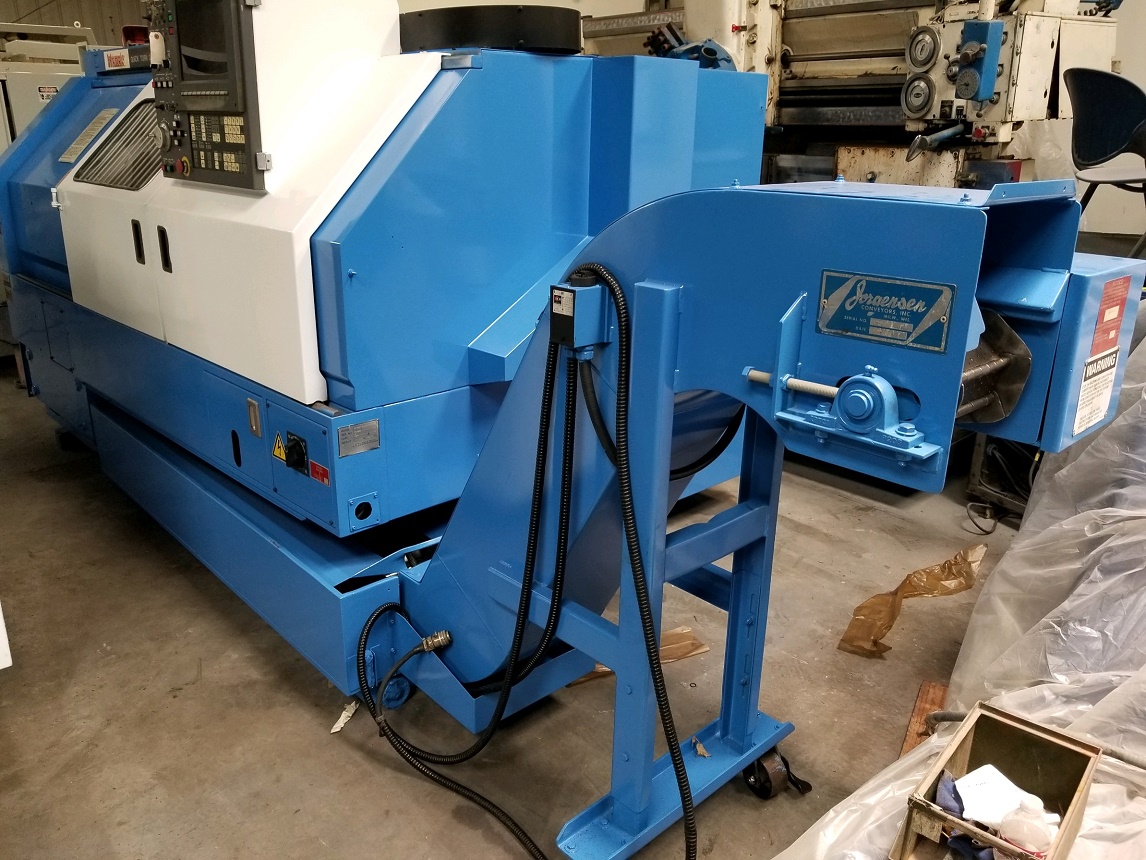

Chip conveyor Yes
Dimensions, lathe 144” W x 75” L x 80” H
Dimensions, chip conveyor 134” W x 37” L x 57” H
Machine weight 12,100 lbs.
