Italmac Pegaso 7000 4-Axis, X-275", Y-27.5", Z-11.8", 24,000 RPM, Italmac CNC, 7 Station ATC, 2014, #30855

Manufacturer

Italamec

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

30855

Model

Pegaso 7000

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #30855

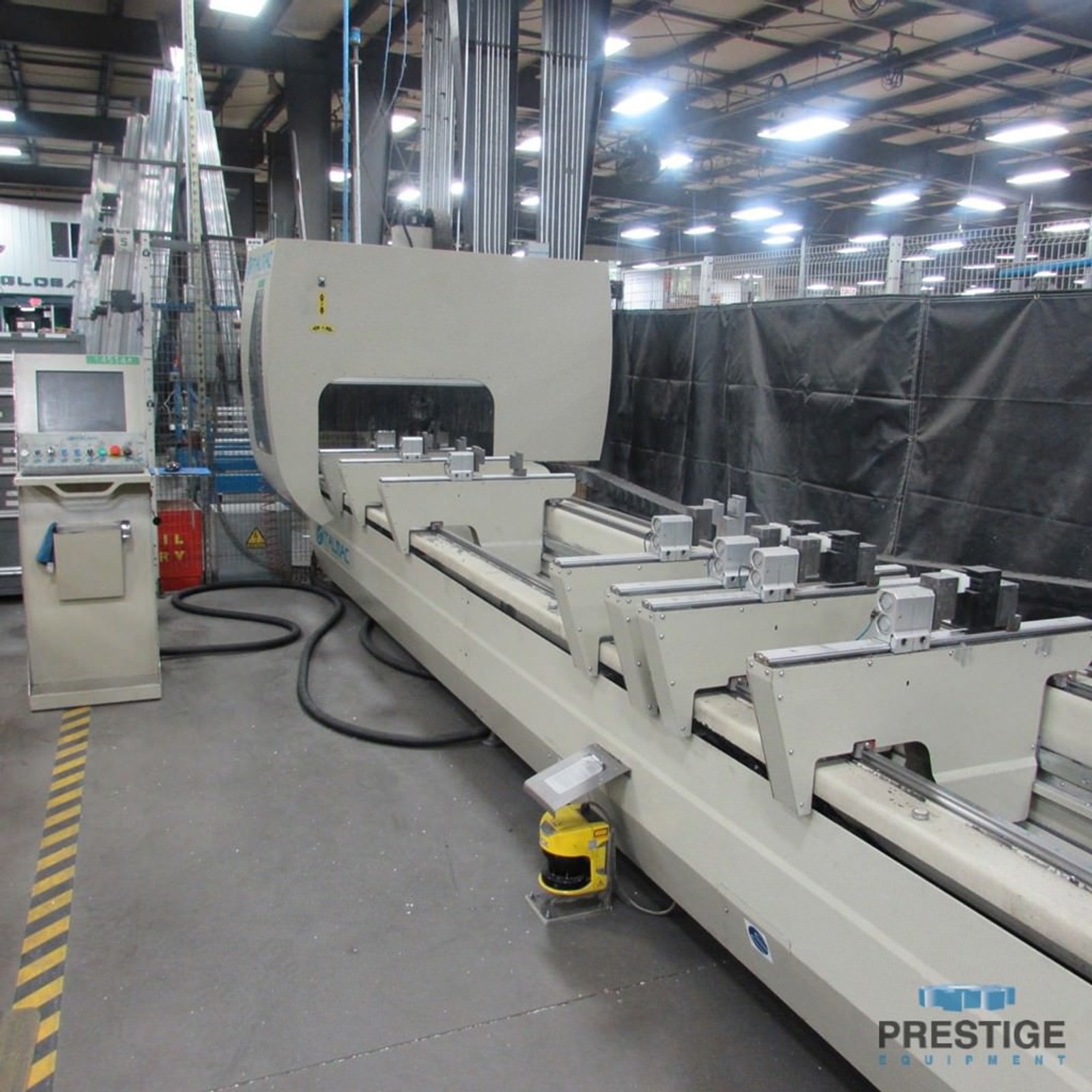

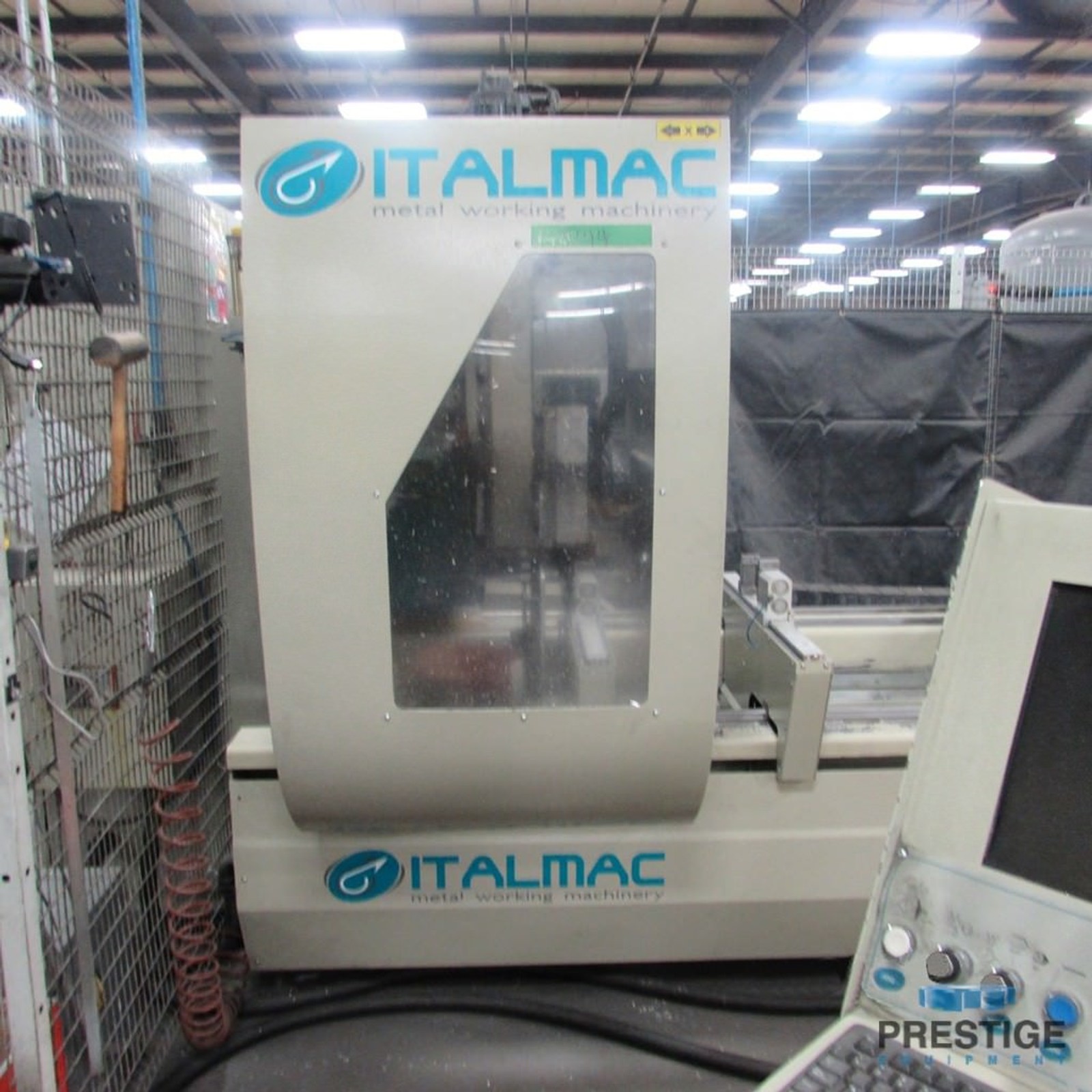

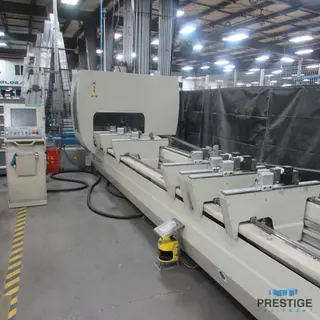

Italmac Pegaso 7000 4-Axis CNC Vertical Machining Center

CAPACITY:
X-Axis Working Traverse ............... 275.6"
Y-Axis Working Traverse ............... 27.5"
Z-Axis Working Traverse ............... 11.8"
A-Axis Rotation ....................... +/- 90 Degrees
X-Axis Traverse Speed ................. 3,937 IPM
Y-Axis Traverse Speed ................. 2,165 IPM
Z-Axis Traverse Speed ................. 1,181 IPM
Profile Rest Height ................... 36.2"
Spindle Speeds ........................ 24,000 RPM
Taper ................................. HSK 40
Spindle Motor ......................... 13 HP
Over Dimensions without enclosure...... 359" x 108" x 83"

EQUIPPED WITH:

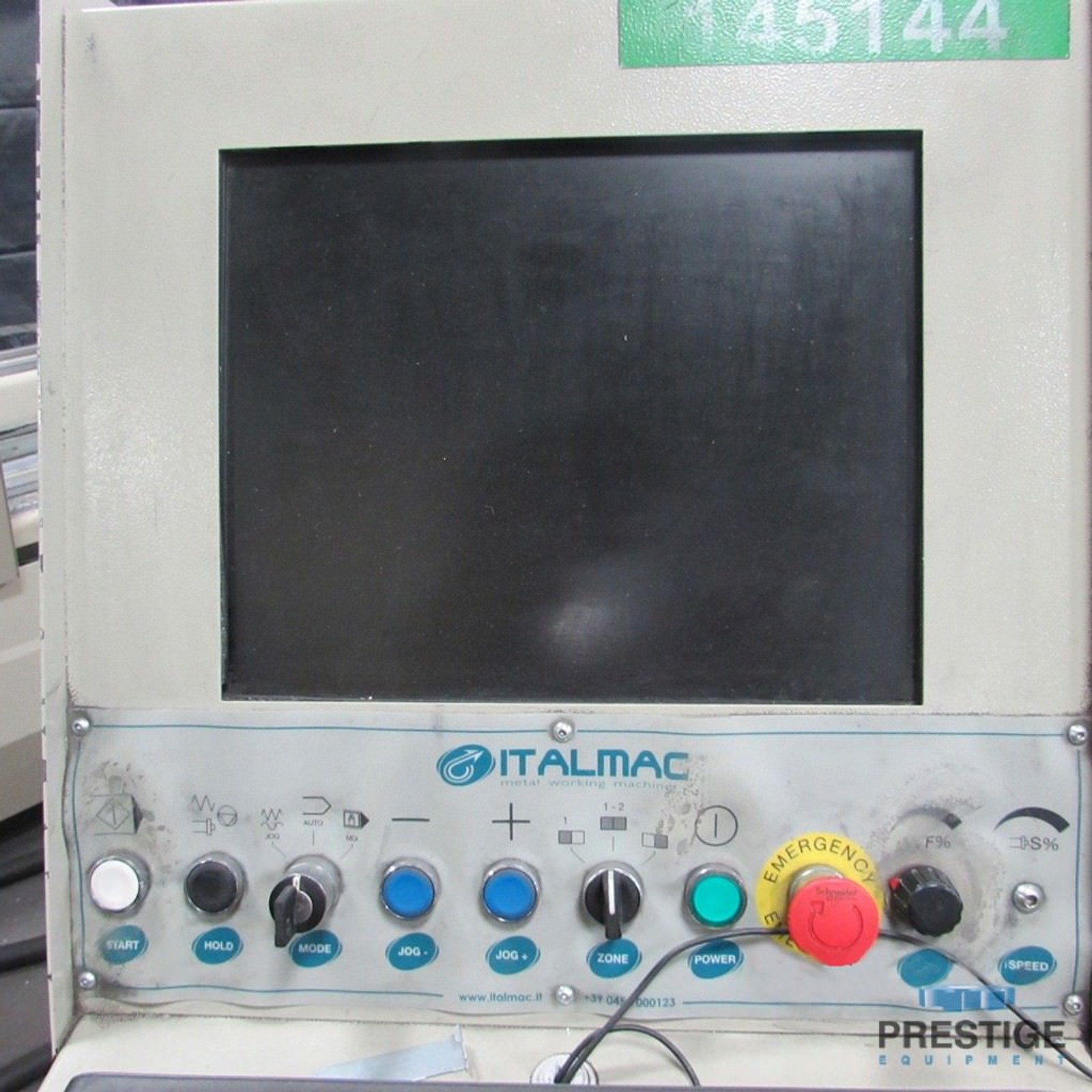

Italmac CNC Control
13 HP Spindle
7-Position Automatic Tool Changer

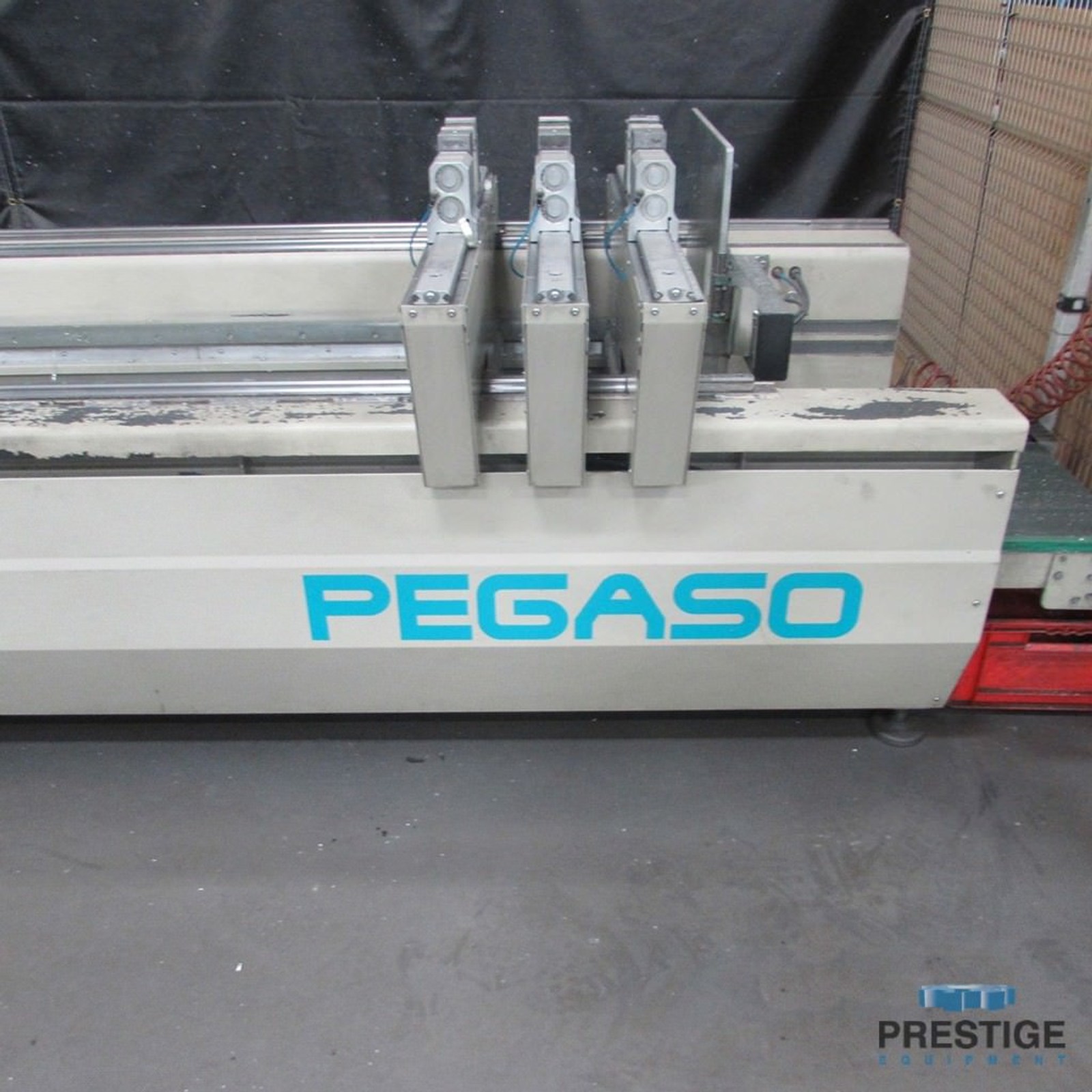

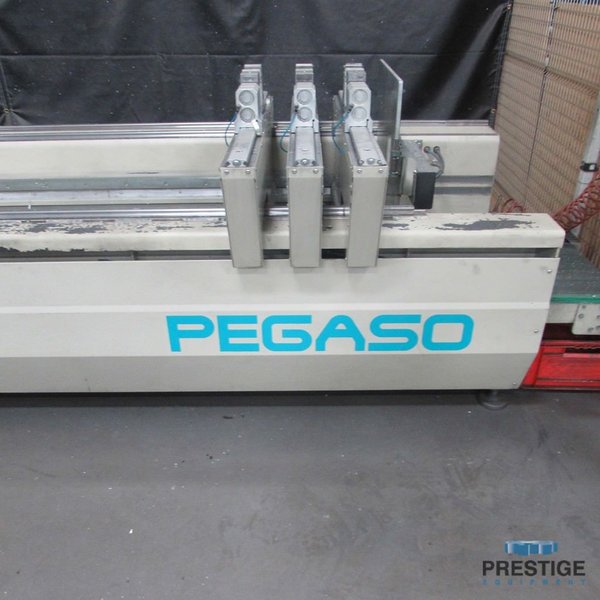

(8) Vice Clamps


NOTE:
Inspect In Plant Under Power

No Video Available
