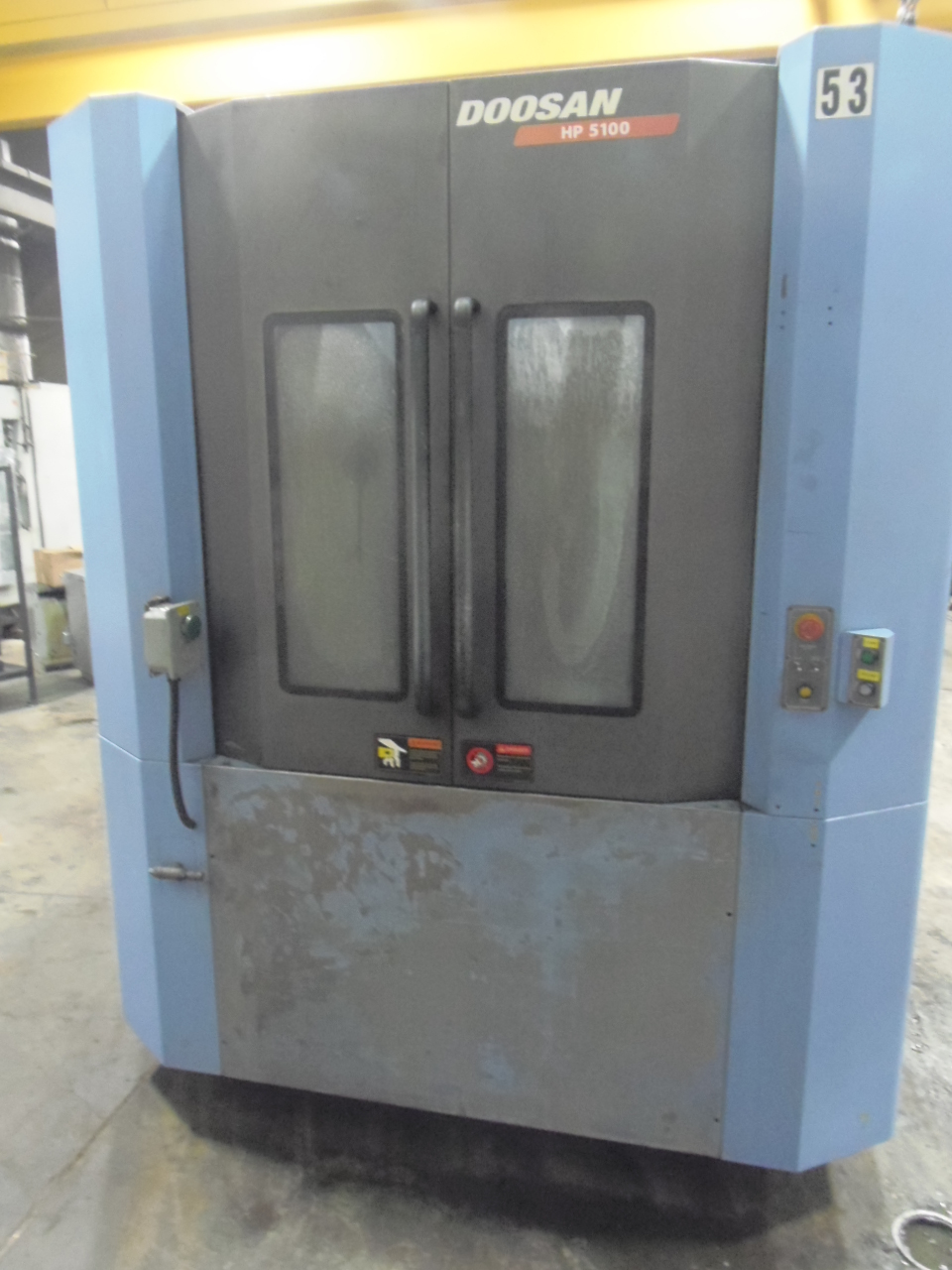

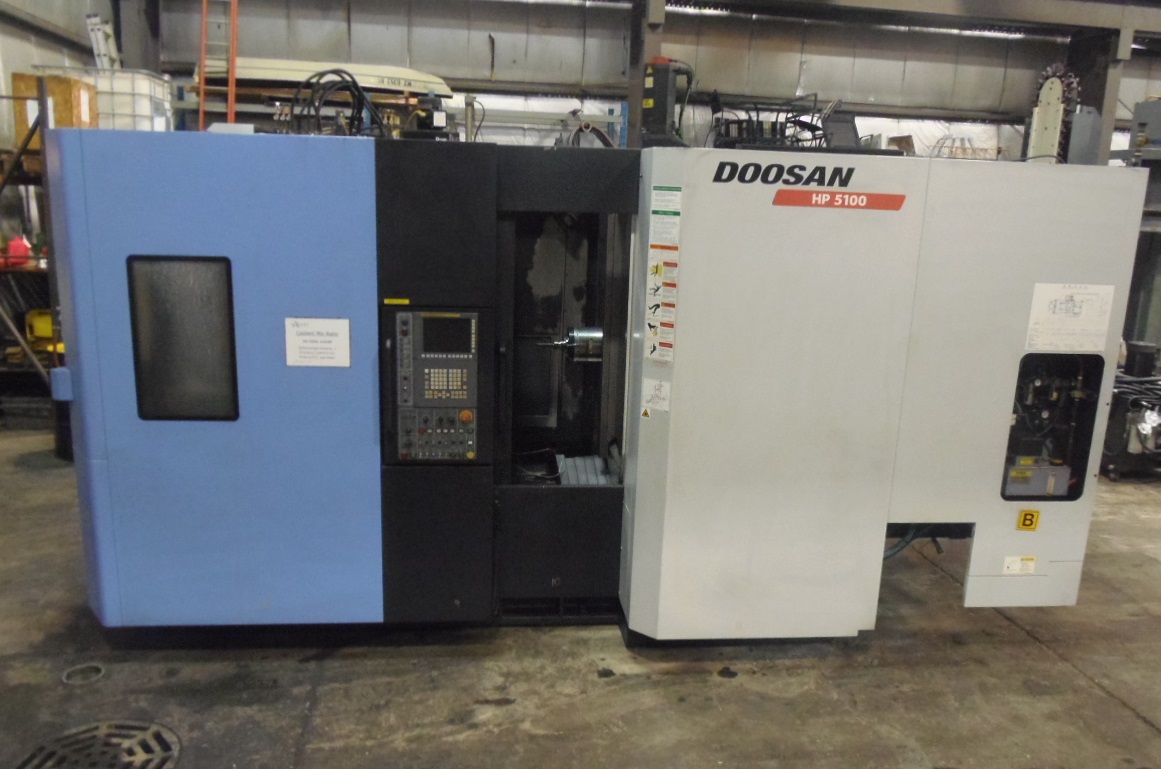

DOOSAN HP-5100, 33.5 X 27.6 X 29.5 TRAVELS, 2-19.7" PALLETS, FANUC 31i, TSC, CHIP, 60 ATC, CAT 4

Manufacturer

DOOSAN

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, PORTABLE

Stock

10283

Model

HP-5100

Dealer Location

Wisconsin

Request a Quote
View Contact Information

Spec Sheet



GENERAL SPECIFICATIONS:

MAKE............................ DOOSAN
MODEL........................... HP-5100

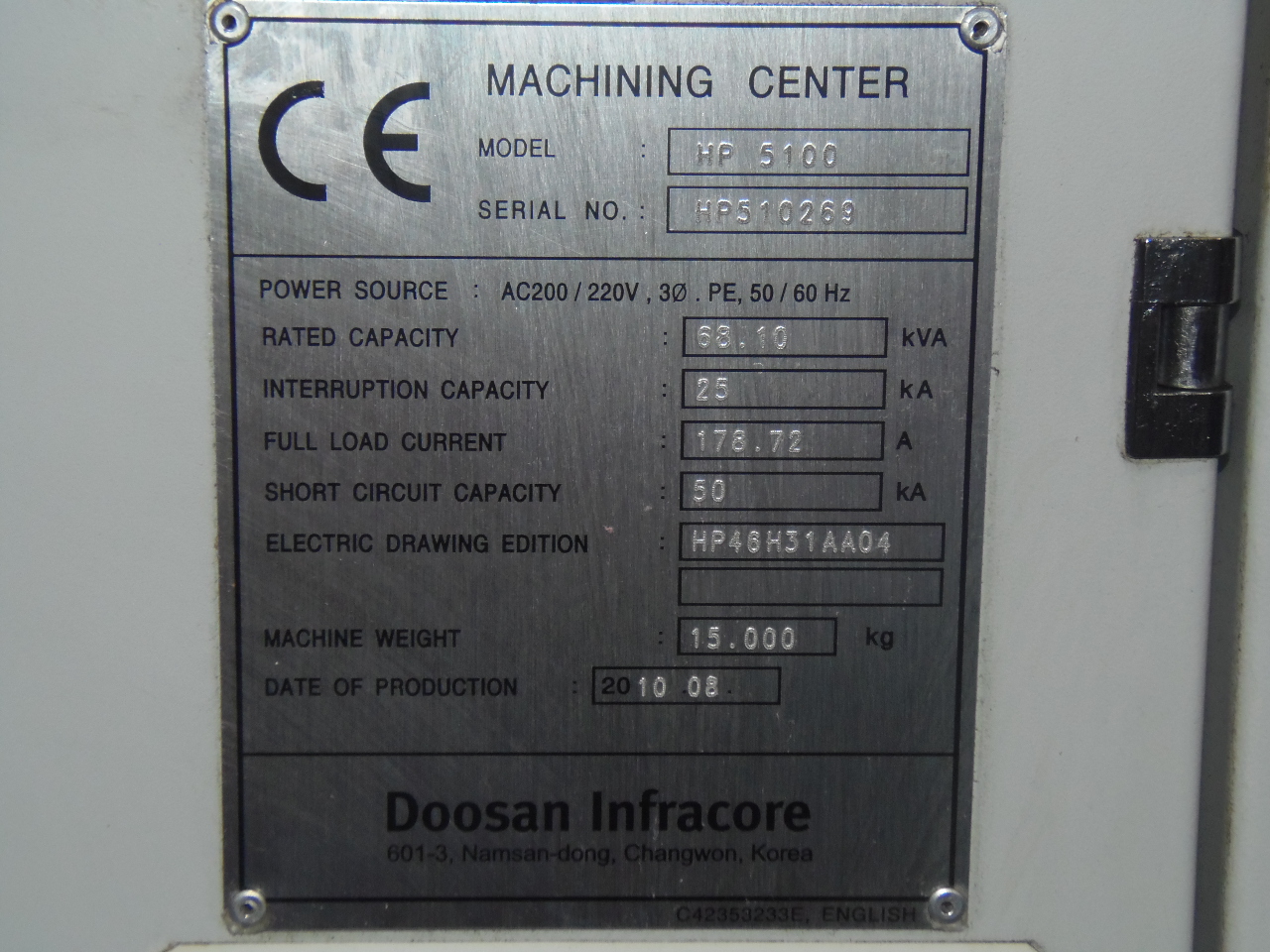

SERIAL NUMBER................... HP510269
AGE (YEAR)...................... 2010
TRAVELS X....................... 33.5"
TRAVELS Y....................... 27.6"
TRAVELS Z....................... 29.5"
RAPID TRAVERSE RATE............. 2362 IPM
CUTTING FEED RATE............... 0 - 1181 IPM
SPINDLE NOSE TO TABLE CENTER.... 5.91 - 35.43"
SPINDLE CENTER TO PALLET TOP.... 1.97" - 29.53"

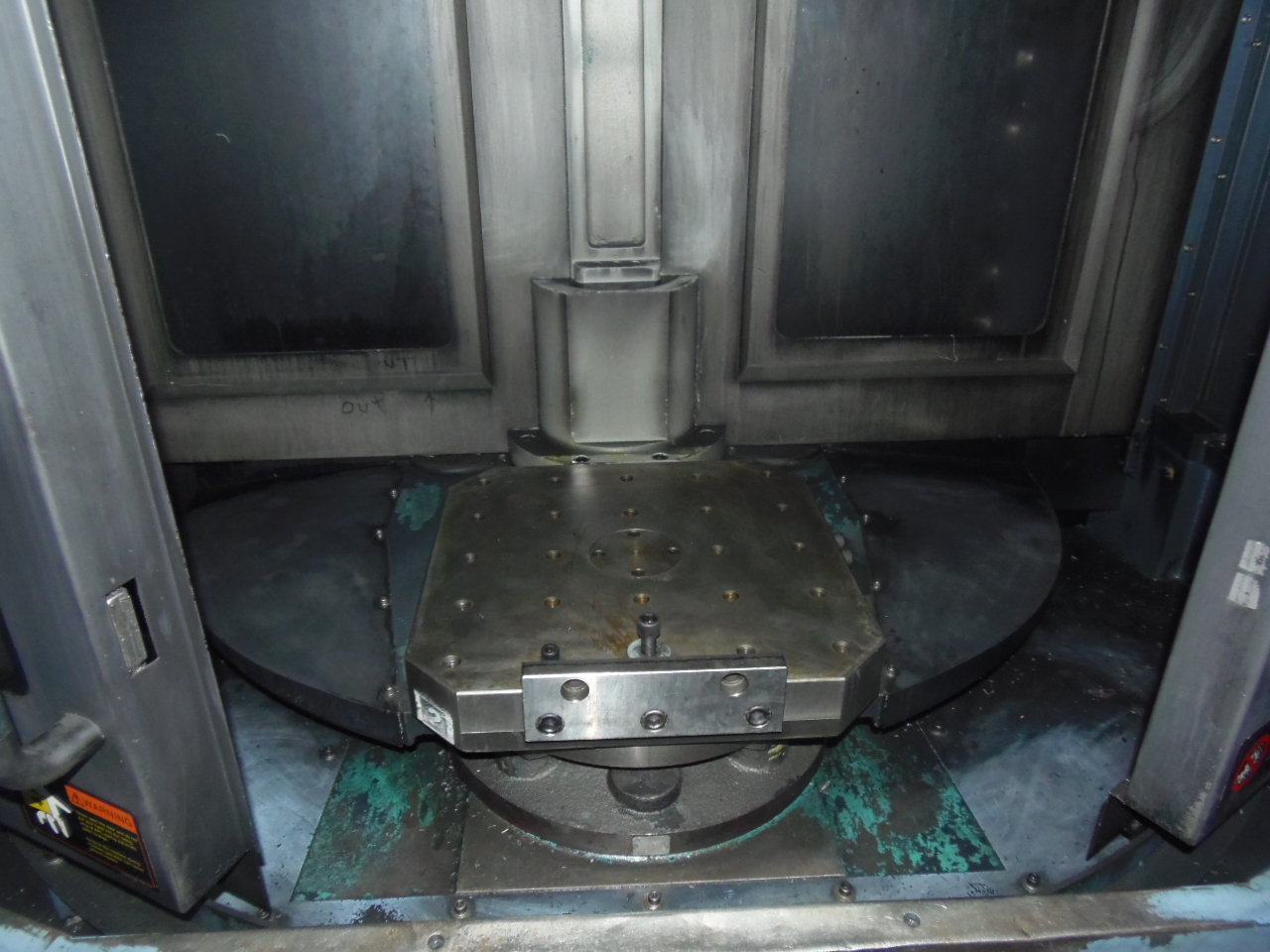

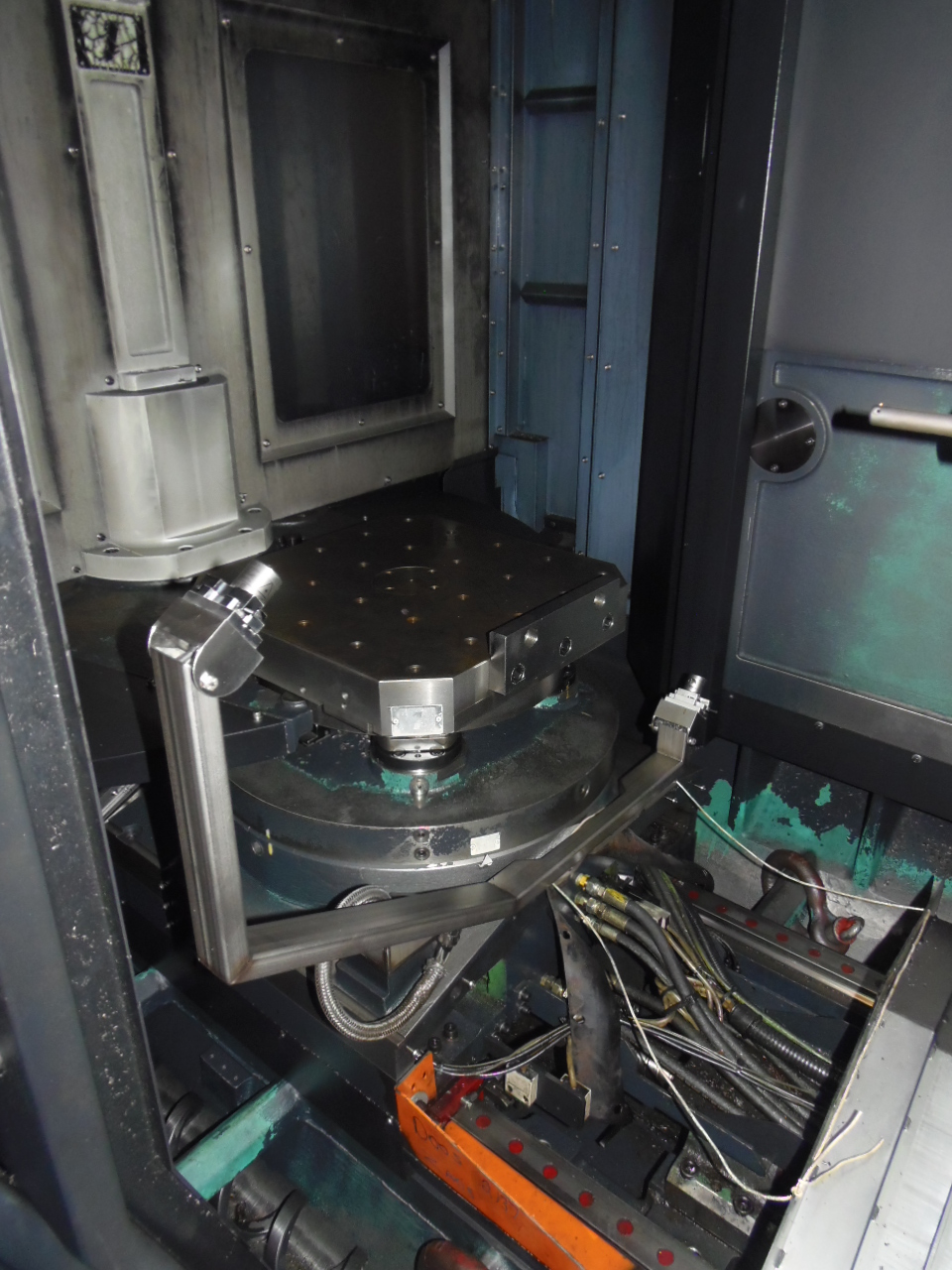

PALLET SIZE..................... 19.7" X 19.7"
PALLET INDEX.................... 1 DEGREE (360 POSITION)
SPINDLE TAPER................... CAT 40
TOOL CHANGER.................... 60 ATC

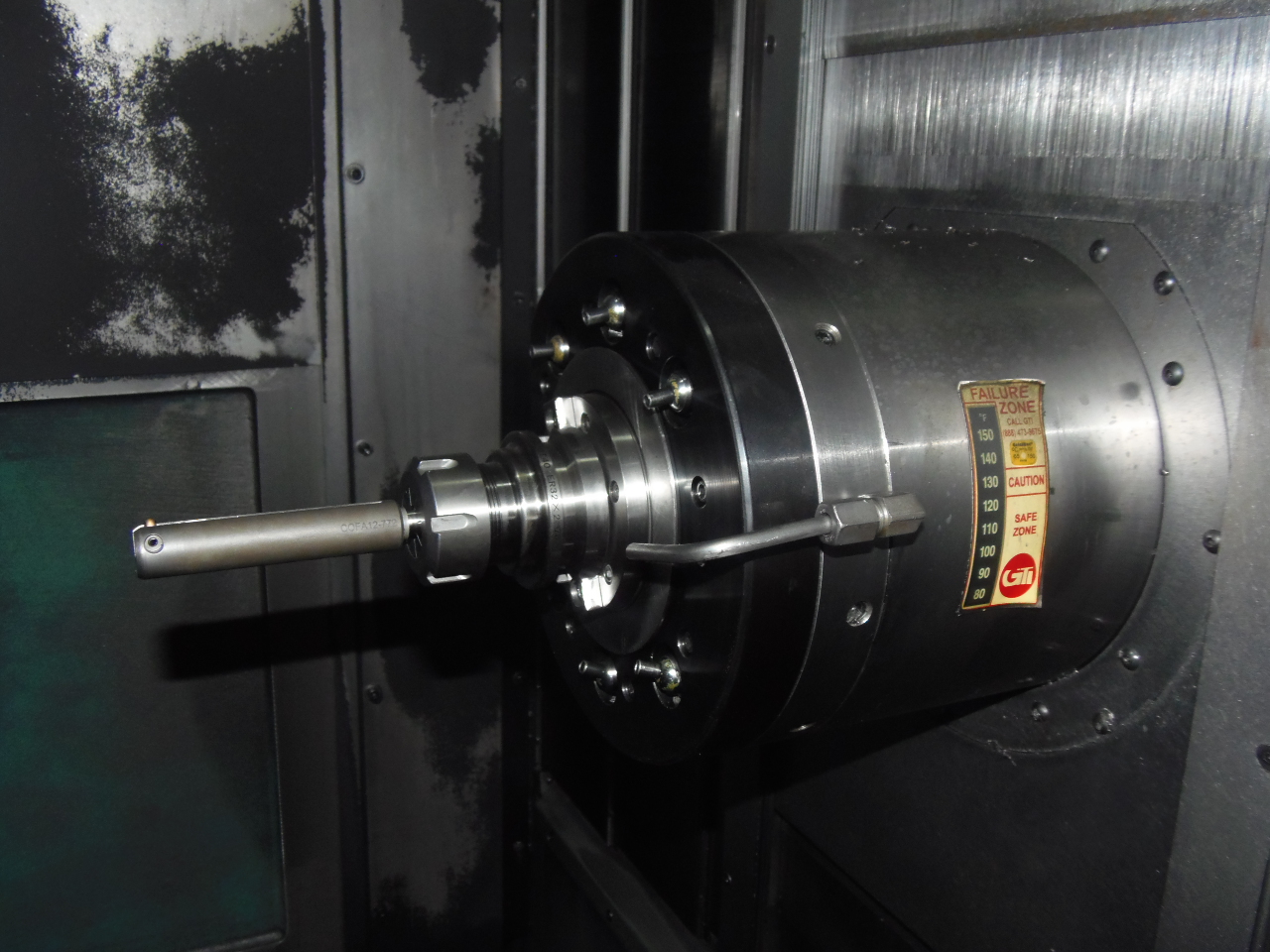

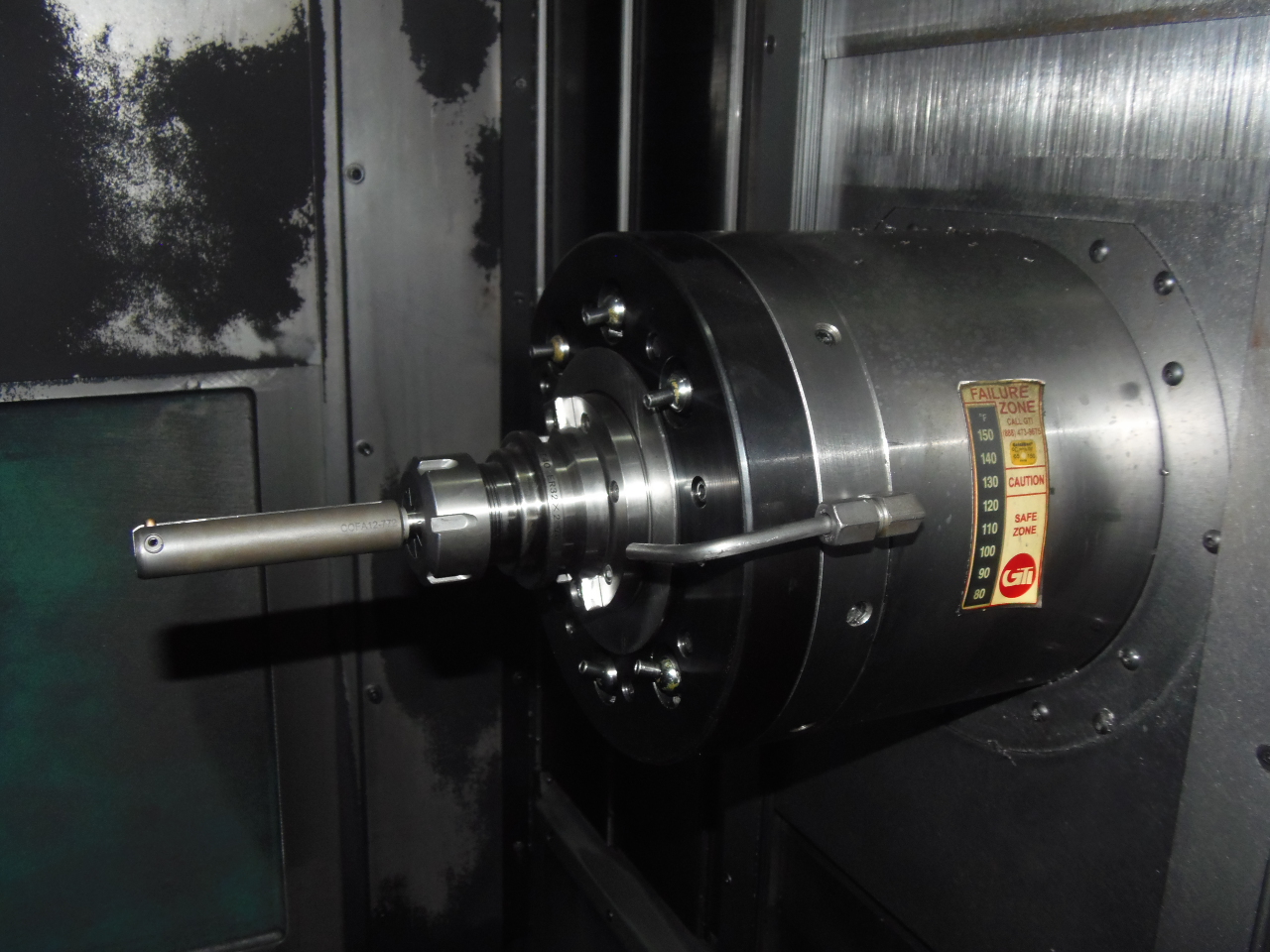

MAX SPINDLE SPEED............... 12,000 RPM
DIMENSIONS...................... 200" X 111" X 116" H
WEIGHT (APPROX)................. 38,000 LBS.

EQUIPPED WITH:

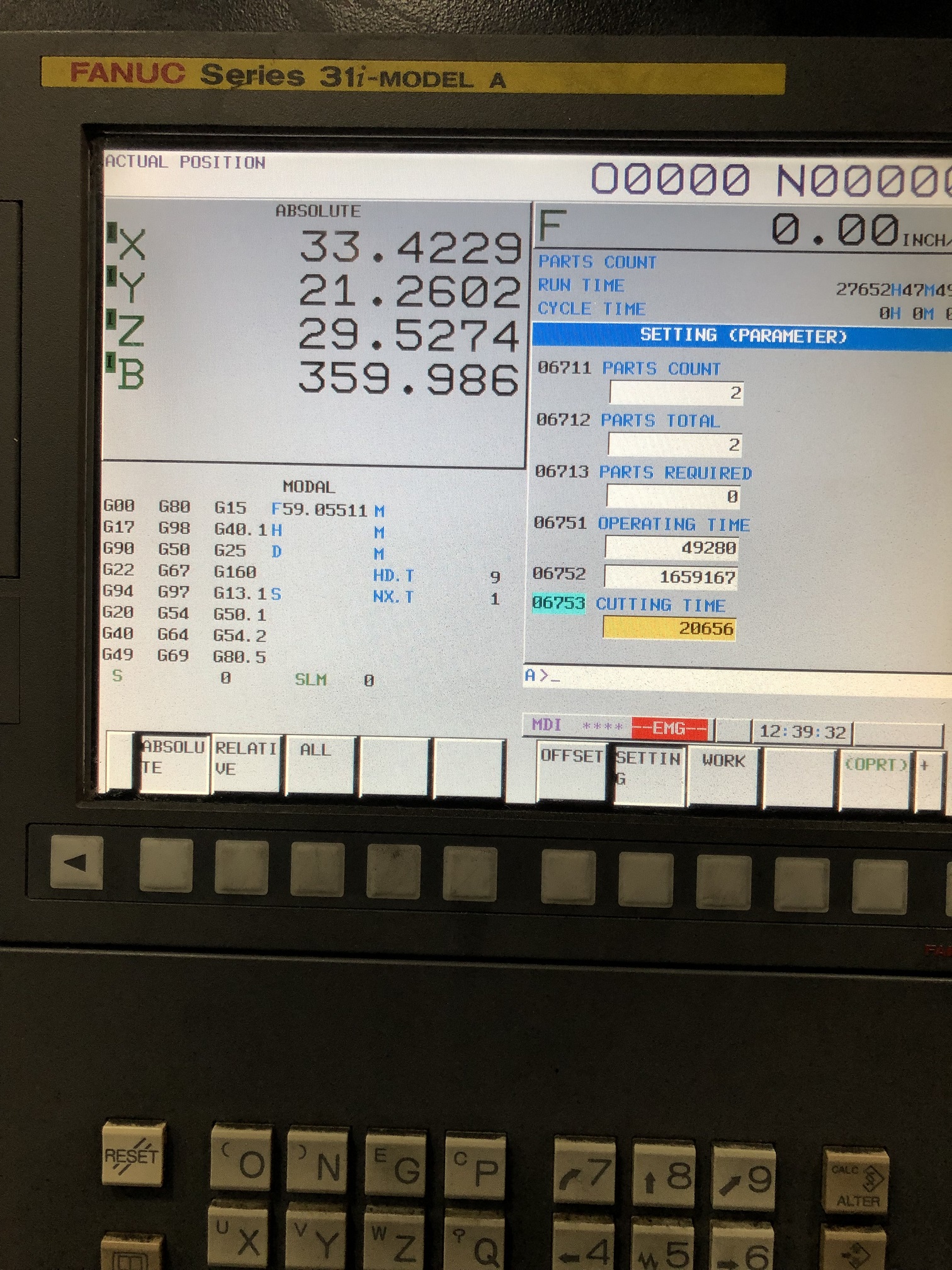

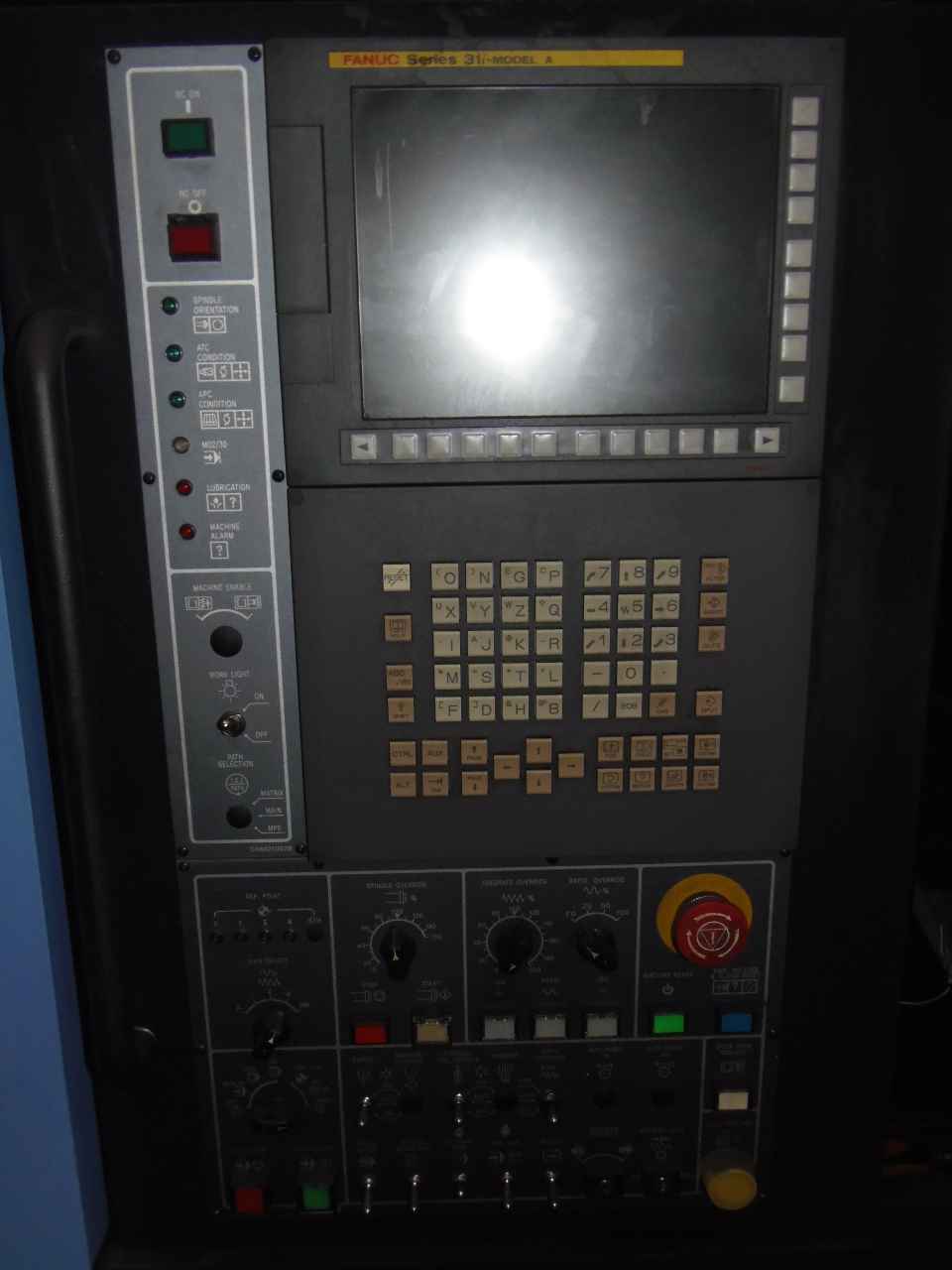

FANUC 31i CONTROL
THRU SPINDLE AND FLOOD COOLANT SYSTEM

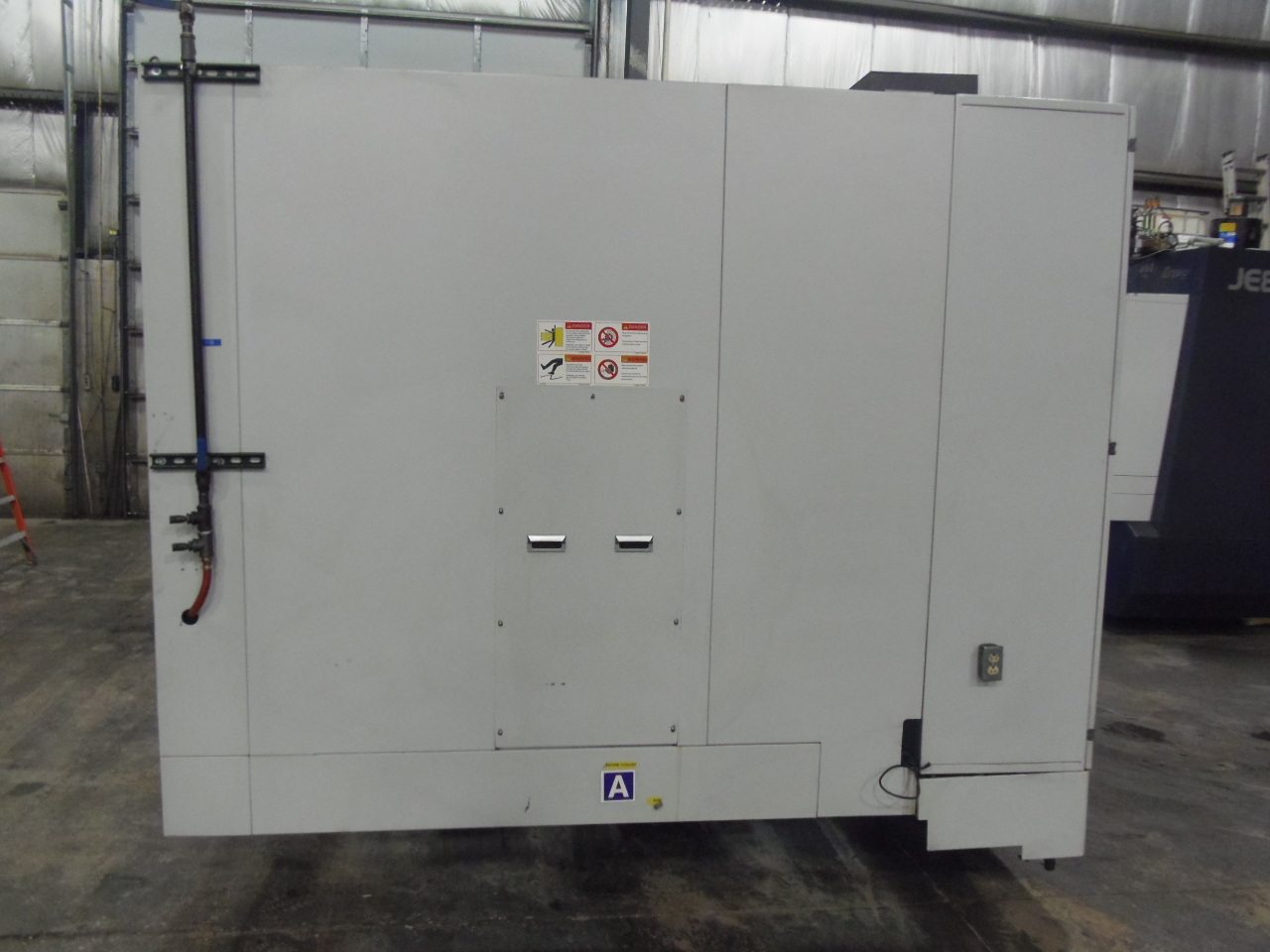

FULL ENCLOSURE CHIP AND COOLANT SHIELD
TOOL LENGTH MONITORING
SET UP FOR HYDRAULIC FIXTURES
CHILLER
CHIP CONVEYOR
CE MARK

SPECIFICATIONS SUBJECT TO VERIFICATION
