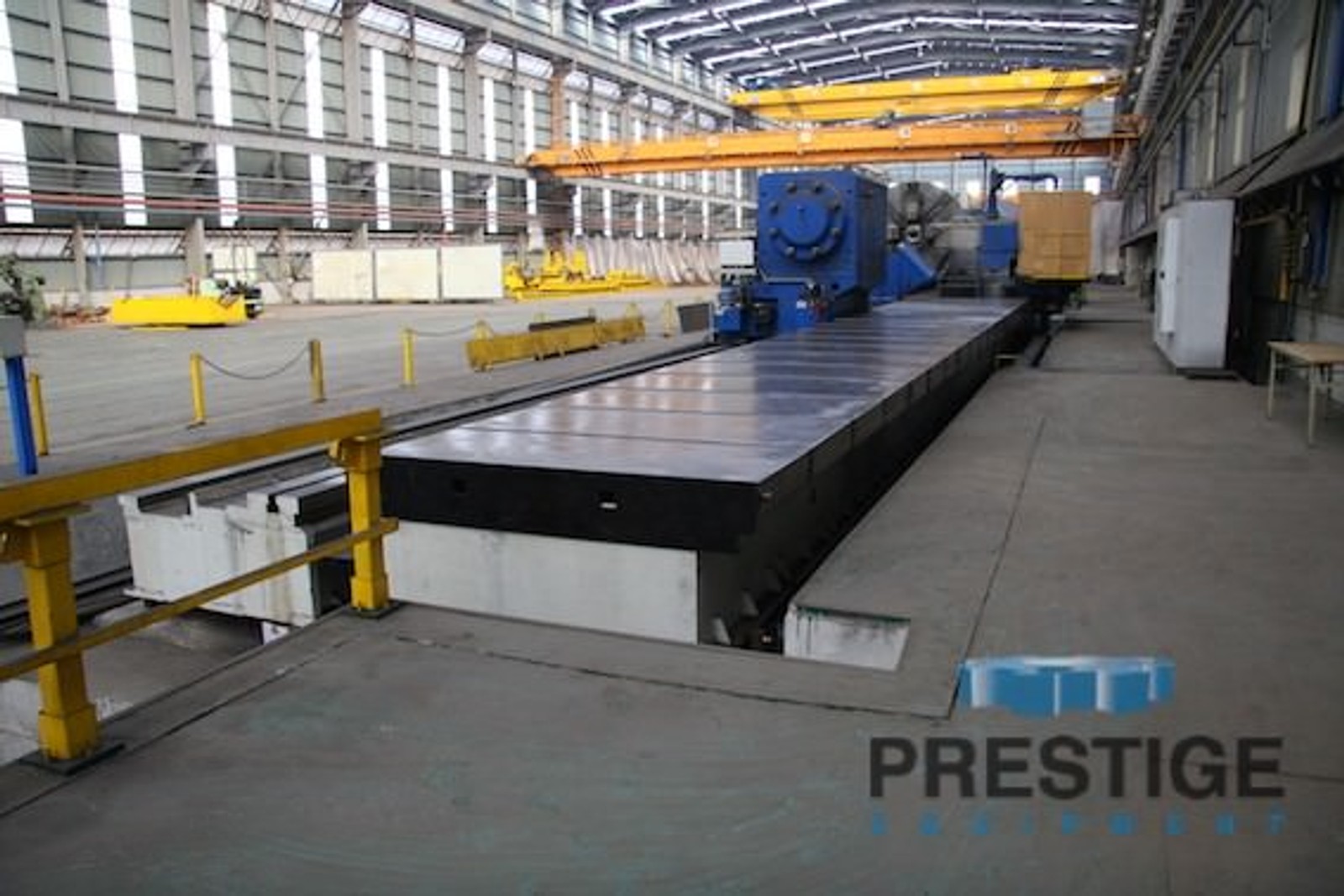

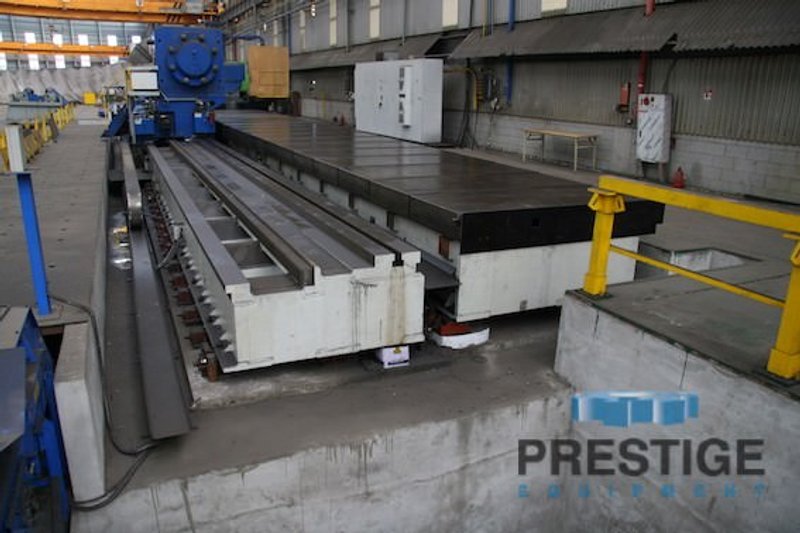

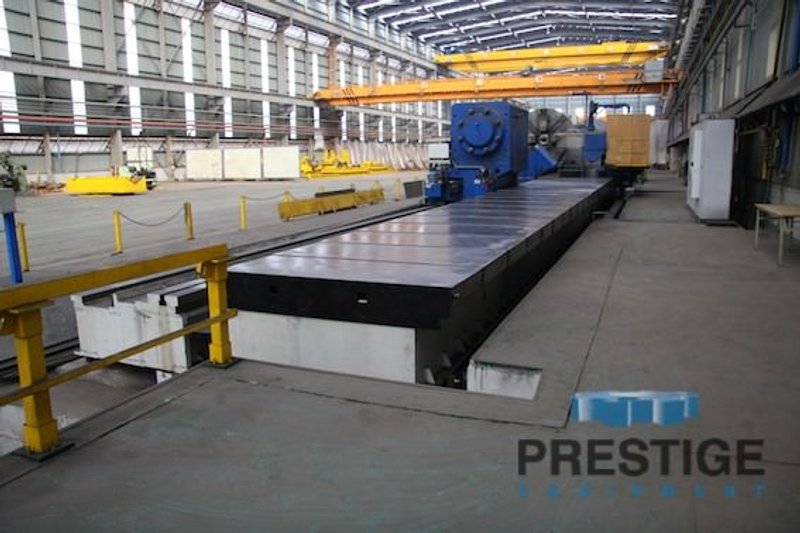

152" x 787" SMG Heavy Duty CNC, 118" Over Carriage, 300 Ton Cap, Siemens 840D, 2007 #30838

Manufacturer

SMG

Category

Lathes

Type

LATHES, ENGINE

Stock

30838

Model

2500 x 20000

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #30838

SMG 2500 x 12000 Heavy Duty CNC Lathe 152" x 787"

FEATURES:
SIEMENS 840D CNC Control
2-Carriages
300 Ton Weight Capacity

CAPACITY:
Maximum Swing Over Bedways ............ 152.75"
Maximum Swing over Cross Slide ........ 118.11"
Distance Between Centers .............. 787.40"
Faceplate Diameter .................... 106.30"
Maximum Weight of Workpiece ........... 300 Tons
Axial Load on Center of Headstock ..... 150 Tons
Radial Load on Center of Headstock .... 220 Tons
Max. Load Between Faceplate & SR ..... 130 Tons
Max. Load on Single Steady Rest ...... 80 Tons
Max. Load Supported by Face Plate .... 150 Tons

HEADSTOCK:
Spindle Speed Range .................. 0.5-120 RPM
Speed Ranges ......................... 4-Steps
Main Drive Motor ...................... 335 HP

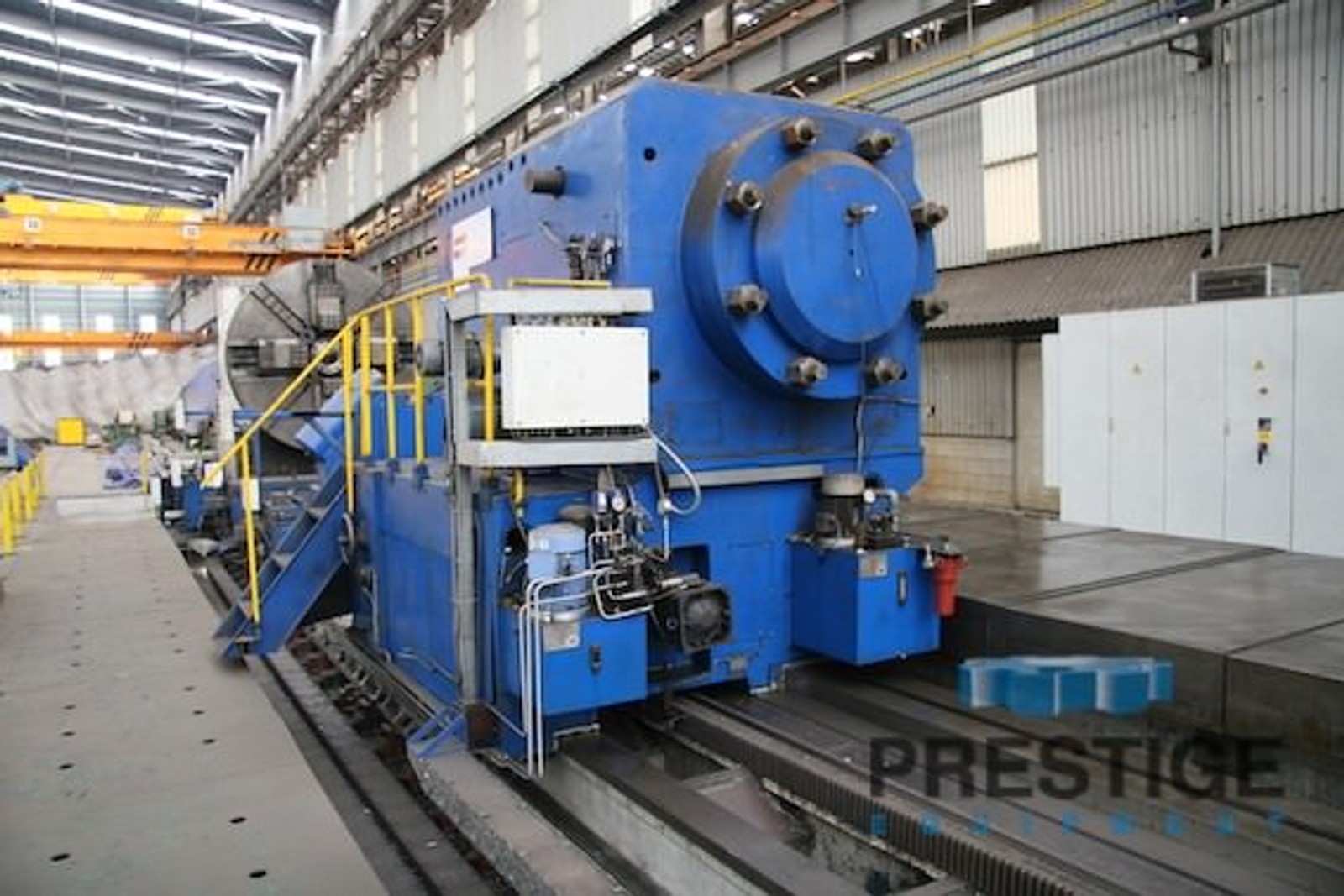

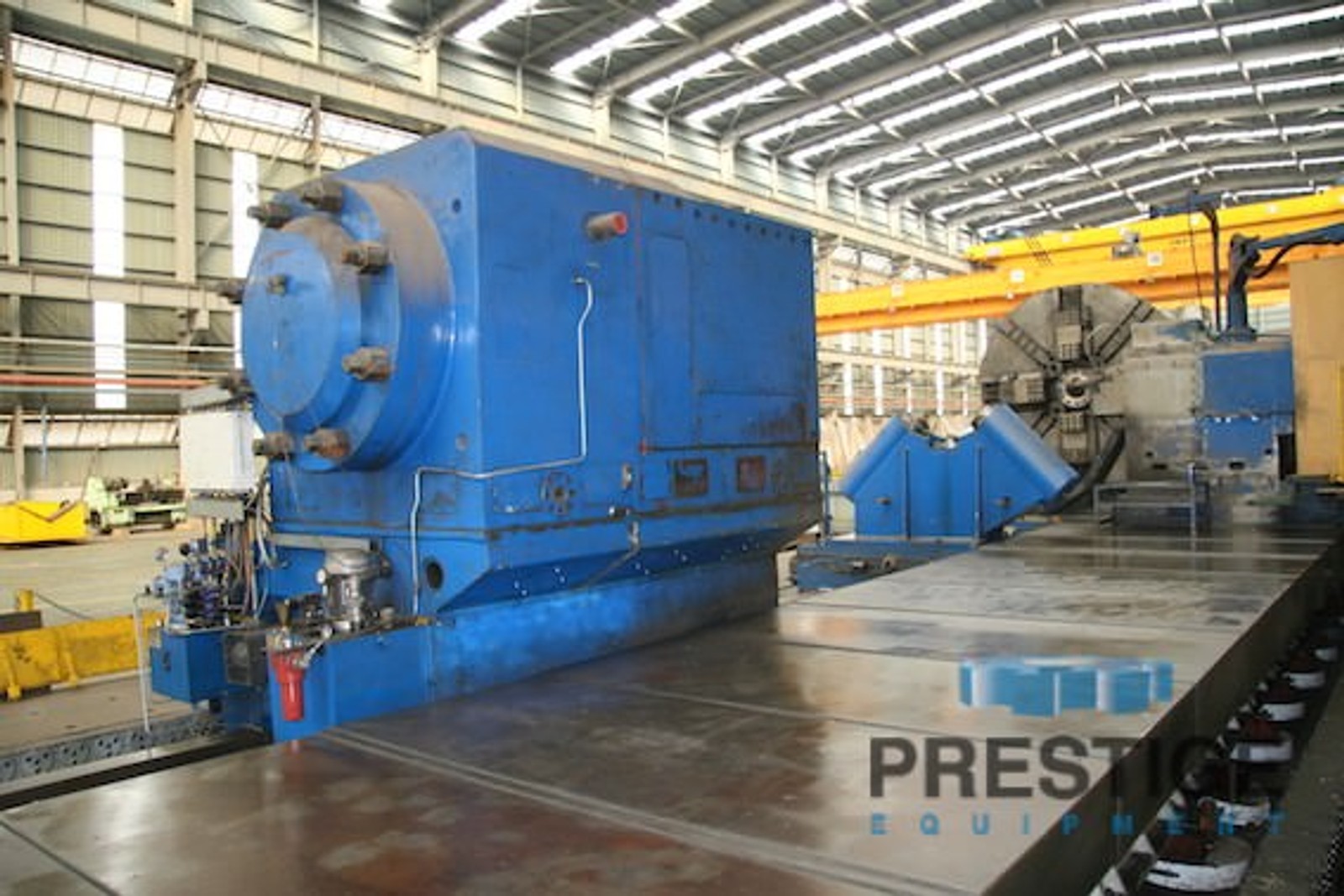

TAILSTOCK:
Tailstock Quill Cross Section ......... 39.37" x 39.37"
Tailstock Shaft Travel, Automatic .... 5.90"
Quill Rapid Traverse ................. 15.74 IPM
Tailstock Rapid Traverse .............. 298.42 IPM

Floor Space Length x Width ............ 1141.7" x 248"
Height ................................ 185.03"

EQUIPPED WITH:

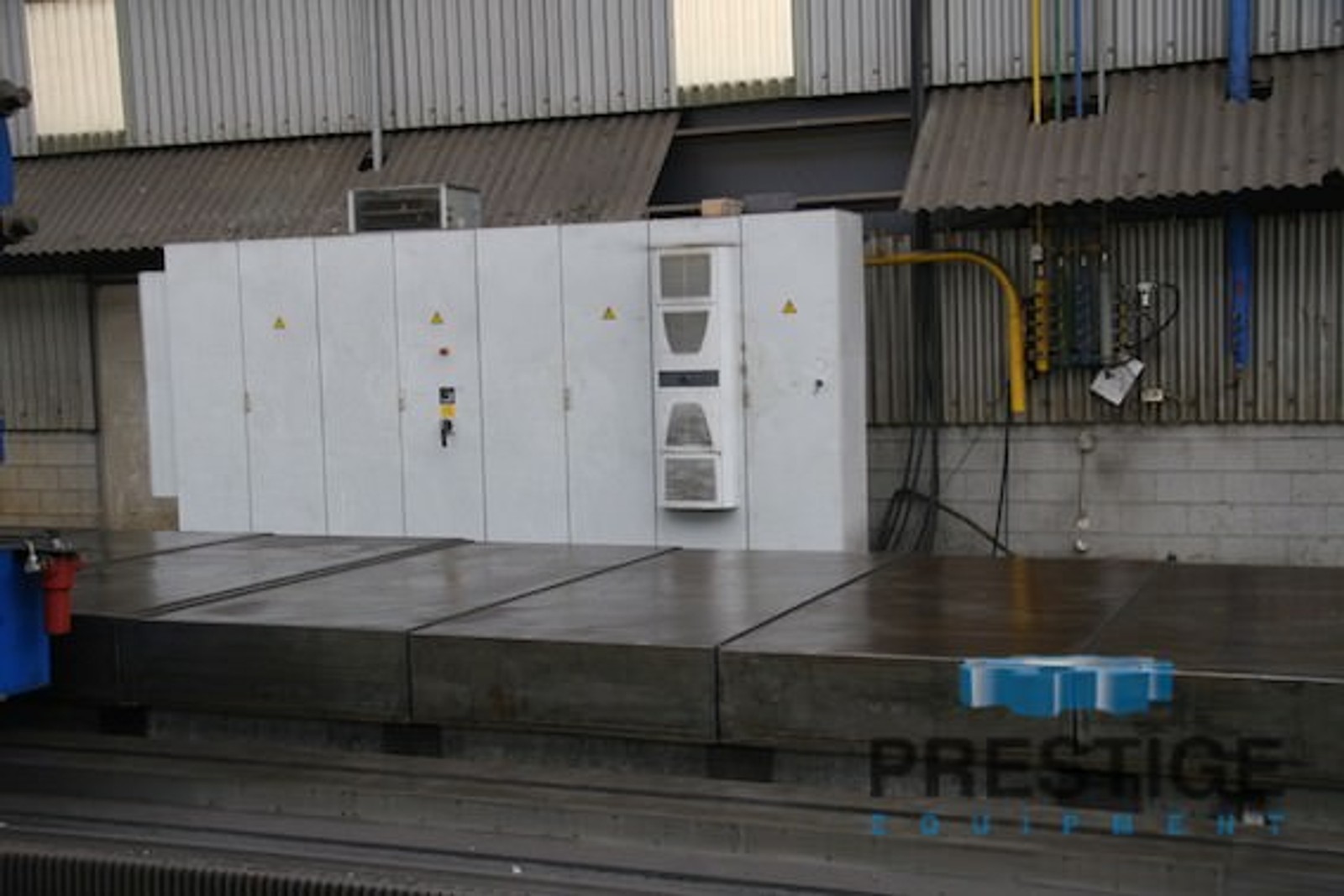

Siemens 840D CNC Control (Retrofit In 2008)
2-Carriages
2-Steady Rests
102" Diameter 4-Jaw Chuck

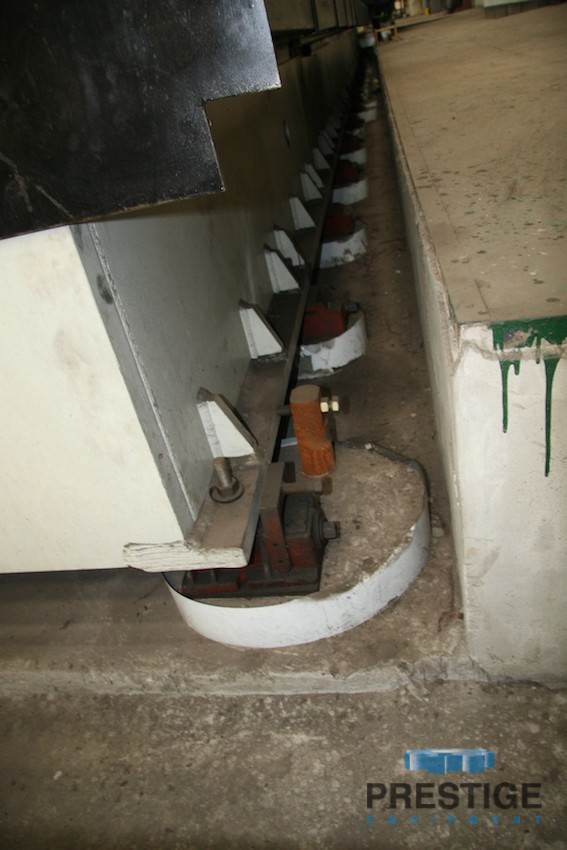

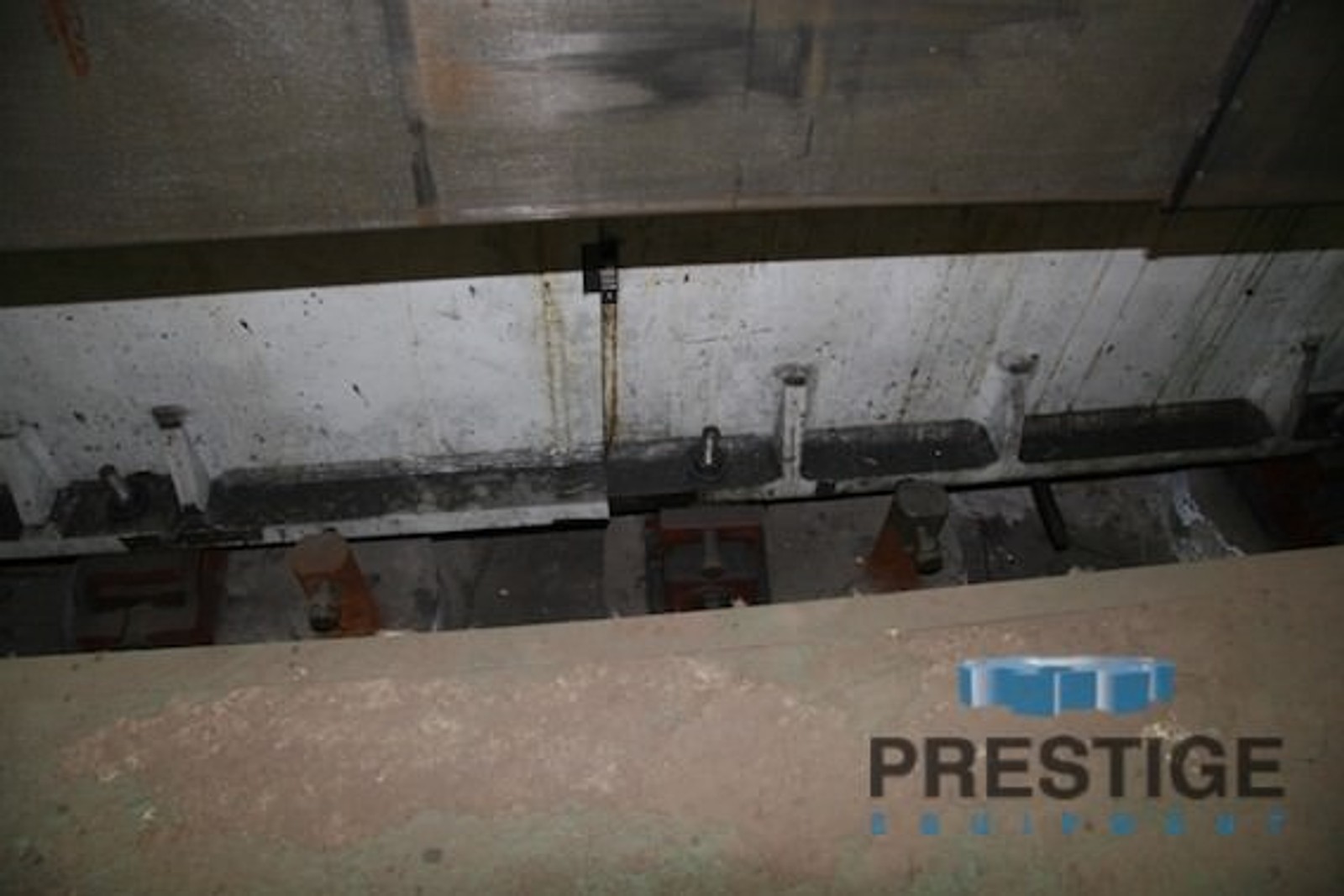

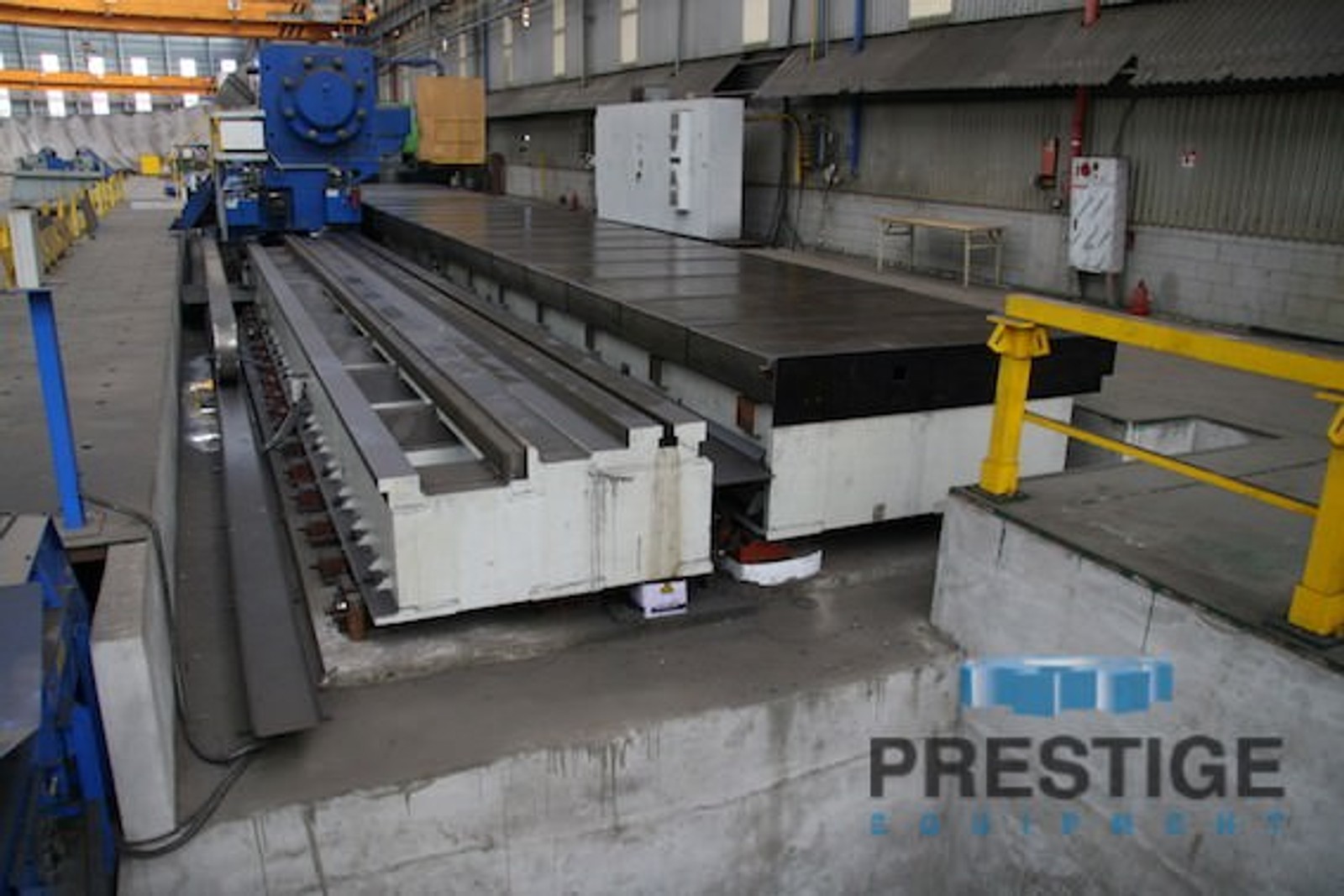

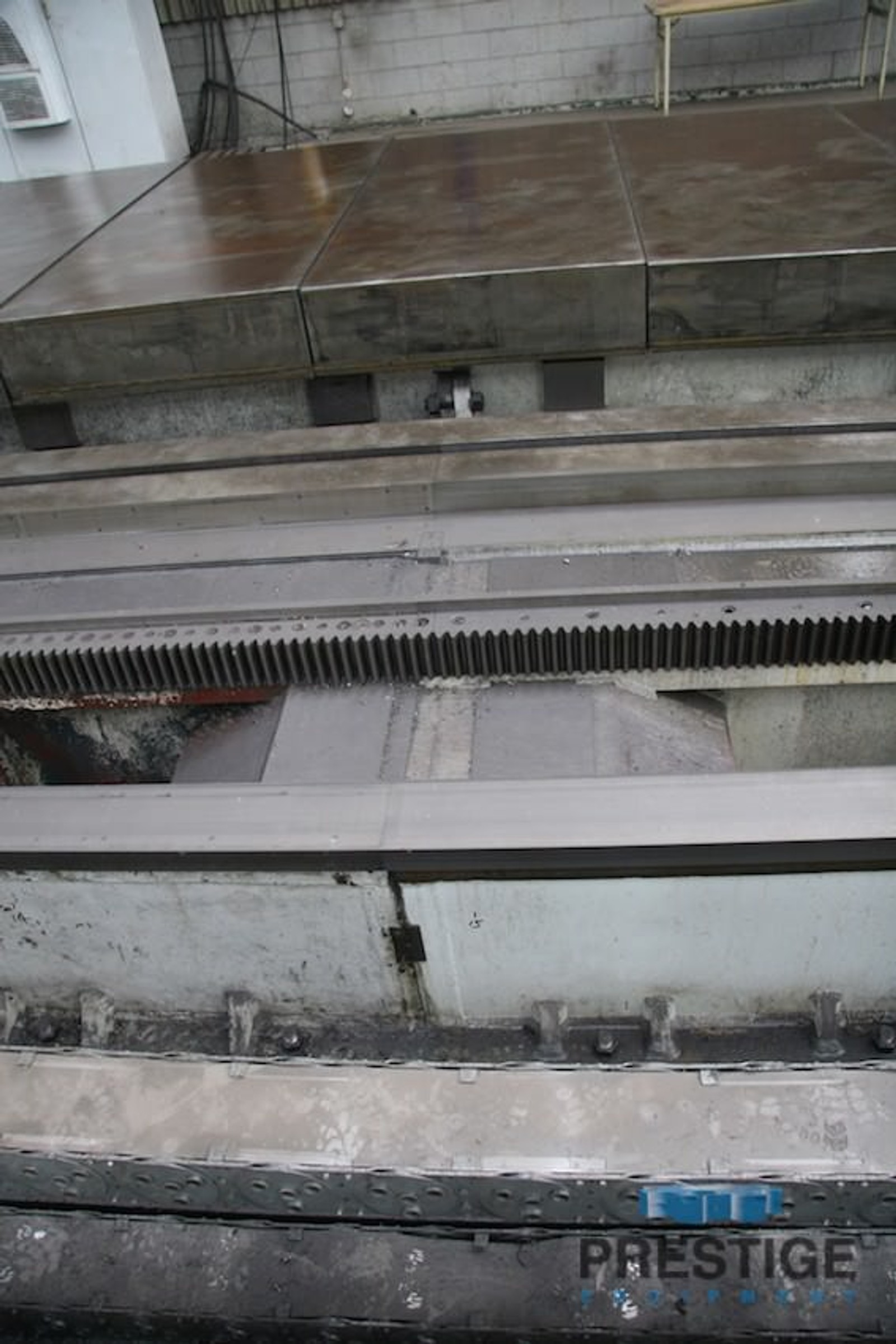

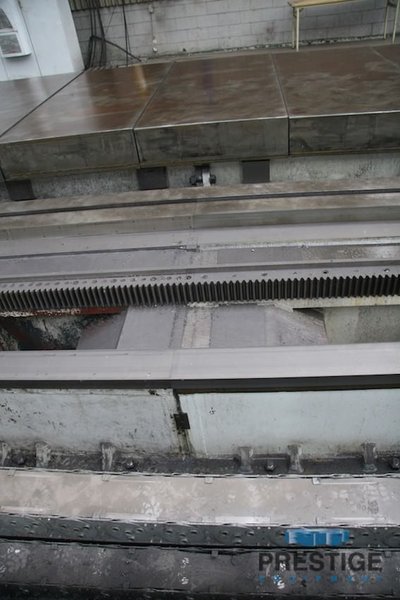

6-Way Bed 3+2 For Carriage Slide & Tailstock

NOTE:
Rebuilt and CNC Retrofit in 2008 with all New Electrics.
Carriages to Pass Steady Rest and Tailstock
