78" x 236" x 16.5" T-Slotted, 8 T-Slots on 10" Centers, 16.55" Thick, Cast Iron, #27522

Manufacturer

Category

Tables

Type

TABLES, FLOOR & LAYOUT PLATES, (Radial & Boring Mill)

Stock

27522

Model

T-Slotted

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #27522

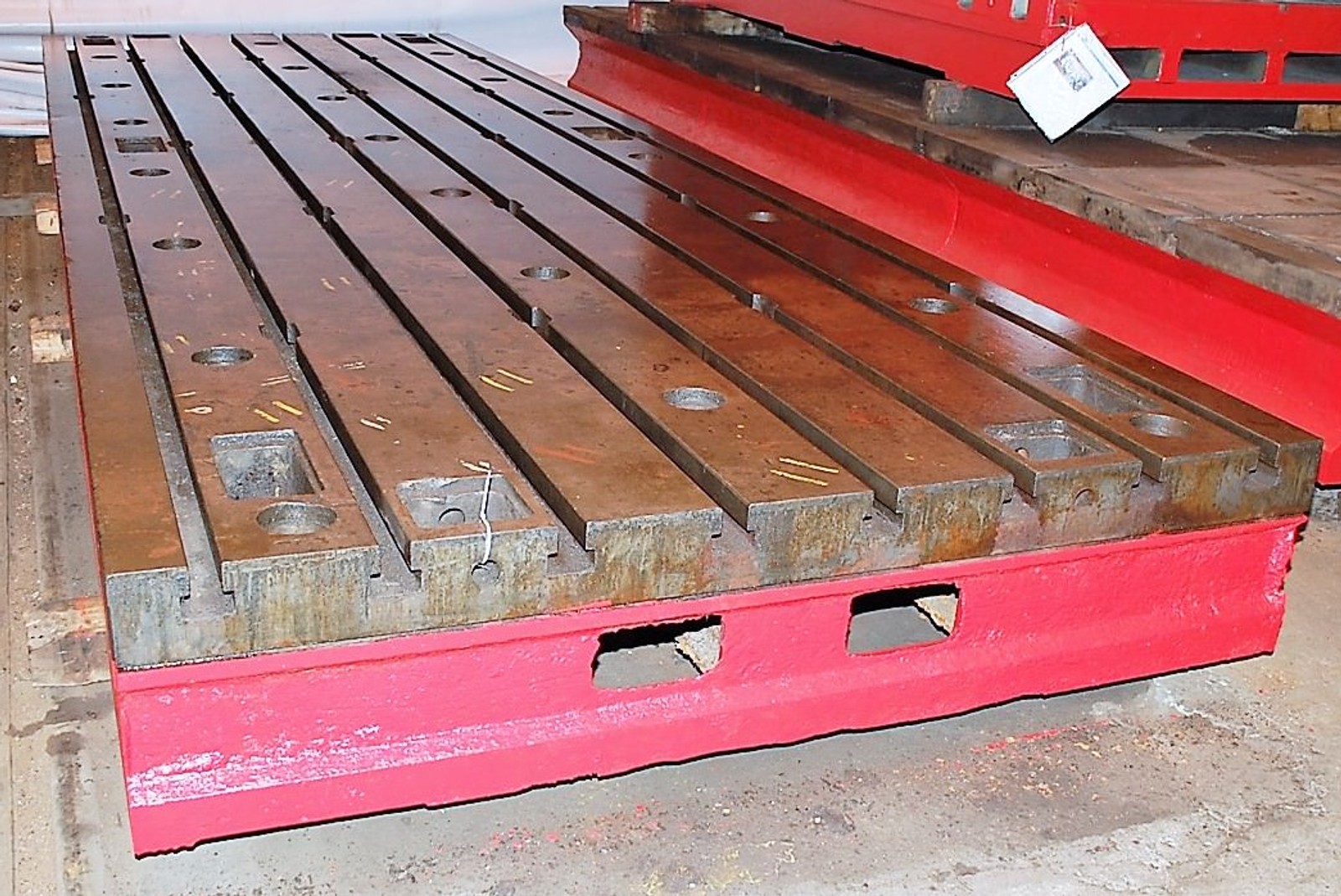

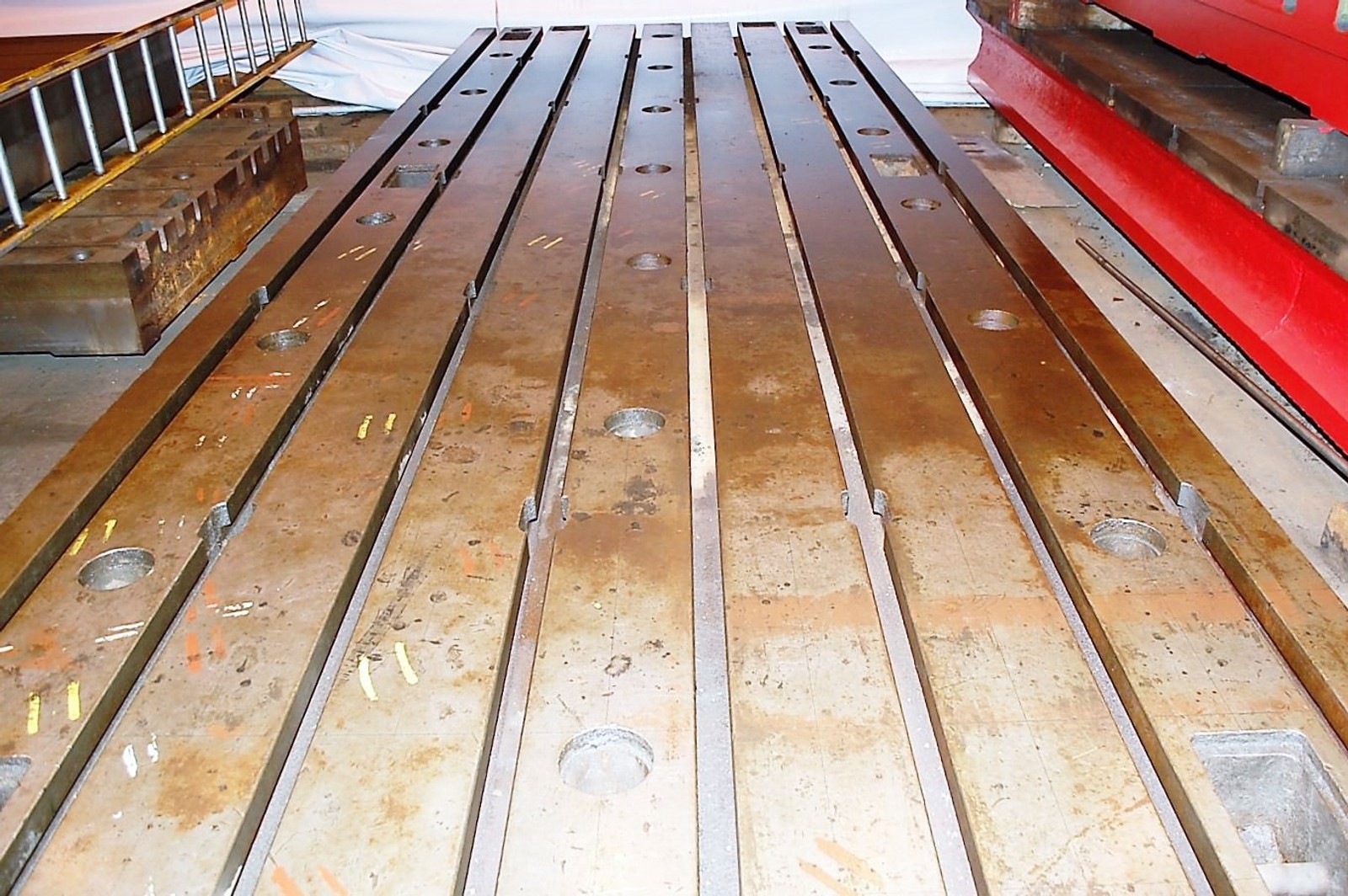

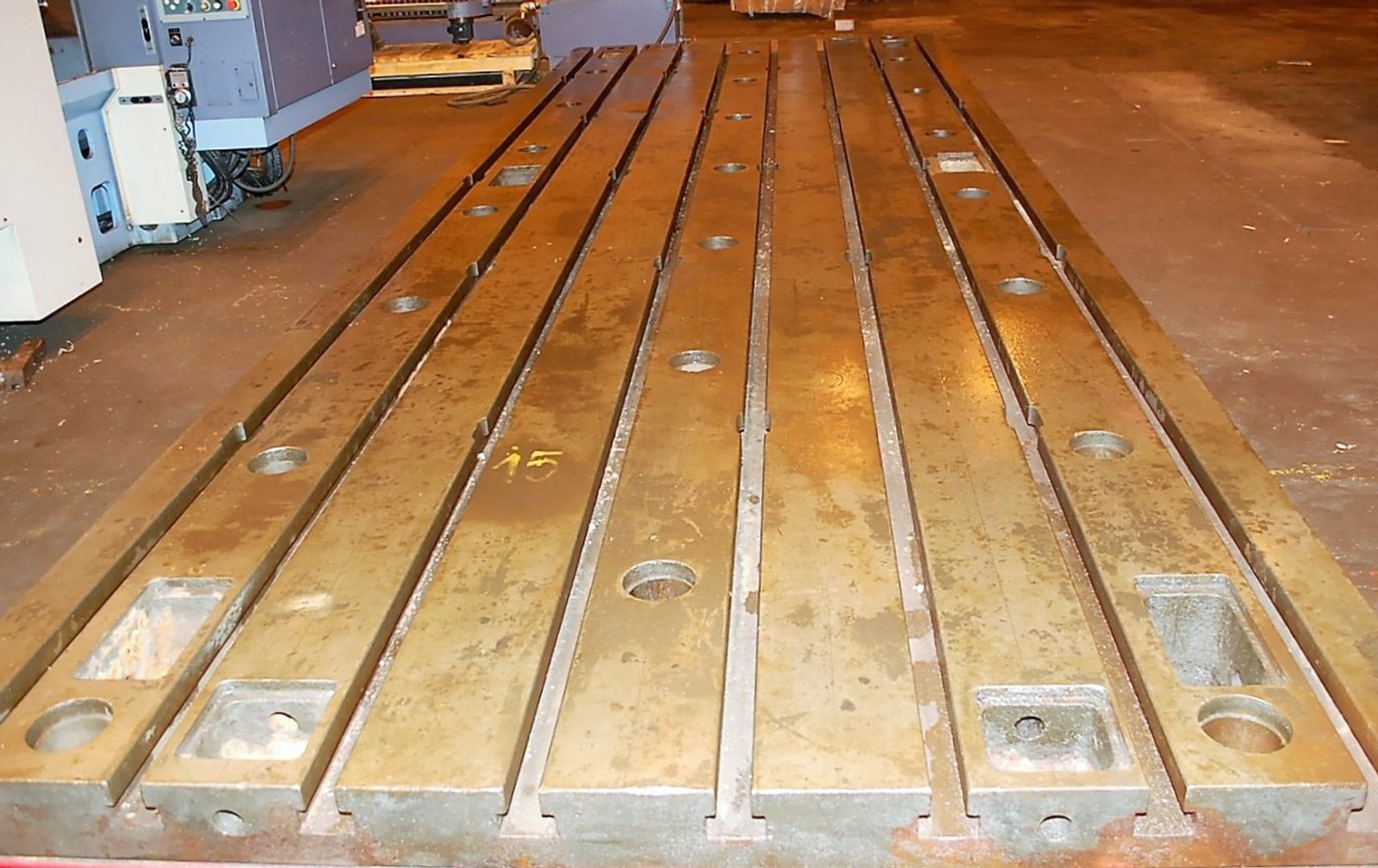

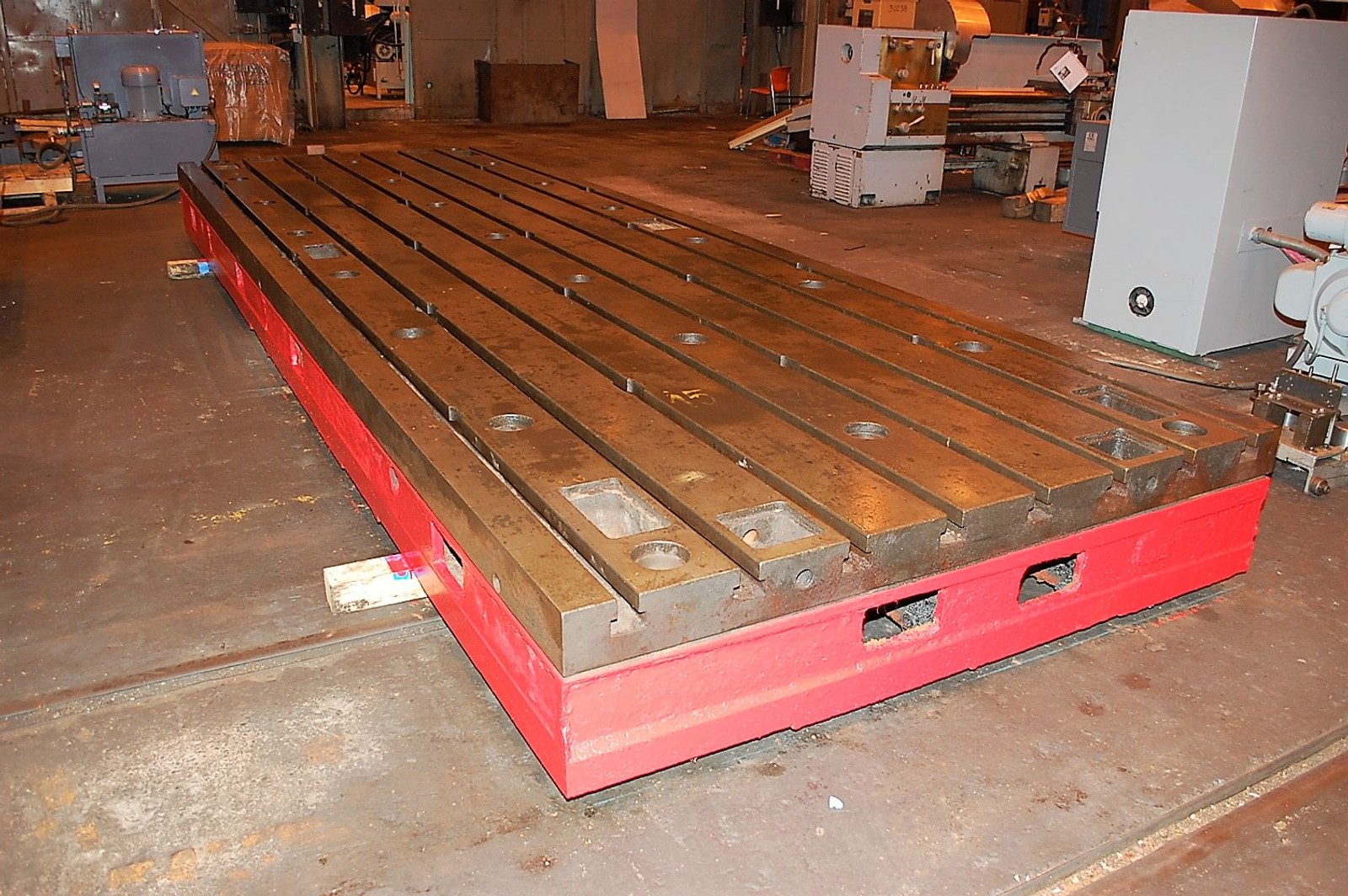

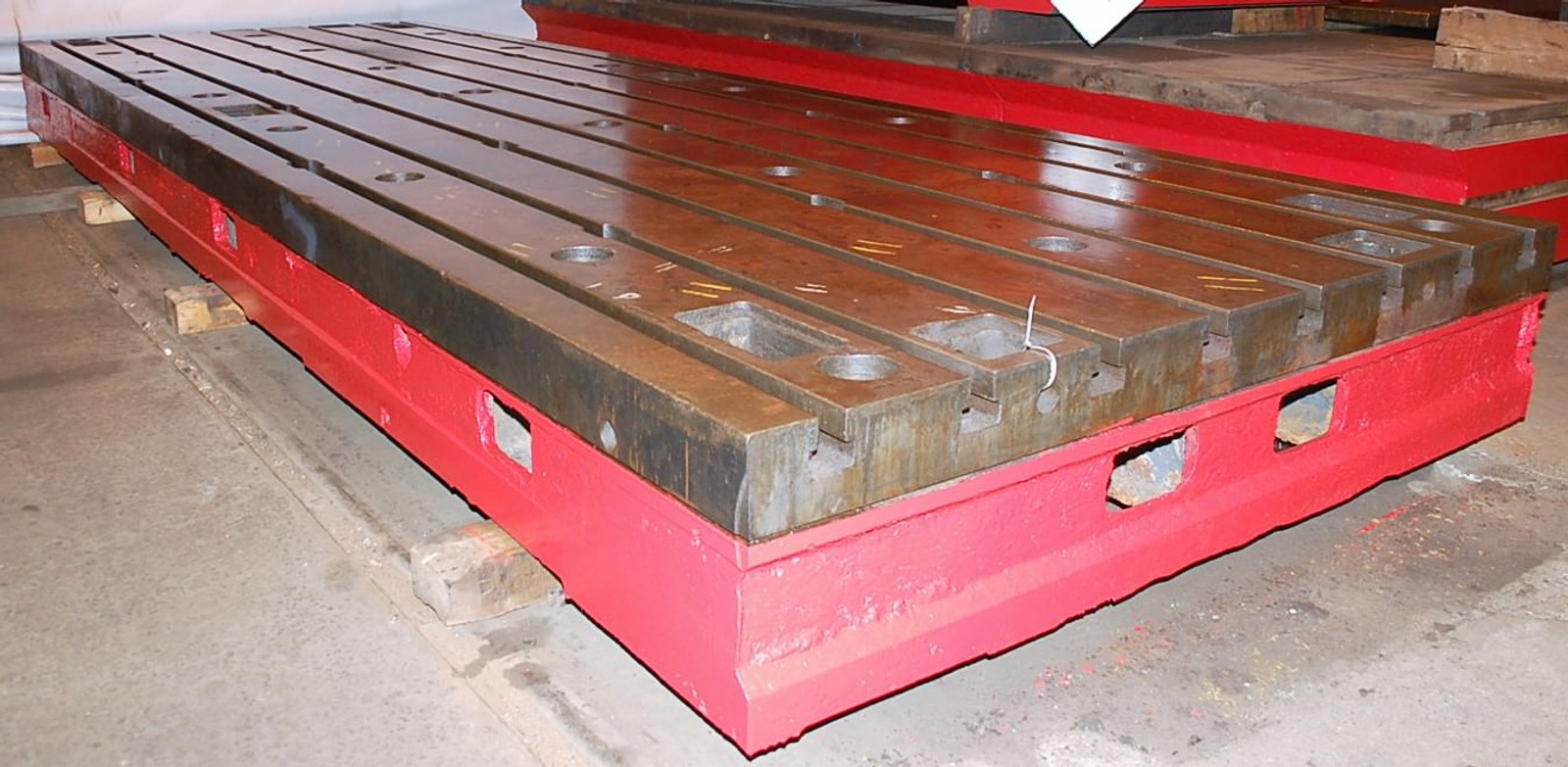

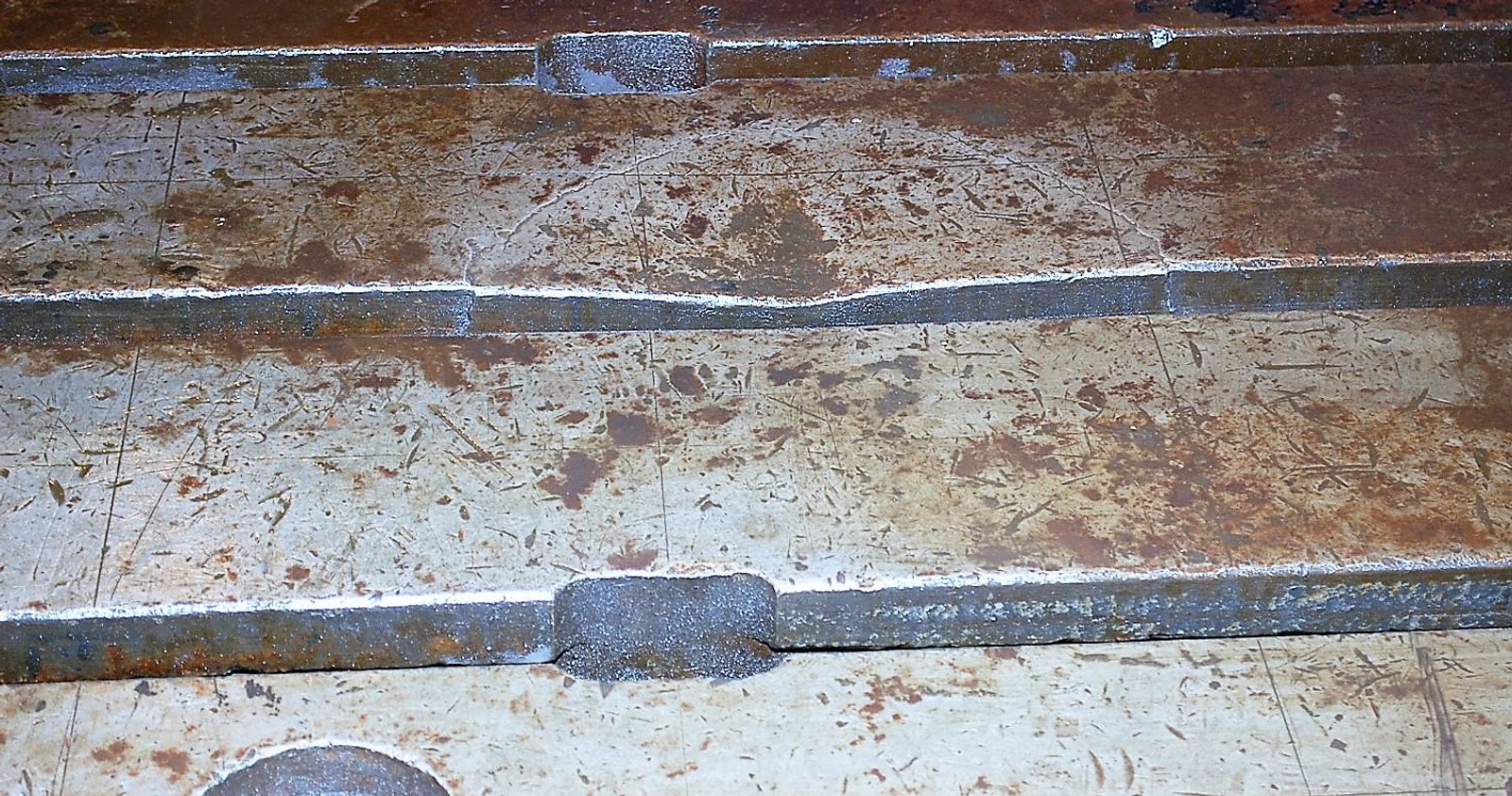

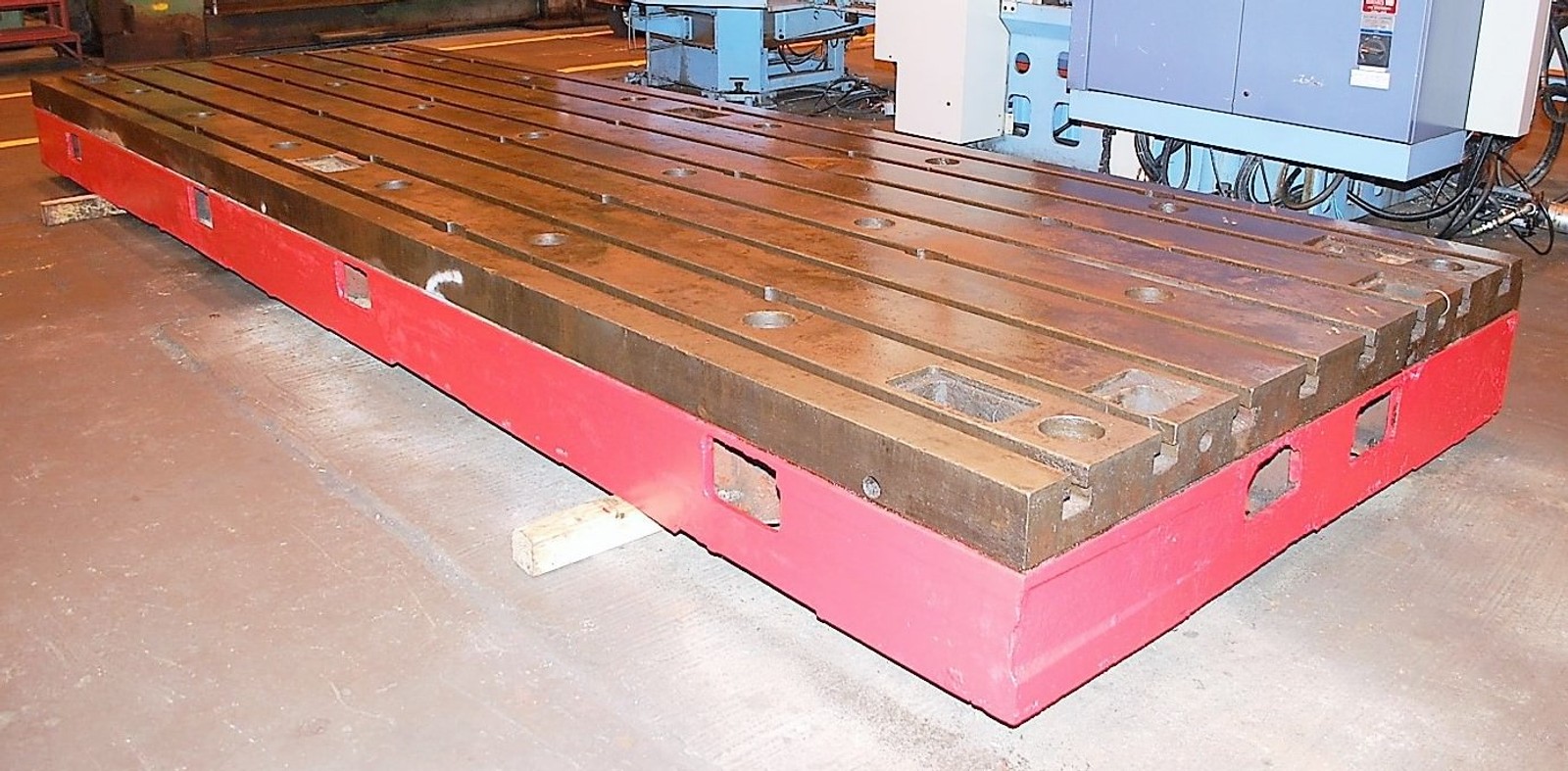

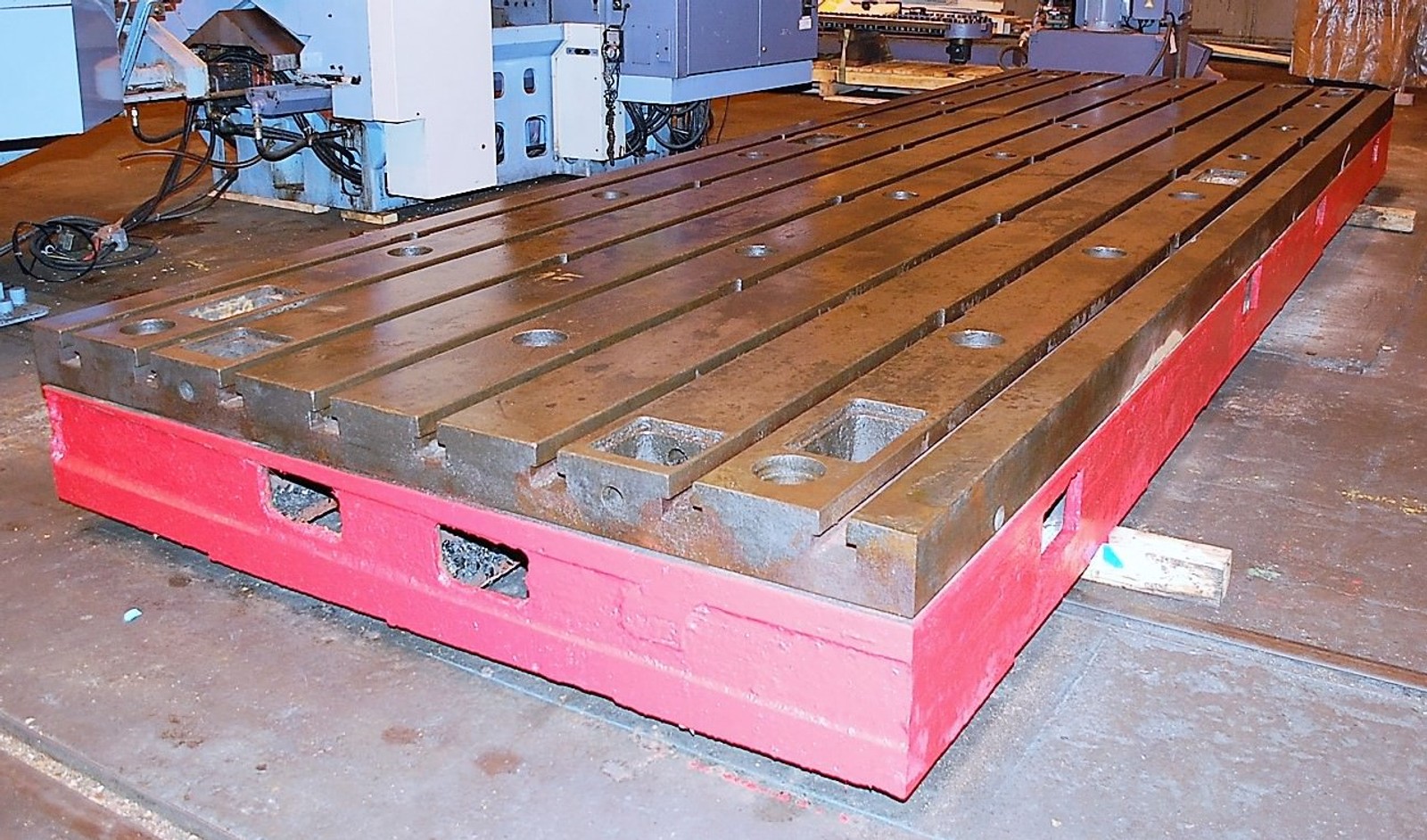

T-Slotted Floor Plates (1) 78" x 236" Cast Iron

CAPACITY:
Width ................................. 78.74"
Length ................................ 236.22"
Thickness ............................. 16.43"
T-Slot Center Distance ................ 9.874"
T-Slot Center Distance from Edge ...... 4.13"
Number of T-Slots, Longitudinal ....... 8
T-Slot Depth .......................... 2.95"
T-Slot Width, Top ..................... 1.57"
T-Slot Width, Bottom .................. 2.75"
Approximate Weight .................... 26,500 Lbs

EQUIPPED WITH:
Matched
T-Slotted
