WMW BP-180P CNC, 7.08" Spdl, X-511", Y-196", Z-47", W-39", 2500 RPM, 157" x 157" R.Tab, Fanuc 18i-MB CNC, #30944

Manufacturer

WMW

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, FLOOR TYPE, CNC

Stock

30944

Model

BP-180P CNC

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #30944

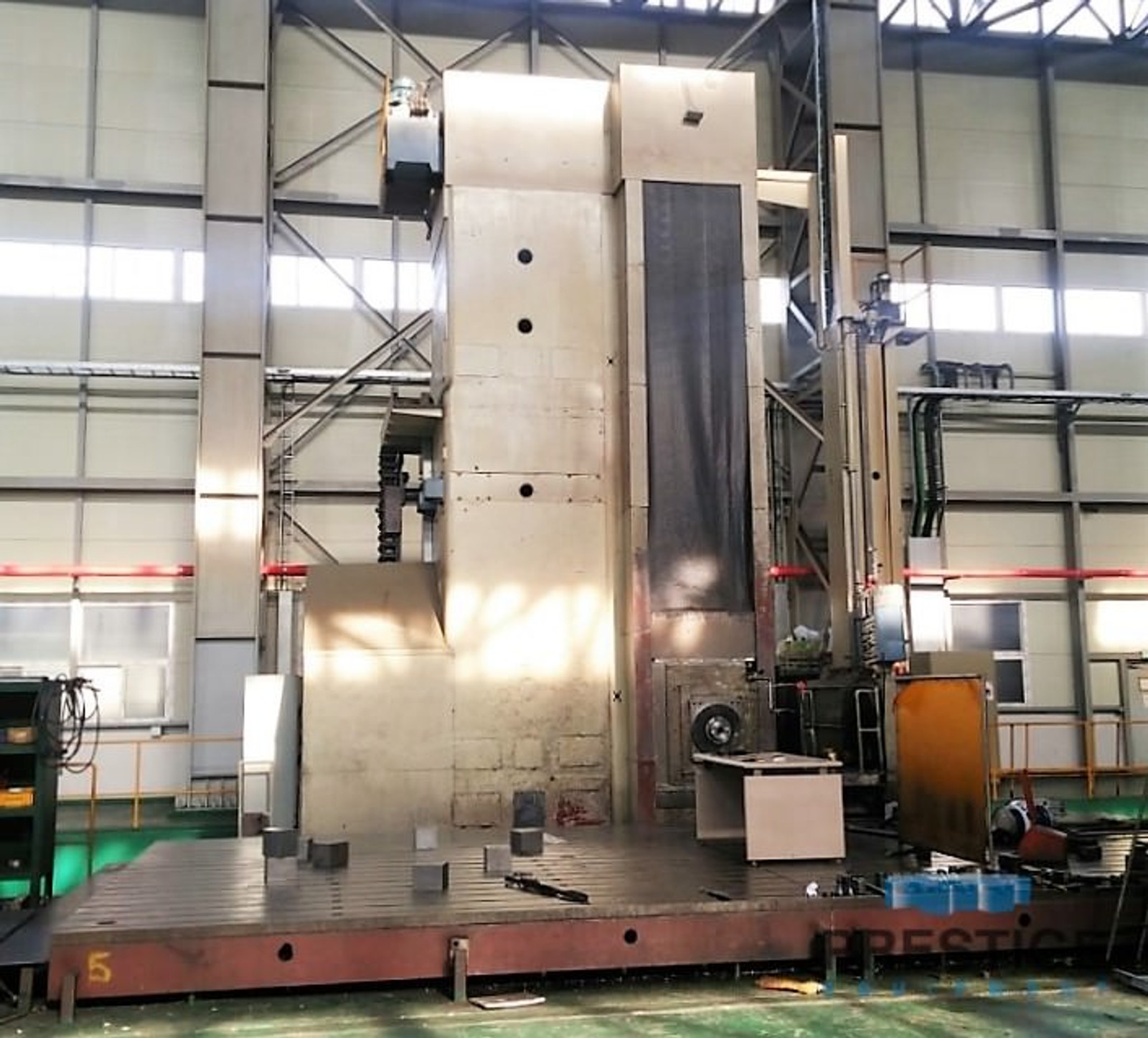

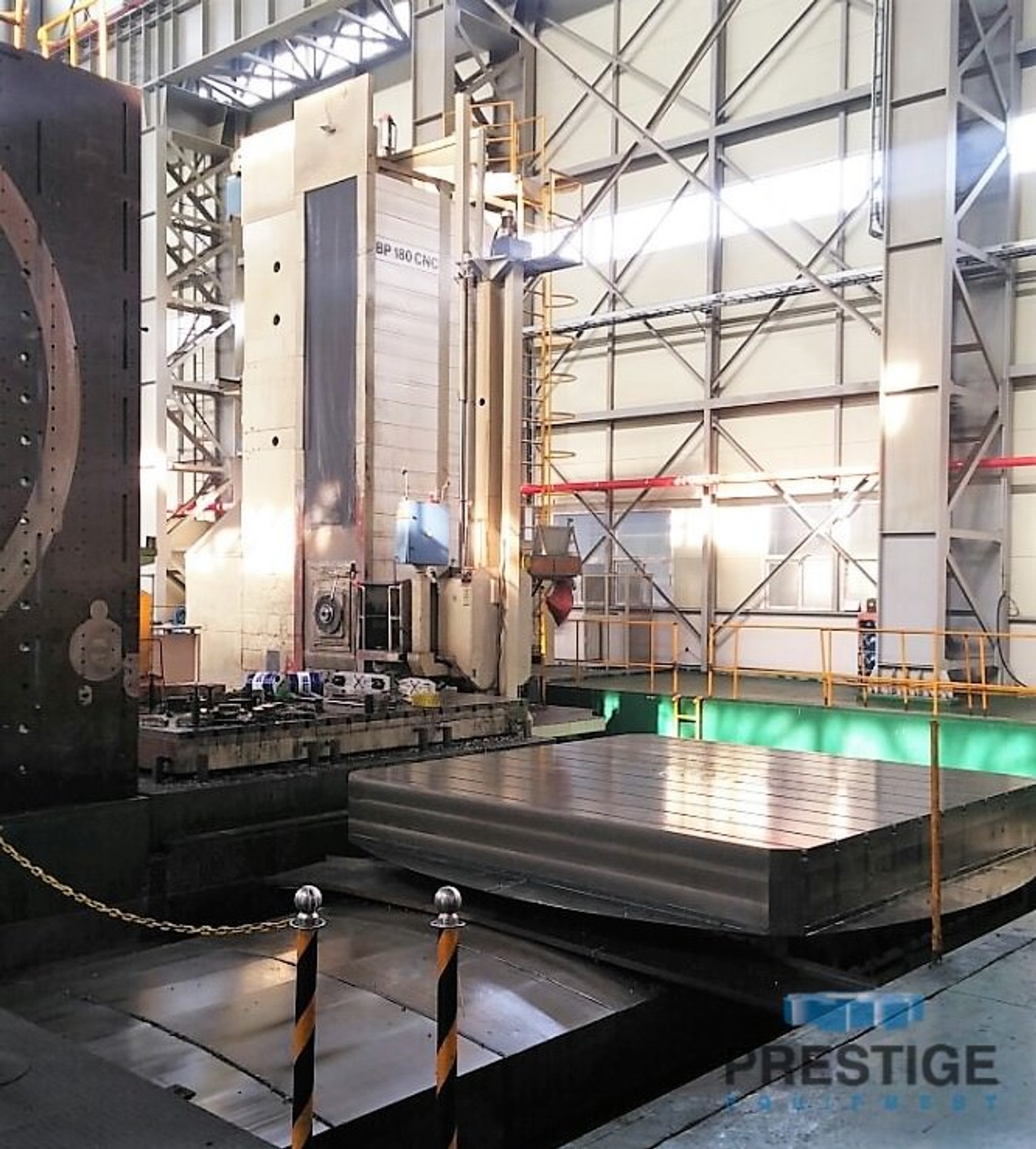

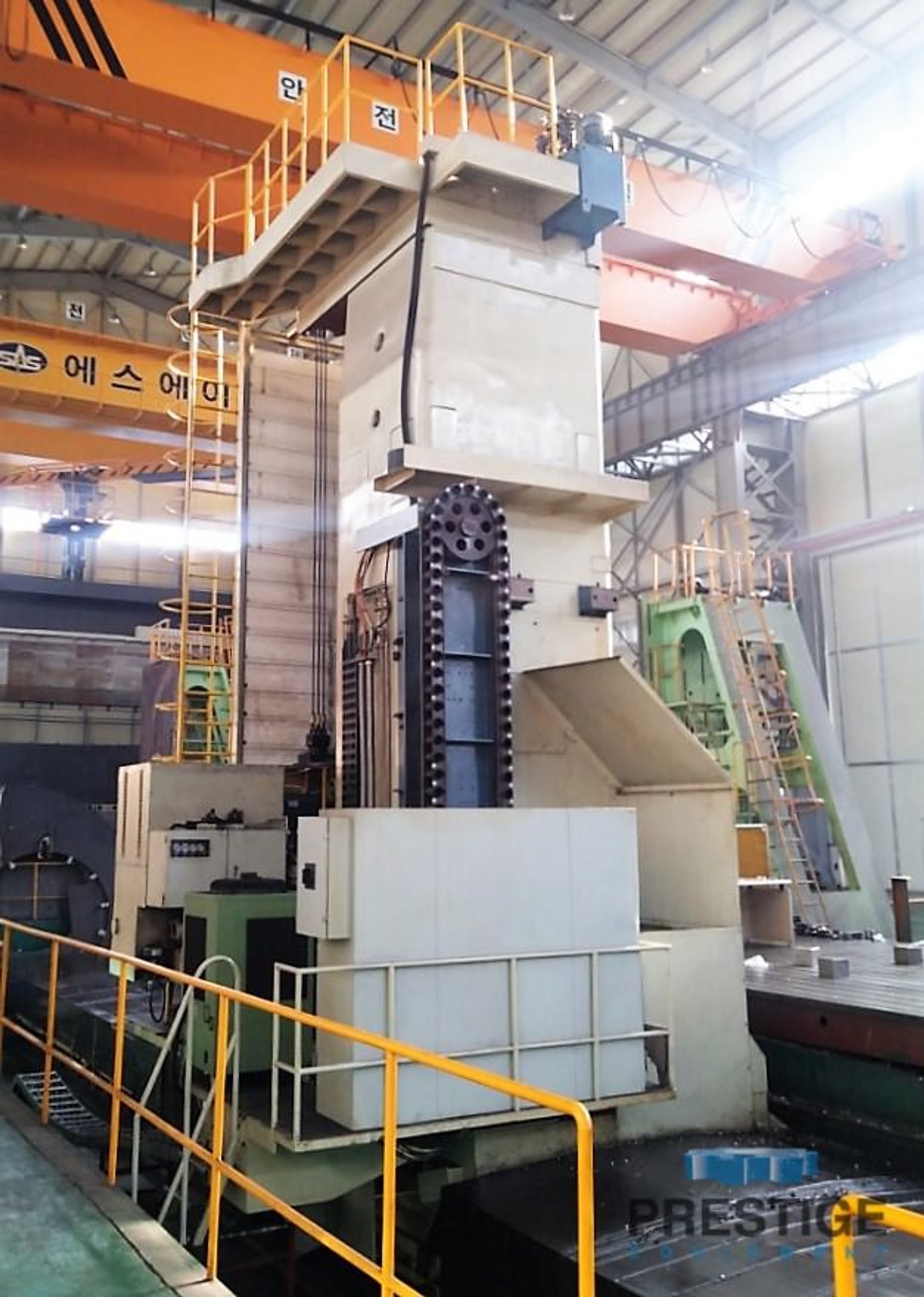

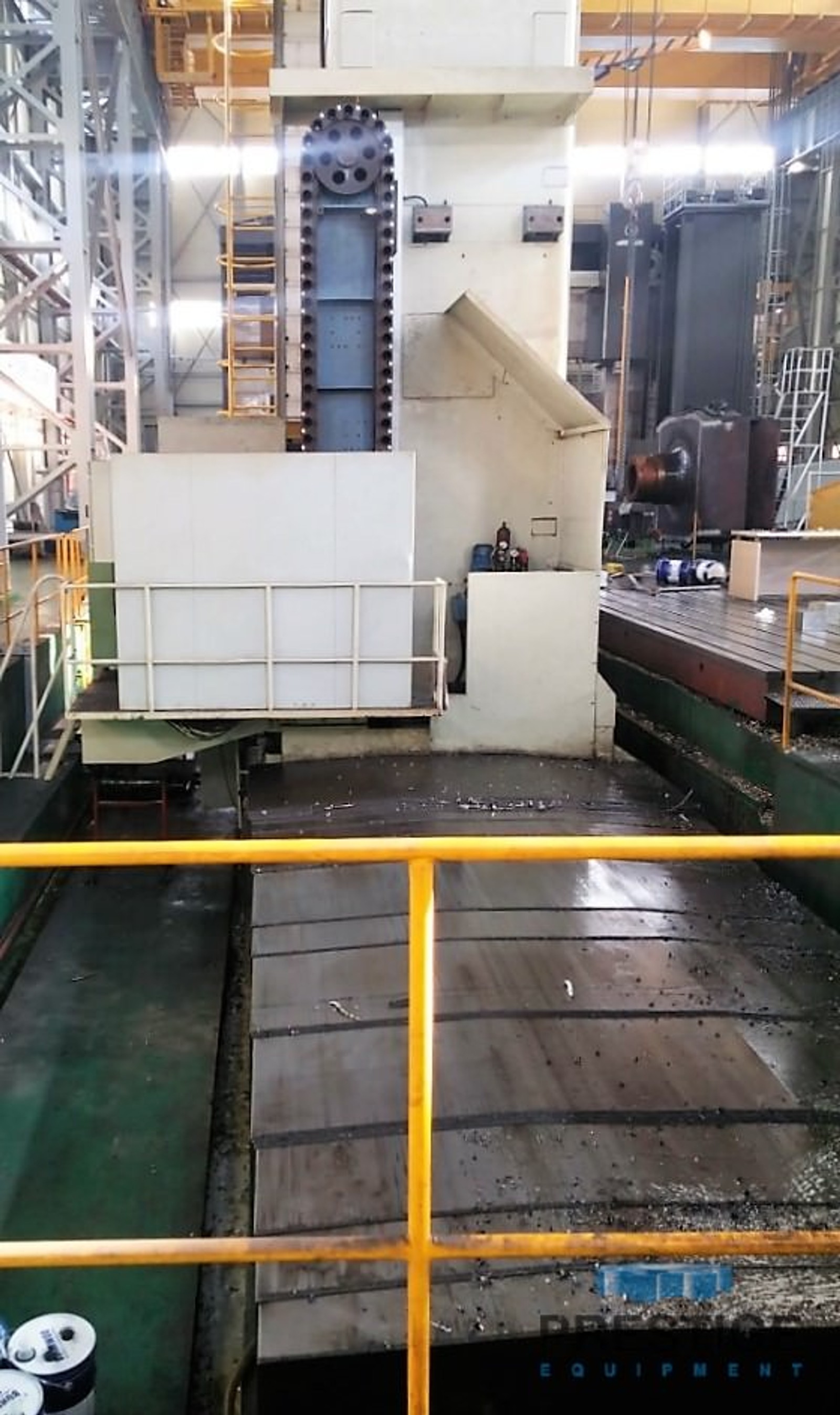

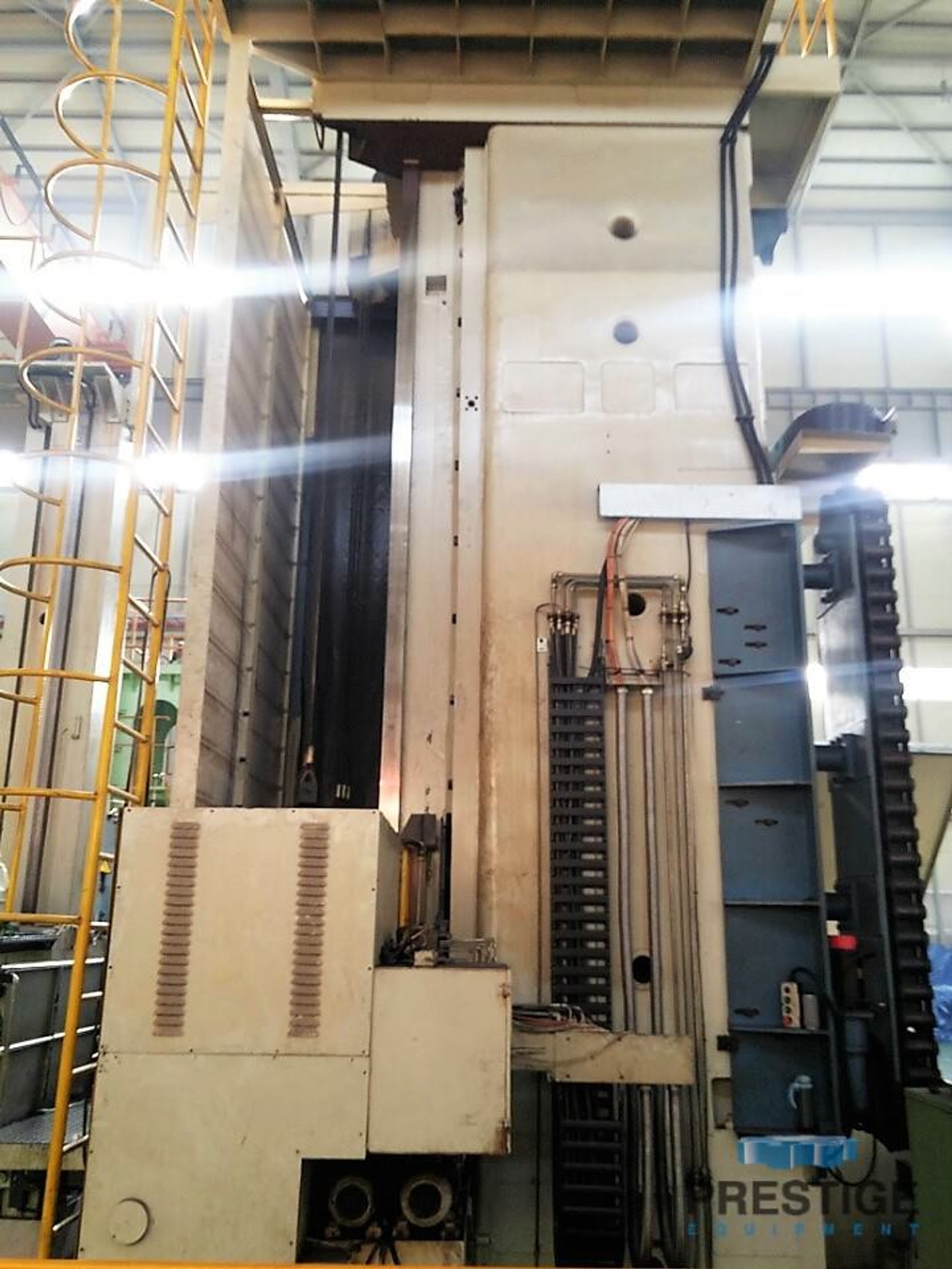

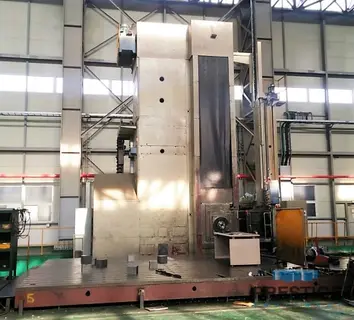

WMW 7.08" BP-180P CNC Floor Type Horizontal Boring Mill

FEATURES:
Fanuc 18i-MB CNC Control (Retrofit 2015)
157.48" x 157.48" Infeeding Rotary Table
40-Station Automatic Tool Changer
4-Station Automatic Attachment Changer

CAPACITY:
Spindle Diameter ...................... 7.08"
Ram Dimensions ........................ 20.86" x 23.62"
Column Travel, X-Axis ................. 511.81"
Headstock Travel, Y-Axis .............. 196.85"
Spindle Travel, Z-Axis ................ 47.24"
Ram Travel, W-Axis .................... 39.37"
Combined Travel, Z/W-Axes ............. 86.61"
Spindle Speed ......................... 2500 RPM
Spindle Taper ......................... ISO 50
Spindle Motor ......................... 80 HP

INFEEDING ROTARY TABLE:
Table Dimensions ...................... 157.48" x 157.48"
Table Infeed .......................... 113.77"
Table Weight Capacity ................. 100 Ton
Table Indexing ........................ .001 Degree

EQUIPPED WITH:
Fanuc 18i-MB CNC Control (Retrofit 2015)
157.48" x 157.48" Infeeding Rotary Table
40-Station Automatic Tool Changer
4-Station Automatic Attachment Changer
Chip Conveyor
