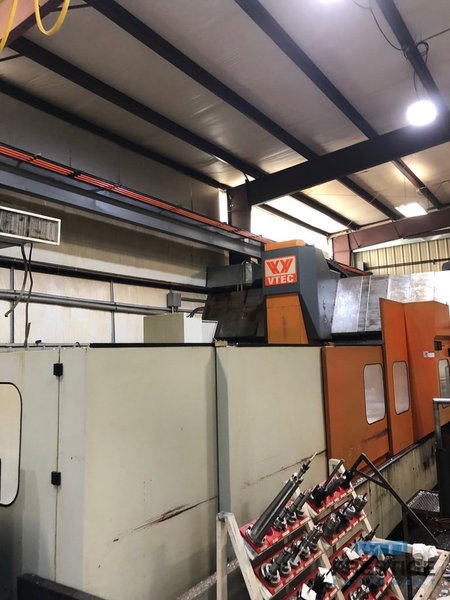

VTEC VF-4000, X-165", Y-90", Fanuc 18i CNC, 40 ATC, #50 Taper, 6,000 RPM, #30971

Manufacturer

VISION WIDE

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

30971

Model

VF4000

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #30971

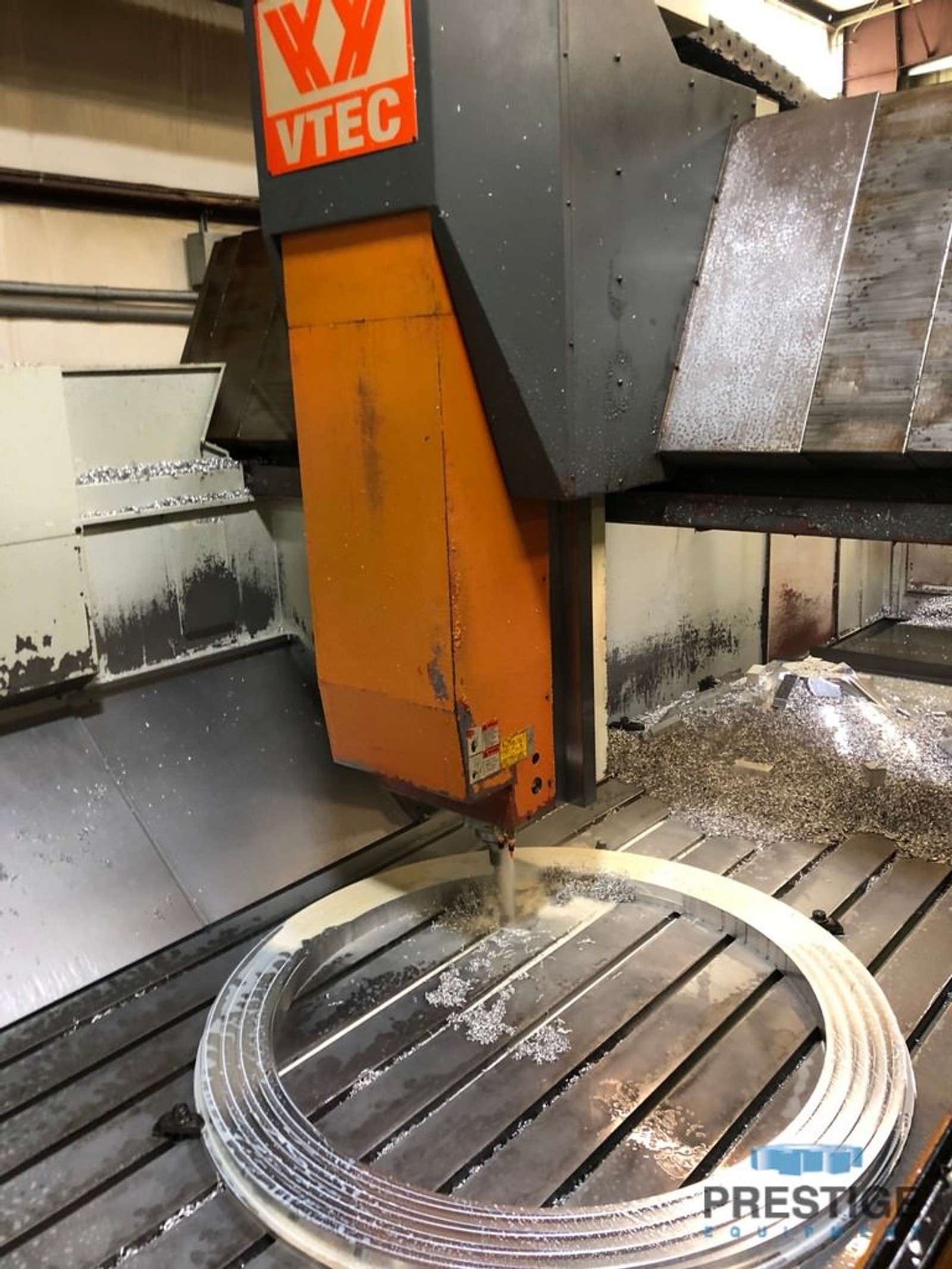

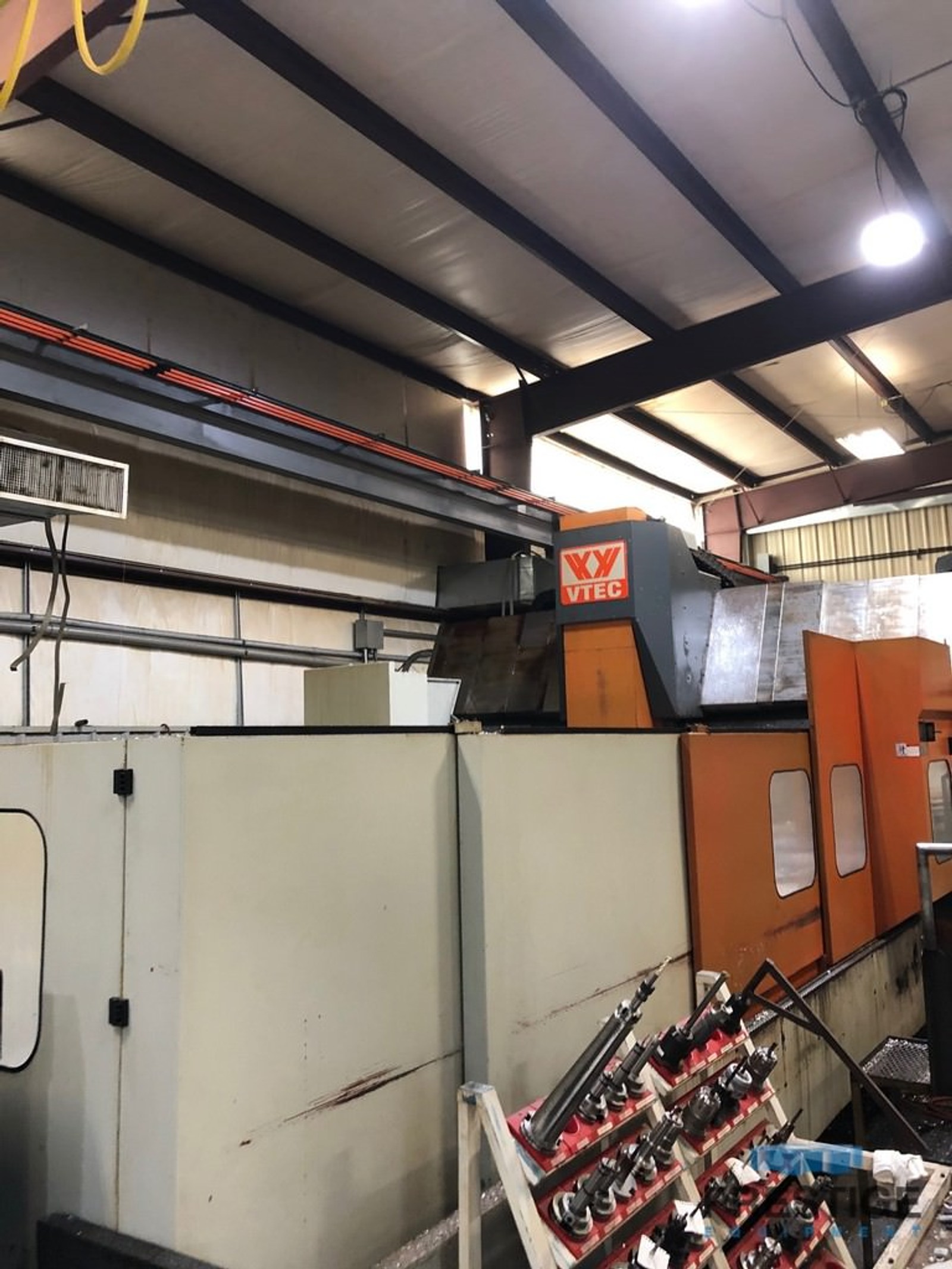

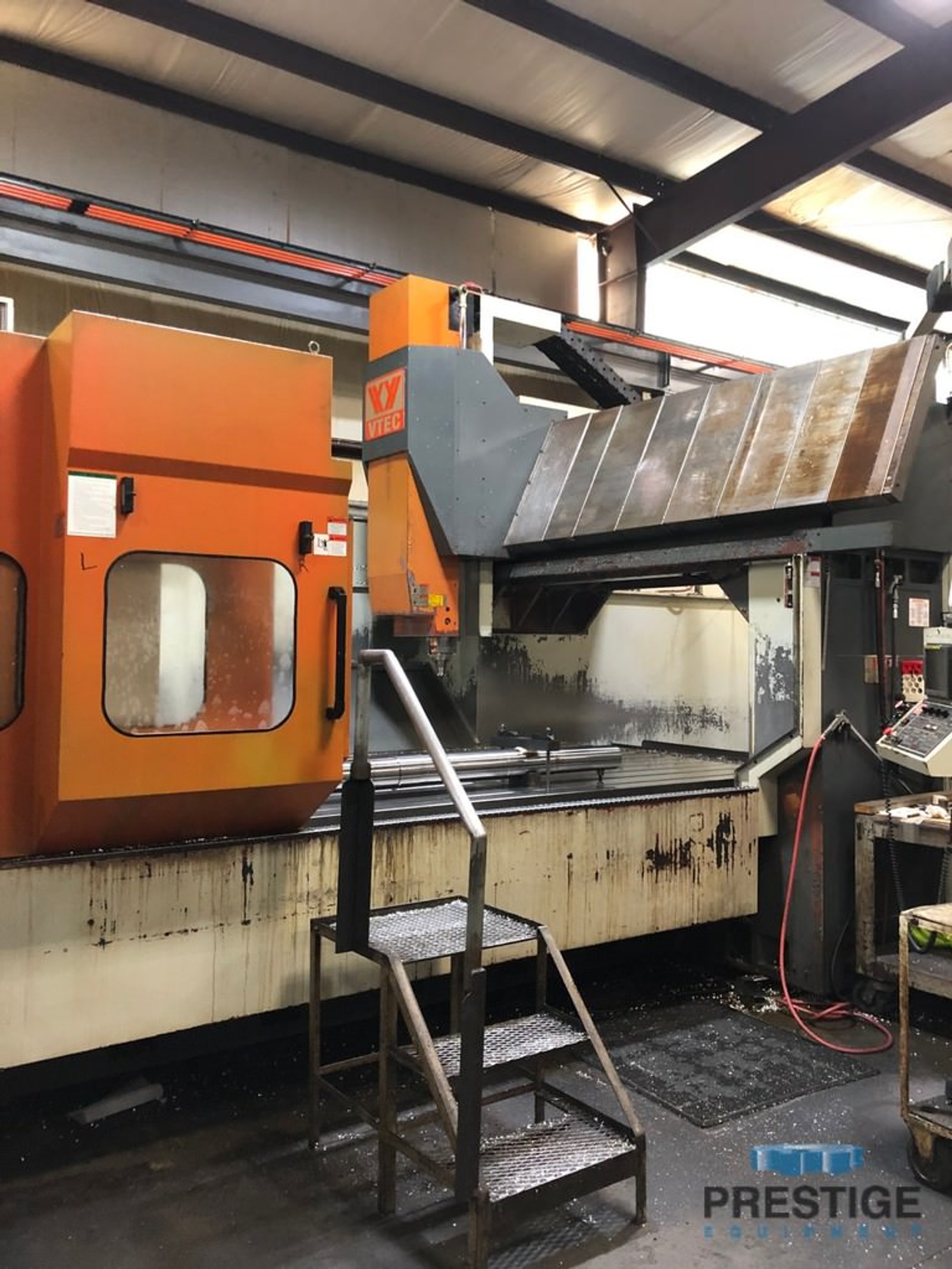

VTEC VF-4000 3-Axis CNC Double Column Machining Center

FEATURES:

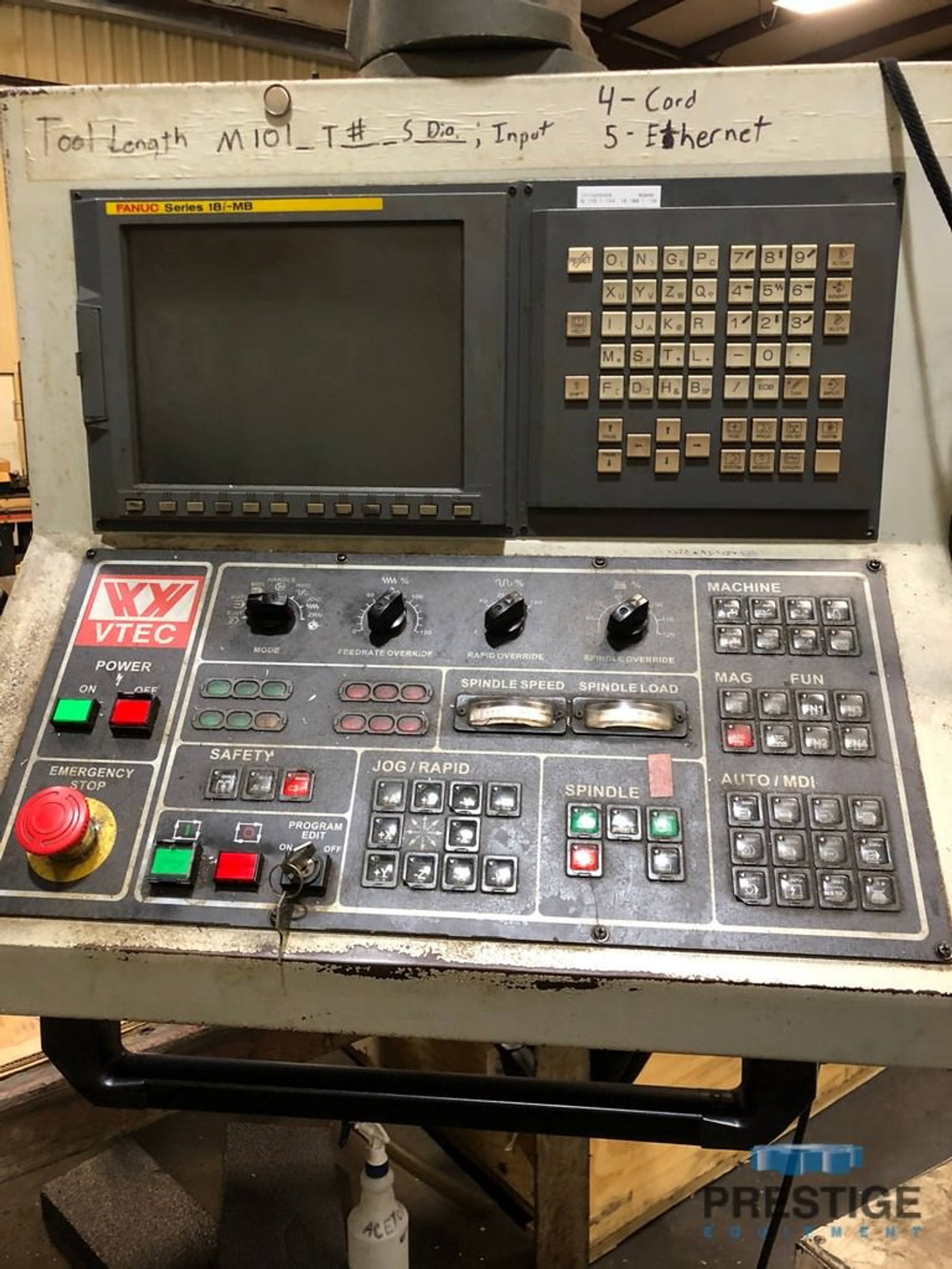

Fanuc 18iMB CNC Control
40 Station Automatic Tool Changer

SPECIFICATIONS:
X-Axis, Table Travel .................. 165.35"
Y-Axis, Spindle Head Travel ........... 90.55"
Z-Axis, Vertical Travel ............... 36.22"
Distance Between Columns .............. 94.48"
Minimum Distance Spindle to Table ..... 5.9"
Maximum Distance Spindle to Table ..... 42.12"
Table Size ............................ 80.70" x 165.35"
Table Load Capacity ................... 28,600 lbs
Spindle Taper ......................... #50
Spindle Speeds (2-Gear Ranges) ........ 6000 RPM
Spindle Motor ......................... 35 HP
Rapid Feed Rates X,Y,Z Axis ........... 590 IPM
Cutting Feed Rate ..................... 275 IPM
Machine Weight ........................ 86,680 Lbs

EQUIPPED WITH:
FANUC 18iMB CNC Control
40 Station Automatic Tool Changer
Box Way Construction
Telescopic Steel Way Covers on All Axes

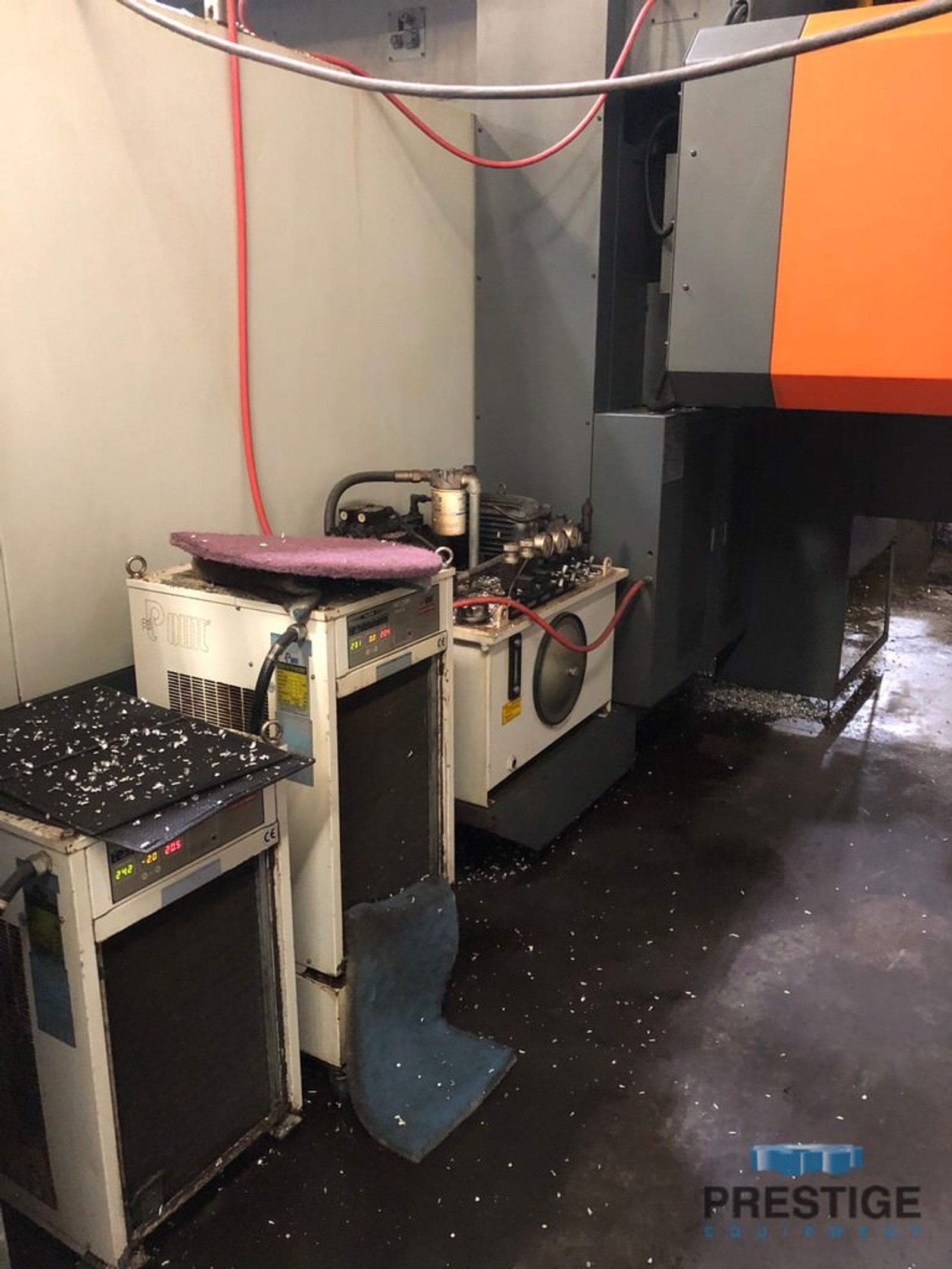

Spindle Chiller
Air Blast Through Spindle

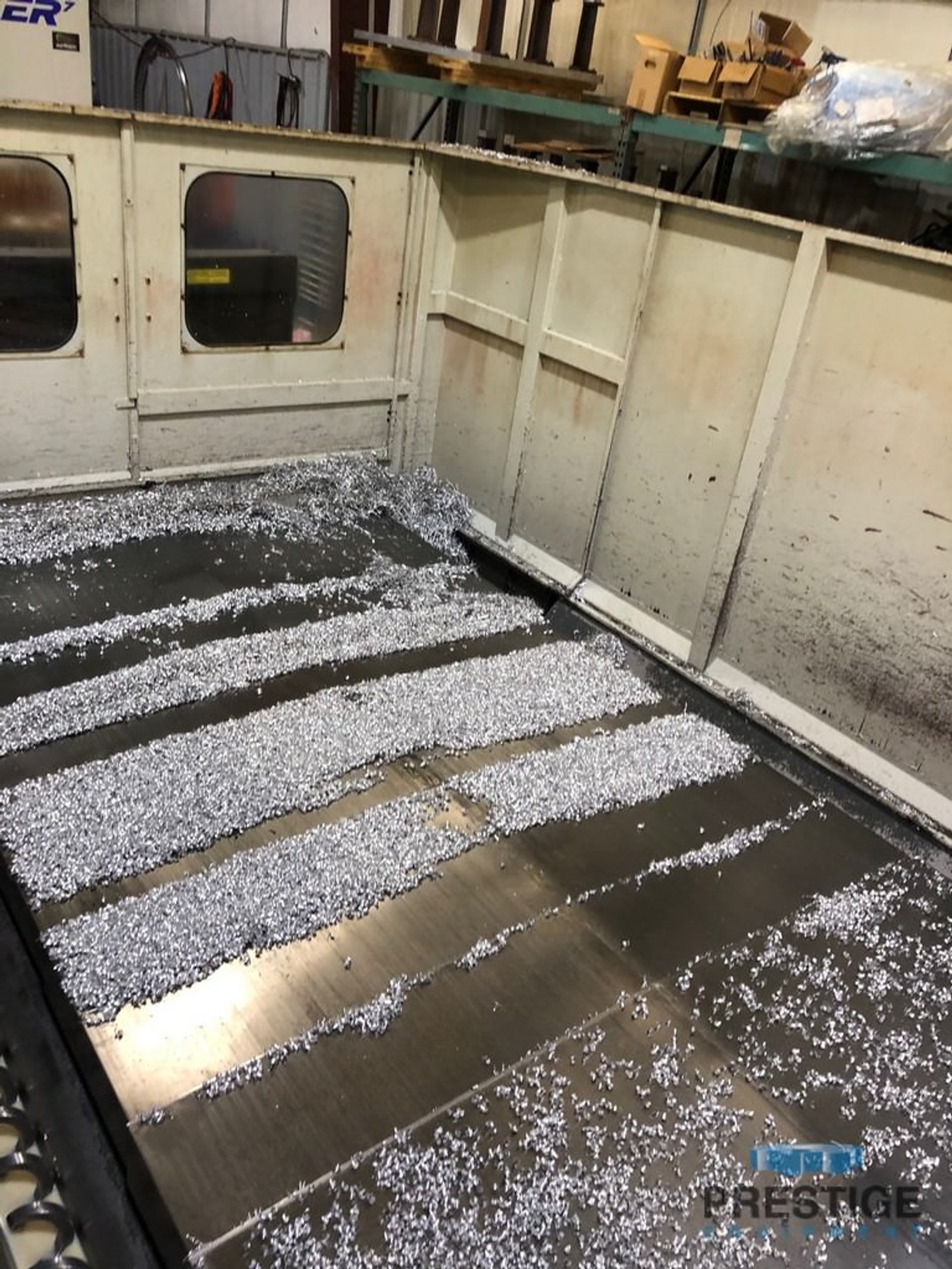

Full Splash Guards
Chip Conveyor

NOTE:
Inspect in Plant Under Power

No Video Available
