Daewoo DHP400, X-23.6", Y-22", 15.7" Pallets, Fanuc 18i-MB, 60 ATC, 2005, #30998

Manufacturer

DAEWOO

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

30998

Model

DHP4000

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #30998

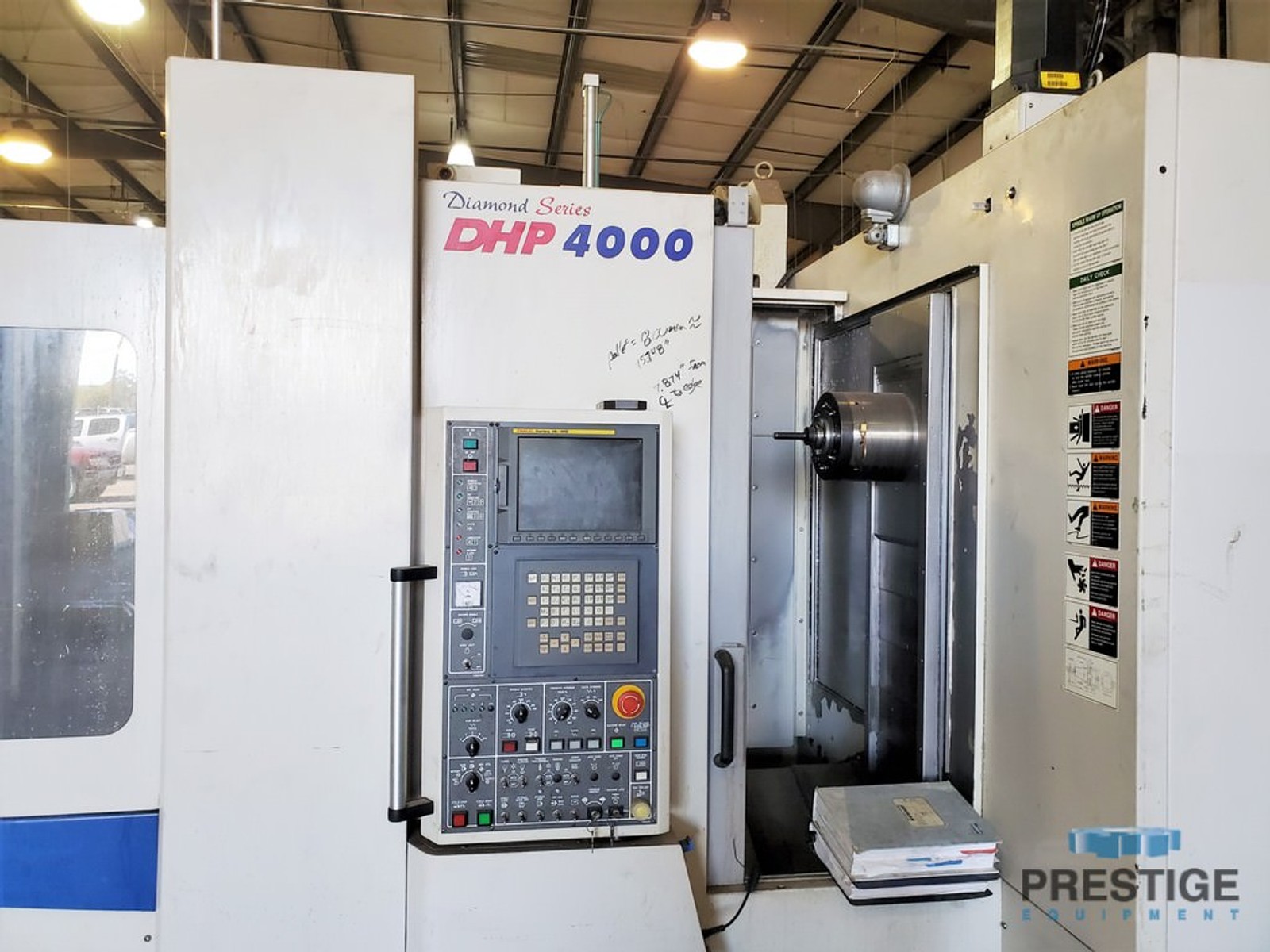

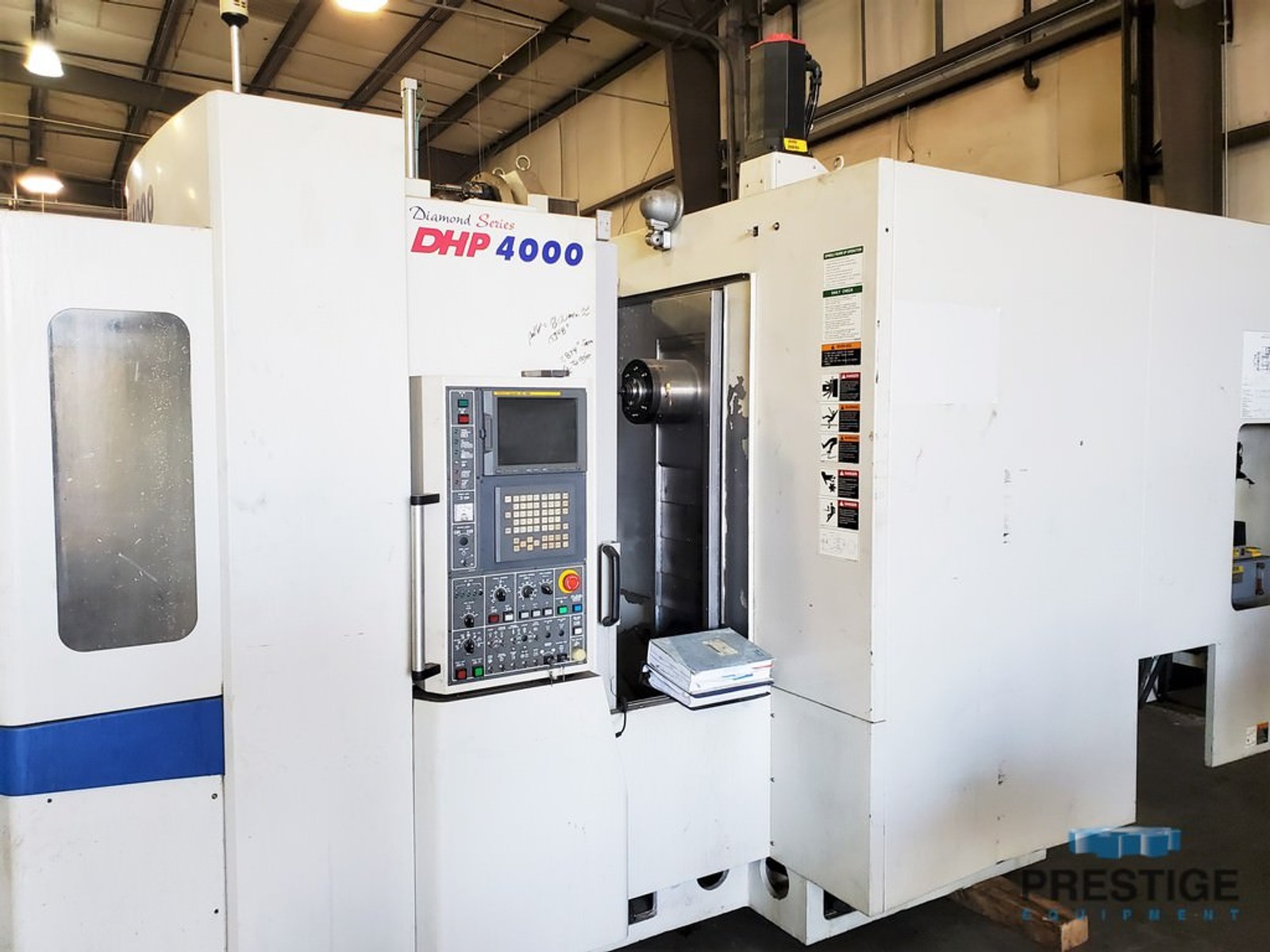

Daewoo DHP4000 CNC Horizontal Machining Center

FEATURES:
Fanuc 18iM CNC Control
(2) 15.7" x 15.7" Pallets
60-Position Automatic Tool Changer



CAPACITY:
X-Axis Travel ......................... 23.62"
Y-Axis Travel ......................... 22.05"
Z-Axis Travel ......................... 22.24"
Spindle Center to Table Top ........... 1.97"-24.02"
Spindle Nose to Table Center .......... 5.91"-28.15"
Number of Pallets ..................... 2
Pallet Size ........................... 15.7" x 15.7"
Pallet Load Capacity .................. 880 LBS.
Pallet Indexing ....................... 1 Degree
Spindle Speeds ........................ 140-12,000 RPM
Spindle Drive Motor ................... 25 HP
Spindle Taper ......................... CAT #40
Rapid Traverse Rate ................... 1890 IPM
Cutting Feed Rate ..................... 0.04"-945 IPM

EQUIPPED WITH:
Fanuc 18iM CNC Control
(2) 15.7" x 15.7" Pallets
60-Position Automatic Tool Changer
