Forest Line' Vecomill 5-Face, 100 ATC, AAC, 100 HP, 98" x 138" Pallets w/ Shuttle, X-236" BC 122" Siemens 840DSL #31016

Manufacturer

Forest-Line

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

31016

Model

Veco Mill 463

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31016

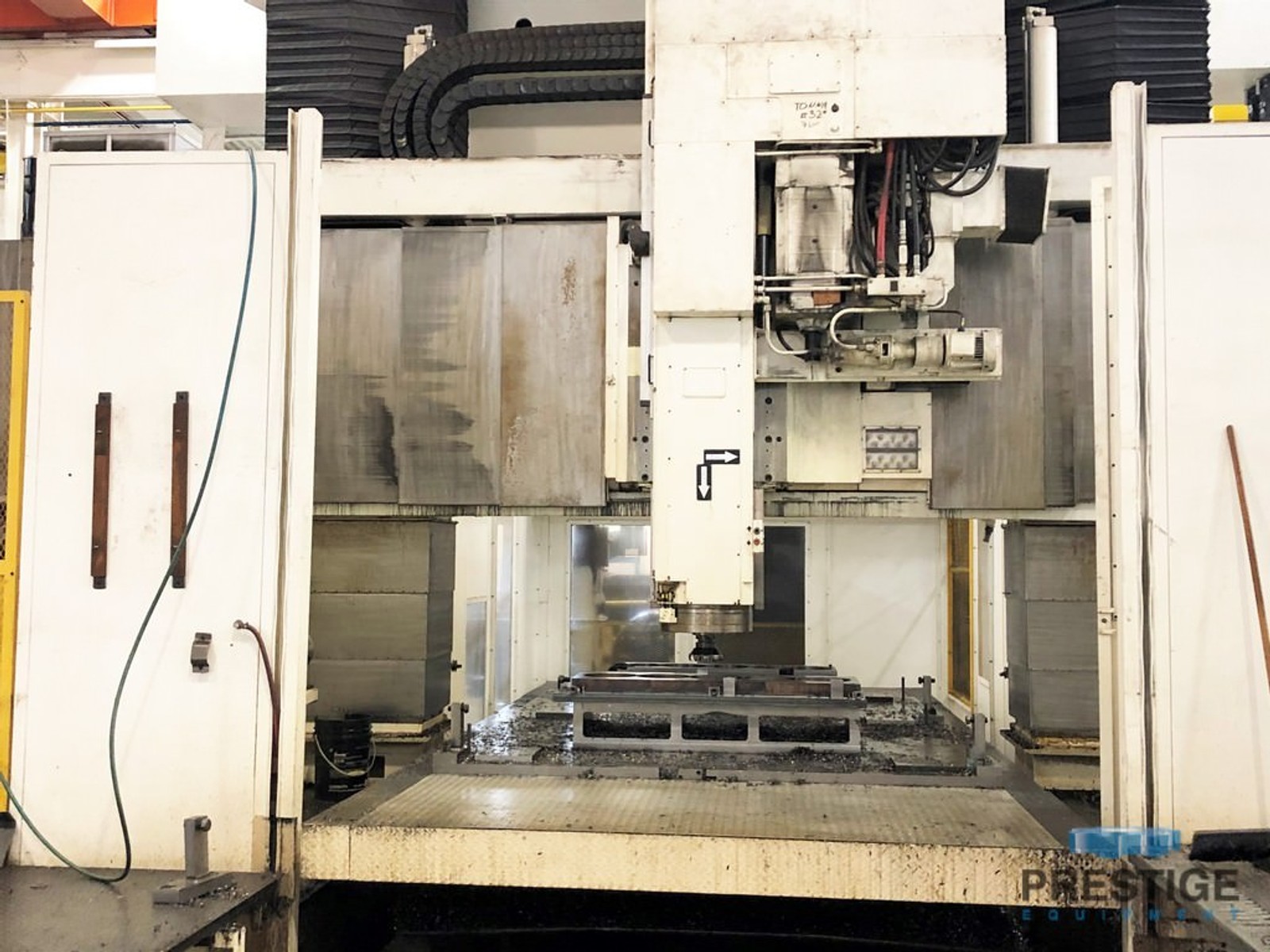

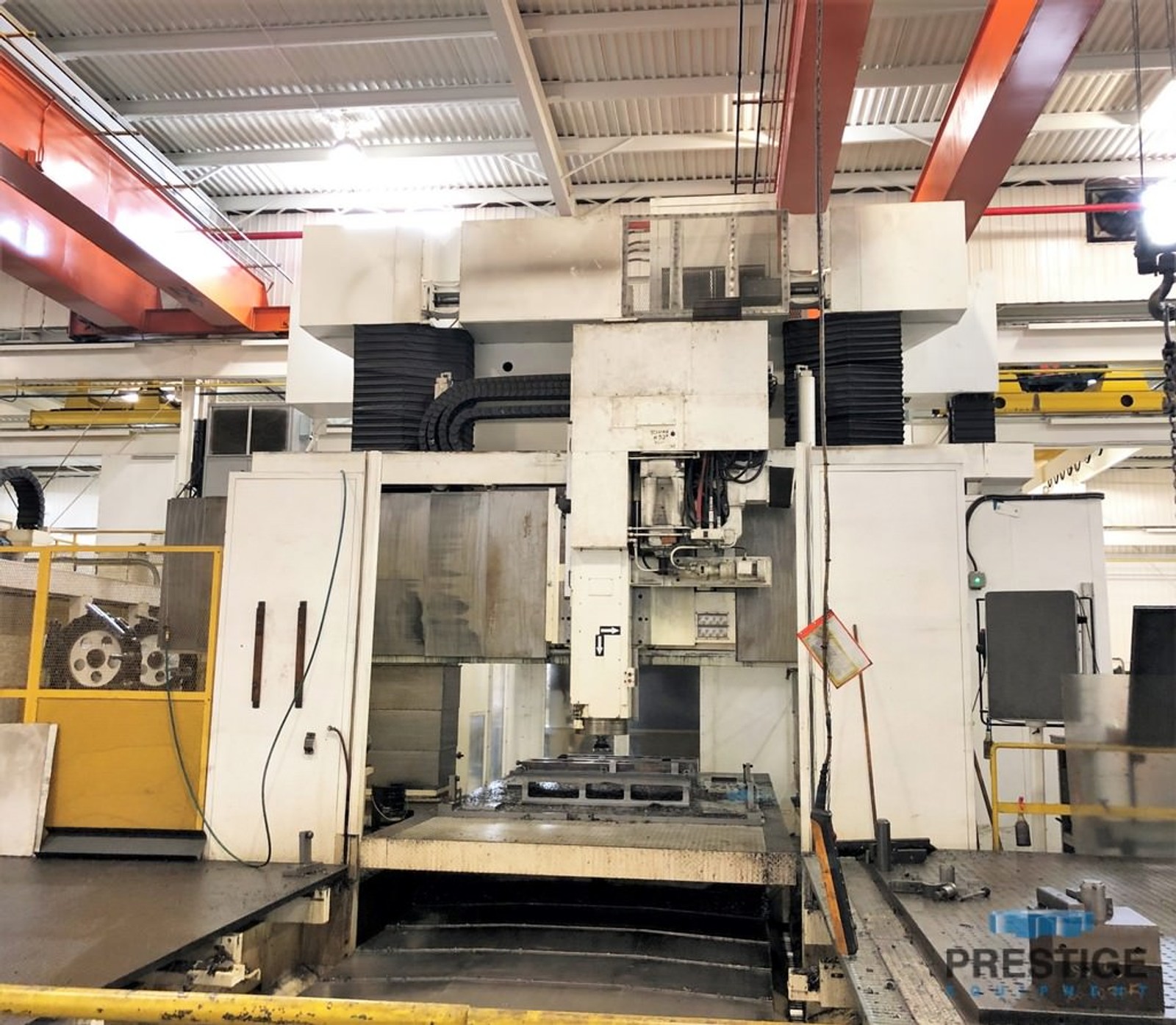

Forest Line Veco Mill 463 CNC Bridge Mill

FEATURES:

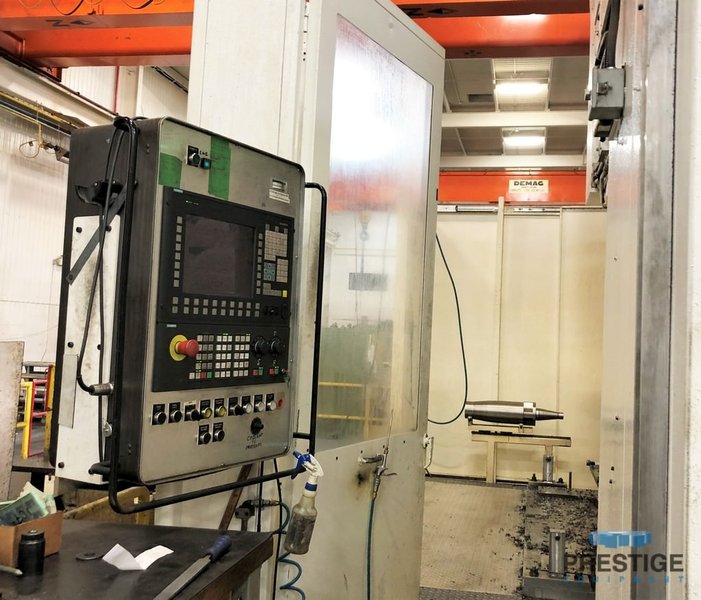

Siemens Sinumerik 840SL CNC Controls (Retrofit 2014)
Simoreg DC Master Spindle Drive
Sinamics 120 Servos
100 Station Automatic Toolchanger
Automatic Attachment Changer
Right Angle Attachment
Two Spindle Extentions
Thru Spindle Coolant
Renishaw Probe
Broken Tool Detection

CAPACITY:
Pallet Size, (2) ...................... 98" x 138"
X-Axis ................................ 236"
Y-Axis ................................ 141"
Z-Axis, Cross Rail .................... 74.8"
W-Axis, Ram Stroke .................... 39.4"
Distance Between Columns .............. 122"
Height Under Vertical Spindle ......... 98"
Ram Cross Section ..................... 18" x 18"
Spindle Speeds, 4-Ranges .............. 10-2000 RPM
Spindle Drive Motor ................... 84 HP
Spindle Taper ......................... #50 ANSI
Rapid Traverse ........................ 400 IPM
Table Weight Capacity ................. 50,000 LB

Equipped With:
Siemens Sinumerik 840SL CNC Controls (Retrofit 2014)
Simoreg DC Master Spindle Drive
Sinamics 120 Servos
100 Station Automatic Toolchanger
Automatic Attachment Changer
Right Angle Attachment
Two Spindle Extentions
Thru Spindle Coolant
Renishaw Probe
Broken Tool Detection

NOTE:
Complete Factory Retrofit including Electrical, Hydrostatic and Bridge Controls
Including New Siemens Controls, Motors, Drives, Cabinet and Chiller
