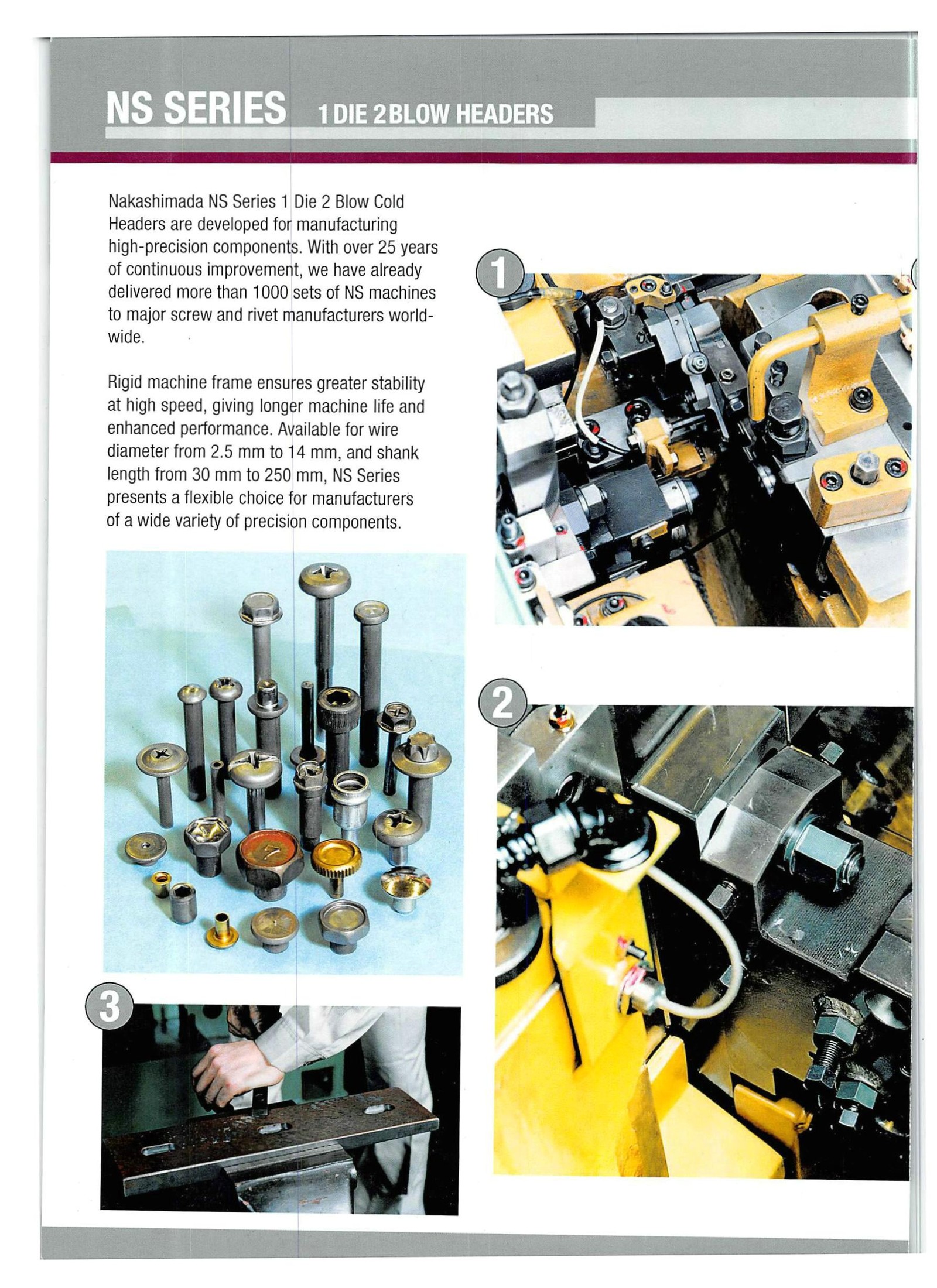

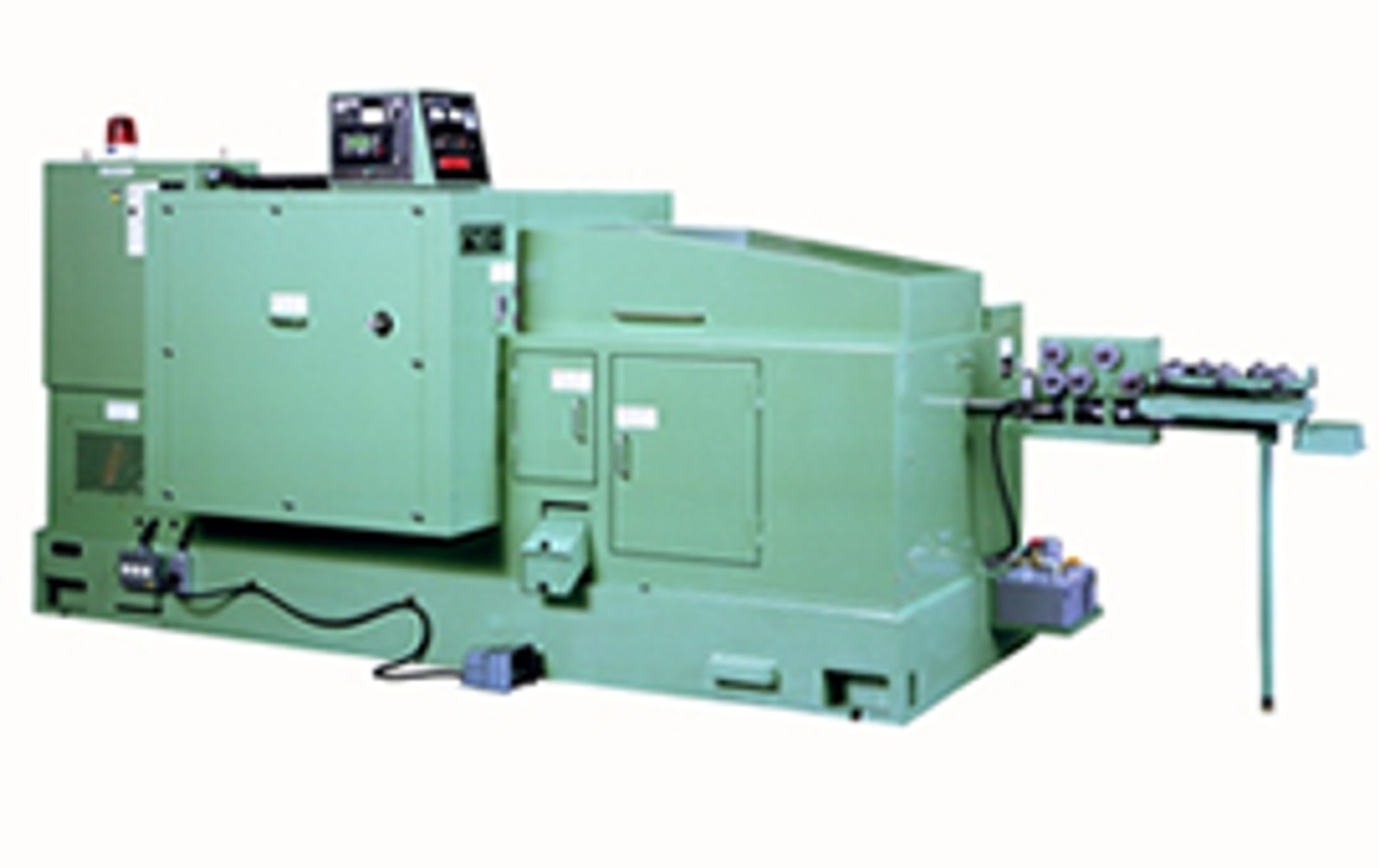

Nakashimada NS series 1 Die 2 Blow Cold Headers are developed for manufacturing high precision components.

Manufacturer

NAKASHIMADA

Category

Fabricating Machines

Type

COLD HEADERS

Stock

103

Model

NS SERIES

Dealer Location

Pennsylvania

Request a Quote
View Contact Information

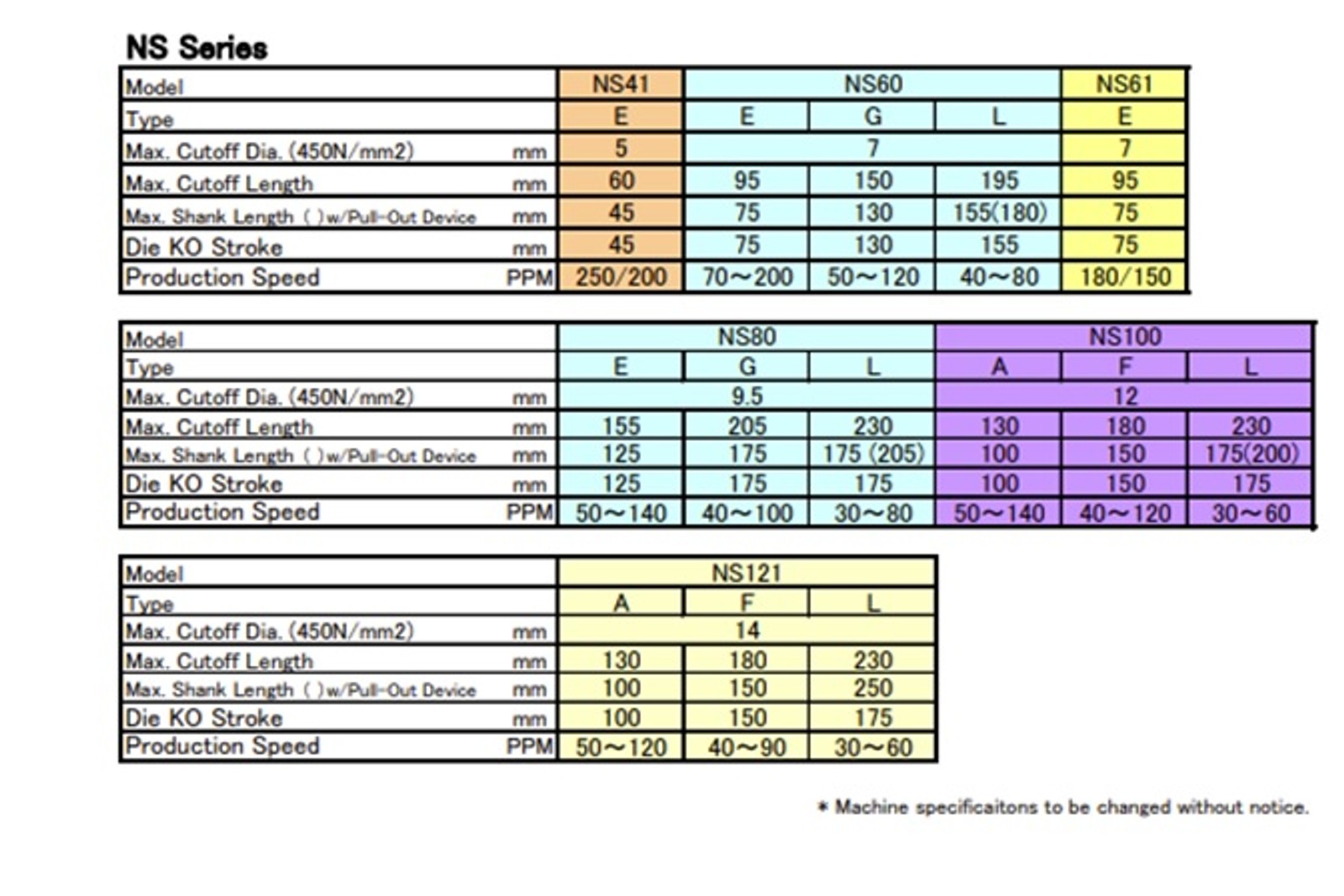

Spec Sheet

The punches are also positively locked during forming operation for repeatable and accurate production as well as for the exceptional tool life. Available from 2.5mm to 14.0mm in wire diameter and up to 200mm in shank length with adjustable die-knock relief, the NS series enables precision forming of more complex parts. To increase the reliability of low-noise operation, the cam shaft is powered by drive gear.

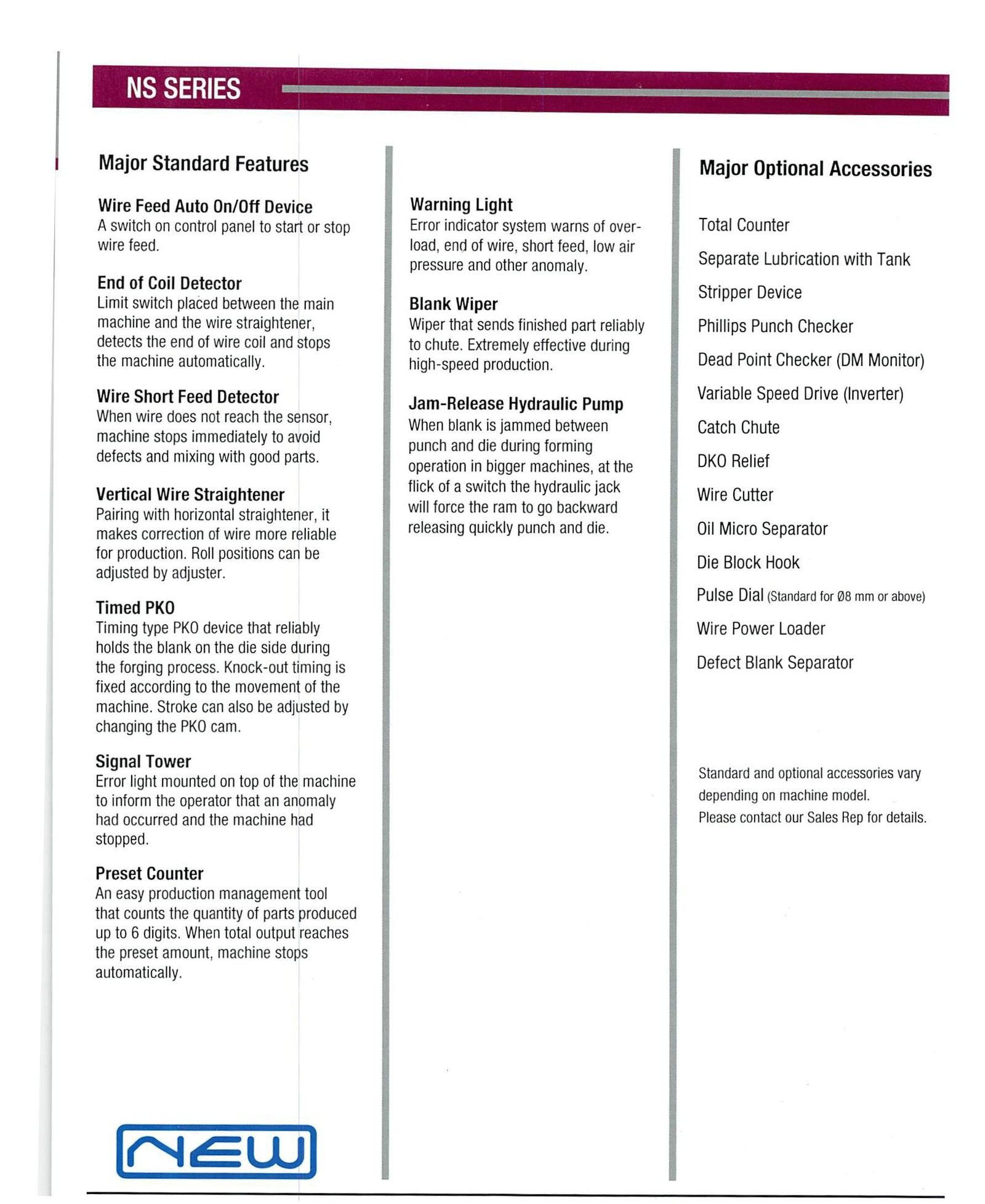

For responding to high quality products, stripper device, catch chute, pull-out device and more options are available. To increase the reliability of low-noise operation, the cam shaft is powered by drive gear. For responding to high quality products, stripper device, catch chute, pull-out device and more options are available.
